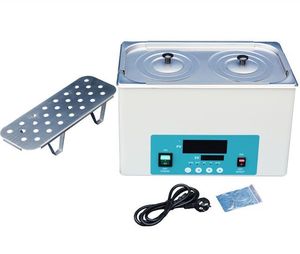

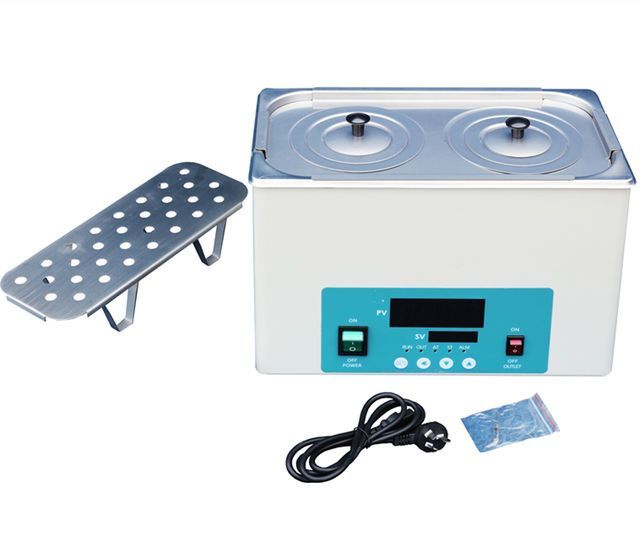

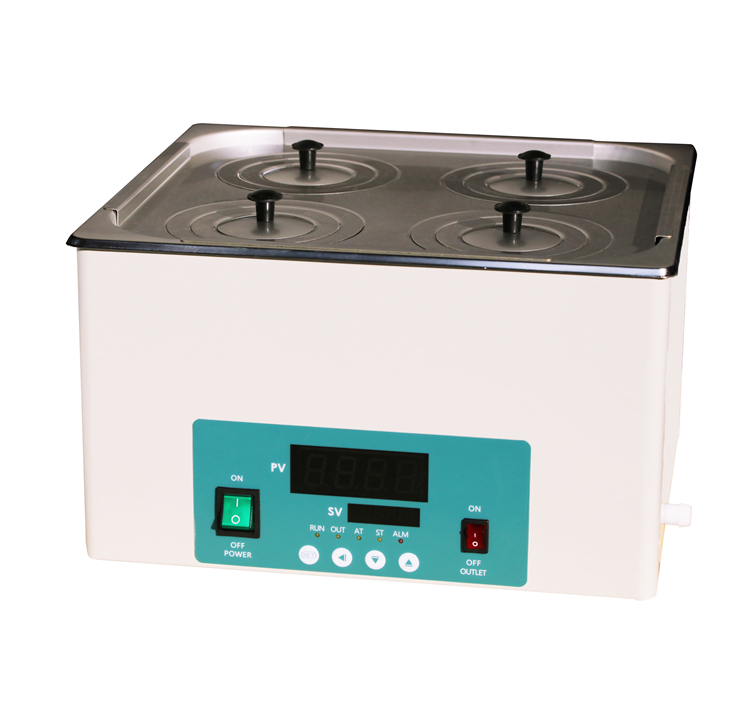

Digital stainless steel thermostatic water bath machine laboratory usage
- $78.80 /unit
- 1 unit
- Shanghai Lianhua Industrial Co., Ltd.
- Shanghai, China
- Ms Jessica Wang
PRODUCT DETAIL
| Temperature range: | RT+5~100℃; | Place of Origin: | Shanghai, China; |
| Port: | shanghai guagnzhou; | Timer: | 0-999 min; |
| Temperature Resolution: | ±0.5℃; | Capacity: | One,two,four ,six holes; |
| Payment Terms: | T/T; | Product name: | Water Bath; |
| Heater: | Stainless steel U type heating tube; | Model Number: | DK series; |
| Material: | Stainless steel; | Supply Ability: | 1000 Units per Month; |
| Control mode: | PID; | Power Supply: | 800W; |
| Brand Name: | lianhua; | Dimensions(mm): | 340*350*210; |
| Classification: | Laboratory Thermostatic Devices; |
Product Description
Inner tank: 1 hole, 2 holes, 2 rows & 4 four holes, 2 rows & 6 holes are stainless steel stretching inner chamber. 1 row & 4 holes, 1 row & 6 holes, 2 rows & 8 holes are stainless steel inner chamber.
Features
1.Stainless steel stretching inner container and roof cover.
2.Intelligent temperature controller with PID program, digital tube display and function of timing and over-temperature protection.
Specifications
| Classification Specifications | 1 hole | 1 row & | 2 rows & | 2 rows & | |
| 2 holes | 4 holes | 6 holes | |||
| Model | DK-2000-IIIL | √ | √ | √ | √ |
| Heating Mode | Nature water convection heat transfer | ||||
| Function | Temp. Range | RT+5~100℃ | |||
| Temp. Resolution | 0.1℃ | ||||
| Ratio | |||||
| Temp. Motion | ±0.5℃ | ||||
| Temp. Uniformity | ±1.0℃ | ||||
| Structure | Inner Chamber | Stainless steel | |||
| Outer Shell | Cold - rolled steel plate, | ||||
| resistance to chemical reagents | |||||
| coating on the surface | |||||
| Heater | Stainless steel heating tube | ||||
| Power Rating | 0.4kW | 0.5kW | 1.0kW | 1.5kW | |
| Controller | Temp. Control | PID (without DK-98-II) | |||
| Mode | |||||
| Temp. Setting | Touch button setting | ||||
| Mode | |||||
| Temp. Display | Measuring temperature displays on | ||||
| Mode | the three digital tubes upper row, | ||||
| set temperature displays on the l | |||||
| ower row | |||||
| Timer | 0~9999min(with timing wait function) | ||||
| Operation Function | Fixed temperature operation, | ||||
| timing function, auto stop. | |||||
| Program Mode | Optional | ||||
| Additional Function | Deviation Correction, menu key locked, | ||||
| power failure back-up, power-off memory | |||||
| Sensor | CU50 | ||||
| Safety Device | Over temperature alarm | ||||
| Specification | Inner Chamber | 150*135 | 300*135 | 325*300 | 500*300 |
| size(W*L*H) | *150 | *150 | *150 | *150 | |
| (mm)) | |||||
| Exterior size | 170*154 | 318*2168 | 350*318 | 524*322 | |
| (W*L*H)(mm) | *210 | *210 | *210 | *210 | |
| Packing size | 240*230 | 390*240 | 420*390 | 600*390 | |
| (W*L*H)(mm) | *280 | *280 | *280 | *280 | |
| Volume | 3.4L | 6.6L | 12.7L | 18.7L | |
| Load per rack | 5kg | ||||
| Shelf Number | 1 | ||||
| Power Supply | AC220V/ | AC220V/ | AC220V/ | AC220V/ | |
| (50/60Hz) | 1.8A | 2.3A | 4.5A | 6.8A | |
| Current rating | |||||
| NW/GW (kg) | 3.3/4 | 4.5/5 | 6/7kg | 7.5/9 | |
| Optional Accessories | Shelf, RS485 interface, Recorder, External Communication | ||||
