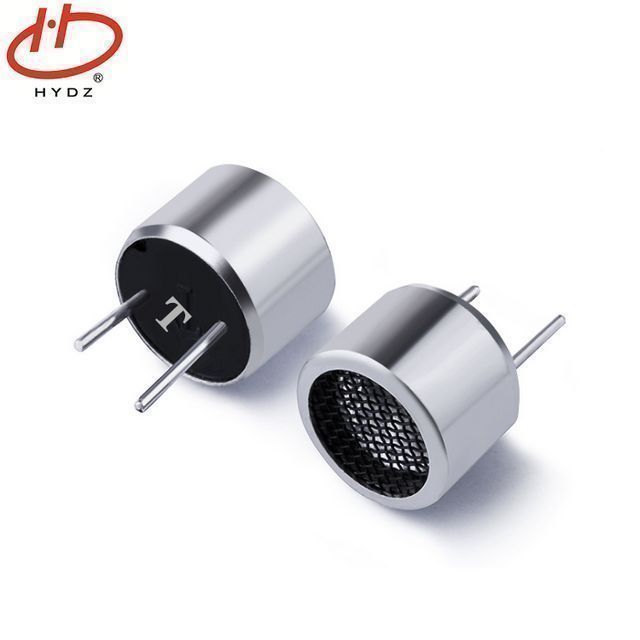

Distance determination 16*12mm 40KHZ ultrasonic position sensor transmitter and receiver
- $0.35 / 1 - 99 pieces
$0.32 / 100 - 999 pieces
$0.30 / 1000 - 9999 pieces
$0.27 / >=10000 pieces - 1 piece
- Xinghua Huayu Electronics Co., Ltd.
- Jiangsu, China
- Ms Nancy Cao
PRODUCT DETAIL
| Packaging Details: | 100pcs a board plug, 10pcs a set, 10 sets 10000pcs an export carton 50*42*27cm | weight: | 2.5 grams |
| Name: | Remote Ultrasonic Sensor | Types of: | HY40A16TR12-01, ultrasonic sensor |

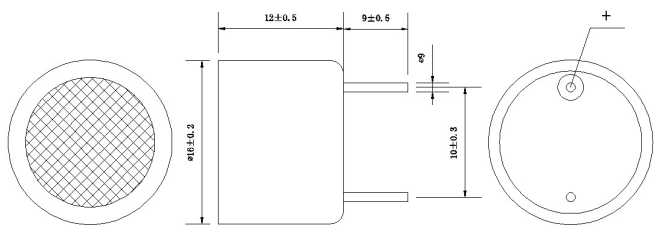

| size: | 16*12mm | usage: | position sensor |
| model: | HY40A16TR12-01 | Amplifier type: | Not applicable |
| brand: | Heads | Operating temperature: | -25~+60℃ |
| place of origin; place of origin: | Jiangsu, China | Sales unit: | single product |
| describe: | 16*12mm 40KHZ ultrasonic sensor | color: | silver |
| Case material: | Aluminum shell | Gross weight per piece: | 0.100 kg |
| Single package size: | 10X10X10 cm | product name: | ultrasonic transducer |
Product Description

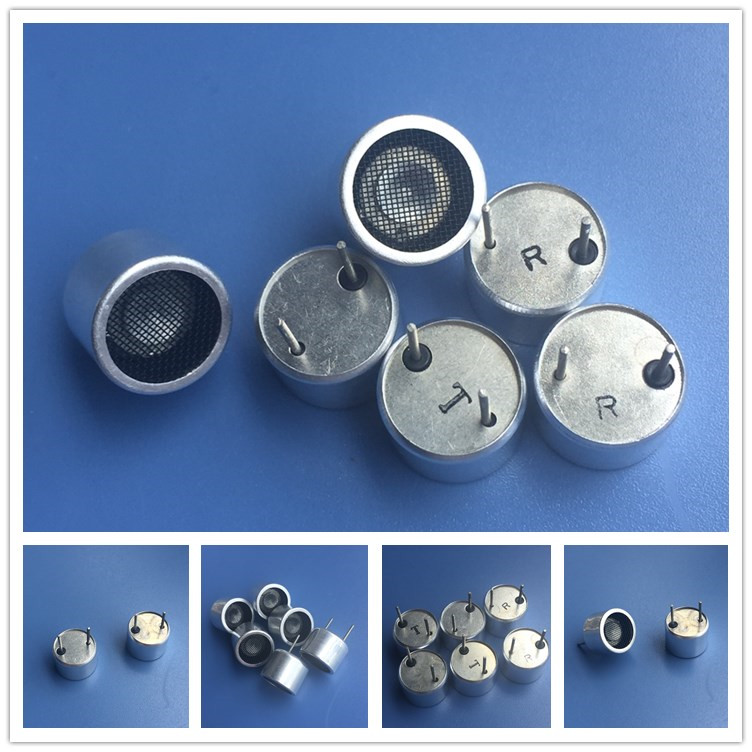

1. 12*9mm silver aluminum shell type, black or other colors such as red can be customized
2. 40KHZ frequency R&T separate type.
3. High-quality piezoelectric transducers are used to ensure good ranging performance
4. Professional testing methods, good experience, to meet customer needs.
| Function | send or receive |
| structure | Open |
| building materials | aluminum |

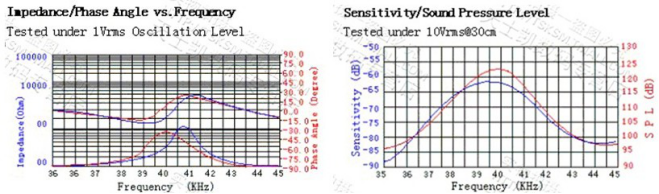

| Center frequency | 40+/-0.2kHz |
| free capacitance | 2200+/-20%Pf |
| Sound pressure level | Minimum 116dB (0dB+0.02mPa) |
| Directivity | 70+/-5° |
| sensitivity | -62dB (0dB=1v/ubar) |
| ring | 1.5 ms max |
| Operating temperature | -25~+60℃ |
| Maximum allowable voltage | 140Vp-p |
| Storage temperature | -40~+80℃ |
