Durable JW-180S Profile Tube Bender 3 Metal Tube Bender
- $9800.00 /set
- 1 set
- Wuxi Zhouxiang Complete Set Of Welding Equipment Co., Ltd.
- Jiangsu, China
- Ms Chris Zhu
PRODUCT DETAIL
| automation: | automatic | payment terms: | L/C,Western Union,D/P,D/A,T/T,MoneyGram |
| color: | custom made | Raw materials: | Carbon steel |
| Mechanical test report: | if | Supply capacity: | 50 sets per month |
| Warranty: | 2 years | place of origin; place of origin: | Jiangsu, China |
| Core Components Warranty: | 1 year | Rolling speed: | 4 m/min |
| Core components: | Bearings, Motors, Pumps, Gears, PLCs, Engines, Gearboxes | Applicable industries: | Building material stores, mechanical repair shops, manufacturing plants, construction works |
| Packaging Details: | Steel frame wooden box | brand: | Zhou Xiang |
| Main selling point: | long lasting | Model: | JW180S |
| Packaging Preview: | Type of machine: | Profile bending machine | |
| Standard module diameter: | 550mm | Showroom location: | Argentina, Chile, Egypt, Vietnam, Russia |
| port: | Shanghai | Material/Metal Finishing: | Alloy, Brass/Copper, Carbon Steel, Stainless Steel, Aluminum |
| Voltage: | custom made | Video external inspection: | if |
| Motor power (kW): | 22 kW | control: | programmable logic controller |
| After Warranty Service: | Video technical support, online support | Marketing Type: | Factory sales |
| Health status: | new | Weight (kg): | 1000kg |
| Local service location: | Chile, Egypt, Vietnam, Brazil |
Product Description

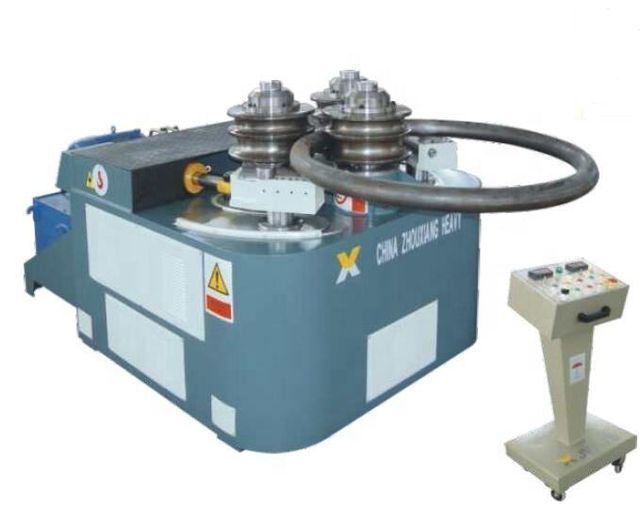

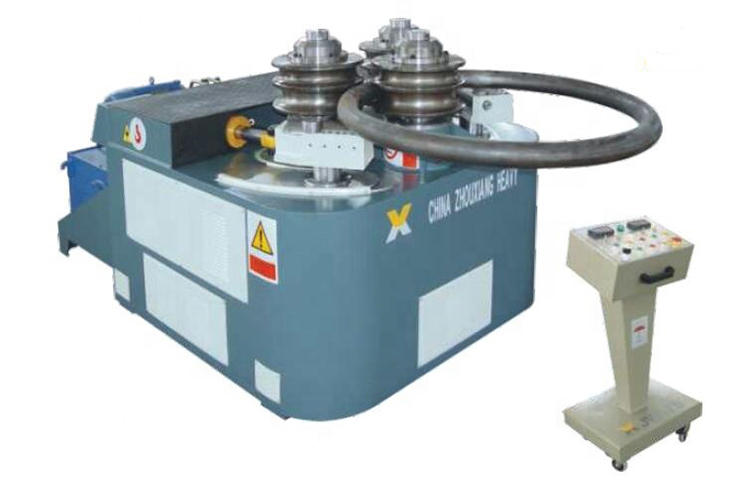

Three-roll profile bending machine
This arc-down CNC digital three-roller machine is specially used for profile bending. It can bend circular and arc-shaped workpieces, and is widely used in petroleum, chemical, shipbuilding, hydropower, metal structure, machinery manufacturing and other industries.
1. The main body of this machine is a steel plate welded structure, which is annealed after welding to eliminate welding internal stress, ensure good rigidity and anti-deformation ability, and can work at full load for a long time.
2. The equipment is fully hydraulically driven and has the characteristics of compact structure, high reliability and stable movement.
3. Driven by three rollers, pre-bending and rolling are completed at one time, the workpiece is not unloaded, and the work efficiency is high.
4. Digital display, the lifting stroke of the oil cylinder can be directly displayed on the panel screws, which is easy to use and simple to operate.
5. Economical and practical, the bending of different steels can be completed only by changing the mold, and the use range is wide.
1. The main body of this machine is a steel plate welded structure, which is annealed after welding to eliminate welding internal stress, ensure good rigidity and anti-deformation ability, and can work at full load for a long time.
2. The equipment is fully hydraulically driven and has the characteristics of compact structure, high reliability and stable movement.
3. Driven by three rollers, pre-bending and rolling are completed at one time, the workpiece is not unloaded, and the work efficiency is high.
4. Digital display, the lifting stroke of the oil cylinder can be directly displayed on the panel screws, which is easy to use and simple to operate.
5. Economical and practical, the bending of different steels can be completed only by changing the mold, and the use range is wide.
Product parameters
Model | JW-168S | JW-180S | JW-219S | JW-245S | JW-273S | ||||||
Maximum Section Elastic Modulus (cm3) | 140 | 180 | 280 | 320 | 500 | ||||||
Profile yield limit (MPa) | 245 | ||||||||||
Angle iron bend | Maximum section (mm) | 140×140×10 | 150×150×12 | 160×160×12 | 180×180×14 | 200×200×20 | |||||
Minimum bending diameter (mm) | 2500 | 2700 | 3000 | 3600 | 4200 | ||||||
Minimum section (mm) | 45×45×5 | 50×50×6 | 60×60×6 | 70×70×5 | 75×75×10 | ||||||
Minimum bending diameter (mm) | 1000 | 1200 | 1350 | 1500 | 1600 | ||||||
Angle iron camber | Maximum section (mm) | 140×140×16 | 150×150×16 | 160×160×16 | 180×180×16 | 200×200×24 | |||||
Minimum bending diameter (mm) | 2300 | 2600 | 2800 | 3500 | 4200 | ||||||
Minimum section (mm) | 45×45×5 | 50×50×6 | 60×60×6 | 70×70×5 | 75×75×10 | ||||||
Minimum bending diameter (mm) | 800 | 1000 | 1300 | 1500 | 1600 | ||||||
Channel bend | Model | 28 | 30 | 32 | 36 | 40 | |||||
Minimum bending diameter (mm) | 1700 | 2000 | 3000 | 3500 | 4000 | ||||||
Channel bend | Model | 28 | 30 | 32 | 36 | 40 | |||||
Minimum bending diameter (mm) | 1600 | 1800 | 3000 | 3500 | 4000 | ||||||
Simple way to bend flat steel | Maximum section (mm) | 280×50 | 280×60 | 320×60 | 350×60 | 500×75 | |||||
Minimum bending diameter (mm) | 1300 | 1400 | 2000 | 2400 | 4800 | ||||||
Flat steel hard bending | Maximum section (mm) | 150×35 | 180×32 | 190×45 | 190×50 | 200×60 | |||||
Minimum bending diameter (mm) | 1300 | 1400 | 2000 | 2400 | 4800 | ||||||
pipeline | Maximum section (mm) | 168×6 | 180×8 | 219×8 | 245×8 | 273×10 | |||||
Minimum bending diameter (mm) | 2000 | 2400 | 2600 | 3500 | 5000 | ||||||
Minimum section (mm) | 32×3 | 35×3 | 42×3 | 76×4 | 89×4 | ||||||
Minimum bending diameter (mm) | 700 | 750 | 800 | 900 | 1000 | ||||||
Standard module diameter (mm) | 500 | 550 | 600 | 650 | 800 | ||||||
Rolling speed (m/min) | 4 | 4 | 3 | 3 | 3 | ||||||
Main motor power (KW) | 15 | twenty two | twenty two | 30 | 30 | ||||||
detail
roller

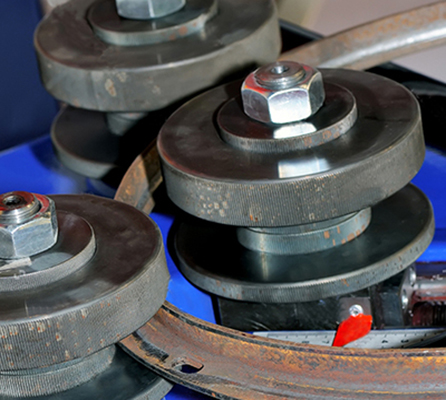

The three rollers are active rollers. This prevents slippage when bending thin-walled, large-section profiles.

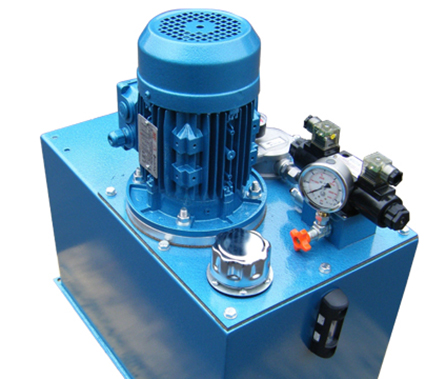

Hydraulic system
This hydraulic is designed by professionals
Manufacturer, good capacity, reliable use. It has three circuits: pressure regulation circuit, non-inverting circuit and
Speed regulation circuit.
Manufacturer, good capacity, reliable use. It has three circuits: pressure regulation circuit, non-inverting circuit and
Speed regulation circuit.
It consists of a movable console and a control box. The lifting distance of the lower roller can display 1
Operate the table by means of an optical encoder.
Operate the table by means of an optical encoder.
