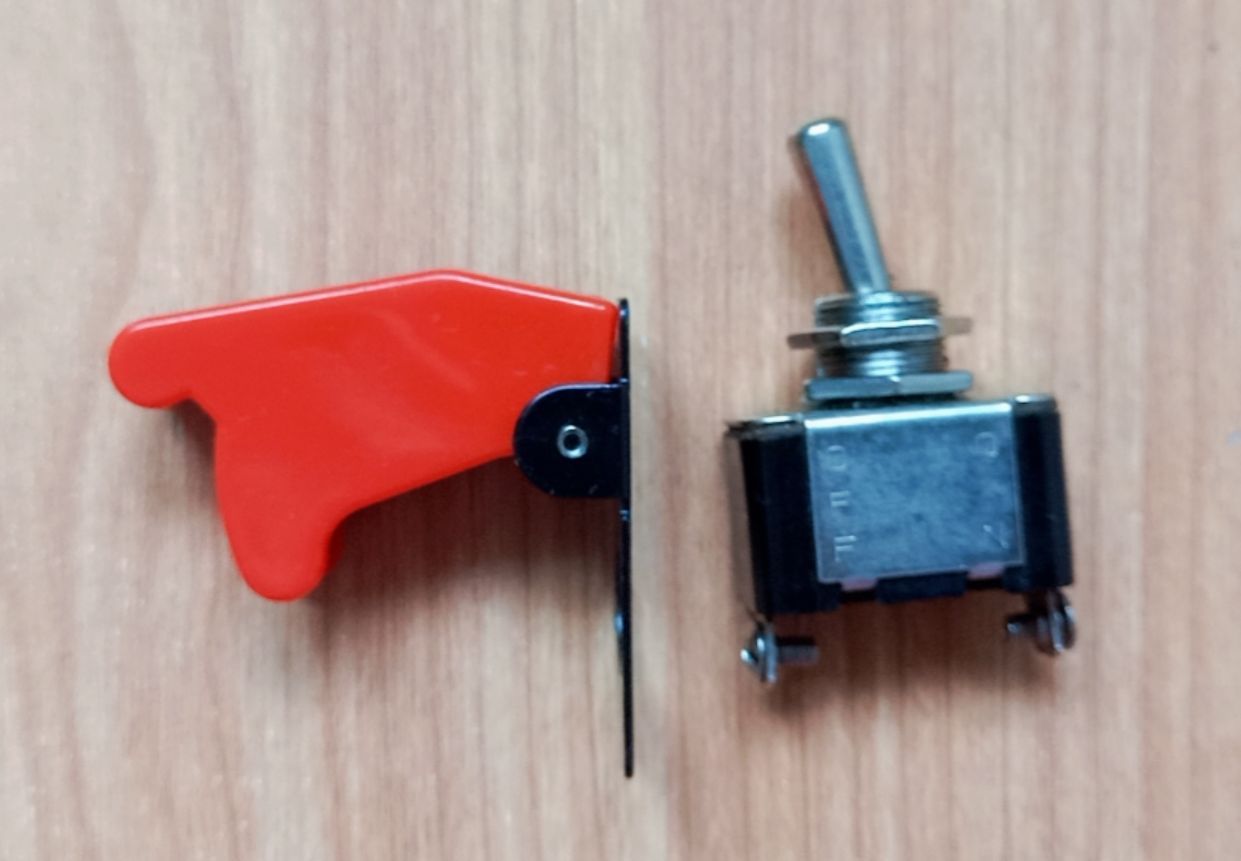

Durable Racing Metal Rod Car Dash Light with Missile Cover Red + Black ON/OFF SPST Toggle Switch
- $0.45 / 500 - 999 pieces
$0.44 / >=1000 pieces - 500 pieces
- Yueqing Liteam Import & Export Co., Ltd.
- Zhejiang, China
- Mr Devin Ling
PRODUCT DETAIL
| Sales unit: | single item; | Terminal options: | 2 screw terminals; |
| Operating temperature: | -55℃~+65℃; | Cover Color: | red+black; |
| place of origin; place of origin: | Zhejiang, China; | Knob Height: | about 17.5 mm; |
| Certification: | Chief Executive; | Function: | switch; |
| Packaging Details: | standard packaging; | model: | KN3-101; |
| brand: | United; | Gross weight per piece: | 0.200 kg; |
| Single package size: | 8.2X5.2X27 cm; | Mechanical life: | ≥ 20,000 cycles, ≥ 20,000 cycles; |
| maximum. Voltage: | 250V; | AC Contact Level: | 6A/250VAC 10A/125VAC; |
| Contact configuration: | SPST (single pole single throw); | maximum. current: | 6A; |
| Body size: | About 29 x 15.8 x 19 mm (L*W*H); | Contact resistance: | Maximum 50mΩ; |
Product Description
Summarize
|
product name |
Durable Racing Metal Rod Car Dash Light with Missile Cover Red + Black ON/OFF SPST Toggle Switch |
| score | 6A/250VAC 10A/125VAC |
| Function | switch |
| Contact configuration | SPST (Single Pole Single Throw) |
| Contact resistance | 50mΩ max |
| Electrical life | ≥20,000 cycles |

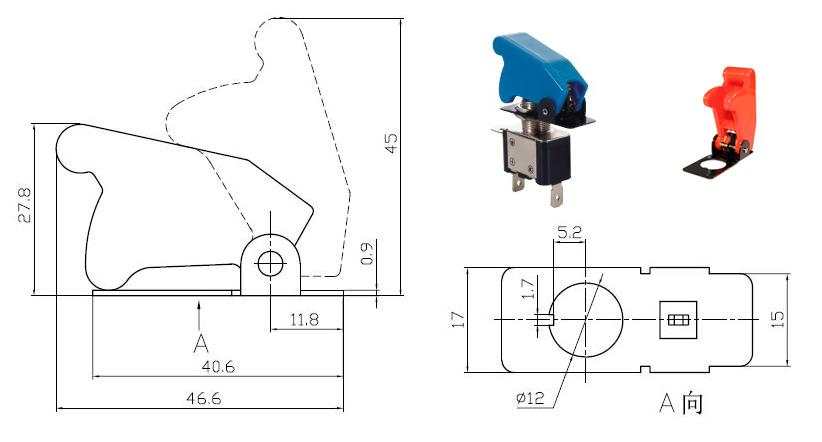

| body size | About 29 x 15.8 x 19 mm (L*W*H) |
| cover color | red+black |
| Operating temperature | -55℃~+65℃ |
| Potential customers | M3 screws |
application
