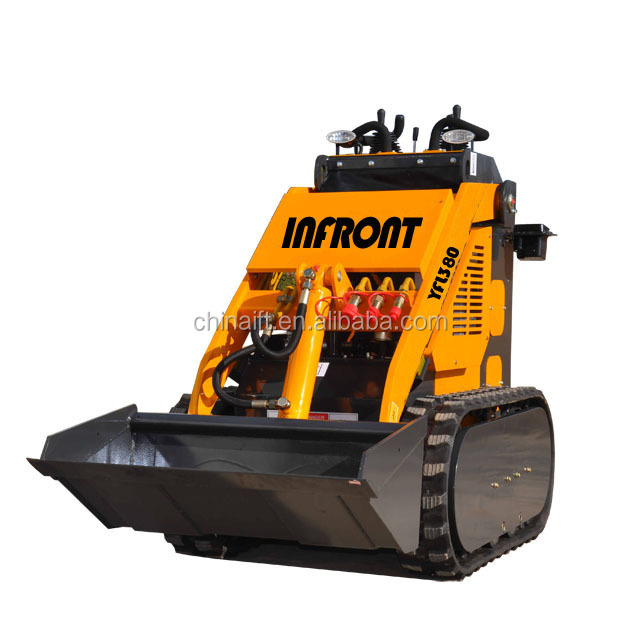

EPA Approved China Mini Steer Skid Steer Loader Skid Steer Mini Track Skid Steer Loader
- $2000.00 /set
- 1 set
- Shandong Infront Machinery Co., Ltd.
- Shandong, China
- Mr Tony Yang
| Warranty: | 2 years | Working weight: | 890 kg |
| Machine weight: | 800kg | Applicable industries: | Building materials stores, machine repair shops, farms, construction engineering, energy and mining |
| speed: | 0-5.5km/h | Hydraulic valve brand: | other |
| Warranty: | 2 years | Noise (decibel): | ≤95 |
| Core component warranty: | 2 years | Ground clearance: | 105mm |
| Dimensions (length*width*height): | 2035*1695*1175mm | YFL380 mobile type: | Track loader |
| Unique Selling Points: | EPA engine | Workload: | 200kg |
| Core components: | Engines, motors, pumps | Health status: | new |
| Showroom location: | Canada, UK, US, Italy, France, Germany, Spain, None | strength: | 15.4kW |
| Hydraulic cylinder brand: | other | payment terms: | L/C, Western Union, D/P, D/A, T/T, MoneyGram |
| Part Name: | Small skid steer loader for construction machinery | Bucket capacity: | 200kg |
| brand: | in front | Skip tipping angle: | 30° |
| Supply capacity: | 1,000 sets per month | Place of origin: | Shandong Province, China |
| type: | skid steer loader | Movement type: | Wheel loaders |
| Hydraulic pump brand: | other | port: | Qingdao |
| Video outbound inspection: | if | aspect: | 2035*1695*1175mm |
| Engine brand: | other | Mechanical test report: | if |
| Marketing type: | 2020 new products |
Welcome to Shandong Infront Machinery Co., Ltd.!
Practical value home!
|
thing |
Using Chevron engineering tires |
|
|

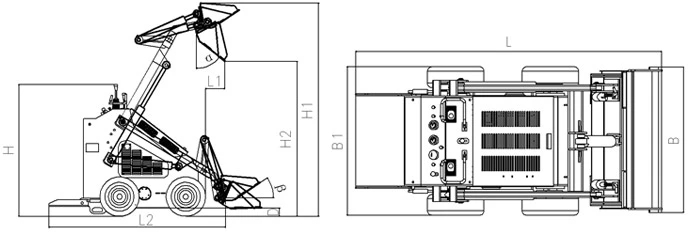

Maximum working height H1 |
2143mm |
84.37 inches |
|
Maximum unloading height H2 |
1488 mm |
58.58 inches |
|
Overall height H |
1233mm |
48.54 inches |
|
Maximum pin height |
1884mm |
74.17 inches |
|
Foot length |
678mm |
26.7 inches (foot pedal level) |
|
Total length L including bucket (mm) |
2206mm |
86.9 inches |
|
Discharging distance at the highest point L1 (mm) |
348mm |
13.7 inches |
|
Excluding bucket length L2 (mm) |
1752mm |
69 inches |
|
Bucket width B (mm) |
980mm |
38.6 inches |
|
Total width B1(mm) |
1160 mm |
45.67 inches |
|
Wheelbase |
940 mm |
37 inches |
|
Ground clearance (mm) |
118mm |
4.65 inches |
|
Turning radius R (mm) |
1307mm |
51.5 inches |
|
Bucket dumping angle α(°) |
30 |
|
|
Bucket ground rollback β(°) |
25 |
|
|
Departure angle (°) |
11 (foot pedal level) |
|
Technical Parameters:
|
Product YF380 |
thing |
|||
|
engine |
Rated power(KW) |
15.4KW (21 horsepower) |
||
|
Rated speed (rpm) |
3300 |
|||
|
Noise (decibel) |
95 |
|||
|
Hydraulic system |
Hydraulic (Mpa) |
number 17 |
||
|
Cycle Time |
Increase |
dump |
reduce |
|
|
4.27 |
1.34 |
3.31 |
||
|
Technical Parameters |
workload |
200kg |
441 pounds |
|
|
Bucket capacity |
0.15 meters3 |
5.33 (feet3) |
||
|
Maximum lifting force |
375 kg |
827 pounds |
||
|
Driving speed |
0-5.5km/h |
0-3.4 mph |
||
|
working weight |
890kg |
1958 pounds (with Chevron OTR tires) |
||
|
tire |
18*6.5-8 |
|||
