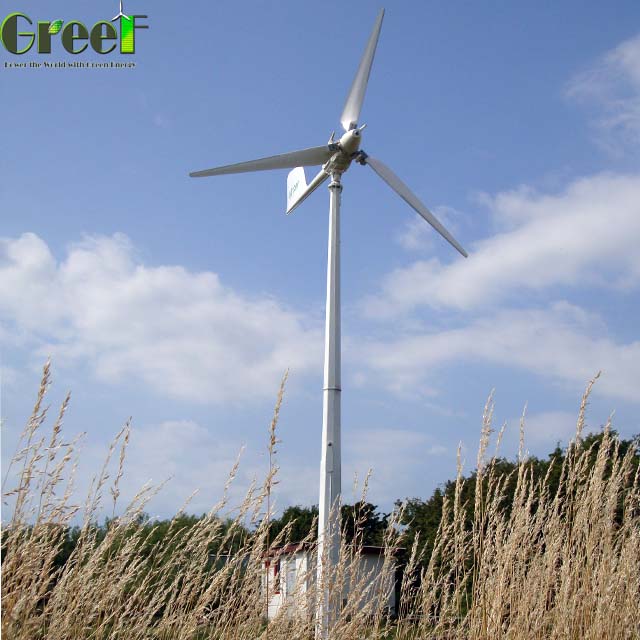

Easy to install high efficiency 5kw horizontal wind turbine magnet price list windmill generator 5KW for sale
- $499.00 /set
- 1 set
- Qingdao Greef New Energy Equipment Co., Ltd.
- Shandong, China
- Ms Christina Lei
PRODUCT DETAIL
| Rated wind speed: | 11 m/s | payment terms: | Western Union, T/T, MoneyGram, PayPal |
| place of origin; place of origin: | Shandong China | Working wind speed: | 3-30m/s |
| Supply capacity: | 2000 sets per month | port: | Qingdao |
| Blade Material and Quantity: | FRP/3PCS | Safe wind speed: | 50 m/s |
| brand: | Greek | Package preview: | |
| rated power: | 5000W, 5kW | Warranty: | 3 years |
| Blade rotor diameter: | 5.6 million | custom made: | Yes |
| Packaging Details: | Household Wind Turbine Foam + Plywood Shell | Certification: | CE certification |
| Top Weight: | 400 kg | Start wind speed: | 2.5m/s |
| Tower height: | 8m free folding tower | model: | AH-5W |
| Operating temperature: | -20℃~+50℃ |
Why choose AH-5KW wind turbine?
Leading technology - intelligent control, strong system scalability
1. The world's best wind power control technology combined with self-developed pitch control technology.
2. The hardware design adopts international famous brands, and the software adopts redundant control strategy.
3. It can be well compatible with converters and remote modules of various well-known brands.
High security - uninterrupted operation around the clock to achieve unattended
1. The speed of the wind rotor is controlled, and it can run continuously and stably under strong wind conditions.
2. More than ten kinds of redundant control strategies ensure the safe and stable operation of the system under various climatic conditions.
Large power generation——pitch control, high-efficiency output, power generation up to 30%
1. Above the rated wind speed, the pitch angle of the blades can be adjusted to achieve continuous full power output.
2. The range of working wind speed is large (3-25m/s), and the effective running time is long.
2. The hardware design adopts international famous brands, and the software adopts redundant control strategy.
3. It can be well compatible with converters and remote modules of various well-known brands.
High security - uninterrupted operation around the clock to achieve unattended
1. The speed of the wind rotor is controlled, and it can run continuously and stably under strong wind conditions.
2. More than ten kinds of redundant control strategies ensure the safe and stable operation of the system under various climatic conditions.
Large power generation——pitch control, high-efficiency output, power generation up to 30%
1. Above the rated wind speed, the pitch angle of the blades can be adjusted to achieve continuous full power output.
2. The range of working wind speed is large (3-25m/s), and the effective running time is long.
Recommended for:
· Home, garden, farm, city, rooftop
· Telecommunications sites.
· Rural electrification projects. Island, sentry, island, line of sight lighting
·Automatic deceleration protection
· Telecommunications sites.
· Rural electrification projects. Island, sentry, island, line of sight lighting
·Automatic deceleration protection
technical specifications
Model | AH-5KW |
Rotor diameter (m) | 5.6 |
Blade material and quantity. | FRP*3 |
Rated power (kW) | 5 |
Rated wind speed (m/s) | 11 |
Rated speed(r/min) | 240 |
generator type | Three Phase Permanent Magnet Generator |
Working wind speed (m/s) | 3-30 |
Start wind speed(m/s) | 2.5 |
Survival wind speed (m/s) | 60 |
Rated voltage (VDC) | 400/240/customized |
Speed mode | pitch control |
wind answering method | against the wind |
stop method | car brake |
wind protection | Intelligent control + unattended |
Weight (kg) | 400 |
Noise Level (dB) | ≤65 |
Tower height (m) | ≥8 |
tower type | leaning tower |
Operating temperature | -20℃～+50℃ |
Product Description

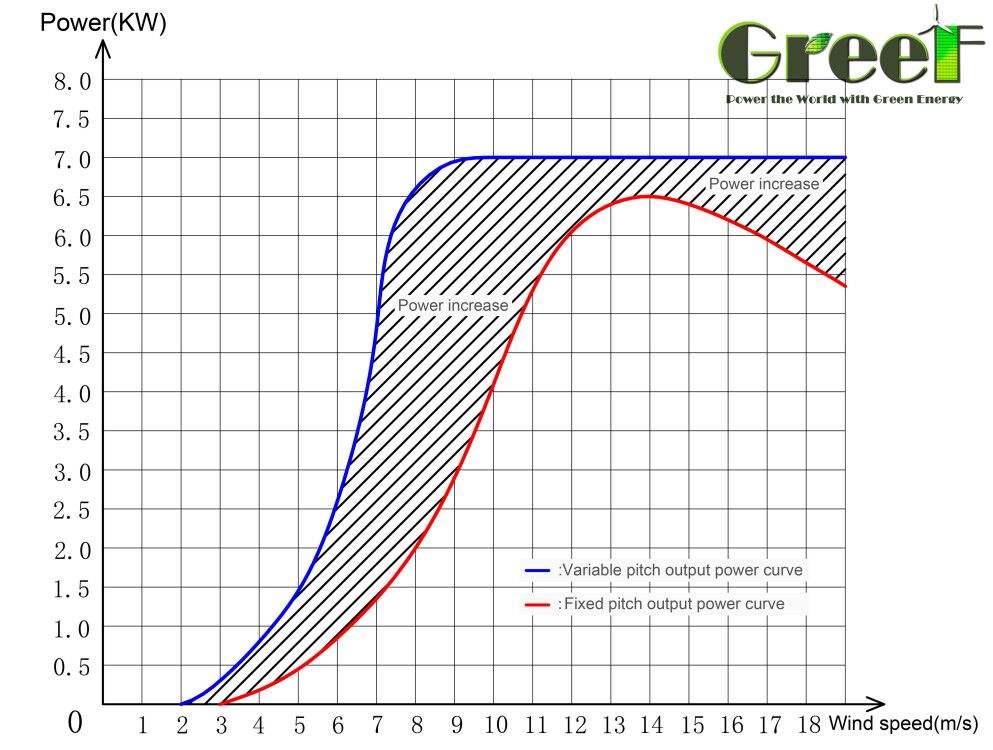

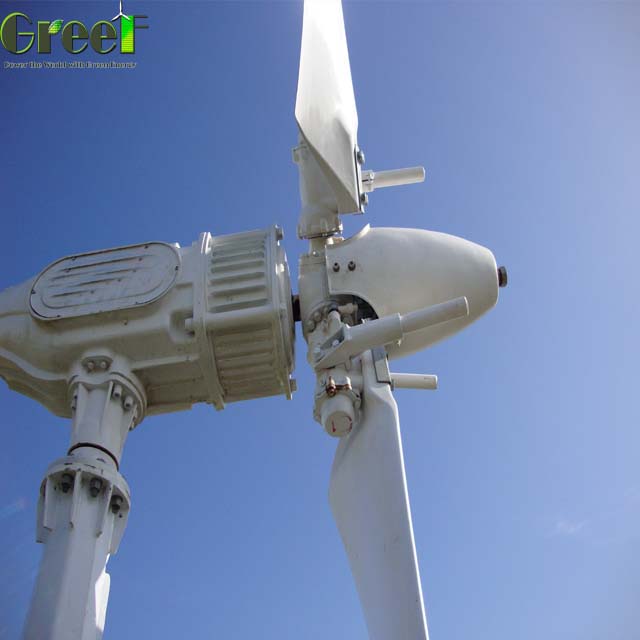

Using the world's leading mechanical centrifugal pitch technology, the average annual power generation has increased by more than 30%.
(1) Large initial blade angle (+9°), good acceleration performance, and low wind speed of 2.5m/s to start;
(2) Below the rated wind speed, the wind turbine can output efficiently;
(3) Above the rated wind speed, adjust the pitch angle to keep the rotor speed near the rated speed and stabilize the power output.
Project cases

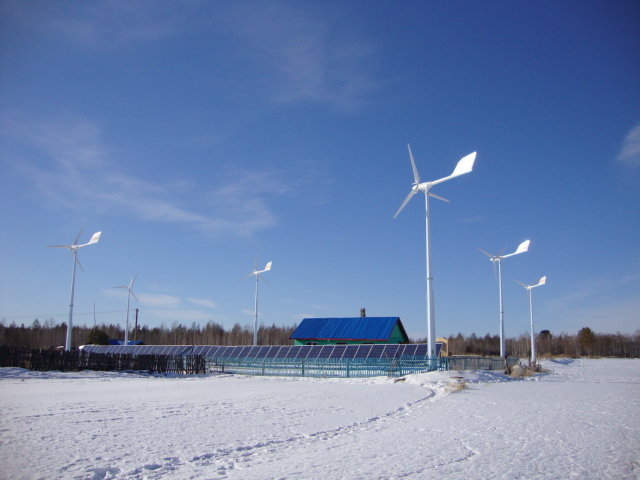

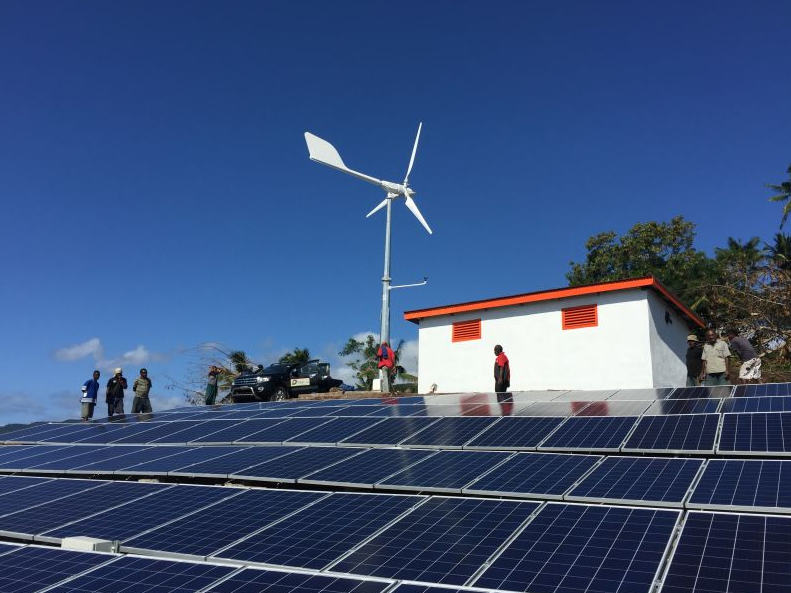

25kW wind and solar hybrid power supply project for garrison barracks on Yongxing Island, Xisha Islands
Danish communication base station new energy power supply system

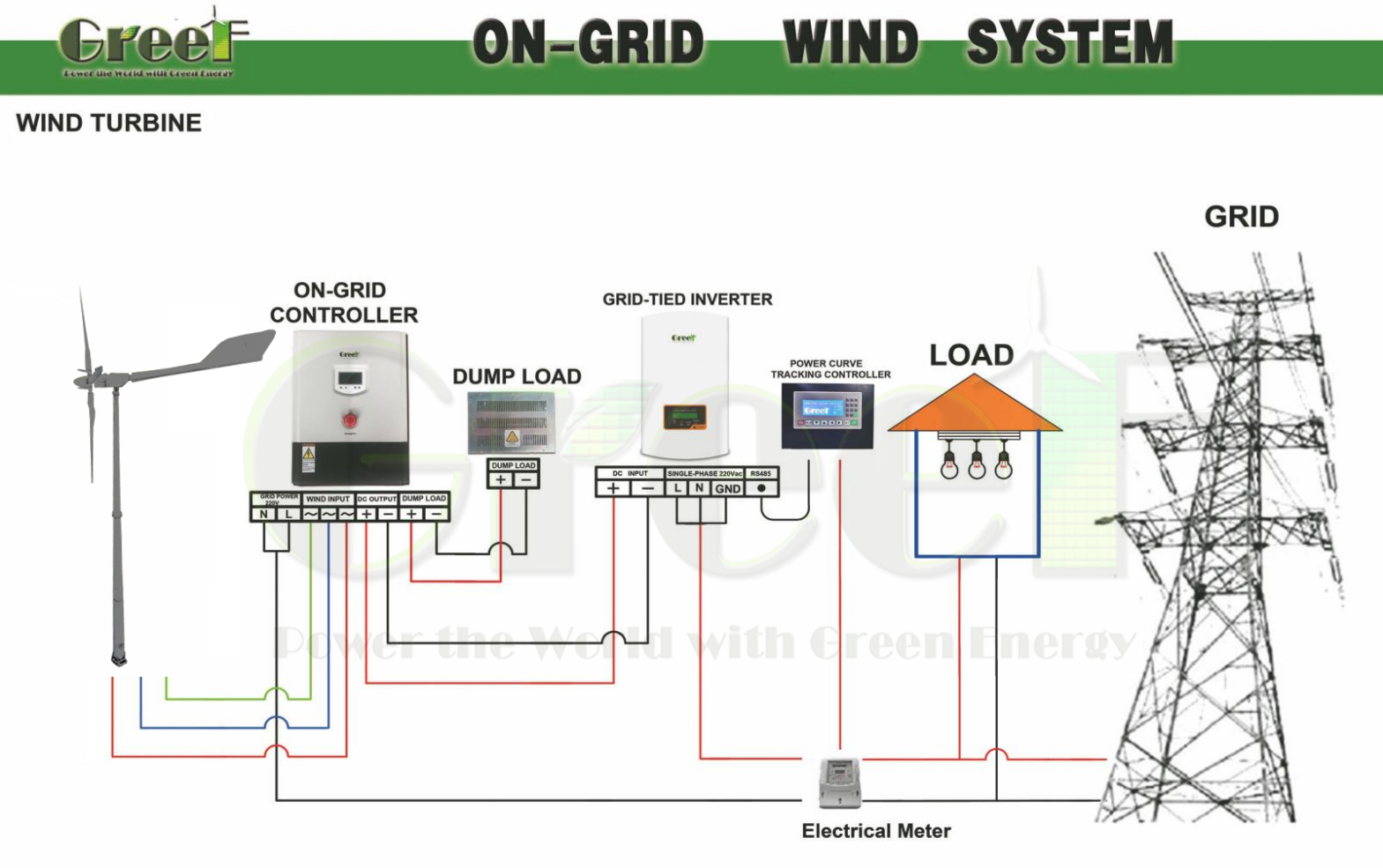

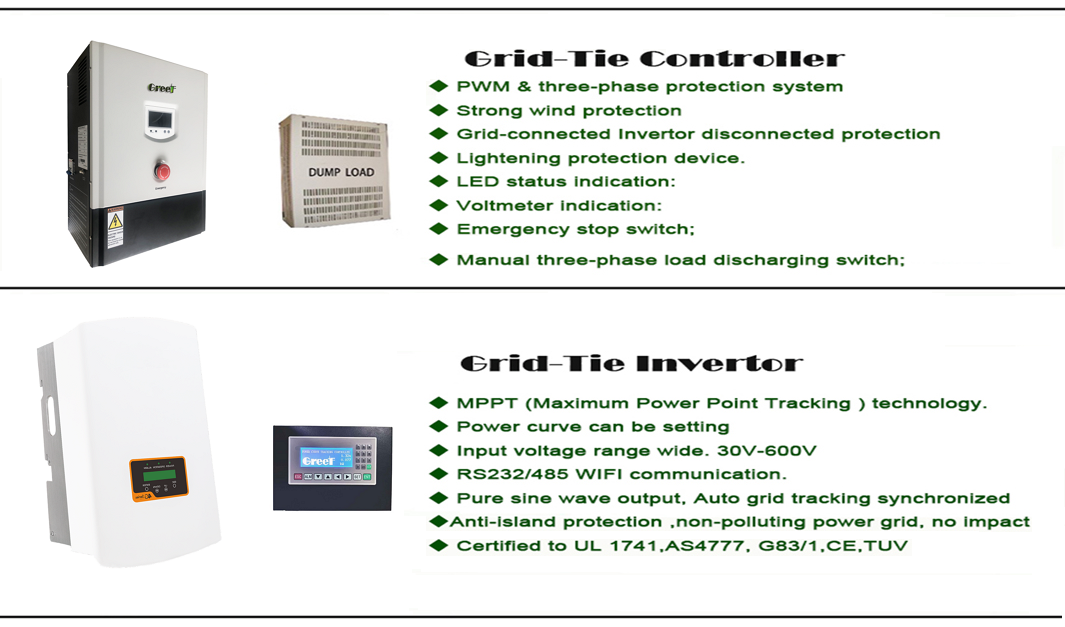

Grid-connected systems in other countries

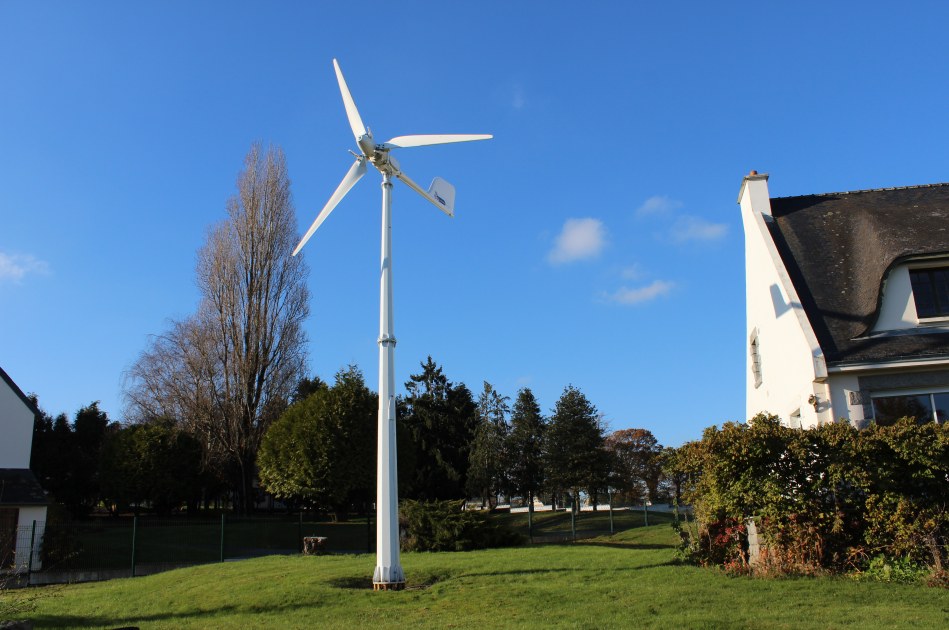

These systems are also installed in countries such as India, Philippines, Ireland, Colombia, France, Brazil, Switzerland and Hungary.
