Electrical equipment power factor controller capacitor liquid crystal controller
- $50.00 /set
- 1 set
- Anhui Zhongdian Electric Co., Ltd.
- Anhui, China
- Mr Hanson Chang
PRODUCT DETAIL
| payment terms: | D/P, D/A, T/T | port: | Nanjing, Shanghai, Guangzhou, Tianjin |
| Certification: | ISO9001, CCC, CE, type test report | Packaging Preview: | |
| brand: | CLP | place of origin; place of origin: | Anhui, China |
| stage: | Three-phase three-wire, three-phase four-wire | color: | Black |
| delivery time: | 7-15 days | Support Compensation Ability: | 20-1200Kvar |
| Certificate: | ISO9001, CCC, CE | Function: | Automatic Power Factor Controller |
| interface: | RS485 | model: | ZD-MC |
| Rated frequency: | 50Hz/60Hz | Supply capacity: | 3000 sets per month |
| Warranty: | 3 months - 1 year | custom made: | Yes |
| Installation size: | 138*138mm | Packaging Details: | Paper and bubble wrap. |
| Rated voltage: | 220V | type: | Smart Power Controller |
Product Description

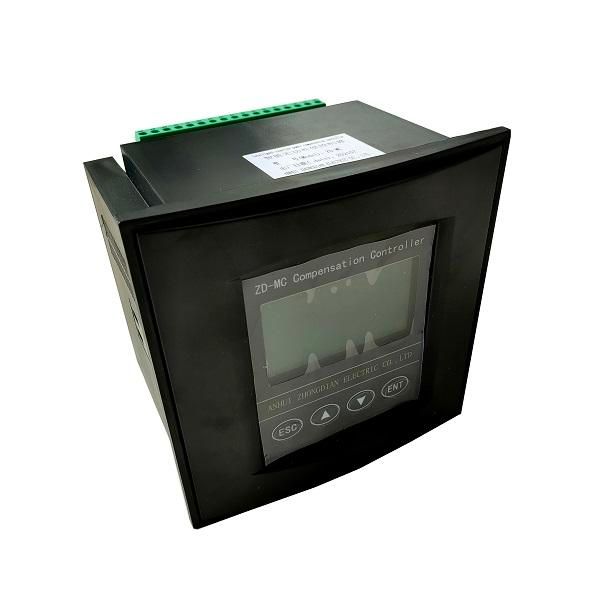

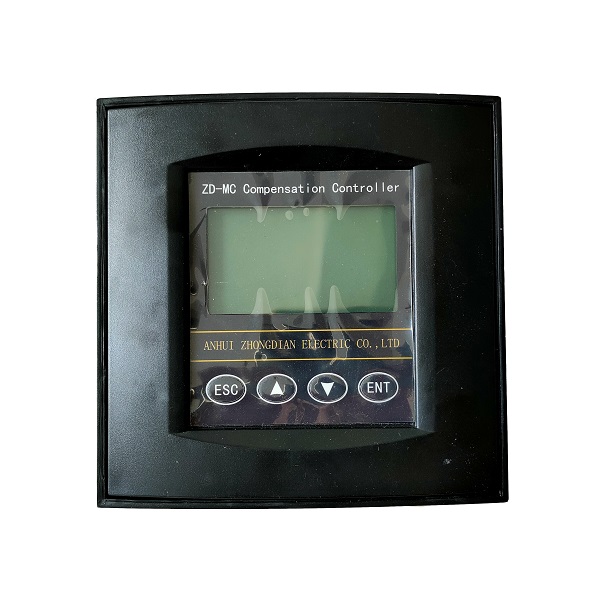

ZD-MC series intelligent reactive power compensation controller
ZD-MC series reactive power compensation controller is suitable for low voltage power distribution system of AC 220V (normal), 50HZ/60HZ. Can control a variety of switching methods (thyristor switch, compound switch, contactor switch).
ZD-MC has 2 compensation methods, 3-phase compensation method and single-phase compensation method.
The controller also complies with GB-T9663-2013 standard.

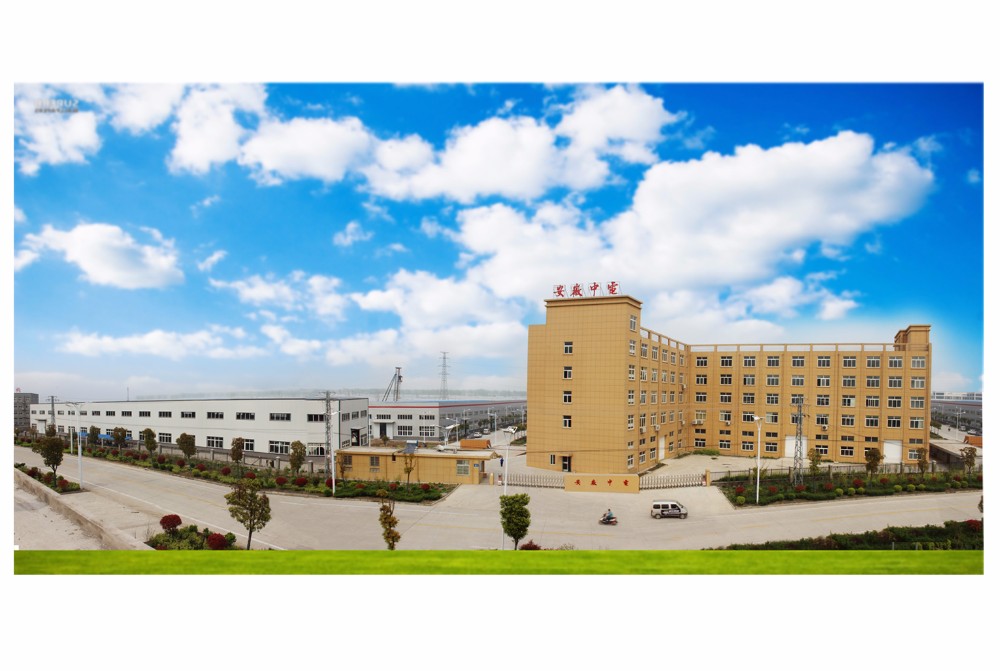

ZDDQ Factory
Anhui Zhongdian Electric Co., Ltd.
ZDDQ was established in 2001. ZDDQ Science and Technology Park is located in Bengbu City, Anhui Province. We are a professional leading manufacturer specializing in advanced power quality improvement and power factor correction. APF, SVG, APFC are our main products. ZDDQ has a leading independent R&D team and quality supervision system, and maintains long-term cooperative relations with many well-known universities such as University of Science and Technology of China and Zhejiang University.
We adhere to customer demand as the guide and technological innovation as the driving force. After 20 years of technology accumulation, we have a series of power quality products, including:
◆Low voltage active power filter APF
◆Low voltage static var generator SVG
◆Medium voltage STATCOM
◆Low voltage capacitor bank
◆Medium voltage capacitor bank
Widely used in power grids, hospitals, sewage plants, railways, subways, airports, seaports, petrochemicals, metallurgy, coal mines, telecommunications, high-rise buildings and other countries and industries.
Our products have been installed in Australia, EU, Asia, South America and Africa.
◆Low voltage static var generator SVG
◆Medium voltage STATCOM
◆Low voltage capacitor bank
◆Medium voltage capacitor bank
Widely used in power grids, hospitals, sewage plants, railways, subways, airports, seaports, petrochemicals, metallurgy, coal mines, telecommunications, high-rise buildings and other countries and industries.
Our products have been installed in Australia, EU, Asia, South America and Africa.
basic skills
monitor
With LCD screen, it can monitor power grid parameters in real time, and display setting parameters and working status.
set up
The controller can set control parameters. The parameters are automatically saved and will not be lost after power failure.
Reactive power compensation
Support manual switching and automatic switching of two operating modes;
Intelligent switching mode, each capacitor can be set freely;
Compensation method: Hybrid compensation.
Intelligent switching mode, each capacitor can be set freely;
Compensation method: Hybrid compensation.
Protect
Self-check and reset watchdog function;
Overvoltage and undervoltage protection functions;
Harmonic voltage and current protection function;
Small current protection function;
Low power factor protection function.
Overvoltage and undervoltage protection functions;
Harmonic voltage and current protection function;
Small current protection function;
Low power factor protection function.
Communication (optional)
The communication interface is 485 standard interface, and the communication protocol conforms to the MODBUS industrial protocol.
Technical data
Rated voltage | AC 220V | ||
Rated frequency | 50/60Hz | ||
strength | 6W | ||
interface | RS485 | ||
Sampling voltage | 220V±20% | ||
Sensitivity | 20 mA | ||
Voltage | Level 0.5 | ||
current | Level 0.5 | ||
power factor | Level 0.5 | ||
Active power | Level 1.0 | ||
reactive power | Level 1.0 | ||
frequency | Level 0.1 | ||
size | 144*144*100mm | ||
Specification
A step-by-step recommendation table for the commonly used capacity of the whole cabinet.
Compensation capacity (Kvar) | Capacity Ladder Solutions | Compensation capacity (Kvar) | Capacity Ladder Solutions |
120 | 5+10+15+30*3 | 270 | 10+20+40*6 |
130 | 5+10+15+30*2+40 | 280 | 10+20+30*7+40 |
140 | 5+10+15+30+40*2 | 290 | 10+20+30*6+40*2 |
150 | 5+10+15+40*3 | 300 | 10+20+30*5+40*3 |
160 | 5+10+15+30*3+40 | 310 | 10+20+30*4+40*4 |
170 | 10+20+30+40*2 | 320 | 10+20+30*3+40*5 |
180 | 10+20+30+40*3 | 330 | 10+20+30*2+40*6 |
190 | 10+20+40*4 | 340 | 10+20+30+40*7 |
200 | 10+20*2+30*5 | 350 | 10+20+40*8 |
210 | 10+20+30*6 | 360 | 20*2+40*8 |
220 | 10+20+30*5+40 | 370 | 20+30+40*8 |
230 | 10+20+30*4+40*2 | 380 | 20+40*9 |
240 | 10+20+30*3+40*3 | 390 | 30+40*9 |
250 | 10+20+30*2+40*4 | 400 | 40*10 |
260 | 10+20+30+40*5 | Not applicable | Not applicable |
