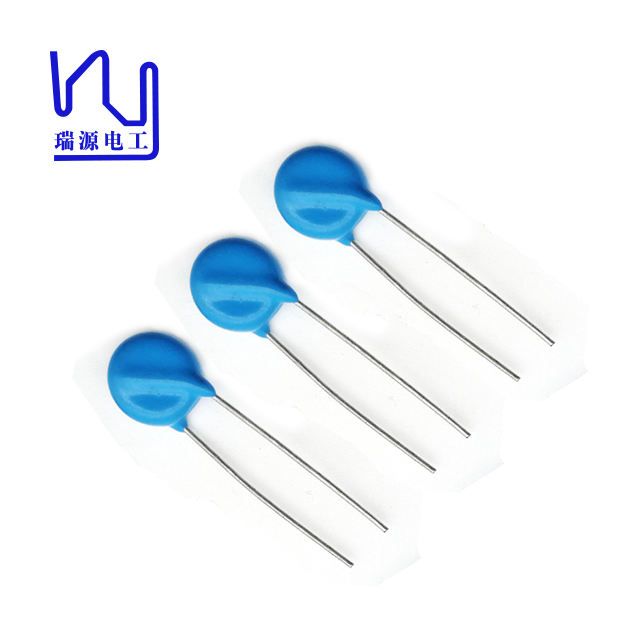

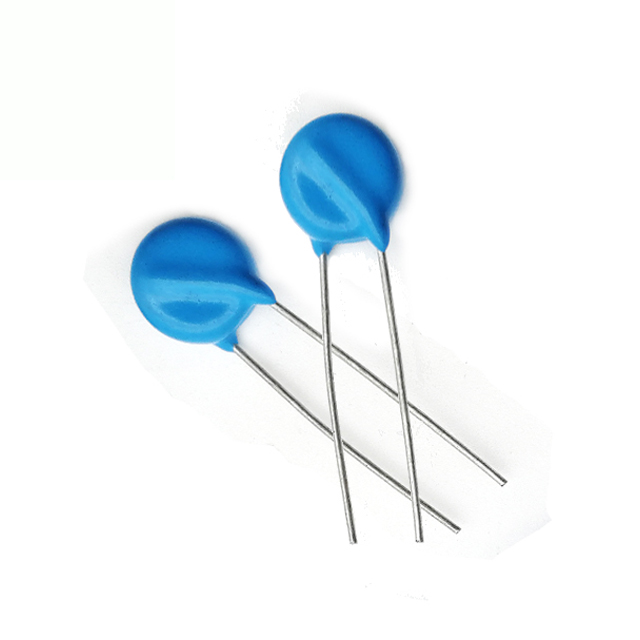

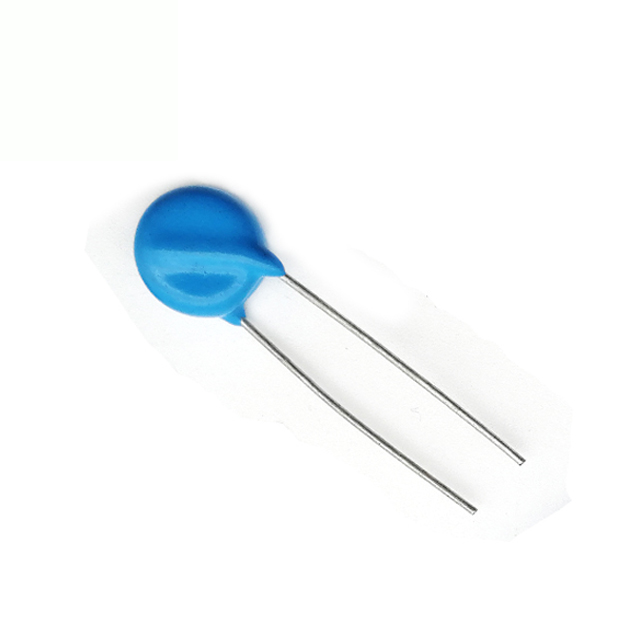

Electronic Components Metal Oxide Varistors 220v 100v Mov 10movs 3movs
- $0.02 / >=500 pieces
- 500 pieces
- Tianjin Ruiyuan Electric Material Co., Ltd.
- Tianjin, China
- Mr James Shan
PRODUCT DETAIL
| place of origin; place of origin: | Guangdong, China | Operating temperature: | -40℃-+85℃(Max 125℃) |
| payment terms: | Letter of Credit, Telegraphic Transfer, MoneyGram | Certificate: | TUV, CQC, UL, cULRoHS, ISO9001 |
| product name: | Metal Oxide Varistors | Supply capacity: | 100000000 pieces/month |
| color: | blue | port: | Tianjin/Shanghai/Ningbo/Qingdao/Shenzhen |
| Varistor Voltage: | 220V (198-242V) | model: | move |
| Surge level: | S/K | Packaging Preview: | |
| density: | 7000A/m^2 | Packaging Details: | PP bags are packed into boxes and then packed in cartons. |
| type: | Metal Oxide Varistors (MOVs) | work: | Zinc oxide |
| Resistor Tolerance: | ±10% |
Electronic Components 220v 100v mov 10movs 3movs Metal Oxide Varistors
Metal oxide varistor (MOV), as a non-linear resistance element, is mainly made of zinc oxide (ZnO), which has high surge capability and large nonlinear coefficient. Below the threshold voltage, it has a high resistance and almost no current flows, but above the threshold voltage, the resistance drops sharply and a huge amount of current can be released. Due to this characteristic, varistors can absorb abnormal overvoltages and lightning surges as protective components in electrical and electronic equipment.
Luyuan varistor has the characteristics of high surge current density, low clamping voltage and strong surge capability. It can also be customized as required.
application | Power Supplies, LED Drivers, Power Adapters, Power Strips |
Supplier type | original manufacturer |
tolerant | ±10% |
place of origin; place of origin | Fujian |
model | 14D221K |
type | variable resistor |
technology | Metal oxide |
type of packaging | through hole |
feature | Low leakage current, high inrush current |
size/dimension | 14D |
product name | Metal Oxide Varistors |
Card | put |
Certificate | TUV, CQC, UL, cULRoHS, ISO9001 |
color | blue |
work | Zinc oxide |
surge level | S/K |
density | 7000A/m^2 |
Operating temperature | -40℃-+85℃(Max 125℃) |
Varistor Voltage | 220V (198-242V) |
tolerance | ±10% |

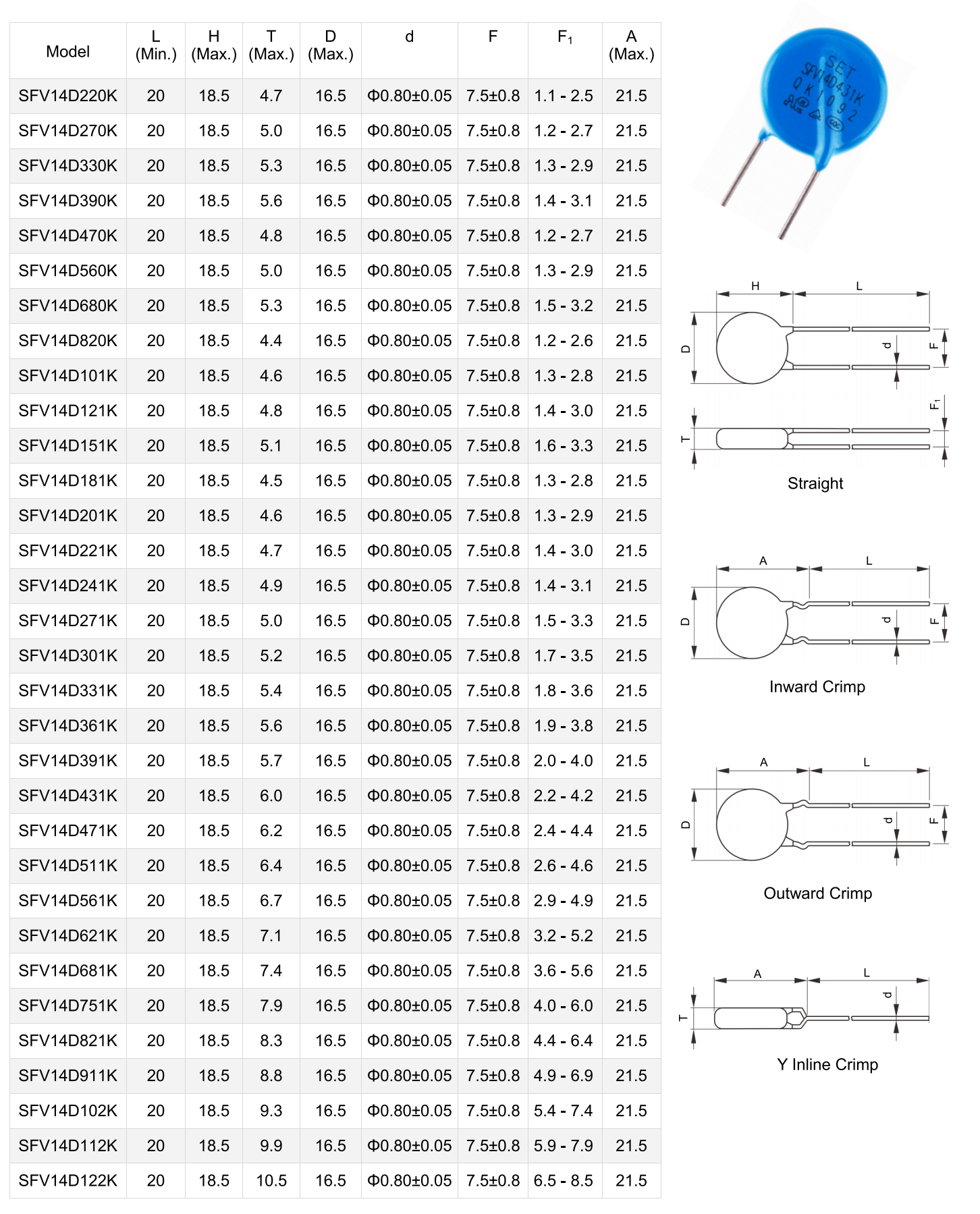

Specification

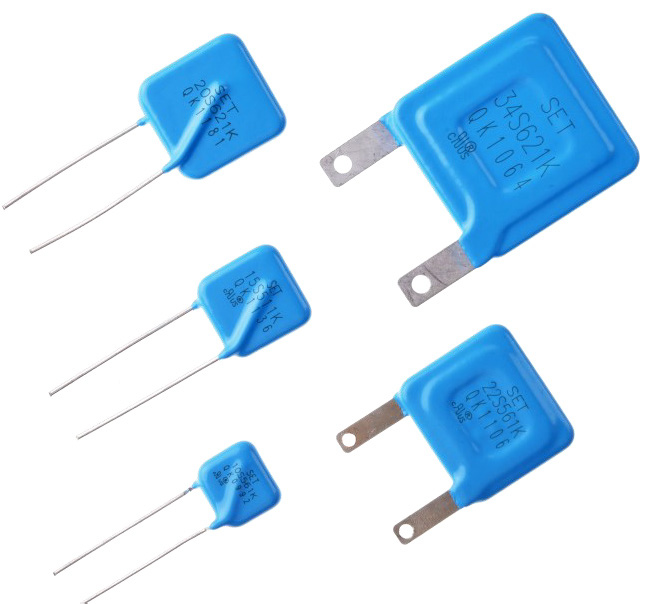

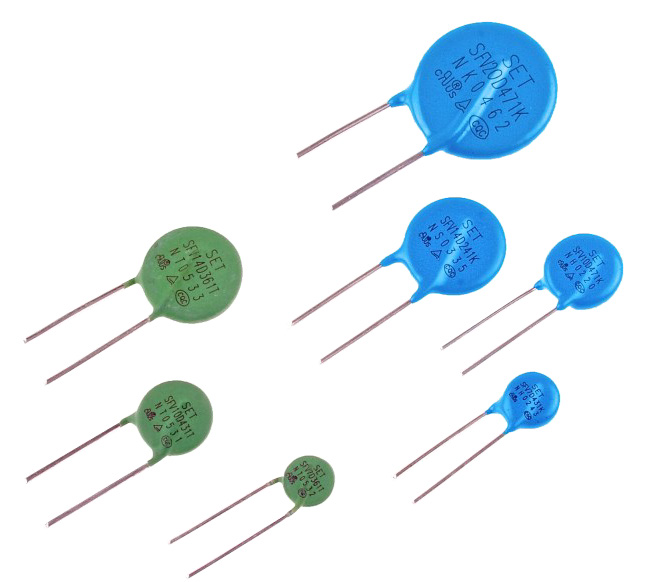

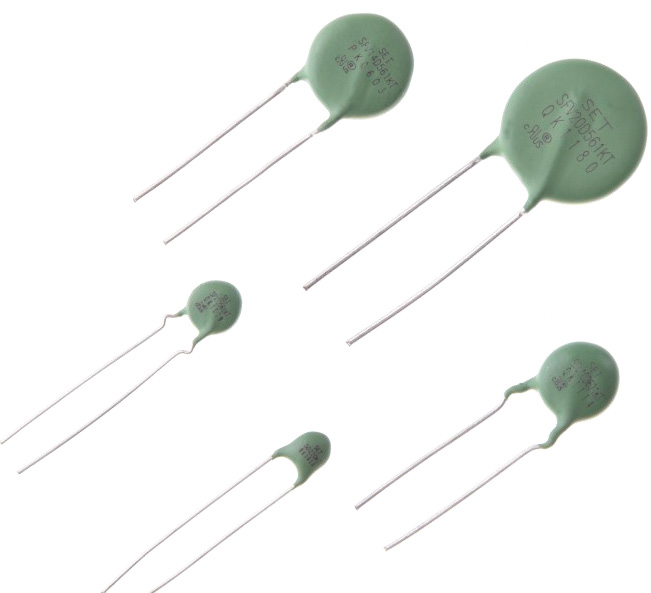

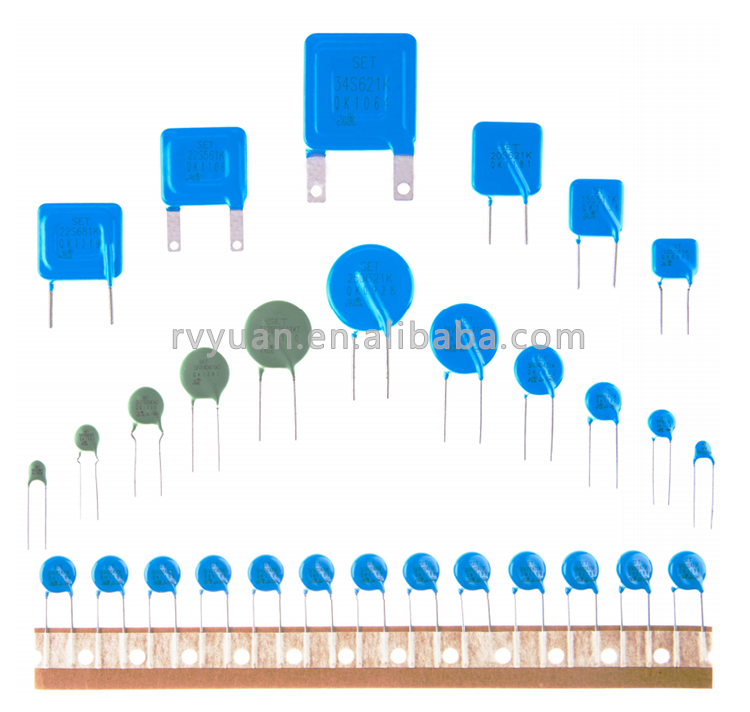

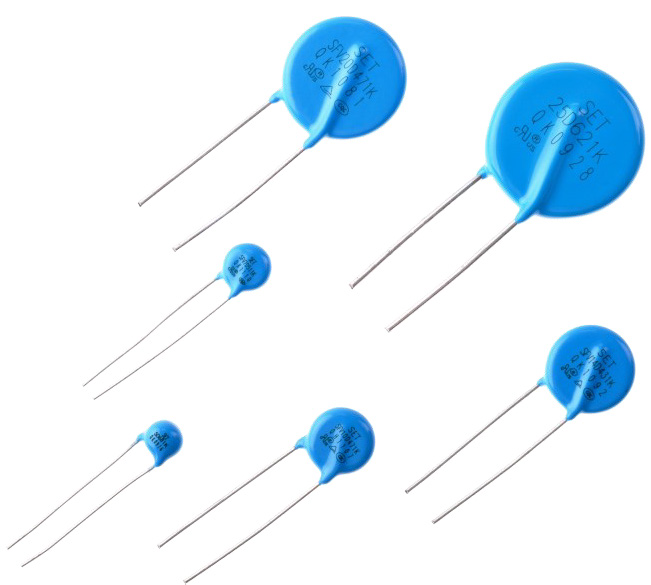

Product display
Features and Benefits
High surge current density: 7000 AMcm² |
Voltage clamping ratio can be lower than 1.9 |
Complies with IEC 60950-1:2005+A1 Annex Q, GB 898-2011/GB 4943.1-2011 |
RoHS and REACH Compliant |
maximum. Energy capacity up to 800 J |
Operating temperature can be as high as 135°C, in accordance with |
Certified by UL, TUV, COC agency |
Main features
Type K
Standard MOV for common overvoltage protection.
● Varistor voltage: (22-1800)V
●Maximum discharge current (8/20 us): (500-20000) A
T type
●Varistor voltage: (22-1800)V
●Max. Discharge current (8/20 us): (500-2000) A
Q type
High-impact MOV with multiple surge withstand capability, conforming to IEC61000-4-5.
● Varistor voltage: (22-1200)V
● Maximum discharge current (8/20 us): (2000-2000)A
Type H
High energy MOVs with high surge withstand capability for SPD applications in accordance with IEC 61643-1.
●varistor voltage: (82-820)V
●Maximum discharge current (8/20 us): (6000-60000)A
●Maximum peak current (10/350us): 5000A

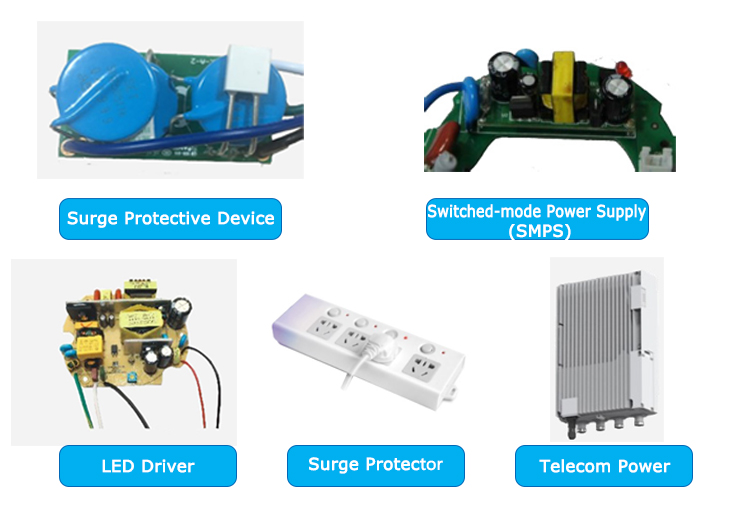

application
