Exhaust bender dobladora de tubos for Car modification
- $5300.00 / 1 - 4 sets
$5000.00 / >=5 sets - 1 set
- Shandong Soar Machinery Co., Ltd.
- Shandong, China
- Mr Gao lifeng
| Applicable Industries: | Machinery Repair Shops; | Voltage: | 220V/380V/415V/440V/customized; |
| Packaging Detail: | Iron frame and wooden case; | Power: | Hydraulic; |
| Bending Radius (mm): | 10 - 76.2; | Marketing Type: | Ordinary Product; |
| Place of Origin: | Shandong, China; | After-sales Service Provided: | Overseas service center available,Free spare parts,Field installation, commissioning and training,Field maintenance and repair service,Online support,Video technical support; |
| Year: | 2020; | Condition: | New; |
| Machinery Test Report: | Provided; | Name: | CNC PIPE BENDING MACHINE; |
| Certification: | ce; | Warranty of core components: | 3 years; |
| Port: | Qingdao, shanghai, Tianjin, Guangzhou; | Material / Metal Processed: | ALLOY,Brass / Copper,Carbon steel,Stainless Steel,Aluminum; |
| Bending Precision (Deg): | 1; | Type: | Hydraulic Bending Tools; |
| Core Components: | Bearing,Motor,Pump,Gear,Pressure vessel,Engine,Other,Gearbox; | Payment Terms: | L/C,Western Union,D/P,D/A,T/T,MoneyGram; |
| Package Preview: | ; | Max. Bending Angle (Deg): | 160; |
| Extra Services: | End Forming; | Local Service Location: | None; |
| Supply Ability: | 10 Sets per Month; | Video outgoing-inspection: | Provided; |
| Power (kW): | 5.5; | After Warranty Service: | Video technical support,Online support,Spare parts,Field maintenance and repair service; |
| Automation: | Semi-automatic; | Weight (KG): | 750; |
| Warranty: | 2 Years,1 Year; | Key Selling Points: | Multifunctional; |
| Showroom Location: | None; |

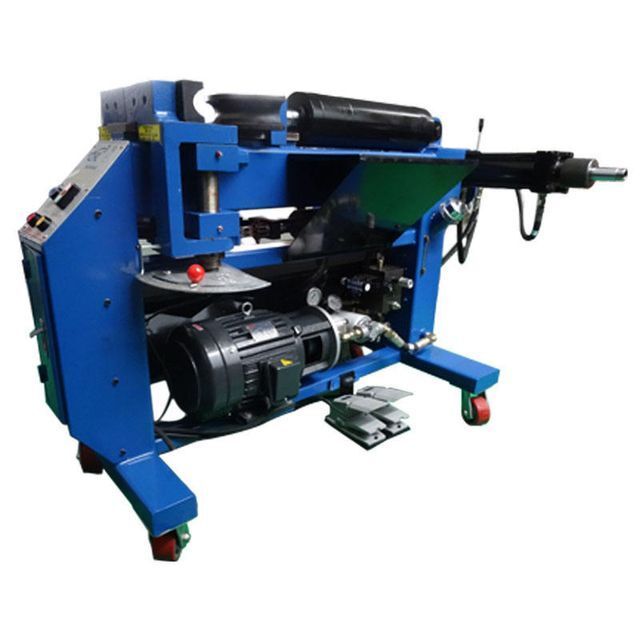

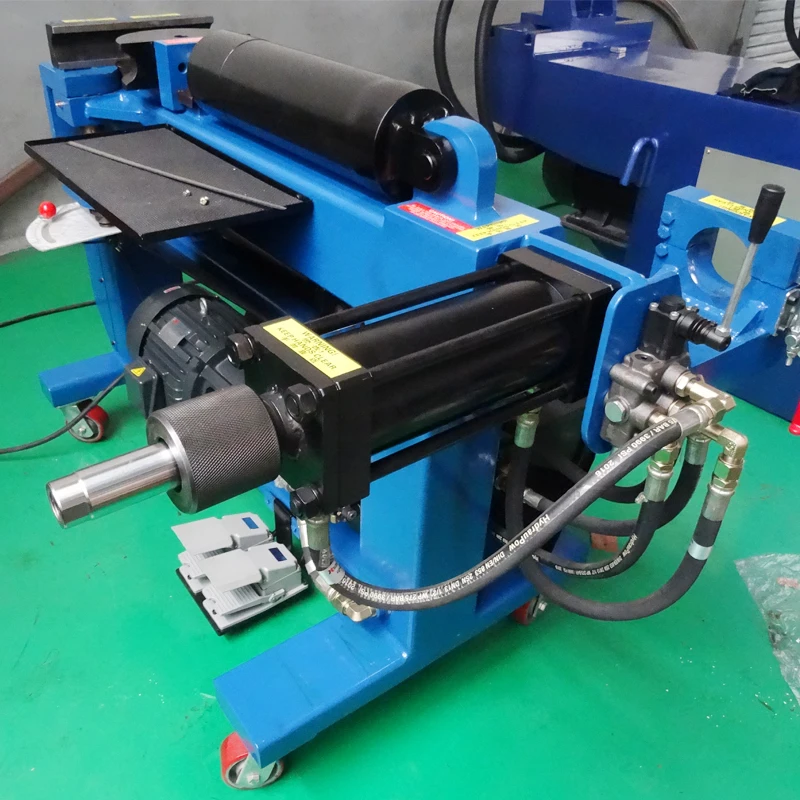

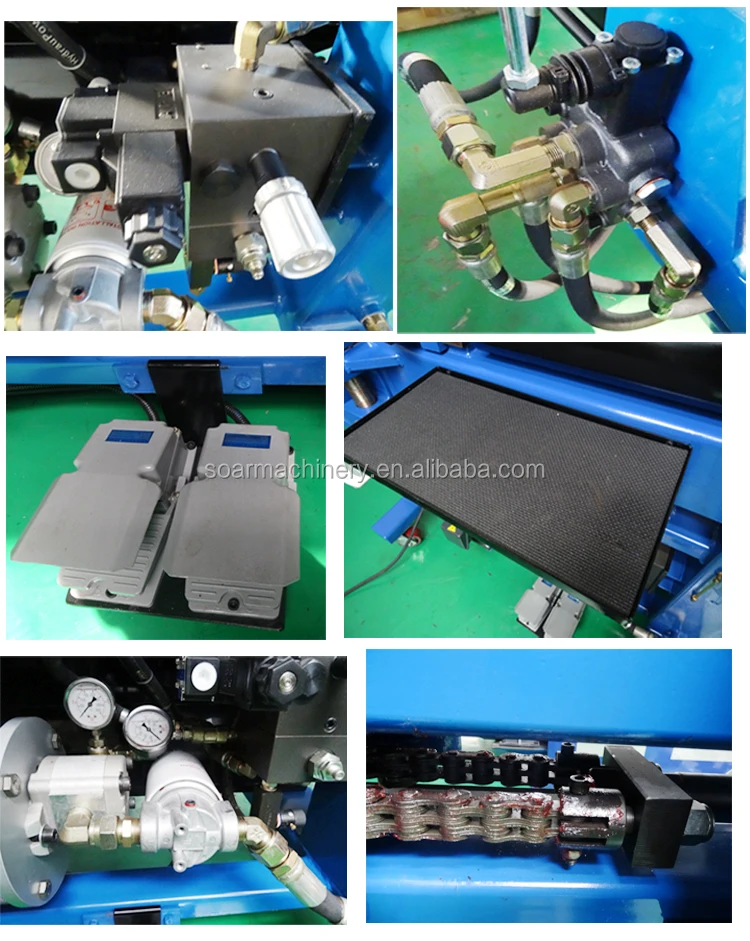

Features of Manual HydraulicExhaust Pipe Bender

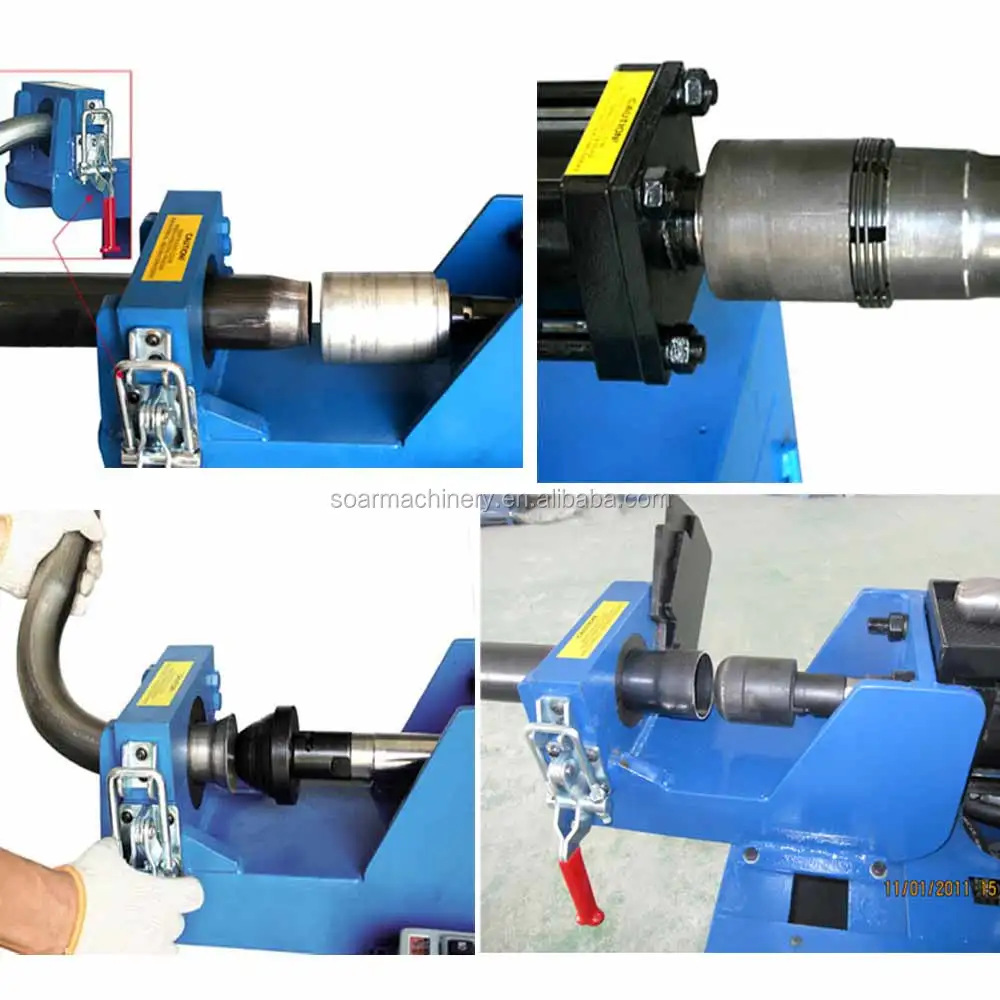

1 machine can bend, expand and shrink pipe end
2 machine bend and expanding pipe diameter reach to max 3 inch( galvanzied steel), others pipe size, SS or MS, is available
3 quotation include 5 stardand size tools,which are 38.1mm, 41.275mm,44.45mm,50.8mm,63.5mm,, if need other size, please let us know, customized serve is acceptable
|
BENDER SPECIFICATIONS |
|
|
Bending Capacity |
1/2’’ OD 2-1/2 /(3”) |
|
Maximum Bending Diameter |
2-1/2 /(3”) |
|
Swaging Capacity |
1/2” OD 1’’ OD to 3’’OD |
|
Motor/power Supply |
7.5HP/Single or 3 Hpase-220,380,or 440V,Optional single phase |
|
Hydraulic Pump Output |
3A-8R(4200PS) |
|
Operation Mode |
Dutton and Foot operated Controls |
|
Hydraulic Filter |
Canister Type |
|
Maximum Bending Force |
3,500PSI |
|
Depth-of-bend Plate |
Preset to Stop Any Desired Bend Depth |
|
Measurement(cm) |
180×80×108 |
|
Special Radius Dies and Power Supplier are Available |
|
|

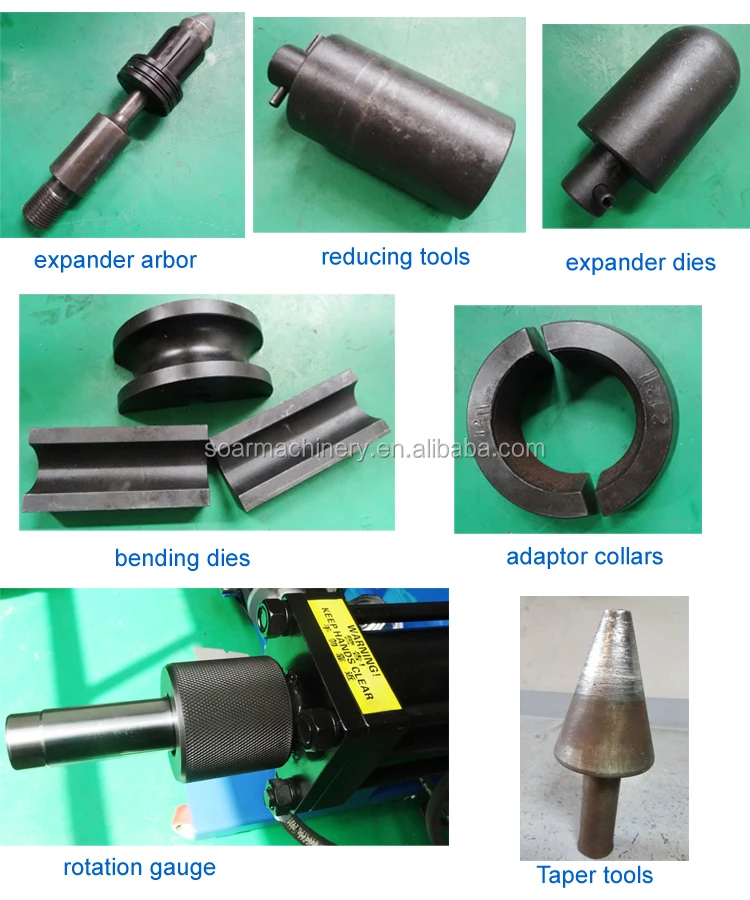

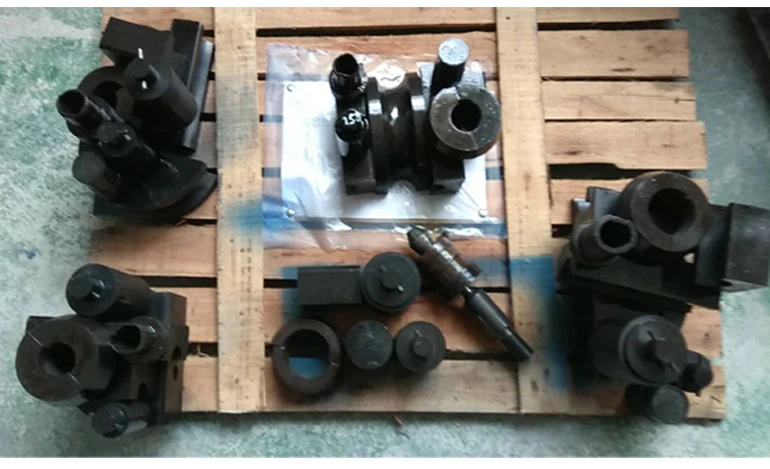

The CR-6001 tube bender is supplied with standard tooling pack 3A |
|
|
5 size of bending dies |
1 1/2,1 5/ 8,1 3/4,2,2 1/2 inch |
|
5 sizes of back shoe sets |
1 1/2,1 5/ 8,1 3/4,2,2 1/2 inch |
|
5 sizes of half shoes |
1 1/2,1 5/ 8,1 3/4,2,2 1/2inch |
|
5size of bend plugs |
1 1/2,1 5/ 8,1 3/4,2,2 1/2inch |
|
3 sizes of reducing tools |
1 5/ 8,1 3/4,2inch |
|
5 sizes expander dies |
1 1/2,1 5/ 8,1 3/4,2,2 1/2inch |
|
5 sizes adaptor collars |
1 1/2,1 5/ 8,1 3/4,2,2 1/2inch |
|
5 sizes segment expander sets |
1 1/2,1 5/ 8,1 3/4,2,2 1/2inch |
|
1 segment expander arbor |
1 1/2,1 5/ 8,1 3/4,2,2 1/2, 3 inch |
|
1 rotation gauge |
|

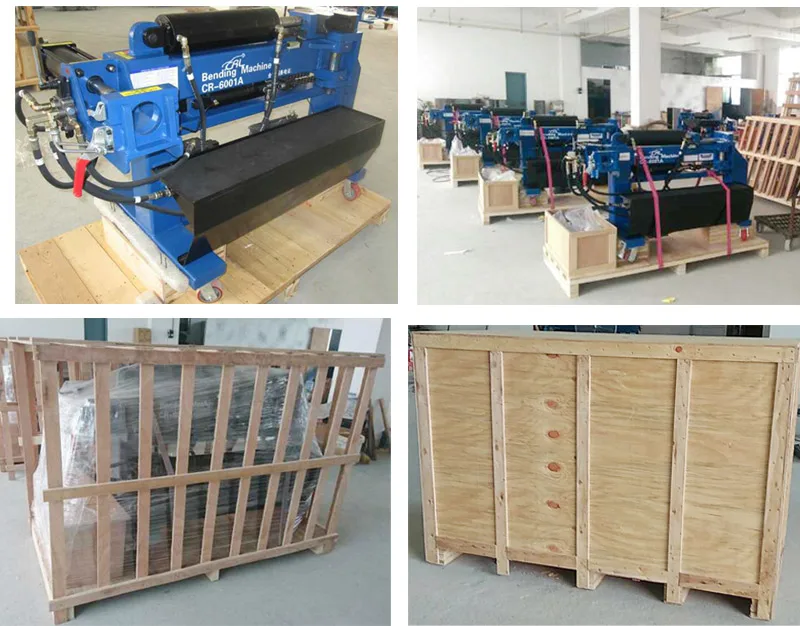

Inner package foamed plastic or stretch film,outpackage:iorn frame or wooden case
Delivery shipped in 7-25days after payment
We will assist you deal with all questions if there will be any problomes with machine after install in your plant,and we will offer you accessories freely if there is damage as quality problems wiithin 24 morths,you just pay freight
.
1 how lony have you been in this filed?
we have been in this filed for more than 15 years
2 Do you have any Certification with product or your factory?
yes, we have passed TUV certification with our product and factory
3 where is your factory?
we are in shandong province,it is about 150KM far from Qingdao port
4 Can we be as yor anget in our country?
yes, if you have this idea, welcome to visit our factory and talk about this, or we fly to visit you
