Face detection and recognition CCTV hard disk video recorder Dahua XVR5216AN-I3 XVR5216A-I3 2SATA 16-channel XVR 5 in 1
- $140.00 / 1 - 49 pieces
$135.00 / >=50 pieces - 1 piece
- Shenzhen Bomi Vision Technology Limited
- Guangdong, China
- Ms Candy Lee
PRODUCT DETAIL
| Recorder AI face detection: | 2 channels, single channel can detect up to 12 faces. | brand: | Dahua |
| Video output: | 1 channel HD MI, 1 channel VGA | model: | XVR5216A-I3 |
| port: | Shenzhen | product name: | Dahua 16 channel dvr xvr 5 in 1 |
| Recorder's Peripheral Performance AI: | 2 channels | Audio input/output: | 1/1 |
| Analog camera input: | 16 channels, BNC | payment terms: | L/C, Western Union, D/P, D/A, T/T, MoneyGram |
| Video Compression: | AI coding/H.265+/H.265/H.264+/H.264 | IP camera input: | 16+8 channels, each channel up to 6MP |
| Packaging Details: | Original packaging. Face detection and recognition CCTV hard disk video recorder Dahua XVR5216AN-I3 XVR5216A-I3 2SATA 16-channel XVR 5 in 1 | Supply capacity: | 10000 pieces per day |
| Hard disk interface: | 2 SATA ports, single HDD up to 16TB | Face database capacity: | Up to 10 face databases and 10,000 pictures. |
| Origin: | Zhejiang, China |
Face detection and recognition CCTV hard disk video recorder Dahua XVR5216AN-I3 XVR5216A-I3 2SATA 16-channel XVR 5 in 1
Product Description

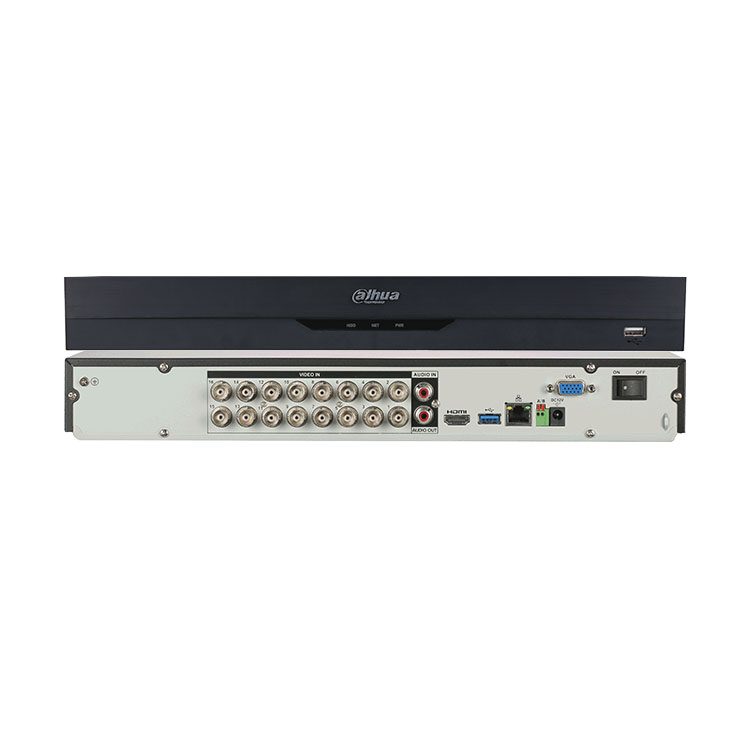

XVR5216AN-I3
16CH Penta-brid 5M-N/1080P 1U 2HDDs WizSense Digital Video Recorder
> H.265+/H.265 dual stream video compression
> Support full channel AI encoding
> Support HDCVI/AHD/TVI/CVBS/IP video input
> Up to 24 IP camera inputs, up to 6MP each; max 128Mbps incoming bandwidth
> Perimeter protection of up to 2 channels of video streams (analog channels)
> Up to 16 video streams (analog channels) SMD Plus
> Up to 2 video streams (analog channel) face recognition
> IoT and POS functions
Product parameters
system | ||
main processor | embedded processor | |
operating system | Embedded Linux | |
perimeter protection | ||
Recorder Peripheral Performance AI (Number of Channels) | 2 channels | |
Face Detection | ||
facial attributes | 6 attributes: gender, age group (6), glasses, expression (8), mask, beard, and display up to four detection panels at the same time at the same time. | |
Recorder AI face detection performance (number of channels) | 2 channels, single channel can detect up to 12 faces. | |
face recognition | ||
Face database capacity | Up to 10 face databases and 10,000 pictures. | |
Recorder AI face recognition performance (number of channels) | 2 channels | |
patch plus | ||
Recorder's SMD Plus | Full-channel SMD Plus (AI by recorder), secondary filtering of SMD Plus for human and motor vehicles, reducing false alarms Changes in foliage, rain and lighting conditions | |
audio and video | ||
Analog camera input | 16 channels, BNC: default adaptive access; HDCVI, AHD, TVI and CVBS access can be configured. | |
camera input | 1. CVI: 5MP, 4MP, 1080P@25/30fps, 720P@50/60fps, 720P@25/30fps. | |
2. TVI: 5MP, 4MP, 3MP, 1080P@25/30, 720P@25/30 fps. | ||
3. AHD: 5MP, 4MP, 3MP, 1080P@25/30, 720P@25/30 fps. | ||
IP camera input | 16+8 channels, each channel up to 6MP | |
coding ability | All channels 5M-N (1 fps–10 fps); 4M-N/1080P (1 fps–15 fps); 1080N/720P/960H/D1/CIF (1fps–25/30fps) | |
dual stream | Supported (D1/CIF (1 fps–15 fps)). | |
video frame rate | PAL: 1 fps–25 fps. | |
NTSC: 1 frame/sec–30 frames/sec. | ||
video bitrate | 32 Kbps–6144 Kbps per channel | |
audio sample | 8 KHz, 16 bits per channel | |
audio bitrate | 64 Kbps per channel | |
bit rate type | Video streaming and composite streaming. | |
video output | 1 HDMI, 1 VGA | |
Graphics card: 1920×1080, 1280×1024, 1280×720 | ||
HDMI: 1920×1080, 1280×1024, 1280×720 | ||
When face or IVS&SMD is selected in AI mode, it will change to 1920×1080, 1280×1024, 1280×720. | ||
multi-display | When IP extension mode is not enabled: 1/4/8/9/16 | |
When IP extension mode is enabled: 1/4/8/9/16/25 | ||
Third-party camera access | Onvif, RTSP, Panasonic, Sony, Axis, Arecont, Pelco, Canon, Samsung | |
compression standard | ||
video compression | AI coding/H.265+/H.265/H.264+/H.264 | |
audio compression | G.711A/G.711u/PCM | |
network | ||
Network protocol | HTTP, HTTPS, TCP/IP, IPv4, RTSP, UDP, SMTP, NTP, DHCP, DNS, DDNS, P2P | |
Mobile access | iPhone, iPad, Android | |
Interoperability | ONVIF 16.12, CGI compliant | |
browser | Chrome, IE9 or above, Firefox | |
network mode | single address mode | |
recording playback | ||
recording mode | Manual, schedule (regular, continuous), MD (video detection: motion detection, video loss, tampering), alarm, stop | |
recording playback | 1/4/9/16 | |
When Face or IVS&SMD is selected in AI mode, it will change to 1/4/9 split. | ||
backup method | USB device/network | |
play mode | Instant playback, normal playback, event playback, tag playback, smart playback (face and motion detection) | |
storage | ||
disk group | Yes | |
alarm | ||
general alert | Motion detection, video loss, tampering and local alarms | |
Abnormal alarm | No disk, disk error, insufficient space, offline, ip conflict, MAC conflict | |
Intelligent alarm | Face detection, face recognition, perimeter protection | |
Alarm linkage | Video recording, snapshot (panorama), IPC external alarm output, access controller, voice prompt, buzzer, log, preset position, mail | |
port | ||
audio input | 1. RCA (external) | |
16. BNC (coaxial) | ||
Audio output | 1. Radiocommunication Bureau | |
two-way dialogue | Yes (shares the same audio input as the first channel) | |
Hard disk interface | 2 SATA interfaces, single hard disk up to 16TB, the maximum hard disk capacity varies with the ambient temperature | |
RS-485 | 1 port for PTZ control | |
USB | 2 USB ports (1 USB 2.0, 1 USB 3.0) | |
hdmi | 1 | |
graphics card | 1 | |
Network port | 1 (10/100/1000 Mbps Ethernet port, RJ-45) | |
General | ||
power supply | DC12V, 4A | |
energy consumption | Below 12W | |
net weight | 1.56 kg (3.44 lbs) | |
gross weight | 2.86 kg (6.31 lb) | |
Product Size | 1U, 375.0mm × 289.0mm × 53.0mm (width × depth × height) | |
14.76" × 11.38" × 2.09" (W×D×H) | ||
Package Size | 433.0 mm x 141.0 mm x 366.0 mm (length x width x height) | |
17.05" × 5.55" × 14.41" (L×W×H) | ||
Operating temperature | –10 °C to +55 °C (+14 °F to +131 °F) | |
Working humidity | 10%–90% | |
Install | desktop | |
certified | CE: CE-LVD: EN 60950-1/IEC 60950-1 | |
CE-EMC: EN 61000-3-2, EN 61000-3-3, EN 55032, EN 50130, EN 55024 | ||
FCC: Part 15 Subpart B | ||
