Factory Supply DUVAL MESSIEN SATELIT G2 2500 ESE Lightnin.g Conductor

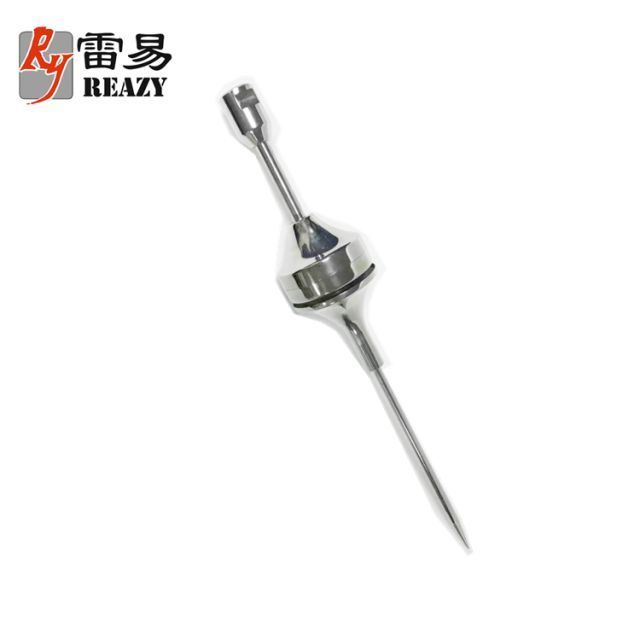

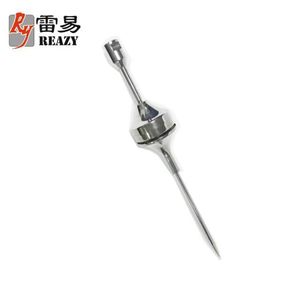

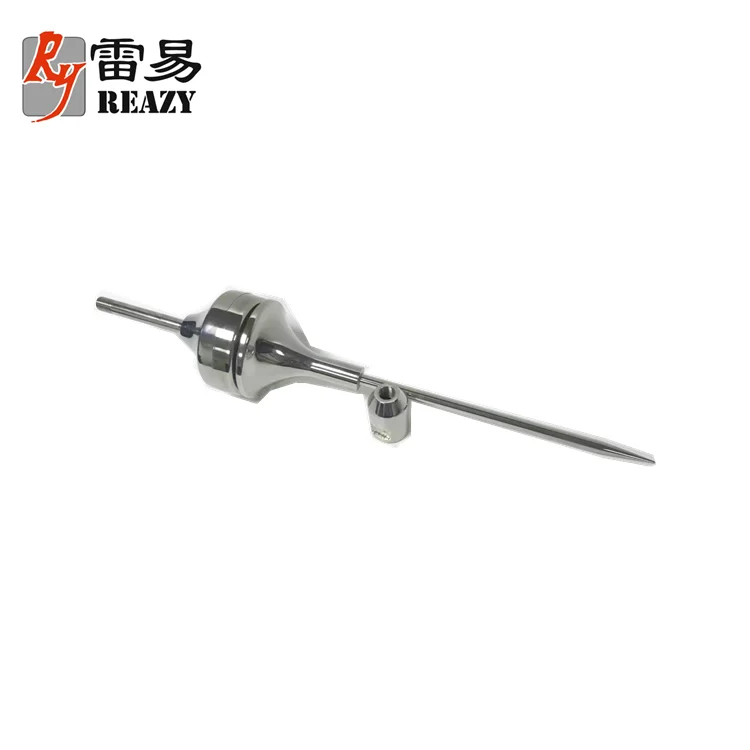

  DUVAL MESSIEN SATELIT + G2 2500 LIGHT-NING ARRESTER

Duval Messien is:

-A staff of engineers and technicians trained regularly on standards evolution;

-A range of technological products always more elabo-reted and efficient;

-A Quality Safety policy still improving with the ASN(French Authority on Nuclear Safety)authorization to remove,dismantle and pack in radioactive lightning conductors barrels.

 This excitation device integrated in the air terminal is designed to increase the excitation distance and thus generate the ascending tracer earlier(regarding to an ascending tracer naturally emitted by a simple rod).

All of our early streamer emission systems are tested in compliance with NF C 17-102 standard,edition September 2011.

 INSTALLATION PRINCIPLES

Aim of the lightning conductors is to protect buildings against direct lightning strikes by capturing the des-cending tracer and flowing the lightning current to the earth,avoiding then to damage the structure.

Four types of lightning conductors:

According to NF EN 62305-3 standard

-Lightning conductors with simple rod(also named passive rods)

-Lightning conductors with meshed cage

-Lightning conductors with tight strand

According to NF C17-102 standard

-Early Streamer Emission lightning conductors named also ESE(with a radius protection more important than a simple rod)

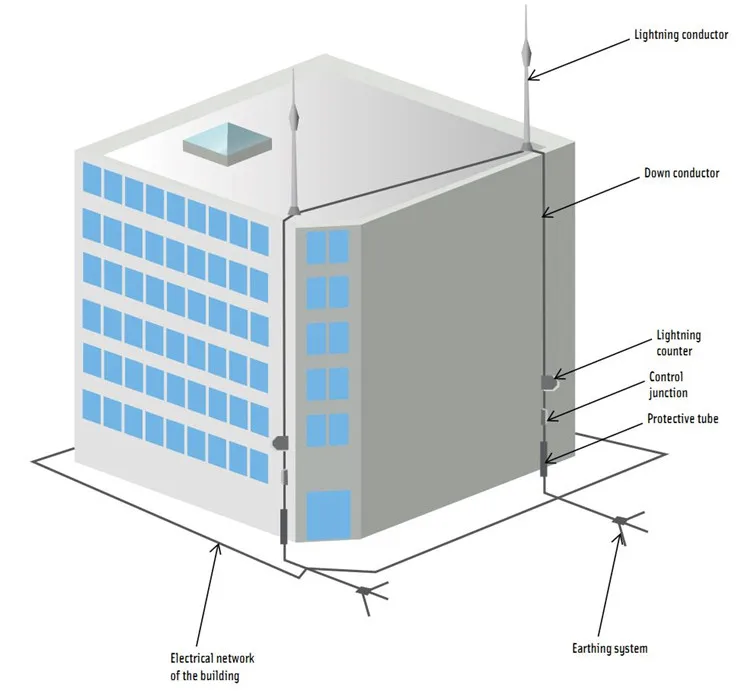

INSTALLATION GUIDELINES

3 main components are part of a lightning protection system.

.The capturing device with its supporting mast and fixings.

.The down conductor composed of one or several tin-ned copper tape with section in compliance with stan-dards in force,designed to flow the lightning current of the lightning conductor to the earthing system.This conductor will usually run outside the structure.Each fixing should allow an eventual conductor dilatation.Bend radius have to be inferior to 0.2 meters.Metalli-cal masses situated in the zone of separation calculated beforehand will be interconnected equipotentially to the lightning conductor.Each down conductor will be equipped at the bottom with a control junction and a 2 meter-high mechanical protective tube.

.The earthing system with an adapted form in com-pliance with standards in force has for aim to diffuse the lightning current to the ground.An inspection pit  will be installed to do the equipotential connection with the nearest electrical earth netword of the building.

Installation quality of a lightning system is an impor-tant element ofr the efficiency of a lightning protection system.

For each installation and in most of cases it will be bet-ter to start with the installation of the earthing sys-tems,then as direct as possible channels of each down conductor,then finish with the lightning conductor and roof circuit installation.

lightning protection technologies

Lightning protection system with early streamer emission air terminal(ESEAT)

These state-of-the-art technologies have been designed on the basis of a series of patent registered iointly by HELITA and the French National Scientific Research Centre(CNRS).The opr is equipped with an electronic device which is high pulse voltage of known and controlled frequency and ampli-tude enabling the early formation of the upward leader which is then continuously propagated towards the downward leader.This anticipation in the upward leader formation is essential with regard to the last scientific knowledge on the lightning attachment that acknowledge the fact that this one results from an upward leader competition.Today the upward leader competition is internationally recognized thanks to high speed cameras pictures of this phenomenon of attachment and to its digital simulation.The satelit draws its energy from the ambient electrical field during the storm.After capturing the lightning stroke,the satelit directs it towards the down conductors to the ground where it is dissipated.

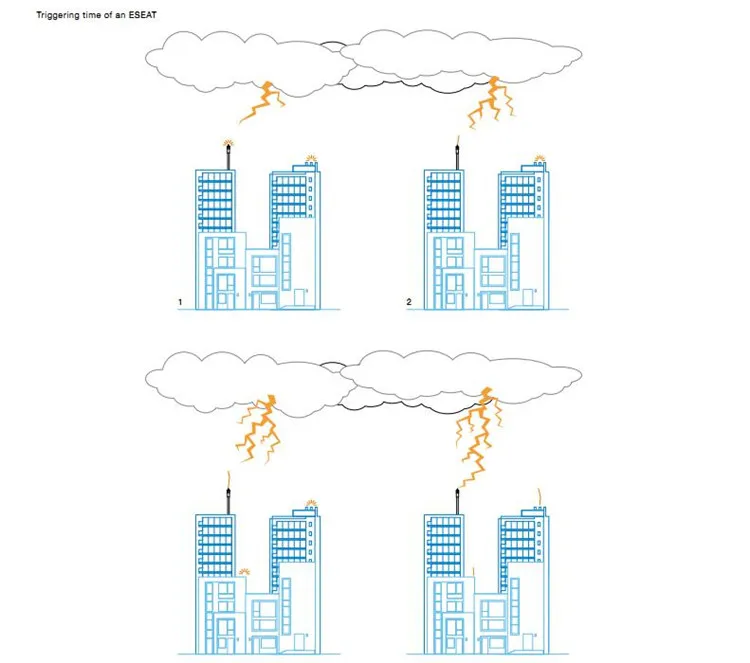

The early streamer emission (ESE) concept

During a storm,when the propagation field conditions are favourable,the RY-SATELIT first generates an upward leader.This leader from the RY-SATELIT tip propagates towards the downward leader from the cloud at an average speed of 1 m/μs.The triggering time T(μs)is defined as the mean gain at the sparkover instant(continuous propagation of the upward leader)obtained with an ESE air terminal compared with a single rod air terminal exposed to the same conditions.T is measured in the high-voltage laboratory,all tests are defined in appendix C of the French standard NF C 17-102.

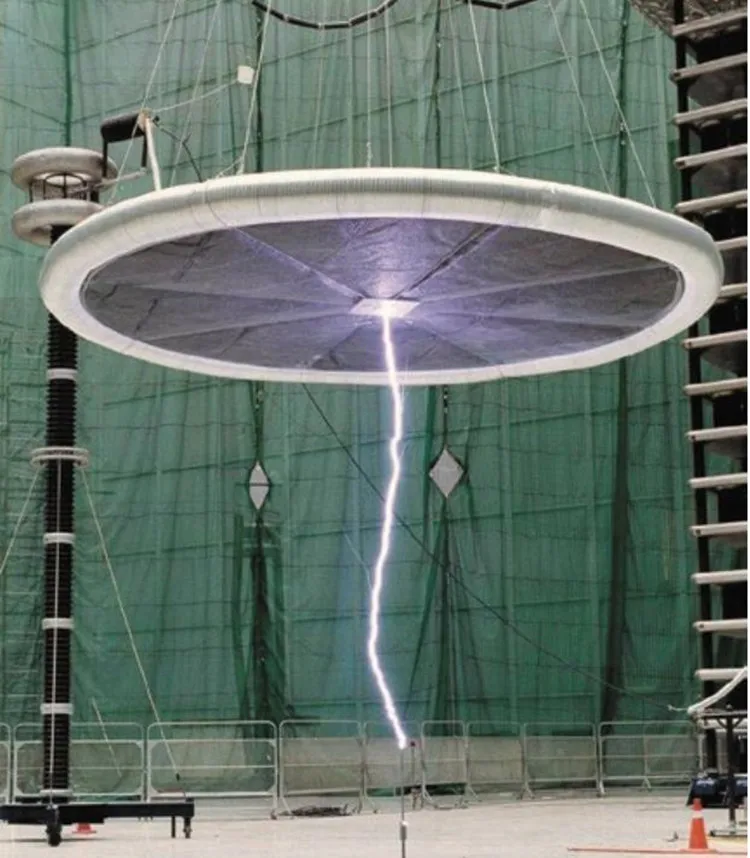

RY-SATELIT Series ESEAT Testing laboratory

About US

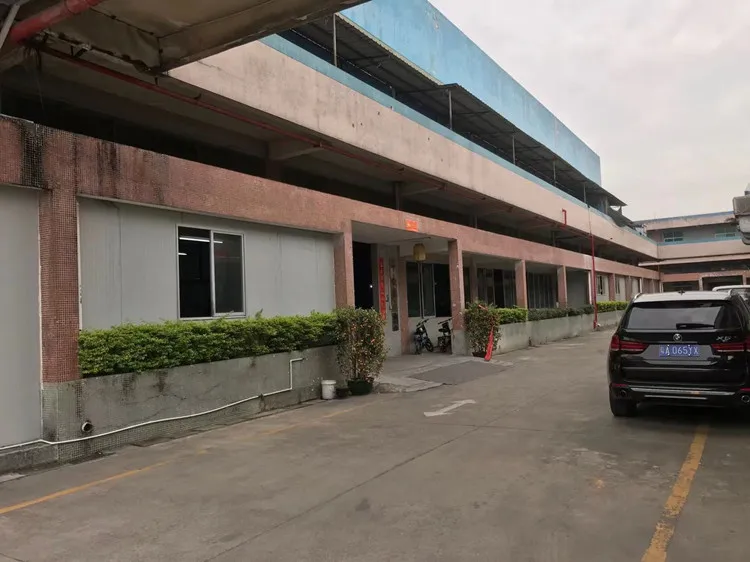

LEISIDUN was established in 2010. A professional manufacturer specializes in ESE Air Terminal Lightning Conductor and Earthing Parts,Welding Module and Materials.Our factory has 2 subsidiaries and 80 employees. The plant covers an area of 3,000 square meters and annual sales reach 5 million. We have an excellent research and development team, keep developing and designs. Innovation is our faith, high quality is our standard, we have been holding this philosophy to provide customers with quality products for more than 11 years. LEISIDUN factory always provide quality assurance to customers with strict standards and through multi-party quality system certification, such as CE, UL, ROHS, I S O 9 0 0 0. LEISIDUN brand has been obsessed with the pursuit of quality since its inception. After more than ten years of steady development, we have never stop  our steps of research on lightning protection; we have never wavered to revitalize humanity's initial intentions for a safe future and a relentless pursuit of a safe environment.Our Vision is Making LEISIDUN a leader in the lightning protection industry.Our mission is making people and their own properties safer, Creating value for customers and realize dreams for employees.Our Value is Customer success, Efficient passion, Unity and Teamwork, Integrity and responsibility, Thanksgiving and Altruism.

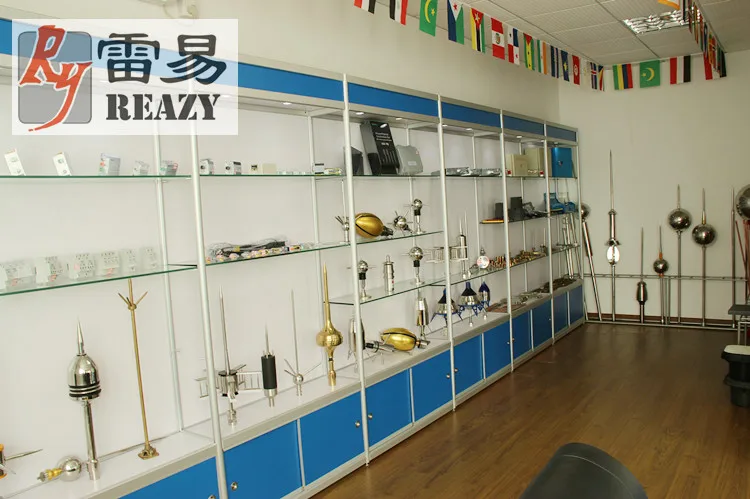

Our Show Room and Certification

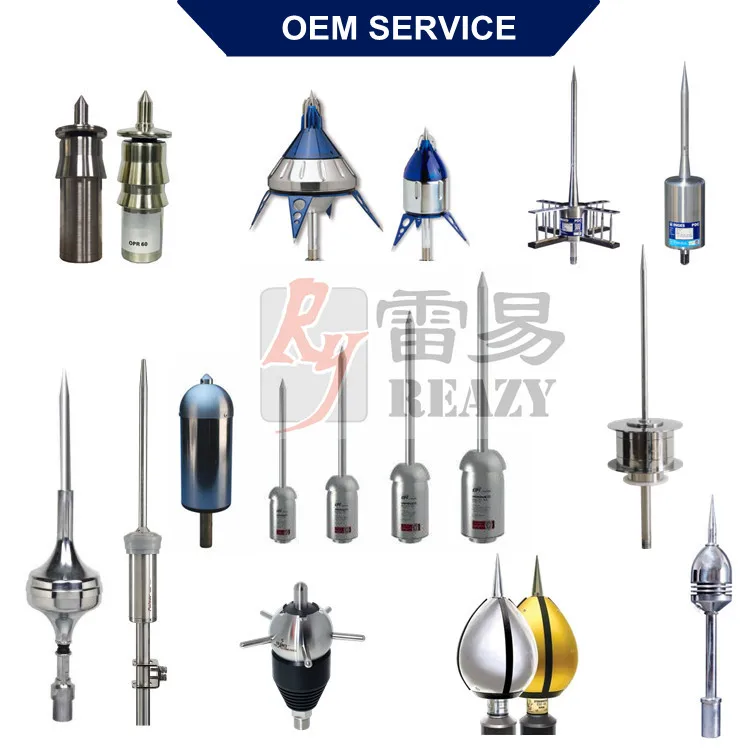

OEM BRAND ESE AIR TERMINAL / LIGHTNING CONDUCTOR AVAILABLE

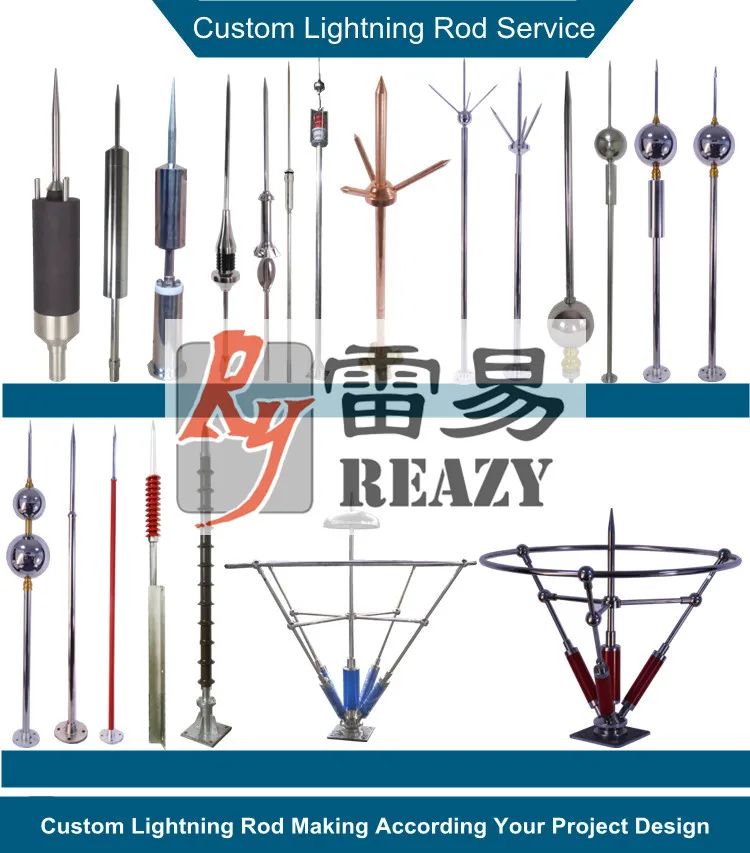

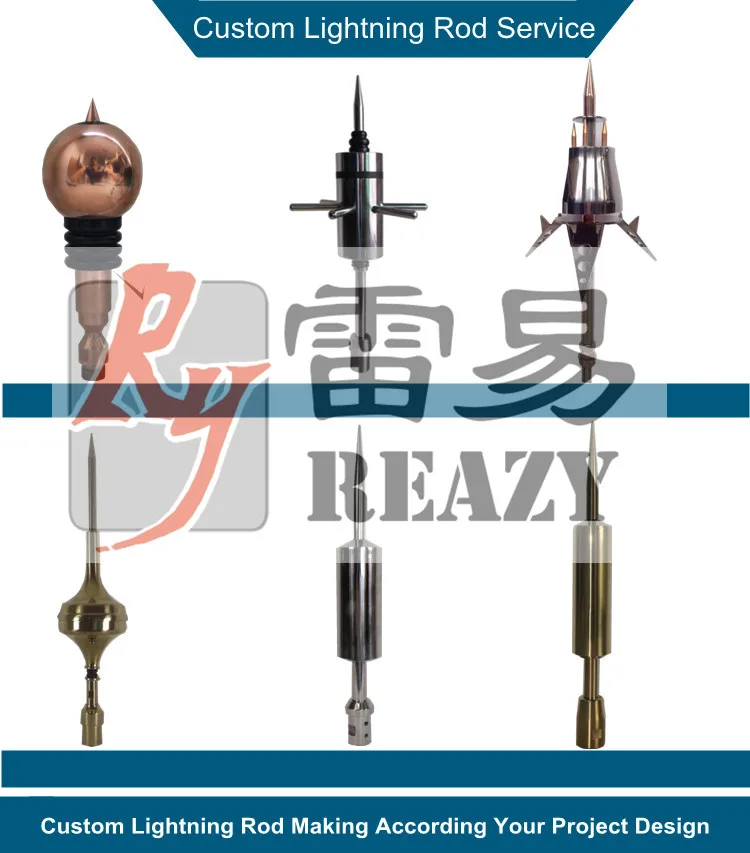

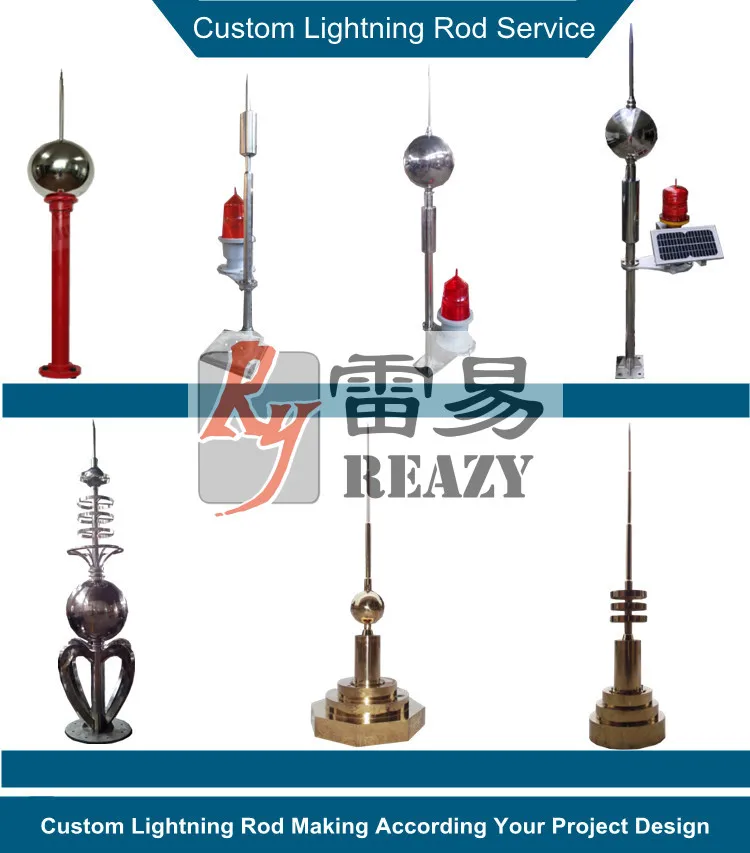

CUSTOM LIGHTNING ROD MANUFACTURING SERVICE AVAILABLE

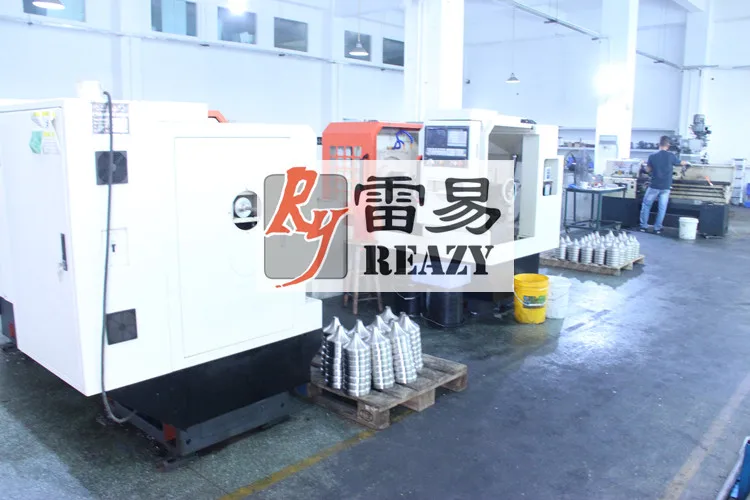

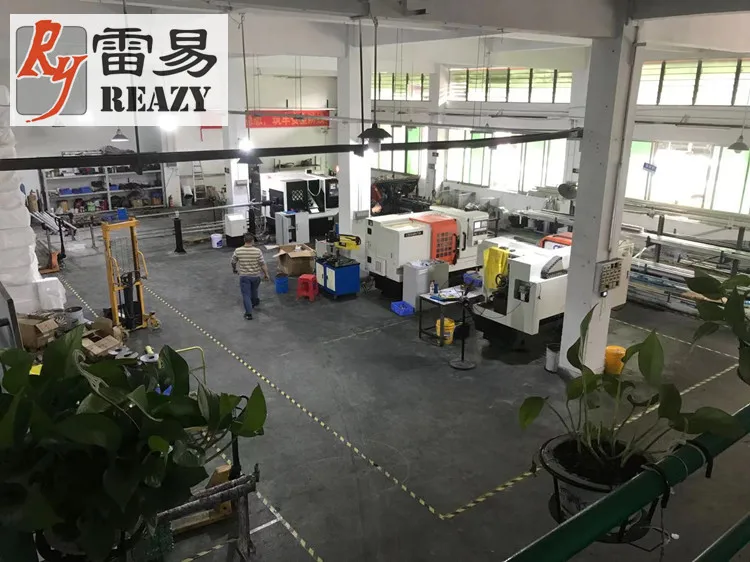

Our Manufacture Workshop

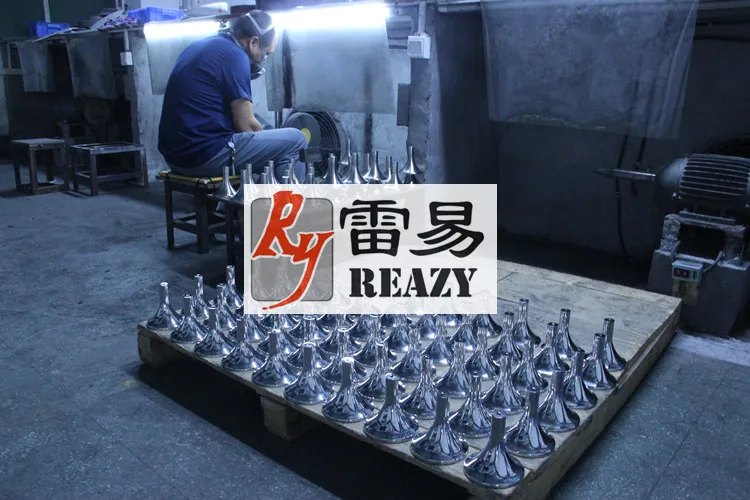

ESE Parts Polishing

ESE Parts CNC Machining

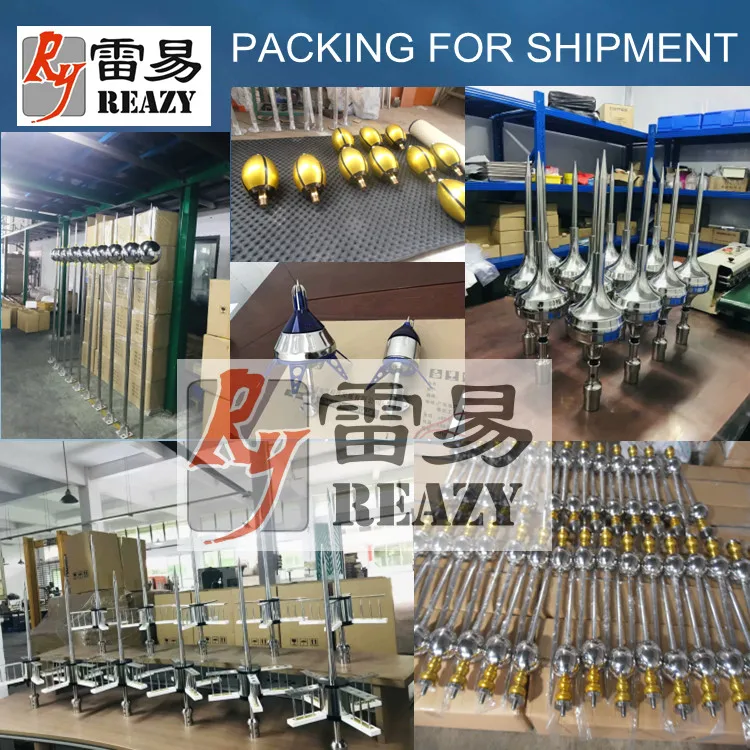

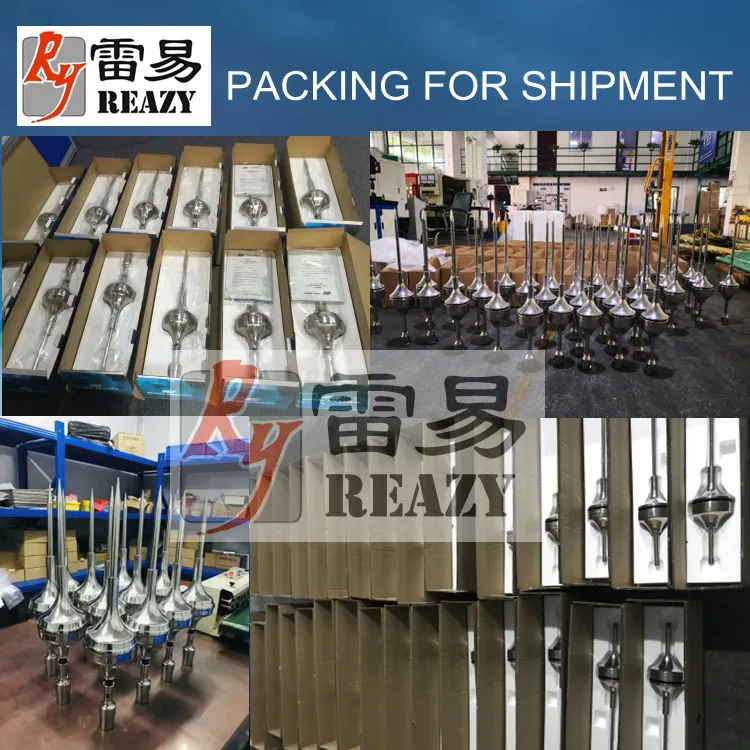

PACKAGING & SHIPPING

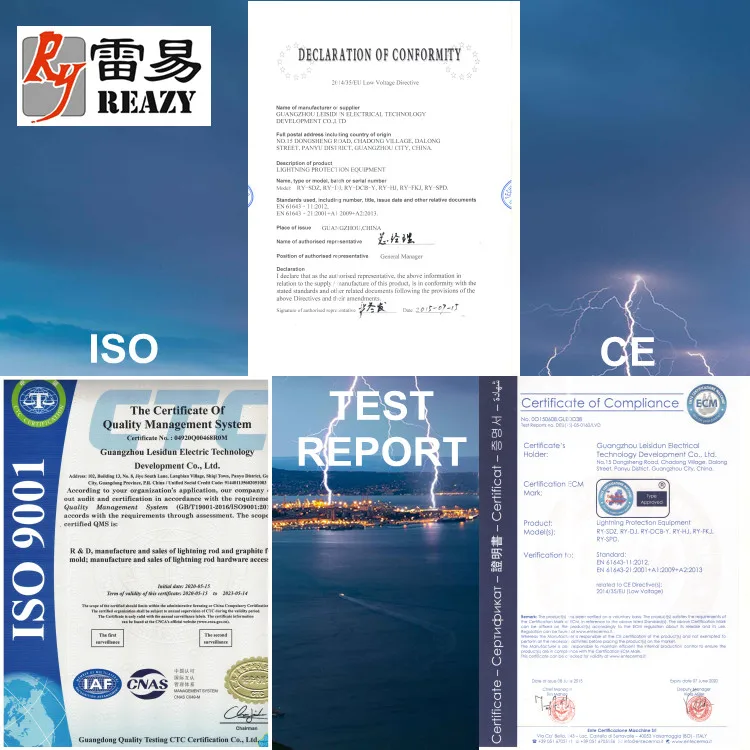

Our Certificate and Test Report
