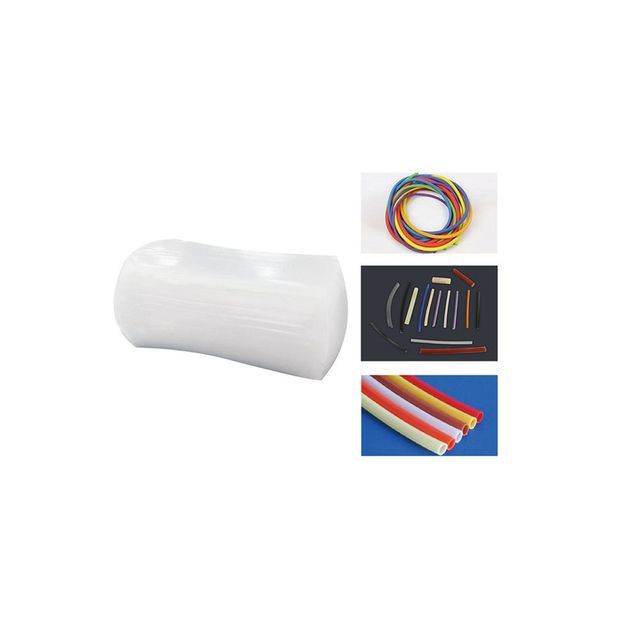

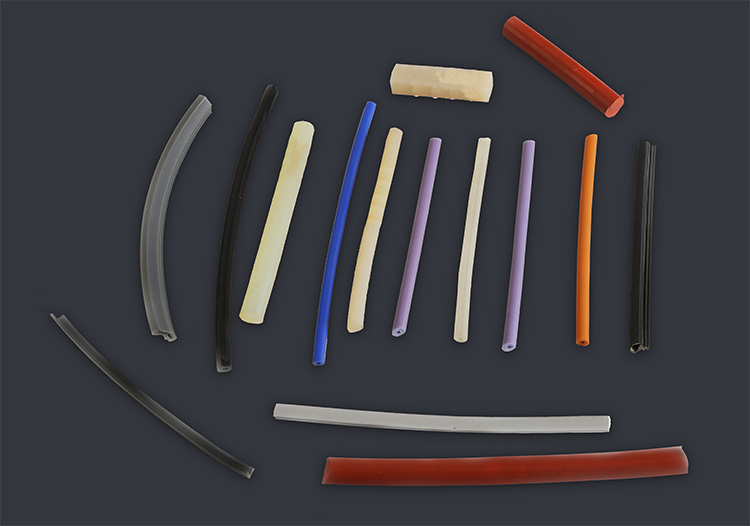

Factory direct sale Ordinary extruded silicone rubber Good physical and mechanical properties Accept OEM/ODM

PRODUCT DETAIL

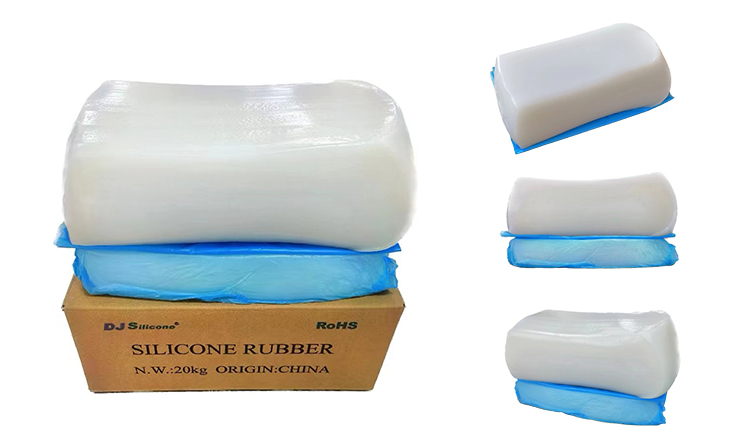

appearance:	Milky white, light yellow, no obvious foreign matter.	Package preview:
Curing conditions:	175℃*5 minutes	Supply capacity:	400,000 tons/year
brand:	DJ Silicone	model:	NE2-72
payment terms:	L/C, Western Union, T/T, MoneyGram, Moneybooker	Dielectric strength, kV/mm ≥:	18

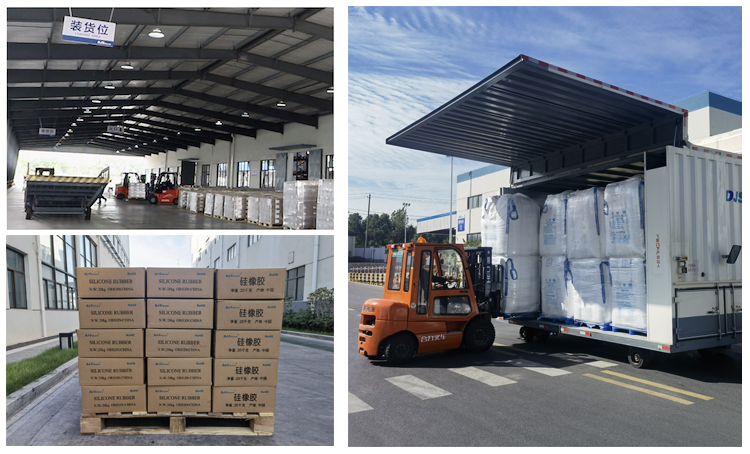

Origin:	Anhui, China	Packaging Details:	Can be transported by general means of transportation. The product should be protected from rain and sun, away from fire and heat sources, not in contact with air, and avoid contact with strong acid, strong alkali, metal lead and their compounds. The packaging is required to be sealed, and it should be handled with care to prevent damage to the packaging and containers. Unused products should be kept sealed to avoid contamination.

Product Description

characteristic	Product information					Test Methods
characteristic	NE-7240	NE-7250	NE-7260	NE-7270	NE-7280	Test Methods
appearance	Milky white, light yellow, no obvious foreign matter.					vision test
Density, g/cm3	1.10~1.14	1.13~1.17	1.16~1.20	1.19~1.23	1.20~1.24	ASTM D792
Hardness, Shore A	40±2	50±2	60±2	70±2	80±2	ASTM D2240
Tensile strength, MPa≥	6.5	7.5		7.0	6.5	ASTM D412
Elongation at break, % ≥	450	400	320	250	150
Tension permanent deformation, % ≤	10				8
Tear strength, mold C kN/m ≥	16	18	20		18	ASTM D624
Compression set, 180°C*22h % ≤	40	35			30	ASTM D395
Resilience, % ≥	60	50		45		/
Volume resistivity, Ω·cm ≥	1.0x10¹⁴					IEC 60093
Dielectric strength, kV/mm ≥	18					IEC 60243
• The physical data in the above table are for reference only. • Curing conditions: 175°C*5Min. • Proportion of curing agent liquid 2,5-dimethyl-2,5-bis(tert-butylperoxy)hexane: 0.65%. • The test report provided is obtained by the quality inspection department according to the curing conditions and testing methods of the company; due to the difference in curing conditions and testing methods, we cannot guarantee that the two parties will obtain the same test results. It is recommended that users use the test results obtained under their own testing conditions The data is used as a reference for performance. All the above performance data and application suggestions are only used as a reference for product service performance, and do not guarantee the effectiveness or general applicability of our products in specific applications.
