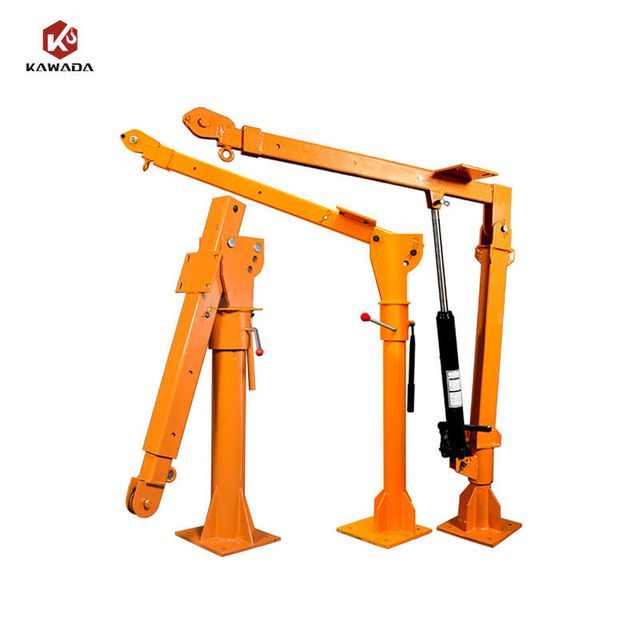

Factory price 1000KG mini mini crane cheapest

PRODUCT DETAIL

place of origin; place of origin:	China	thing:	Jib Crane
Rated load capacity:	500kg	After Warranty Service:	Online support
payment terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram	Showroom location:	not any
Voltage:	according to your request	Local service location:	not any
brand:	Kawada, Kawada	port:	Xingang/China
maximum. Lifting height:	2 meters, 2 meters	application:	workshop; warehouse; port, factory, warehouse
Applicable industries:	Building Materials Stores, Mechanical Repair Shops, Manufacturing Plants, Construction Works, Energy & Mining	Supply capacity:	10,000 cases per month
feature:	jib crane	Warranty:	1 year, 1 year
Packaging Details:	wooden box	span:	1.4m
Packaging Preview:		Health status:	new
Certification:	CE,ISO,ISO BV CCC OHSAS	After-sales service provided:	Online support
Minimum order quantity:	1	color:	Yellow.Red.Customized

Model	JT-1000
Single line lifting capacity (maximum)	500kg
Double line lift capacity (max)	800kg
Lifting height Max.Std.(base to hook)	1940mm
reaches the maximum value (from the center of rotation)	1490mm
Rotation with brake (continuous)	360° manual
Lifting cable	4.8mm x 4.5m –1pc (single wire hoisting)
Lifting cable		4.8mm x 5.5m—1pc (for double-wire hoisting)
No-load line speed	3.6m/min single line
Power requirements	12V DC 125 amps
switch cable	4.2m
Mounting the base	250x250x18mm
Mounting Bolt Hole Patterns	170x170mm
Finish	powder coating
Crane Gross Weight (LBS)	110KG
Available colors	yellow/red/custom

Application scenarios
