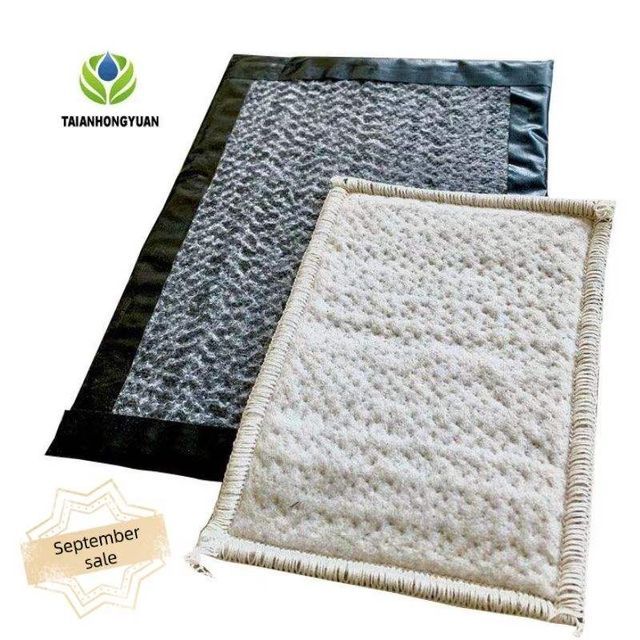

Factory price GCL waterproof blanket low price bentonite GCL geosynthetic clay liner golf course
- $2.38 / 1000 - 4999 square meters
$1.86 / >=5000 square meters - 1000 square meters
- Taian Hongyuan Geosynthetics Co., Ltd.
- Shandong, China
- Ms Makela Liang
PRODUCT DETAIL
| Origin: | Shandong Province, China | After-sales service: | Online technical support, on-site installation, on-site training, on-site inspection, free spare parts, return and exchange |
| Warranty: | over 5 years | color: | white black |
| port: | Qingdao | length: | 30m-50m |
| Packaging Details: | Waterproof membrane | feature: | high tensile strength |
| width: | 1-6m | Project Solution Capabilities: | Graphic design, 3D model design, overall project solution, cross-category integration |
| Key words: | Geosynthetic Pond Liner Bentonite Clay | brand: | Taian Hongyuan |
| usage: | Waterproofing | payment terms: | L/C, Western Union, D/P, D/A, T/T, MoneyGram |
| application: | park, outdoor | Specification: | 4000G-8000G |
| design style: | modern | Supply capacity: | 20000 square meters per day |
| model: | GCL-3 | project name: | Bentonite Clay Liner GCL |
| product name: | GCL (Geoclay Liners) | Package preview: | |
| Material: | Bentonite |
Product Description

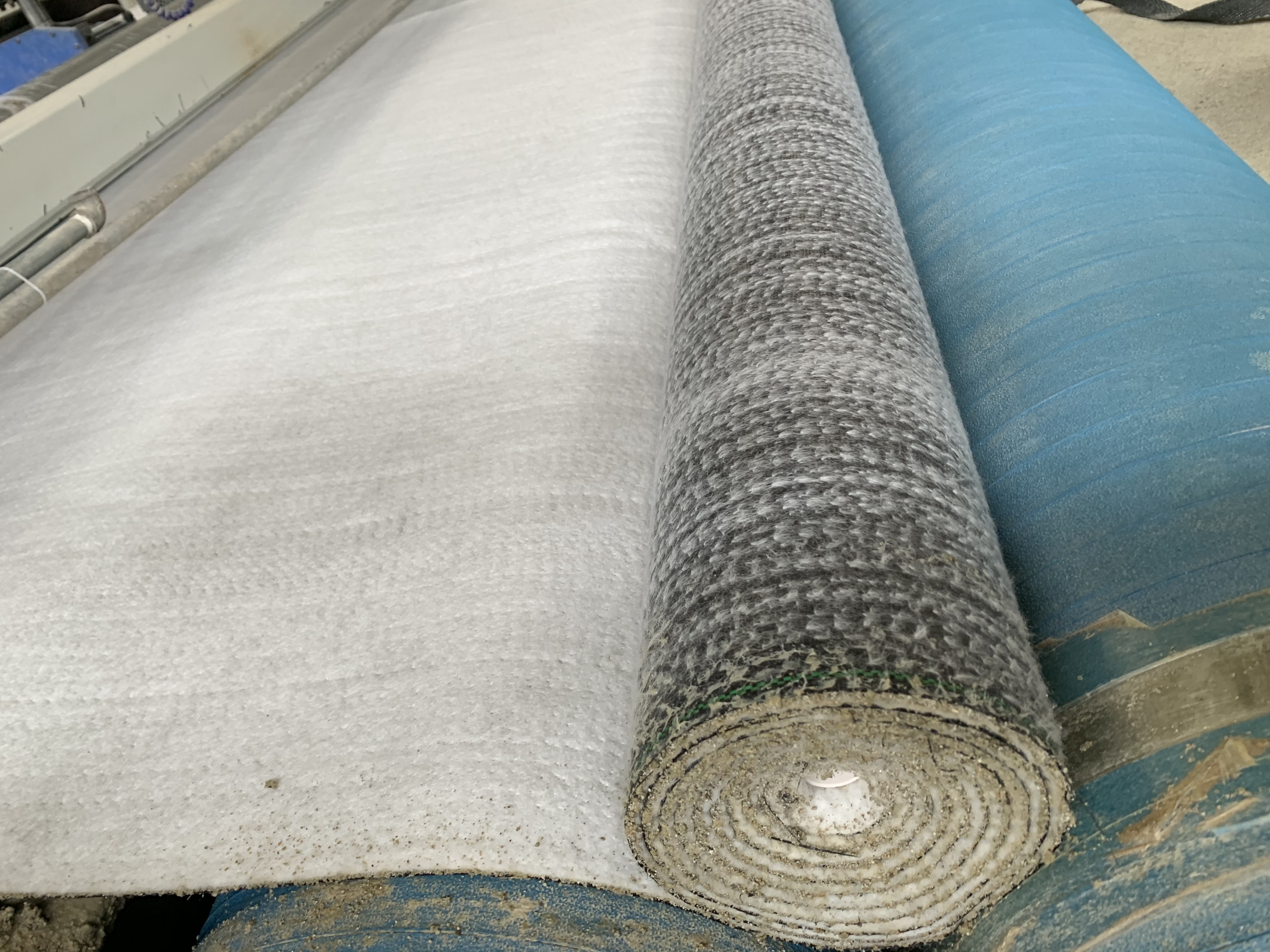

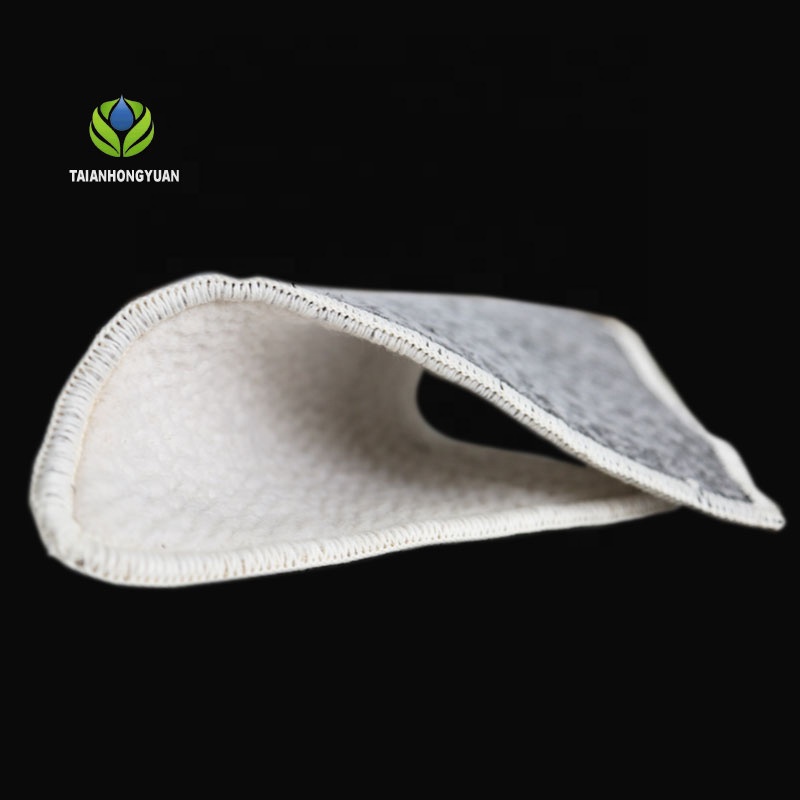

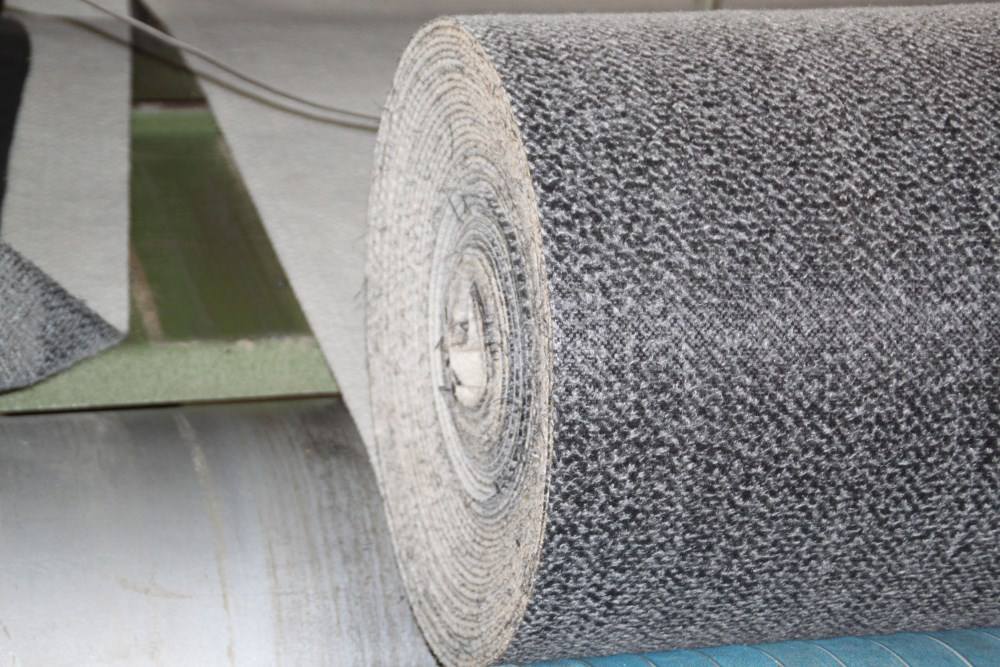

GCL

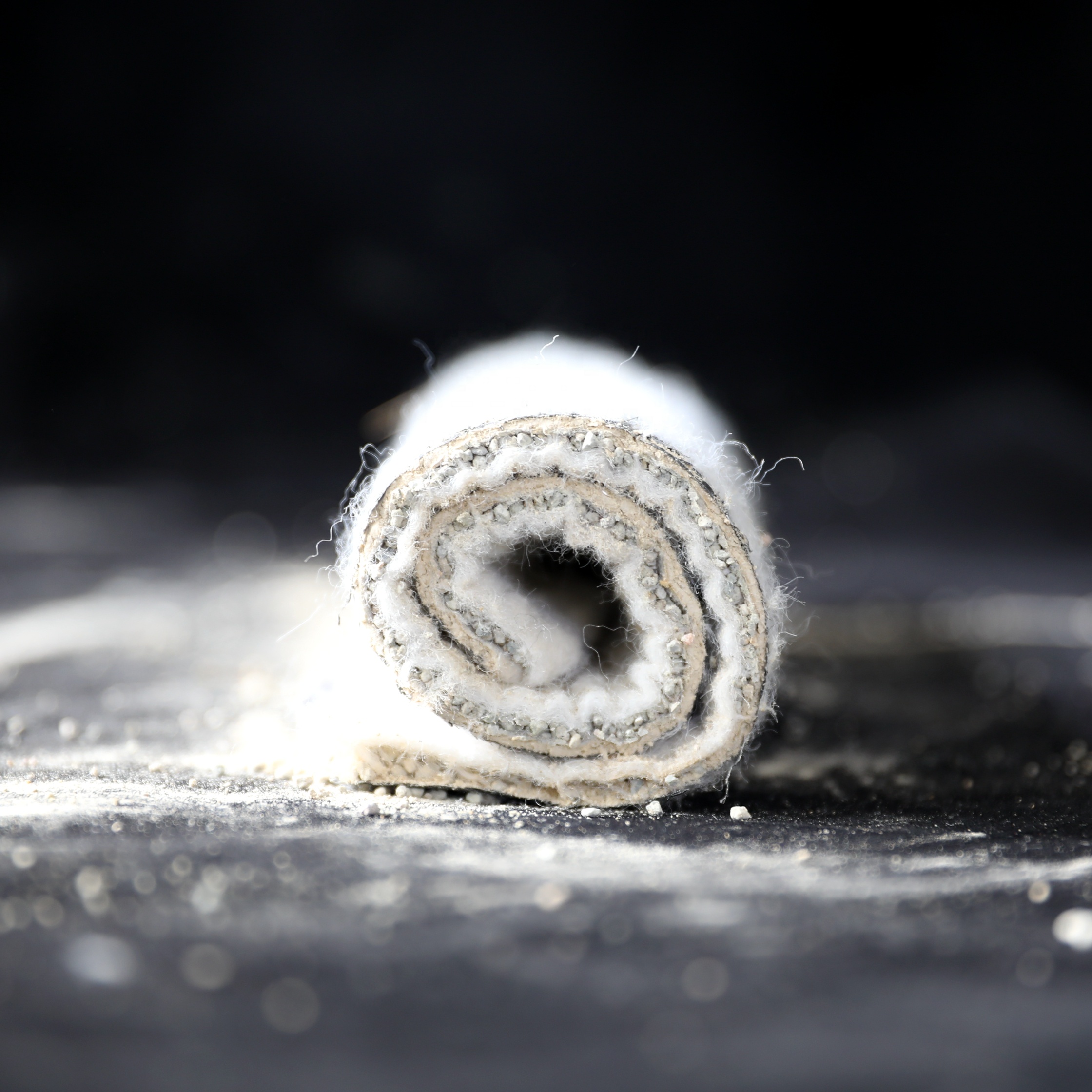

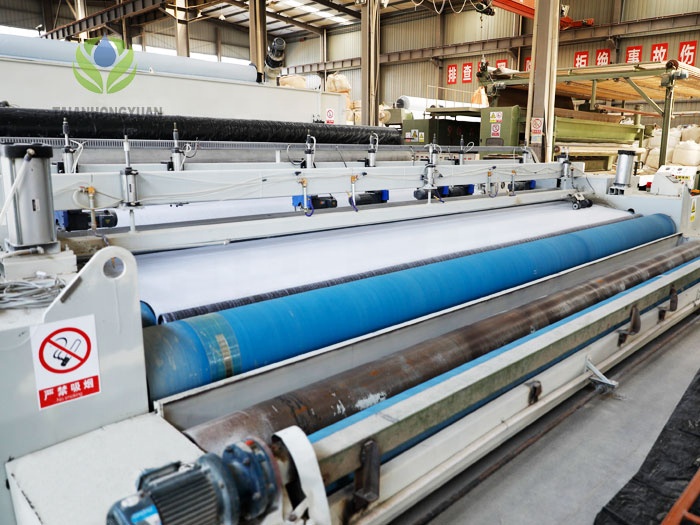

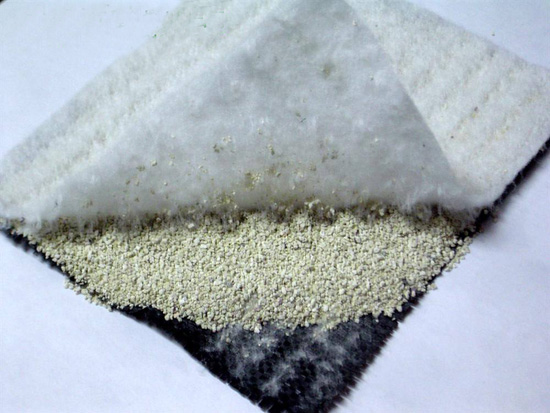

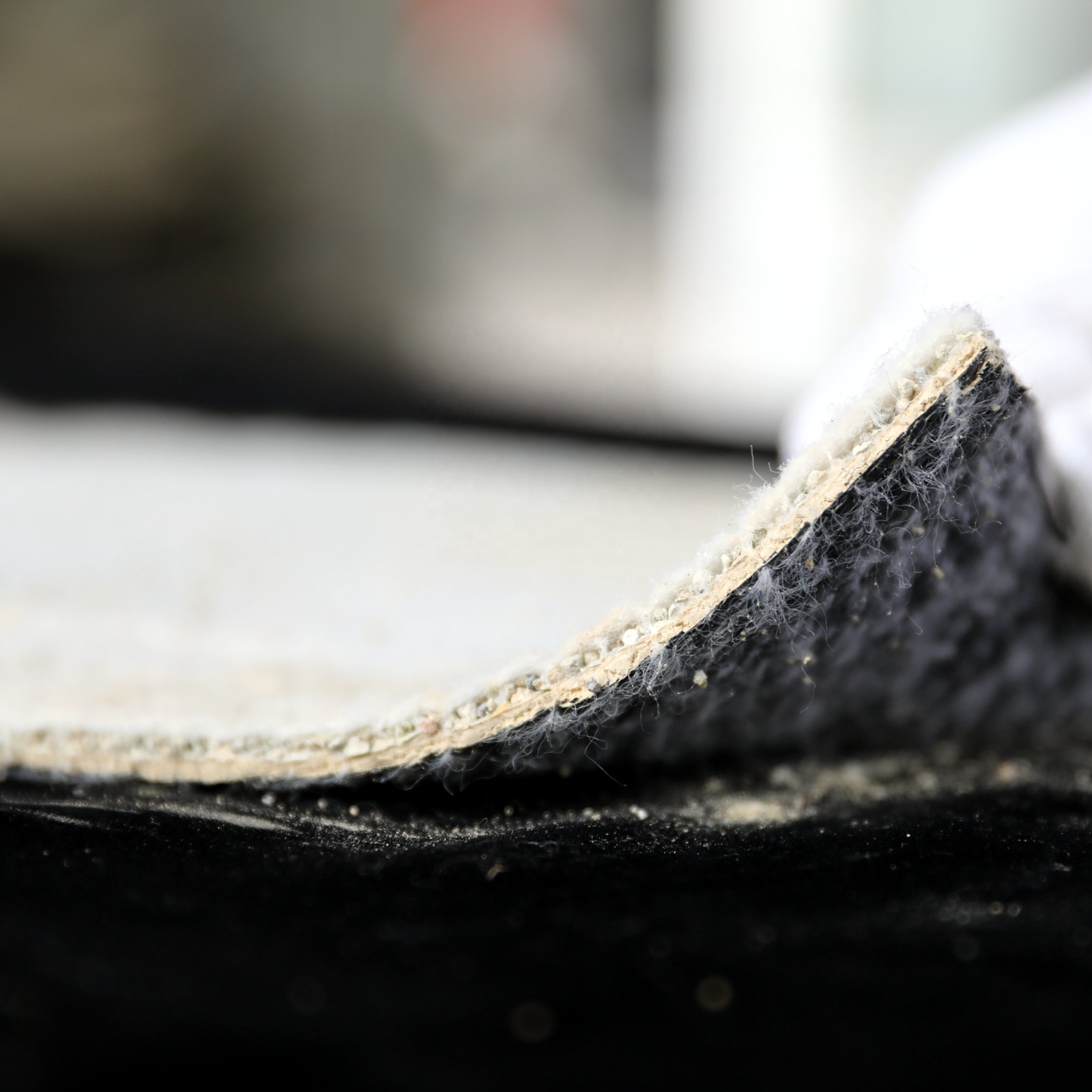

Geosynthetic clay liner (GCL) is made of highly expansive sodium bentonite filled between special composite geotextiles and non-woven fabrics. Composite anti-seepage material made by needle punching or sewing. Using needles to penetrate the GCL can form many fine fiber spaces, so that the bentonite particles cannot flow in one direction, and form a colloidal waterproof layer with uniform density under the action of water in the pad to prevent water leakage.
Project/Technical Data | GCL NP technical indicators |
Weight per unit area (g/m2) | Greater than 4000gsm and not less than the specified value |
Bentonite swelling index (ml/2g) | ≥24 |
Ethylene blue absorbance (g/100g) | ≥30 |
Tensile strength (N/100mm) | ≥600 |
Shelf strength (N/100mm) | ≥40 |
Maximum load elongation (%) | ≥10 |
Permeability (m/s) | ≤5.0x110^(-11) |
Anti-static water pressure | 0.4Mpa, 1h, no water seepage |
Filtration loss (ml) | ≤18 |
Bentonite durability (ml/2g) | ≥20 |
Product Features
1. Environmental protection
2. Permanent waterproof, excellent performance
3. Convenient construction
4. Strong self-recovery ability
2. Permanent waterproof, excellent performance
3. Convenient construction
4. Strong self-recovery ability
Application Scenario

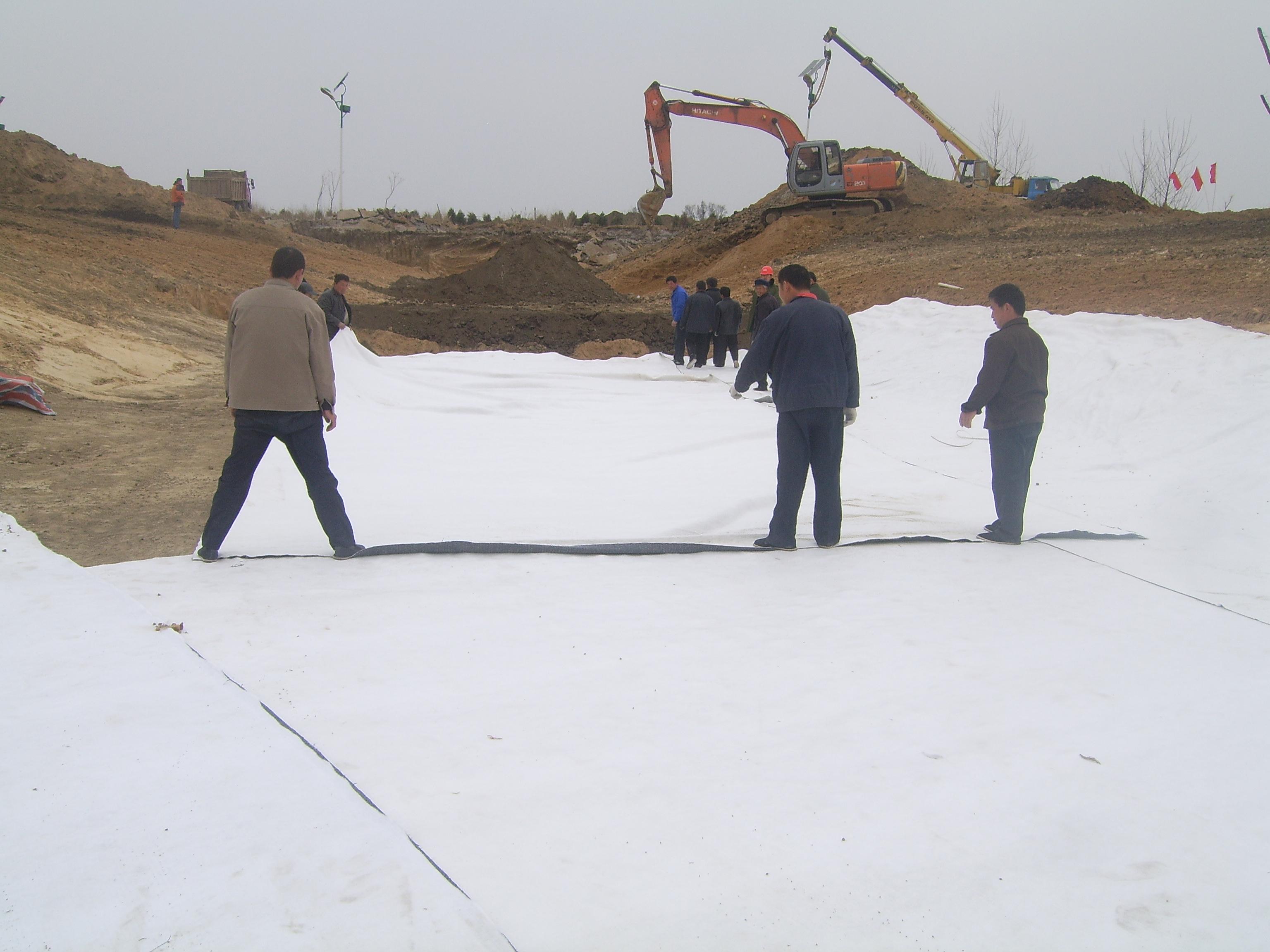

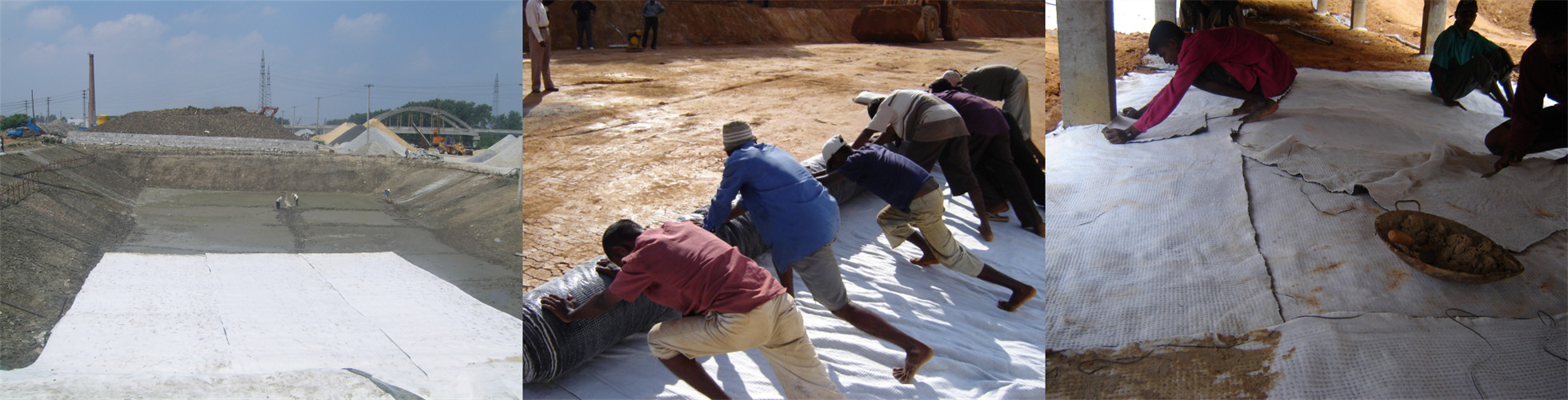

1. Anti-seepage sealing treatment project of landfill.
2. Waterscape engineering and artificial landscape engineering.
3. Anti-seepage engineering of underground storage tanks. 4. Canal and channel anti-seepage works.
5. Reservoir anti-seepage project (pool).
6. Metro project.
7. Tunnel engineering.
8. Underground foundation and other underground structures and waterproofing works.
2. Waterscape engineering and artificial landscape engineering.
3. Anti-seepage engineering of underground storage tanks. 4. Canal and channel anti-seepage works.
5. Reservoir anti-seepage project (pool).
6. Metro project.
7. Tunnel engineering.
8. Underground foundation and other underground structures and waterproofing works.

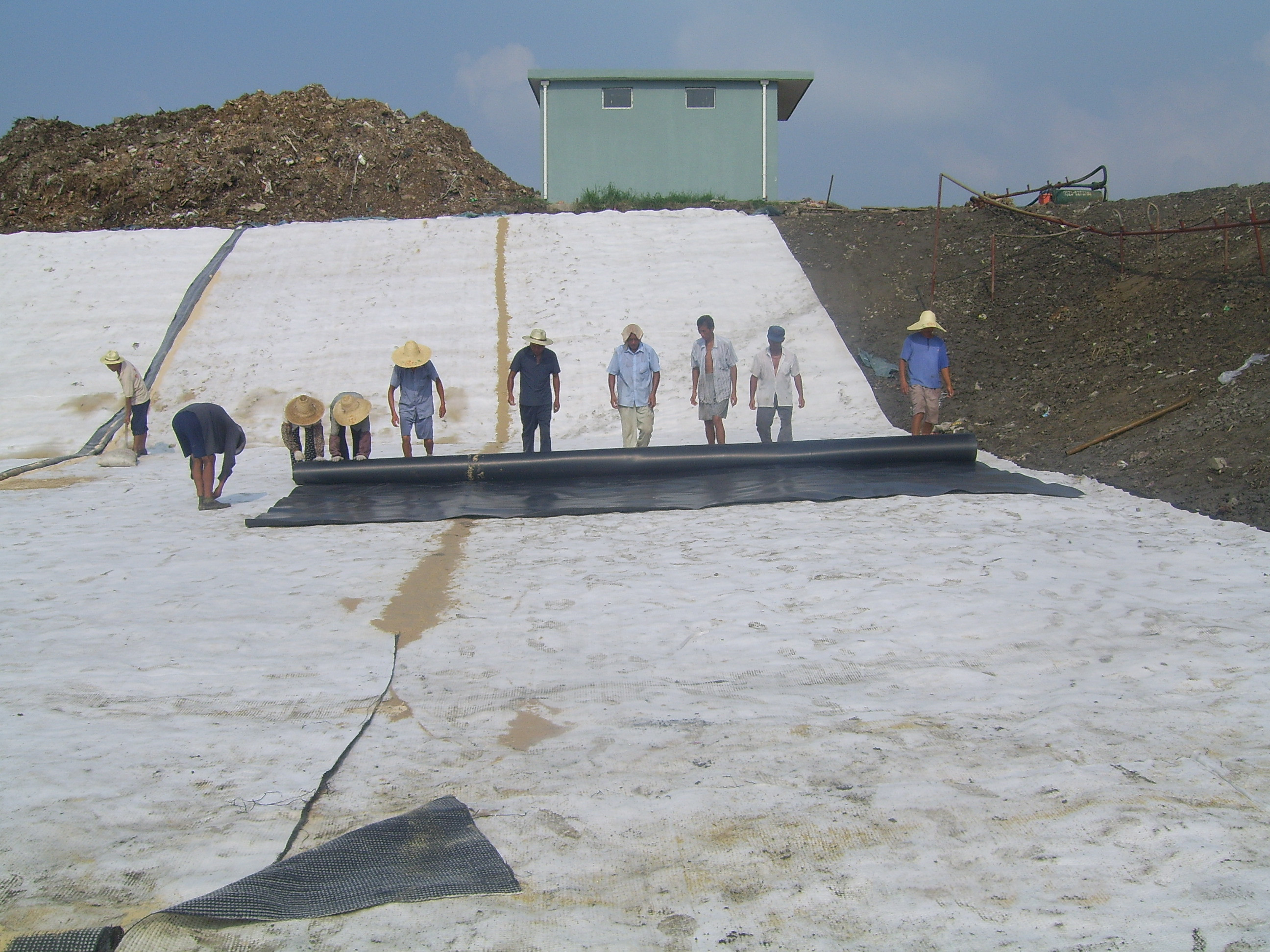

american landfill
Bentonite waterproof blankets were used in the construction of large-scale landfills in Long Island, USA, with a total area of 37,000 square meters. So far, no quality problems have occurred.

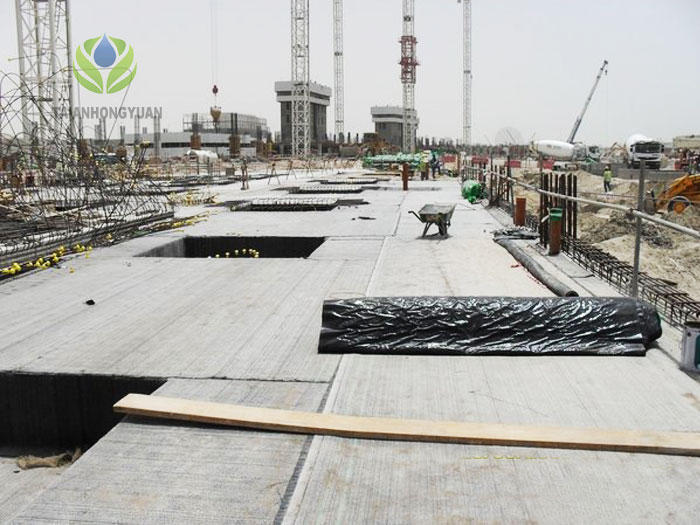

Australian basement waterproofing
In the construction of a large basement in a community in Australia, bentonite waterproof blankets were used for waterproofing measures, with a total area of 11,000 square meters. There has been no quality problem in construction so far.
Indonesia Wetland Park
For large-scale artificial river construction, bentonite waterproof blankets were used for waterproofing measures totaling 46,000 square meters, and no quality problems occurred during construction.
Sri Lanka Water Park Project
Sri Lanka Water Park has an artificial lake of 800 square meters. The entire artificial lake uses bentonite waterproof blankets totaling 13,000 square meters. It has been completed for many years, and there have been no quality problems such as water leakage.
