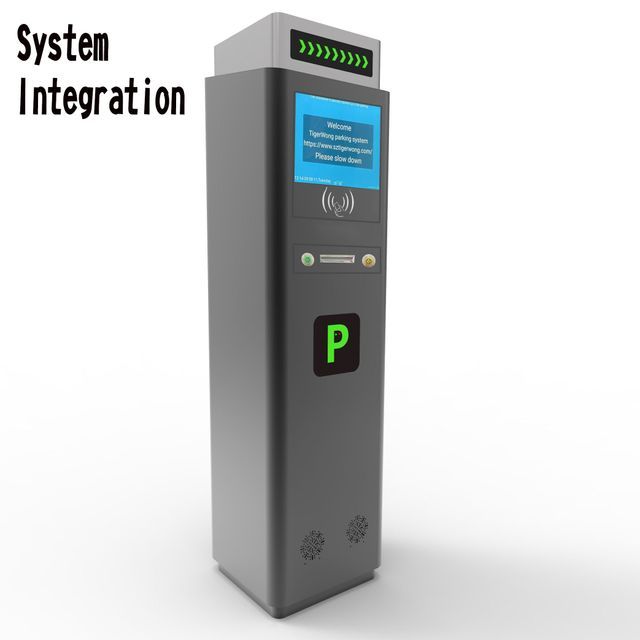

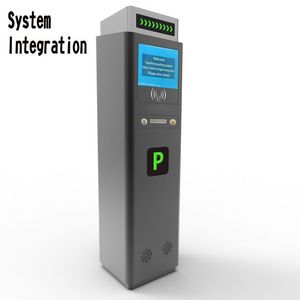

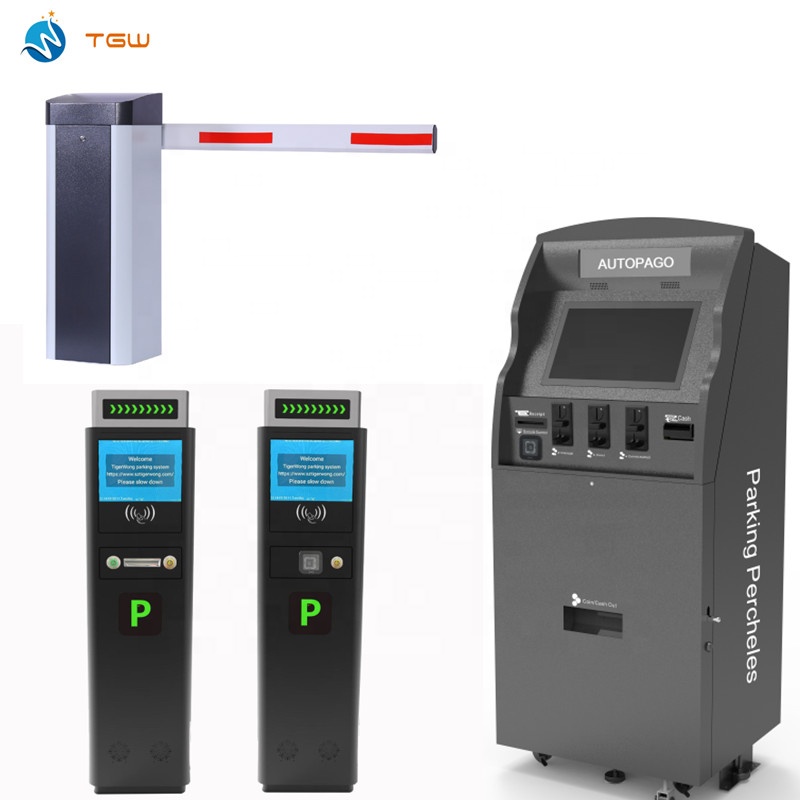

Fare box vehicle registration system door barrier with LPR camera ticket card dispensing machine parking parking clock
- $620.00 / 1 - 19 sets
$570.00 / >=20 sets - 1 set
- Shenzhen Tigerwong Technology Co., Ltd.
- Guangdong, China
- Ms Lisa Lu
PRODUCT DETAIL
| Package preview: | port: | Shenzhen, Guangzhou, Hong Kong | |
| Used for: | Outdoor and indoor | payment terms: | L/C, Western Union, D/P, D/A, T/T, MoneyGram |
| network: | RJ45,100M | application: | Parking lot management |
| Place of origin: | Guangdong, China | feature: | RFID card |
| Packaging details: | The products are wrapped with waterproof film and then packed in wooden boxes. | Certification: | CE RoHS FCC |
| product name: | parking system | model: | TGW-TBCE |
| type: | parking equipment | Card reader interface: | Wiegand 26/34 |
| communicate: | TCP/IP | Warranty: | 2 years |
| brand: | TGW | power supply: | 220V/110V±10% |
| Supply capacity: | 50 groups per week | Material: | Iron sheet metal 2.0 |

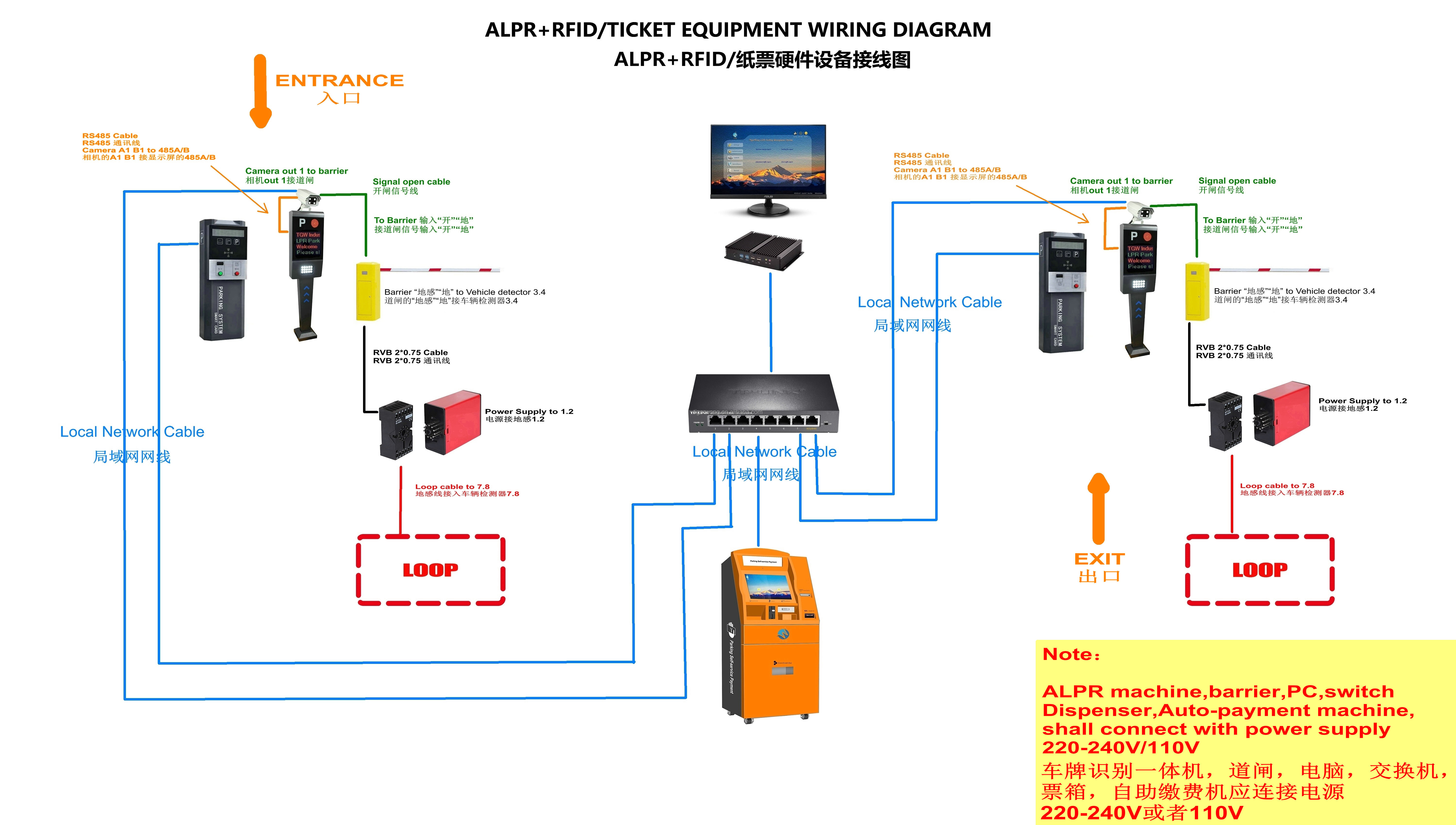

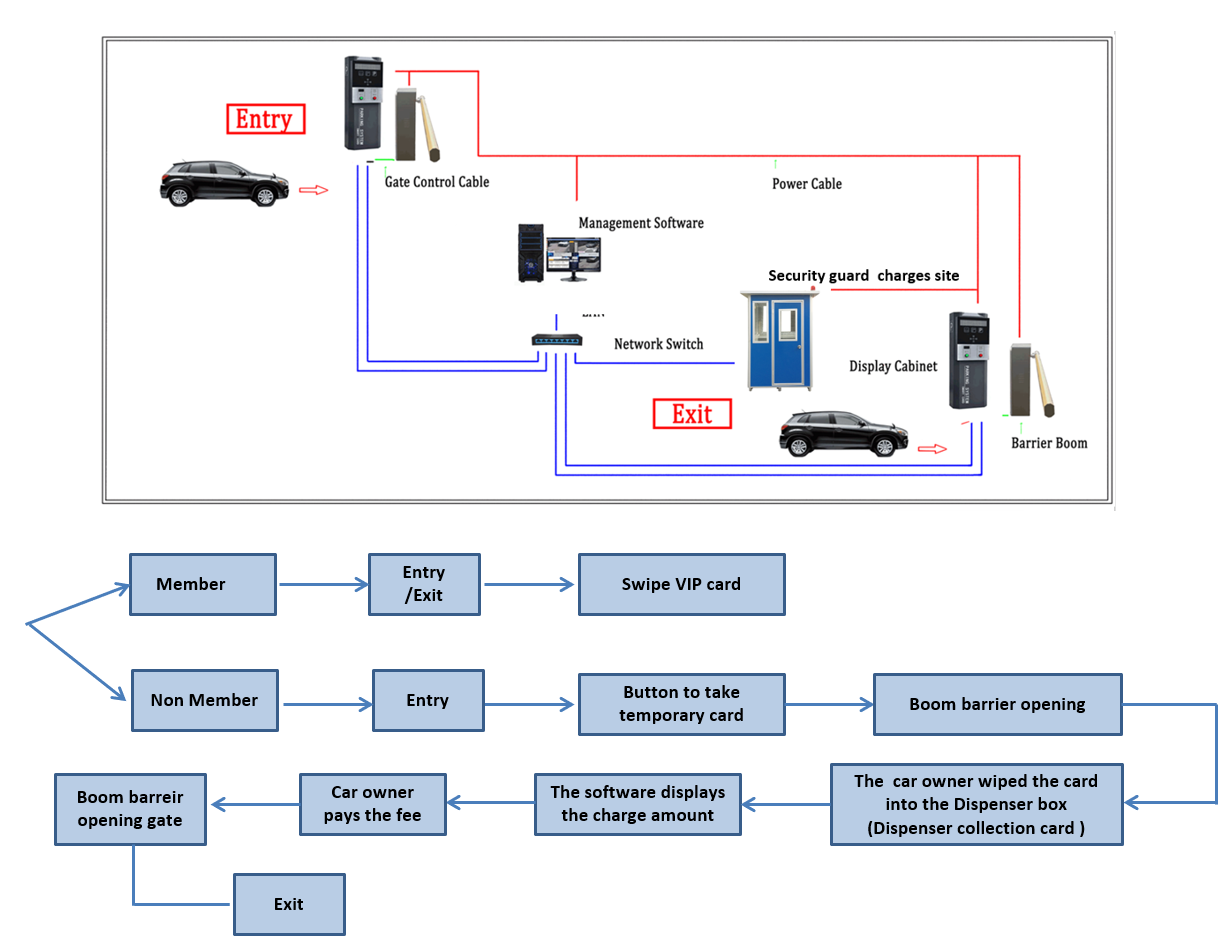

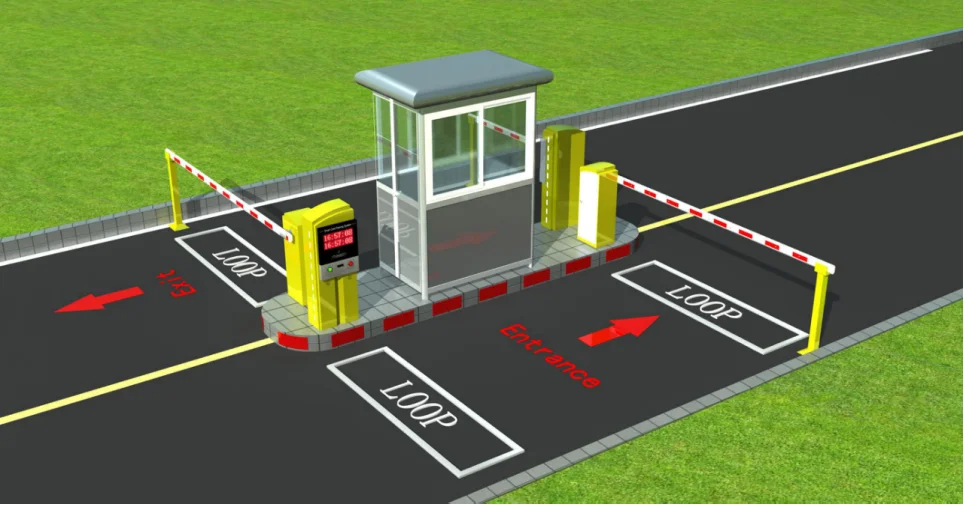

RFID parking system workflow
Parking card system (card issuer + card reader)
1. The visitor presses the button to get the card from the card issuing machine at the entrance, and then the gate opens.automatically.
2. When the car passes, the barrier gate automatically closes.
3. When visitors leave, they need to pay the parking fee at the management center. Or pay at the parking payment machine (the parking fee is calculated after reading the card).
4. After payment, the center staff will open the gate and let the tourists leave. (If paying at a payment machine, tourists only need to put the card back into the exit machine with a card reader, and the gate will open automatically.)
5. The vehicle will automatically close after passing through the rear gate.
For VIP cars:
They prepaid and received a registration card, then simply swiped their card at the entrance and exit machines and the gates openedautomatically.
3. When visitors leave, they need to pay the parking fee at the management center. Or pay at the parking payment machine (the parking fee is calculated after reading the card).
4. After payment, the center staff will open the gate and let the tourists leave. (If paying at a payment machine, tourists only need to put the card back into the exit machine with a card reader, and the gate will open automatically.)
5. The vehicle will automatically close after passing through the rear gate.
For VIP cars:
They prepaid and received a registration card, then simply swiped their card at the entrance and exit machines and the gates openedautomatically.

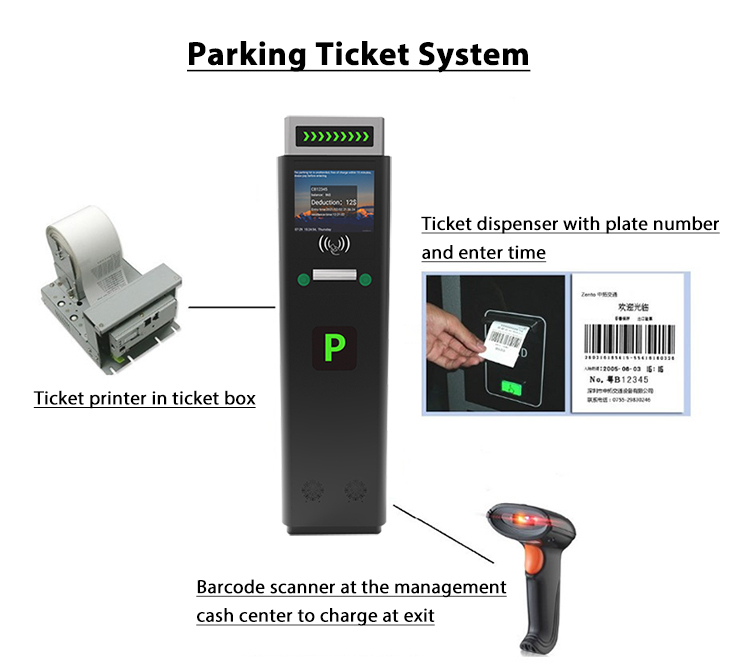

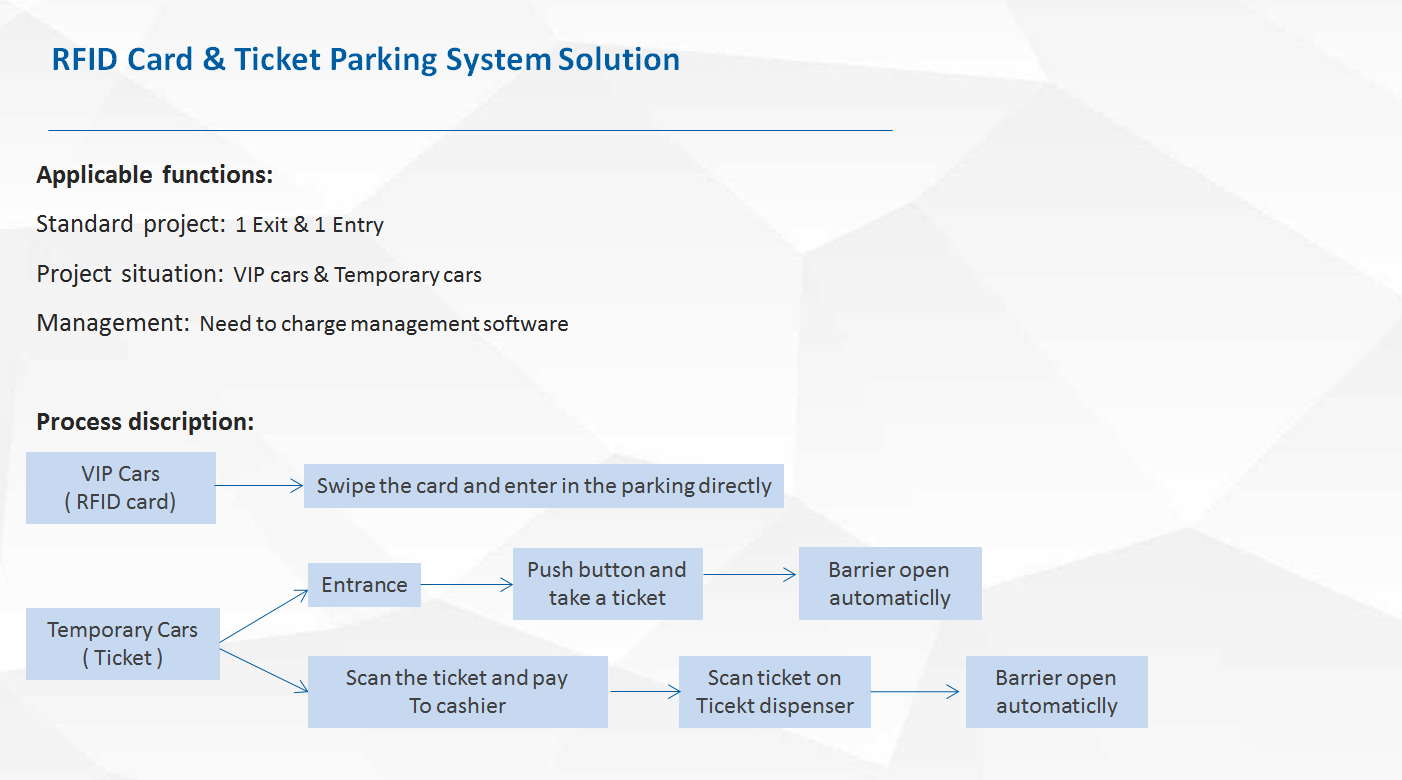

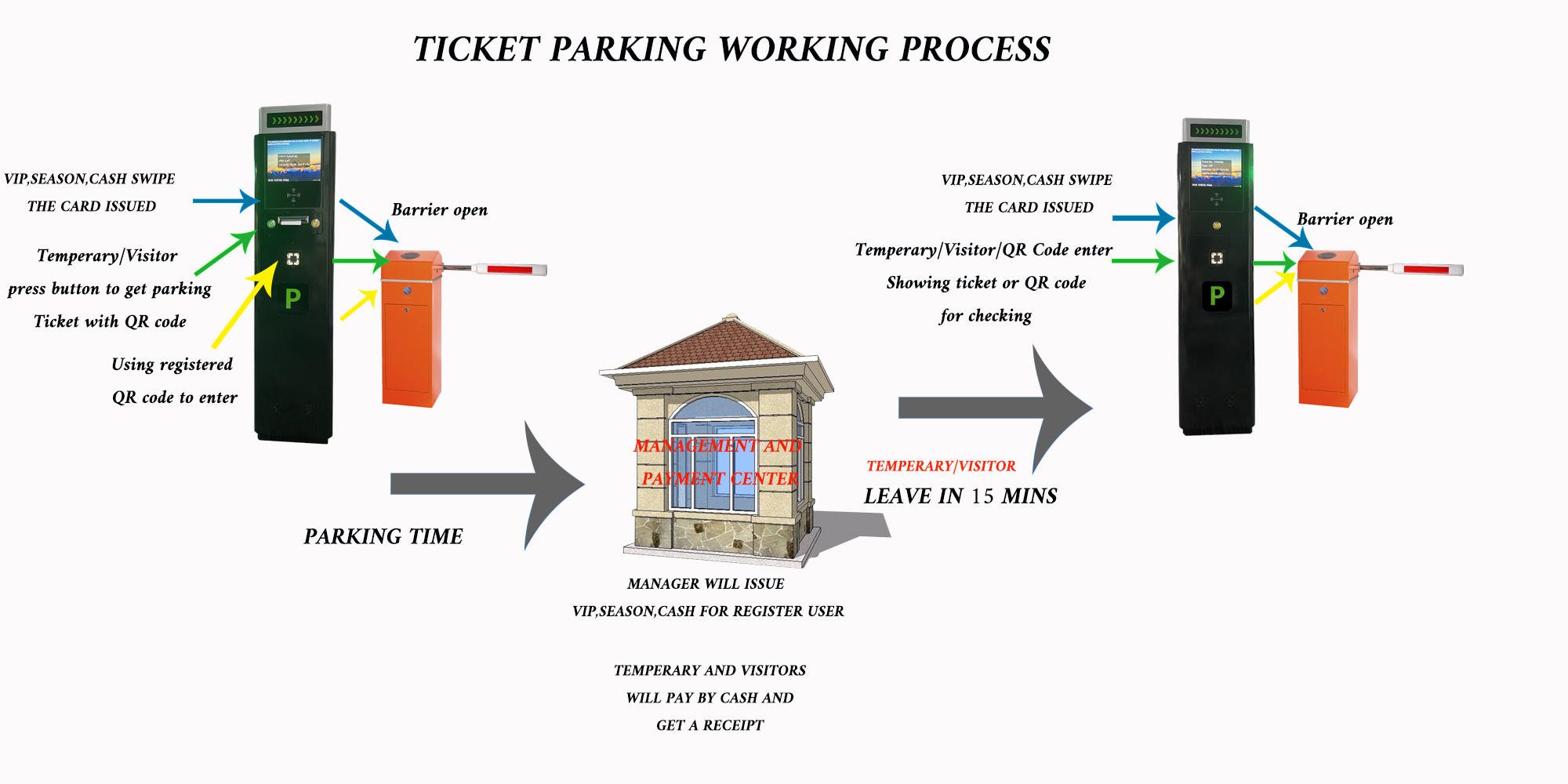

ticketing system (ticketingCard issuer + card reader)
1. Visitors press the button on the admission ticket vending machine to get their tickets, and the gate opens automatically.
2. When the car passes, the barrier gate automatically closes.
3. When visitors leave, they need to pay the parking fee at the management center. Or pay at the parking payment machine (scan the QR code to calculate the parking fee).
4. After payment, the center staff will open the gate and let the tourists leave. (If paying at the payment machine, tourists only need to scan the ticket with the ticket gate at the exit machine, and the gate will open automatically.)
5. The vehicle will automatically close after passing through the rear gate.
For VIP cars:
They paid the fee in advance. After getting the registration card, they only needed to swipe the card on the entrance and exit machine, and the gate would open automatically.

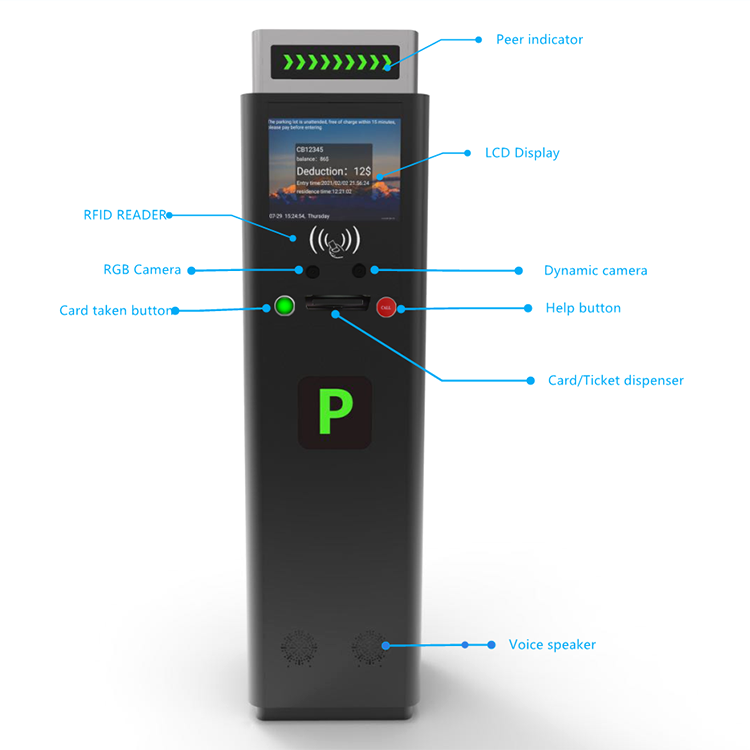

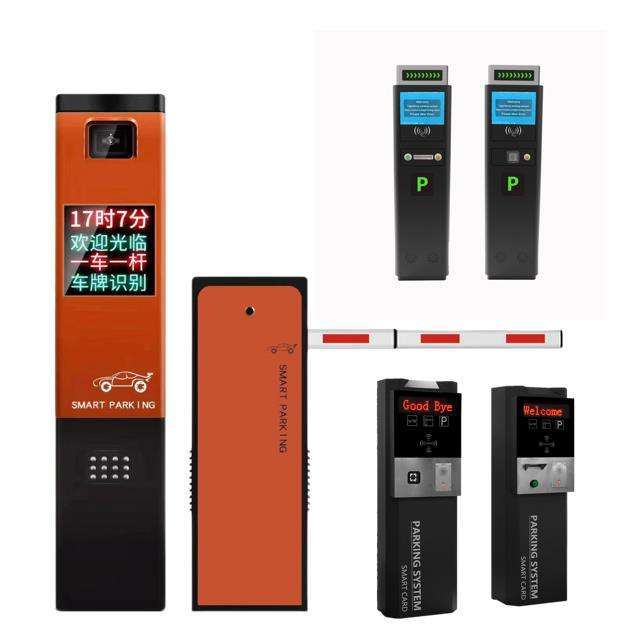

product information
feature:
Can be used with license plate recognition and UHF, and supports voice broadcast.
10. 4-inch LCD screen: high-definition bright outdoor screen, supports small language display
Built-in radar, no coil loop required
Enter to print QR code and exit to scan QR code.
10. 4-inch LCD screen: high-definition bright outdoor screen, supports small language display
Built-in radar, no coil loop required
Enter to print QR code and exit to scan QR code.
model. | TGW-NTE | ||||||
Display language | English, Spanish, Korean, Japanese, Arabic, etc. | ||||||
Application areas | Parking lots, car washes, etc. | ||||||
Function | Press the button to print QR code tickets | ||||||
Hardware Configuration | 10. 4-inch LCD screen | 1 | Radar: 1 | 1 | |||
Android motherboard | 1 | Intercom (main + sub) | 1 | ||||
Cross flow fan | 1 | sensor | 1 | ||||
speaker | 1 | fan | 1 | ||||
IC card reader | 1 | relay | 1 | ||||
Withdraw button | 1 | heater | 1 | ||||
intercom button | 1 | case | 1 | ||||
Ticket vending machine | 1 | Power supply: 1 | 1 | ||||
Wire accessories, etc. | |||||||
Technical specifications | Cabinet material | Iron sheet metal 2.0 | |||||
aspect | 330mm*310mm*1245mm | ||||||
Weight (kg) | 35kg | ||||||
Card reader interface | Wiegand 26/34 | ||||||
network | RJ45,100M | ||||||
Communication Interface | TCP/IP | ||||||
Rated voltage | 220V/110V±10% | ||||||
Operating temperature | -25℃~70℃ | ||||||
Working humidity | ≤85% | ||||||
