Flat solar thermal home solar heating system
- $754.00 / >=2 sets
- 2 sets
- Jiangsu Imposol New Energy Co., Ltd.
- Jiangsu, China
- Mr Tomas Zhou
| brand: | Imposol | color: | according to customer |
| Outer tank material: | Galvanized steel | Certification: | CE |
| Panel coating: | black chrome coating | Connection Type: | Split |
| Test pressure: | 1.0Mpa | Glass material: | tempered glass |
| Circulation type: | Indirect/Closed Loop (Active) | Supply capacity: | 1500 sets per week |
| Origin: | Jiangsu, China | Wind resistance: | 30 m/s |
| application: | outdoor, hotel, commercial, home | port: | Shanghai |
| Antifreeze: | -50°C | After-sales service provided: | free spare parts |
| Packaging Details: | Standard carton or wooden case | model: | IPSF series |
| capacity: | 200500 | Energy source: | solar |
| Application Control: | No | payment terms: | L/C, T/T |
| Warranty: | 5 years | Building materials: | aluminum |
| Install: | Detached | type: | tablet |
| Work pressure: | 0.6-0.8Mpa |
Homemade Solar Thermal Parts Swimming Pool Flat Panel Solar Collector
1. Introduction:

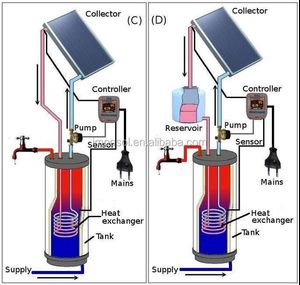

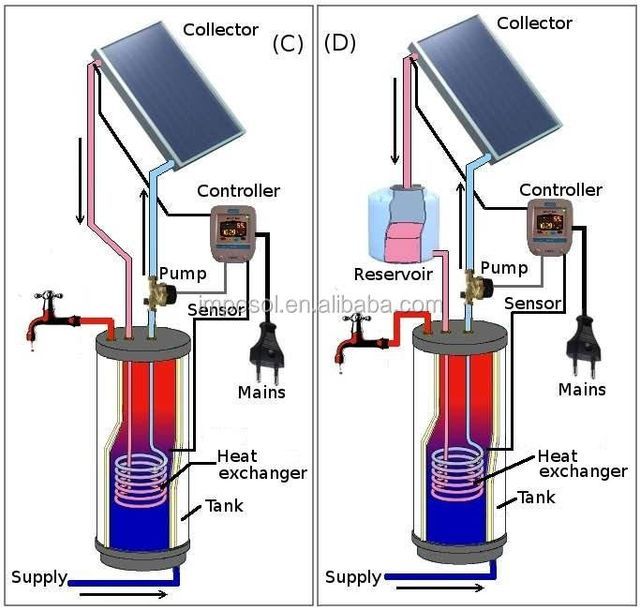

The balcony solar water heater consists of a solar collector, an insulated water storage tank and a controller pumping station. It is convenient to install on the balcony and saves space.
This is economical by saving nature and our pocket money. Using solar energy is definitely the trend of the future.
2. Detailed information of water tank and flat plate collector:
water tank:
1) Liner material and thickness: galvanized steel plate, 0.31-0.61mm.
2) Outer tank material and thickness: stainless steel, 0.31-1.2mm.
3) Insulation material and thickness: high-density polyurethane, 55mm.
4) Available with or without pressure.
Flat panel solar collector:
Flat plate collectors basically consist of an insulated metal box with a glass or plastic cover (glass) and dark absorbing panels. Solar radiation is absorbed by the absorbing panels and transferred to the fluid circulating in the collectors in the tubes. In air collectors, the circulating fluid is air, while in liquid collectors, the circulating fluid is usually water.
Flat plate collectors heat the circulating fluid to temperatures well below the boiling point of water, best suited for applications with temperature requirements of 30-70°C(86-158°F) and/or for applications that require heat in winter.
Flat collectors can be installed in a number of ways, depending on the building type, application and collector size. Options include mounting on the roof, the roof itself or freestanding.
|
Dimensions LxWxH |
2000×1000×90(mm) |
|
Construction area (square meters) |
2.0 |
|
Effective area(m²) |
1.82 |
|
cover material |
4mm glass/super iron glass |
|
Absorbing material |
Copper |
|
surface treatment |
sputter coating |
|
Head material |
Copper TP2 |
|
rising material |
Copper TP2 |
|
Tube fittings |
Laser welding |
|
Insulation Materials |
60K Fiberglass (Back) Polyurethane (Sides) |

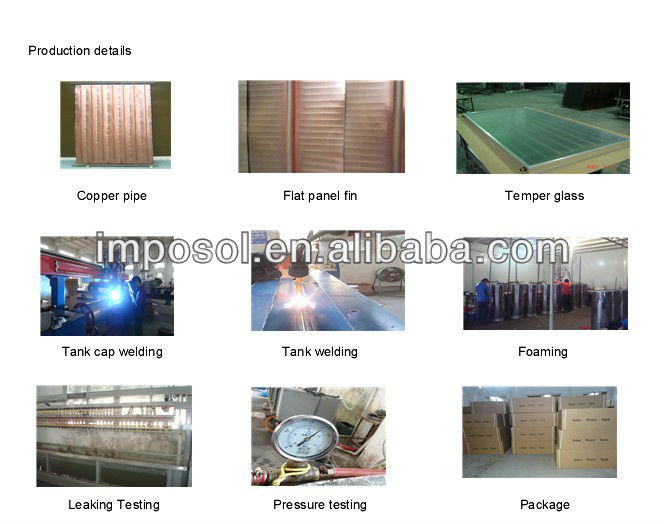

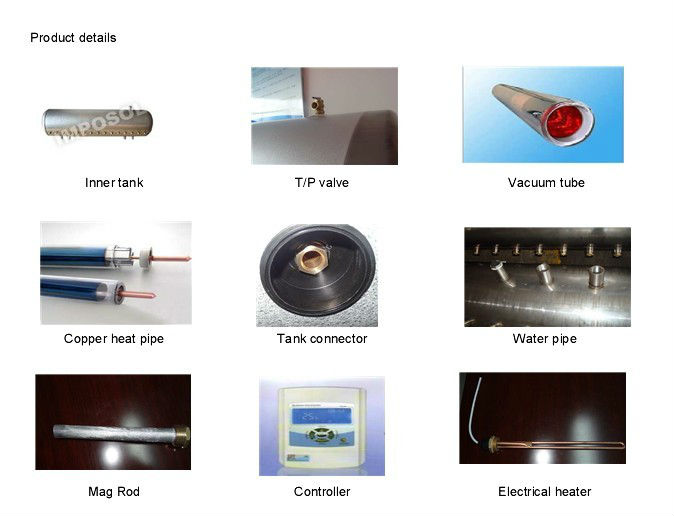

3. Picture:

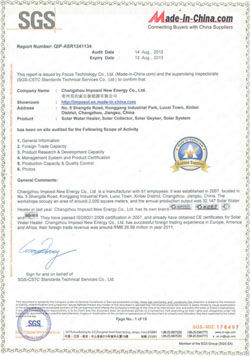

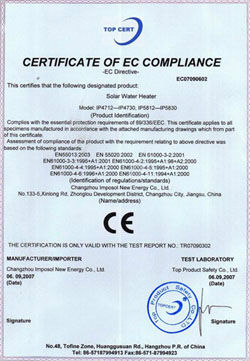

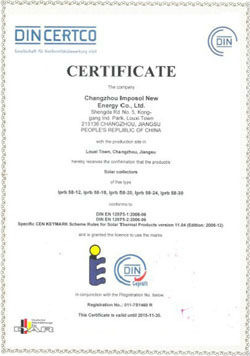

4. Certificate:
5. Packaging and transportation:
