Footwear leather shoes hydraulic faster 7 9 pliers toe machine shoe making
- $9999.00 /set
- 1 set
- Foshan Dafeng Machinery Equipment Co., Ltd.
- Guangdong, China
- Ms Lucy Luo
PRODUCT DETAIL
| Production capacity: | High | Supply capacity: | 100 sets per month |
| payment terms: | L/C, Western Union, D/P, T/T | Certification: | ce |
| port: | Guangzhou Port Shenzhen Port | pliers: | 9 claws |
| Applicable industries: | Manufacturing plant, shoe machine, shoe making machine | Key words: | Chinese shoe machine |
| Machine name: | Toe cap machine | strength: | 2.7KW |
| After warranty service: | spare parts | Showroom location: | Indonesia |
| feature: | Adjustment made easier | Automatic level: | semi-automatic |
| weight: | 1100 | Voltage: | 380V |
| Packaging Details: | Packed in wooden boxes or pallets, suitable for long-distance transportation and adaptation to climate change, moisture-proof and shock-proof. | application: | make shoes |
| Mechanical test report: | if | Health status: | new |
| type: | Automatic rubber shoe machine | Video shipment inspection: | if |
| Marketing Type: | New Products 2020 | Function: | innovative mechanical structure |
| brand: | Dafeng | After-sales service provided: | Video technical support |
| Warranty: | 1 year | Package preview: | |
| Origin: | Guangdong, China | Production: | automatic upper |
| Core component warranty: | 1 year | Dimensions (L*W*H): | 1700*1000*1950mm |
| Name: | upper mechanism shoes | Core components: | PLC, motor, pressure vessel, water pump |

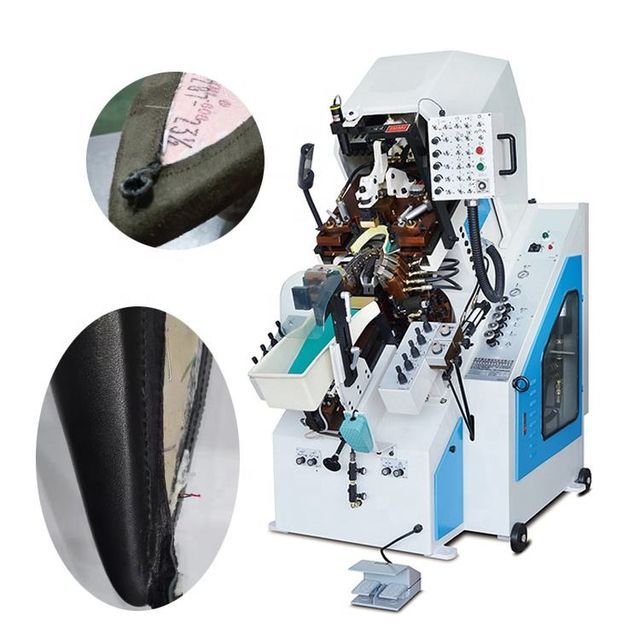

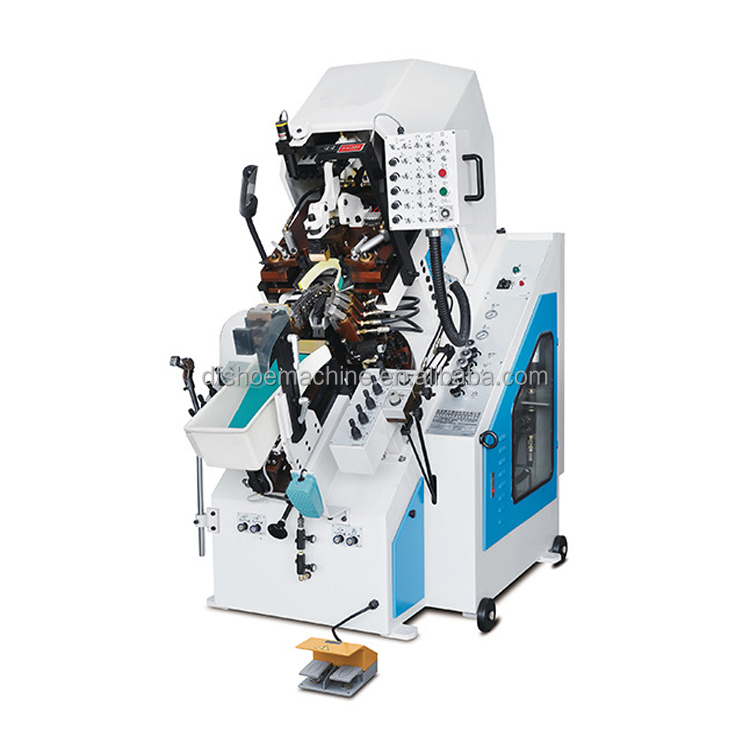

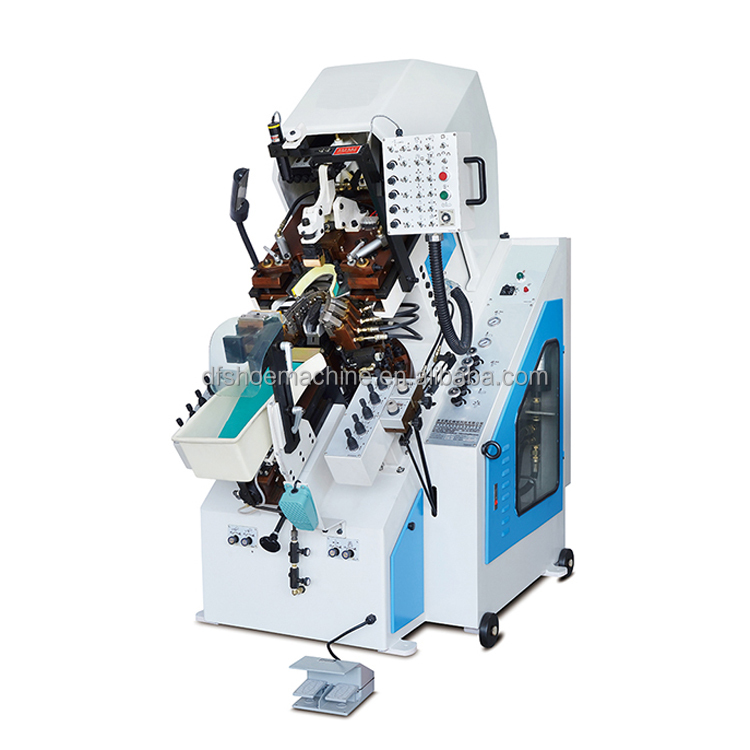

Fully Automatic Hydraulic Upper Machine Sports Shoes Shoe Making Machine
Automatic gluing machine
Full hydraulic operating system. Nine fine-adjustment and quick-change pliers are mounted on a double-tracking nipper.The left and right tail pliers are automatically turned inward to increase the durability of the inside. Each set of pliers (left and right) can be set to pull automatically or manually to prevent shoe uppers of different materials from being pulled up only on the frame. The amount of movement can be adjusted by the external knob. The frame support has a two-stage upward movement function, combined with the movement of the heel support to prevent the final slip. The size of the width applicator can be quickly adjusted for different shoe sizes to achieve the perfect glue spot on the insole. The toe push mechanism is designed with adjustable two-step pressure. During the movement of the initial pressure,
There are two ways (pressure control or position control) that can be set for optimum operation. The forward movement of the wipers can be adjusted for infinitely variable control. Standard equipment: auxiliary wiper mechanism, auxiliary side thruster mechanism and Toe projector mechanism.
There are two ways (pressure control or position control) that can be set for optimum operation. The forward movement of the wipers can be adjusted for infinitely variable control. Standard equipment: auxiliary wiper mechanism, auxiliary side thruster mechanism and Toe projector mechanism.

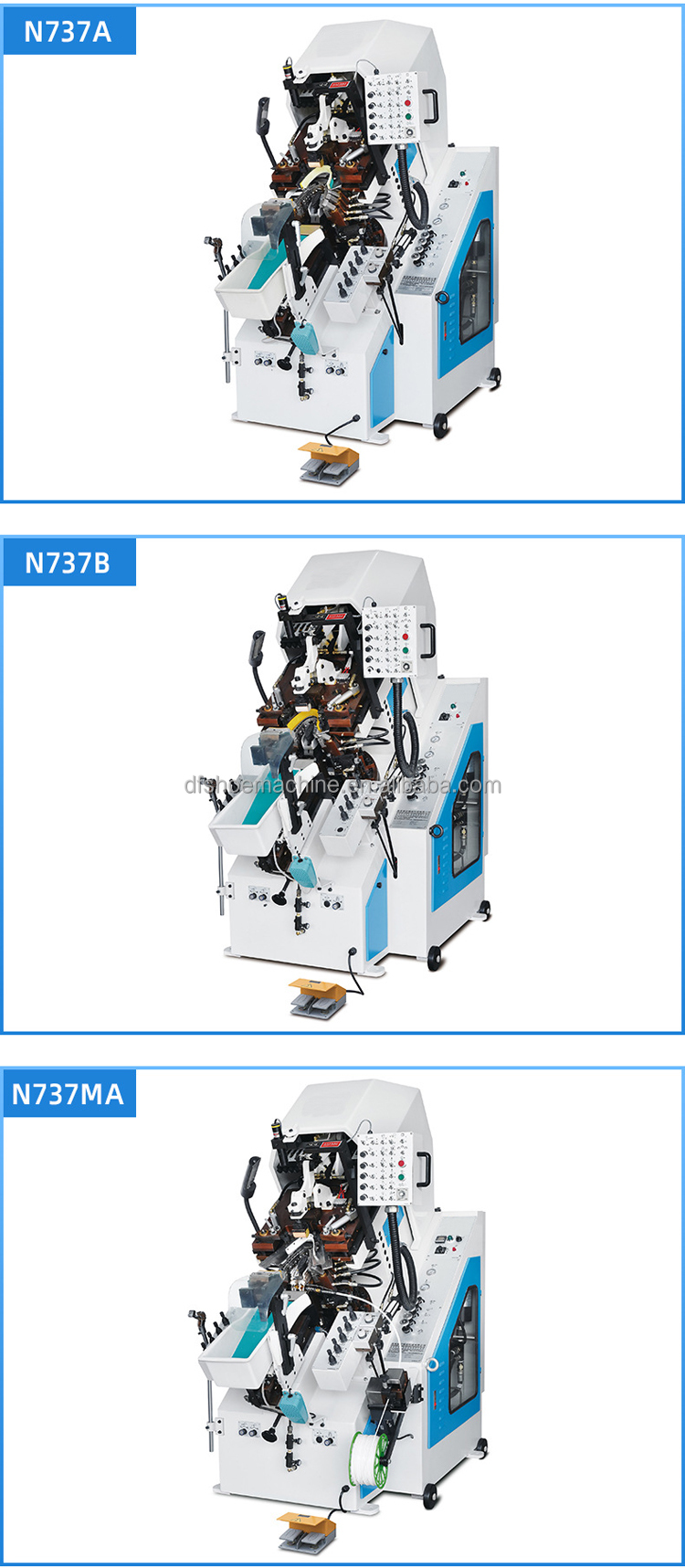

Model | Dimensions (length, width and height) | Package size (length, width and height) | weight | Production | strength | Voltage |
DF-N737A | 1700*1000*1950 | 1800*1160*2100 | 1100 kg | 1600 pairs/8H | 2.7KW | 380V |
Shoe machine application
shoe making process
