Forestry Machinery Xuvol Grab WYJ50W Logger with Clamping Cylinder Mechanical Grab Saw
- $2500.00 /set
- 1 set
- Guangxi Xuvol Construction Machinery Equipment Co., Ltd.
- Guangxi, China
- Ms Katrina Liang
PRODUCT DETAIL
| application: | Excavator Accessories | Health status: | new, new |
| Core components: | Clamp cylinder, saw blade cylinder, rotary drive, central rotary oil separator, solenoid valve group, saw blade motor | Video external inspection: | if |
| type: | lumberjack | Showroom location: | Vietnam |
| product name: | Grab WYJ50W Tree Cutter with Clamping Cylinder Mechanical Grab Saw | Dimensions (L*W*H): | 755*940*905mm |
| Packaging Preview: | Packaging Details: | Pack stretch film on pallets or in wooden boxes | |
| Main selling point: | hydraulic cylinder | brand: | Huwal |
| Model: | WYJ-P-90 | Opening height (mm): | 1150 |
| Inner and outer clip width (mm): | 401/441 | Applicable industries: | Manufacturing plants, machine repair shops, farms, retail, construction, forestry, eucalyptus cutters |
| place of origin; place of origin: | Guangxi, China | Clamping height (mm): | 890 |
| Core Components Warranty: | 1 year | port: | Fangchenggang |
| payment terms: | L/C,Western Union,T/T,MoneyGram | Power Type: | electrical |
| Warranty: | 1 year | weight: | 300kg |
| Supply capacity: | 1000 sets per month | Grab Type: | Single Cylinder/Cluster Grab/Double Link |
| Marketing Type: | New Products 2020 | Mechanical test report: | if |
| Steel: | Q355B | use: | tree cutter |
Forestry Machinery Xuvol Grab WYJ50W Logger with Clamping Cylinder Mechanical Grab Saw

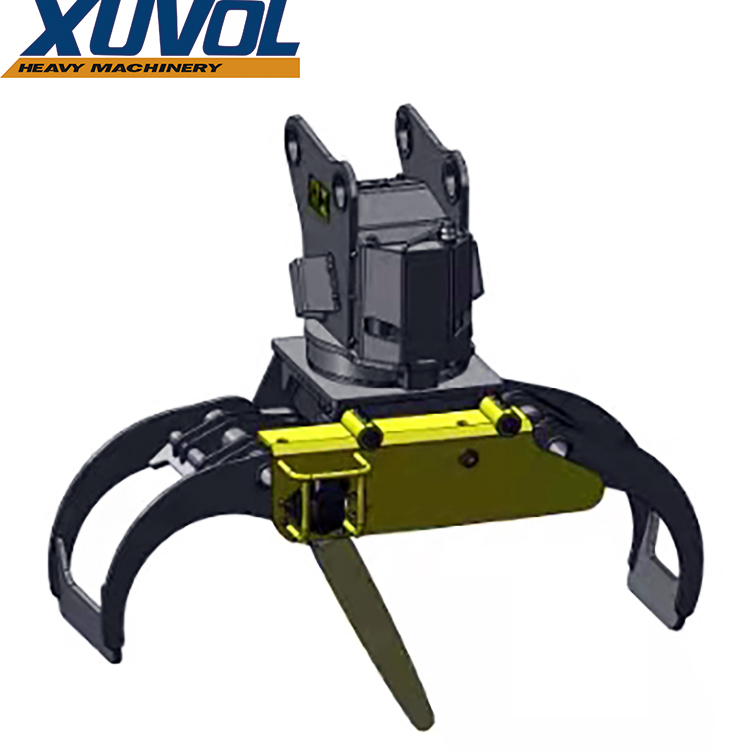

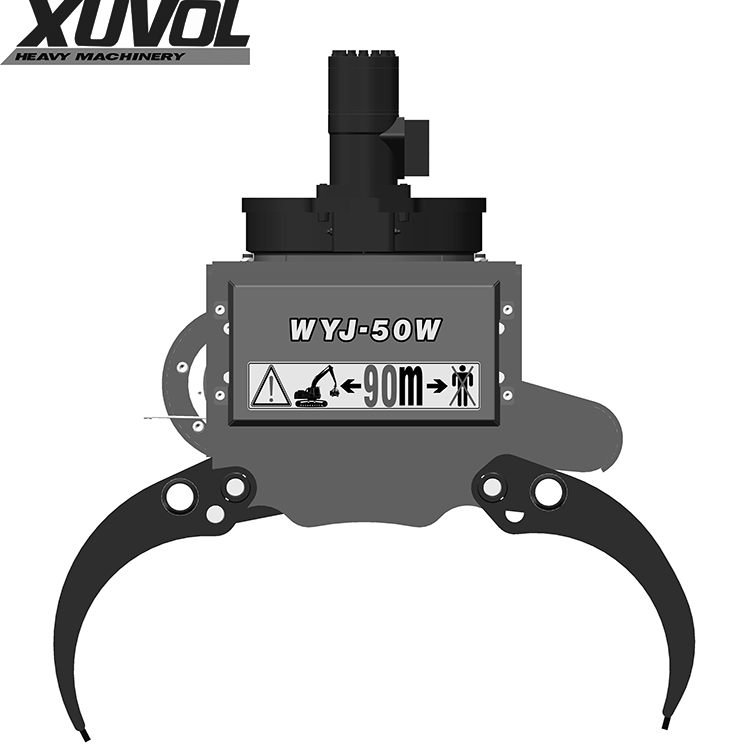

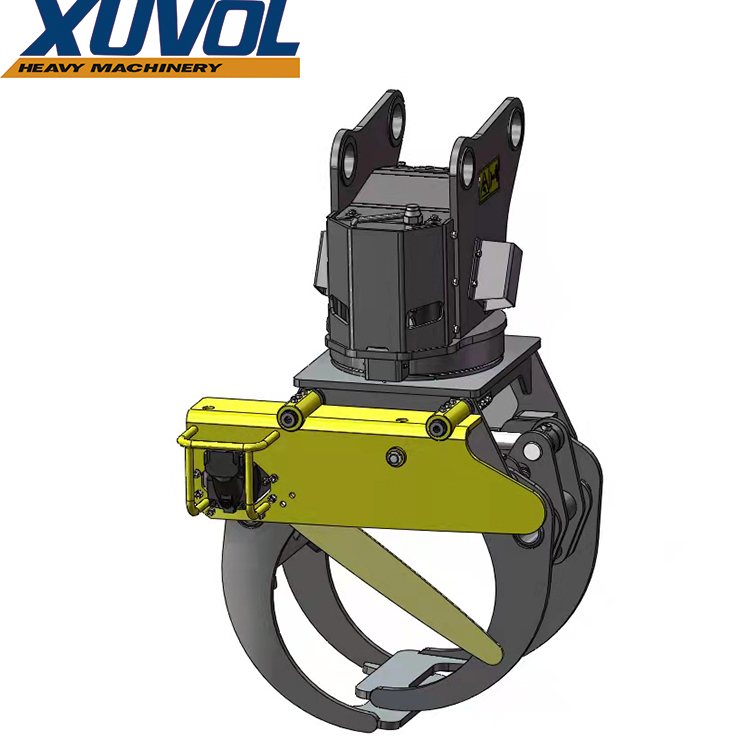

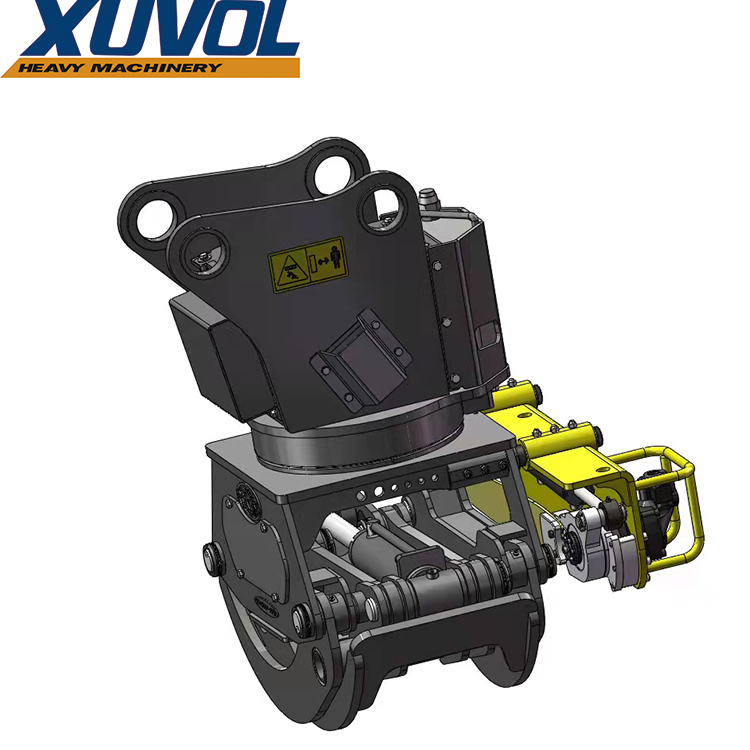

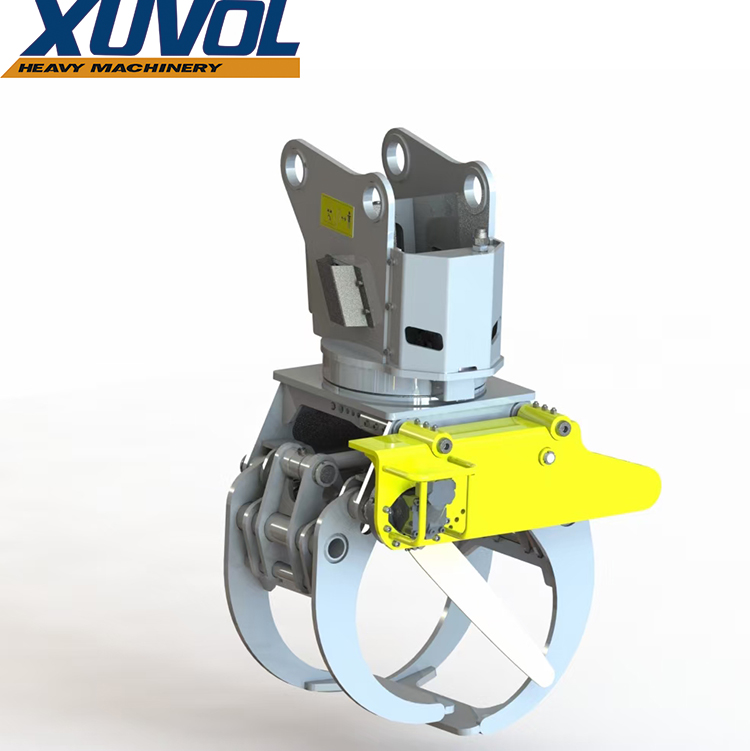

detailed picture
Grab Parameters
Xuvol Grapple Saw Specifications | WYJ-50W | ||
maximum. Tension(mm) | 900±30 | ||
Minimum clamping diameter (mm) | 60±10 | ||
Maximum cutting diameter (mm) | 300±20 | ||
Total weight (KG) | 290±10 | ||
Dimensions mm (LXWXH) mm | 755*940*905 | ||
paint color | custom made | ||
1. More advanced electro-hydraulic ratio technology
have a patent
Obtained: 2 utility model patents
5 design patents are being accepted:
2 patents
Human-machine communication
The clamp man-machine exchange interface set by our company has independent intellectual property rights, and can adjust various parameters of the wooden clamp
Electro-hydraulic proportional solenoid valve
The electro-hydraulic proportional solenoid valve has strong versatility and can be applied to all excavators on the market
2. Compare with other brands
Other brand grabs | Xu Wall Grab |
Proportional control is not available, and actions do great damage to objects | It can control electro-hydraulic proportional control, realize electro-hydraulic integration, soft and flexible action |
Relying on the pressure of manual control of the grab, poor personal skills can easily cause damage to the grasped object | It can automatically close the mold, and the clamping time (0.1~1 second) and the clamping pressure are adjustable, which can effectively Protect the trapped |
unable to weigh | It can weigh grasped objects and store data |
Unable to send data | Data is sent to operators in time to ensure timely management of materials |
