Fully automatic machine for the production of tray plate with disposable aluminum foil
- $1500.00 /unit
- 1 unit
- Jiaxing Patsons Electronics & Machinery Co., Ltd.
- Zhejiang, China
- Mr GB Mou
| Health status: | used | Certification: | ROHS,BV |
| port: | any port in China | Tension Control: | Electromagnetic brake 100NM |
| Name: | Automatic Aluminum Foil Tray Making Machine | Maximum feeding width of aluminum foil roll: | 880mm |
| payment terms: | L/C,D/A,D/P,T/T,Western Union,MoneyGram | After Warranty Service: | Video technical support, online support, spare parts |
| brand: | PPD | Inside diameter of aluminum foil roll: | 76mm or 152mm options |
| Nominal pressure: | 630KN | Video external inspection: | if |
| Core Components Warranty: | 1 year | Packaging Details: | Packaging Details: Standard export wooden box packaging. |
| Warranty: | 1 year | Slider stroke speed: | 35-90 pieces/min |
| place of origin; place of origin: | Zhejiang, China | Supply capacity: | 5 units per month |
| Local service location: | Malaysia | Slider stroke: | 180-260mm |
| Showroom location: | Malaysia | Applicable industries: | Hotels, Clothing Stores, Building Materials Stores, Manufacturing Plants, Machinery Repair Stores, Food and Beverage Plants, Farms, Restaurants, Home Use, Retail, Food Stores, Printing Stores, Construction Works, Energy and Mining, Food and Beverage Stores, Advertising Agencies |
| strength: | 11KW | Core components: | programmable logic controller |
| After-sales service provided: | Free spare parts, video technical support, online support | Product Category: | Tray machine |
| Effective length of feed roller: | 900mm | Model: | PPD-A63T |
| Maximum diameter of aluminum foil roll: | 1000mm | Production capacity: | 90/min |
| Mechanical test report: | if | Marketing Type: | Hot Products of 2019 |

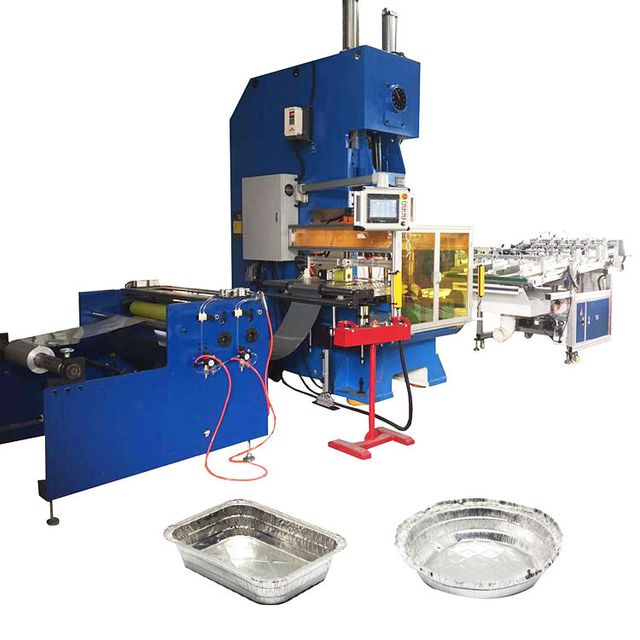

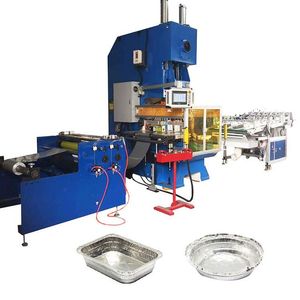

Fully Automatic Disposable Aluminum Foil Dish Dish Foil Container Making Machine
Fully automatic kitchen aluminum foil tray manufacturing is a fully automatic production line for the production of aluminum foil containers, aluminum foil trays, aluminum foil trays, aluminum foil trays and other aluminum foil products.
The whole production line consists of four parts: aluminum foil feeder, high-precision press, aluminum foil punching die and automatic stacker.
Aluminum Foil Tray Making Machine
Model: PPD-A63T
1. Aluminum foil feeder:
| Lubrication function |
Automatic iso-oil coating design No Wrinkle Trouble |
| Maximum feed width of aluminum foil roll | 880mm |
| Aluminum foil roll maximum diameter | 1000mm |
| Effective length of feed roller | 900mm |
| Inner diameter of aluminum foil roll | 76mm or 152mm options |
| tension control | Electromagnetic brake 100NM |
| feeding system | server system |
| Feed rate | 0-500m/min |
| Feeding length & precision | +0.1mm |
| strength | 1.5kW |

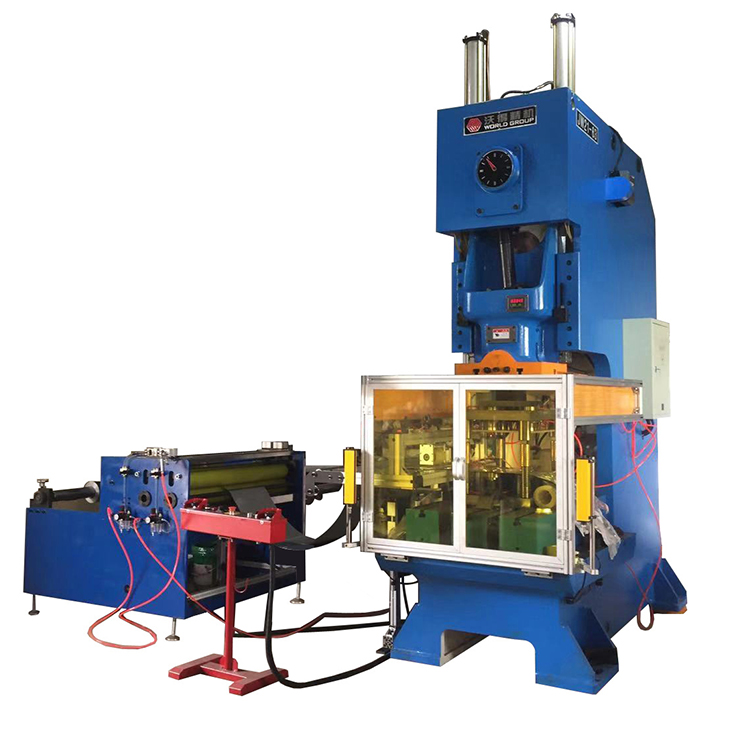

II. High precision press:
| news model | 63T |
| Nominal pressure | 630KN |
| Slider stroke | 180-260mm |
| Slider stroke speed | 35-90 pieces/min |
| Die height range | 340-420mm |
| Maximum mold size | 1100x900mm |
| weight | 8800kg |
| strength | 11kW |
| aspect | 1500x2200x3500mm |
3. Stamping die
| Aluminum foil thickness | 0.03-0.35mm |
| Aluminum foil container shape | round, square, heart, etc. |
| Foil Container Color | gold, red, etc. |
| Foil Container Dimensions | custom made |

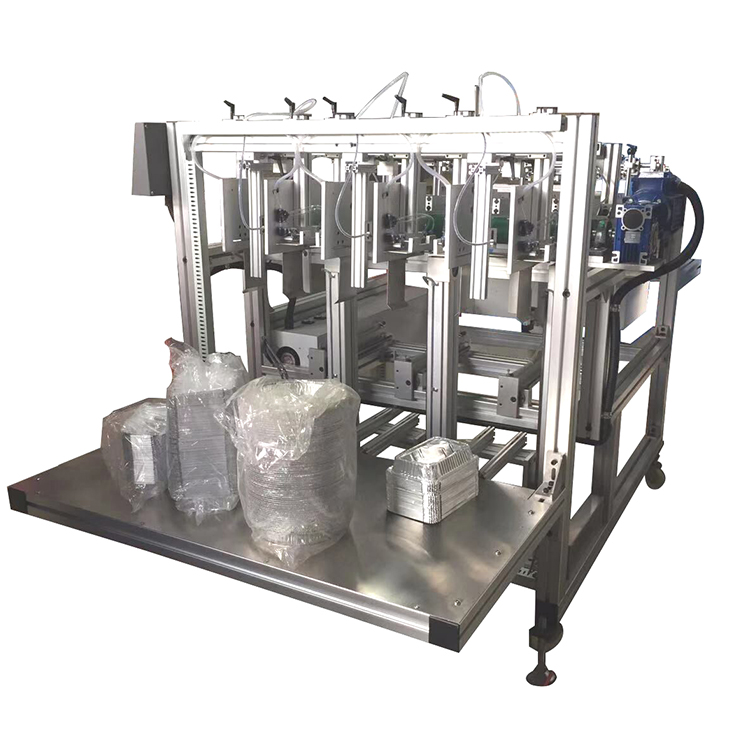

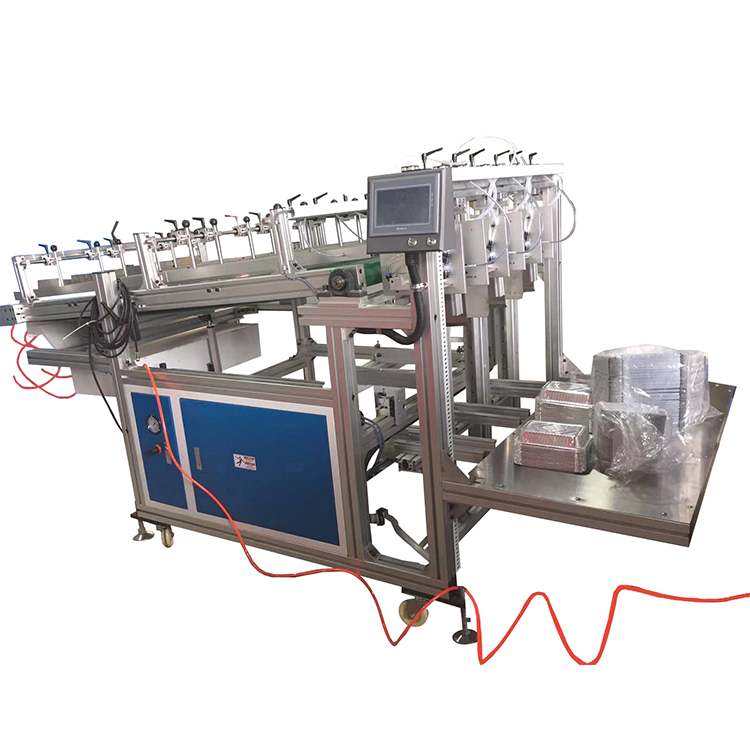

4. Automatic stacker:
| Model | AS-800 |
| number of lanes | 3 lanes |
| Belt width | 900mm |
| Belt height | 850-1200mm |
| Minimum container size | 120*120mm |
|
Maximum container size Ejector size (LxW) |
800*400mm (1 track) 400*400mm (2 lanes) 250x400mm (3 lanes) |
| maximum stacking height | 400mm |
| strength | 1.2kW |
