Furniture High Quality Cabinet CNC Drilling Machine
- $12.90 /piece
- 1 piece
- ALLAME MAKINA VE BILISIM SANAYI TICARET LIMITED SIRKETI
- Kocaeli, Turkey
- Mr Erkan Gok
PRODUCT DETAIL
| CNC or not: | CNC | Marketing Type: | New Products 2020 |
| Mechanical test report: | if | place of origin; place of origin: | Bursa, Turkey |
| Core Components Warranty: | 1 year | Power (kW): | 20kW |
| Health status: | new | port: | Eviap |
| Weight (kg): | 1100kg | Local service location: | turkey |
| After Warranty Service: | Video technical support, online support, spare parts, on-site maintenance and repair services | brand: | alami |
| Maximum working width (mm): | 1200 | Motor Type: | Servo |
| Applicable industries: | Building materials stores, machinery repair shops, manufacturing plants | Main selling point: | automatic |
| Packaging Preview: | Core components: | PLC, engine, bearing, gearbox, motor, pressure vessel, gear, pump, CNC | |
| application: | furniture | Voltage: | 50Hz - 380V |
| Warranty: | 1 year | Type of machine: | 6 surfaces |
| Video external inspection: | if | Showroom location: | turkey |

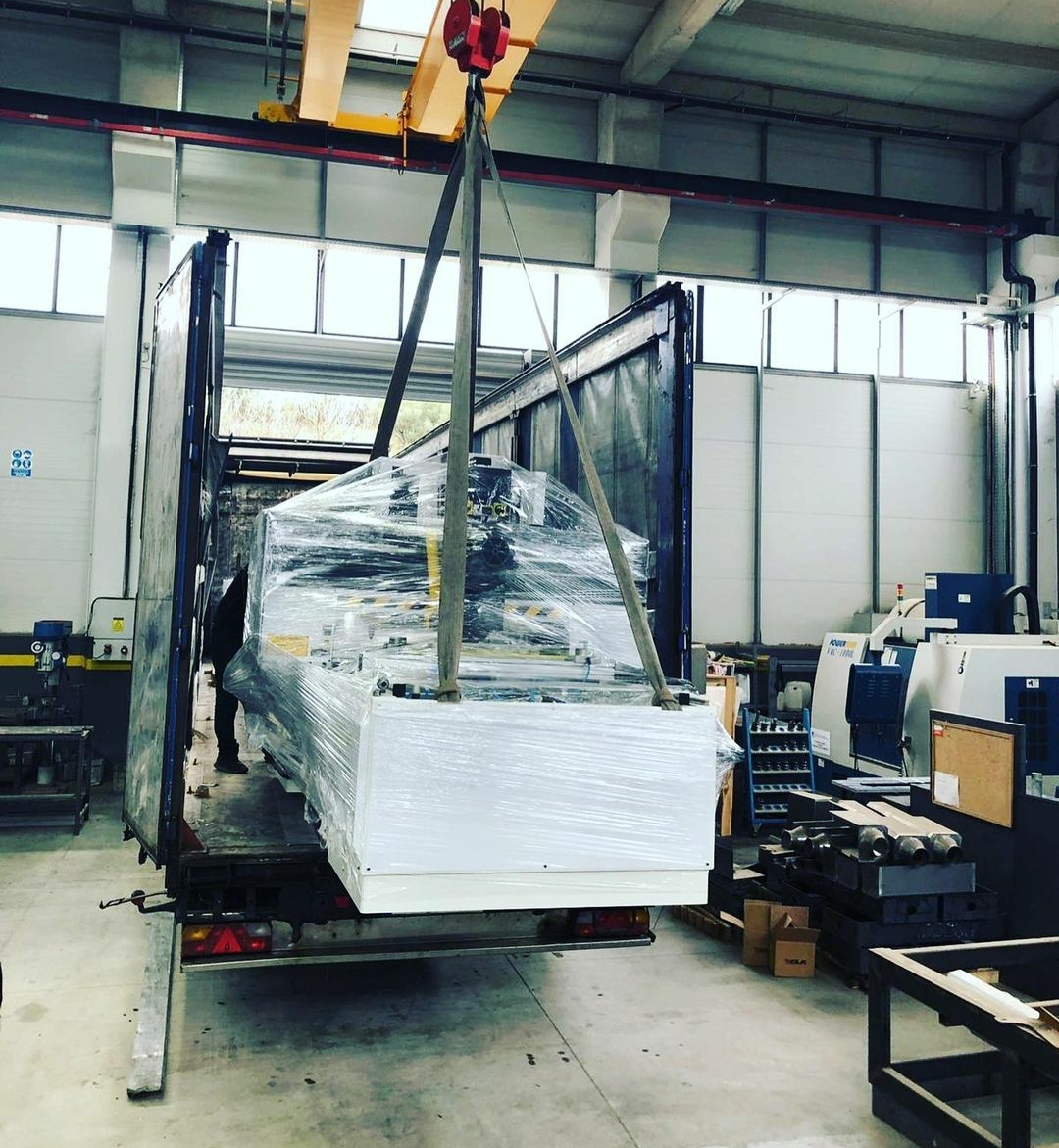

| Packaging Details: | 1. Sturdy plywood and standard export packing cover. 2. Packaging: can be packaged according to customer requirements. 3. Accept LCL and FCL delivery. | Supply capacity: | 40 units per quarter |
| Certification: | Chief Executive | After-sales service provided: | On-site installation, commissioning and training |
| payment terms: | L/C,Western Union,T/T,L/C,Western Union, the supplier also supports T/T,Paypal payment |
product description

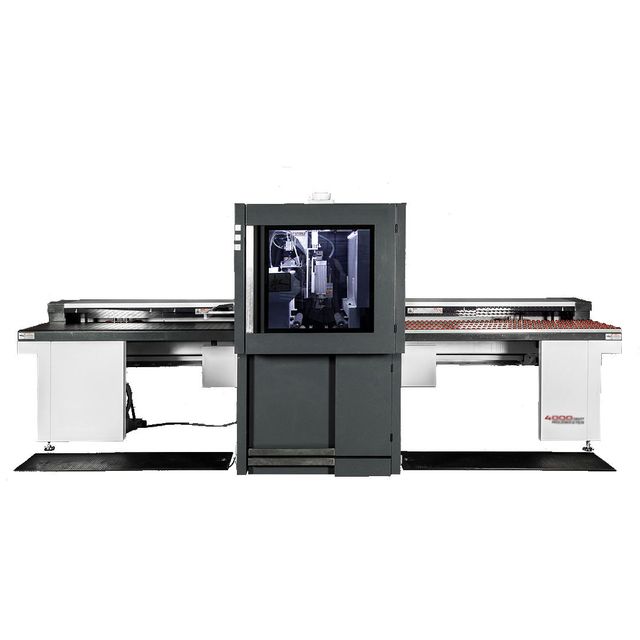

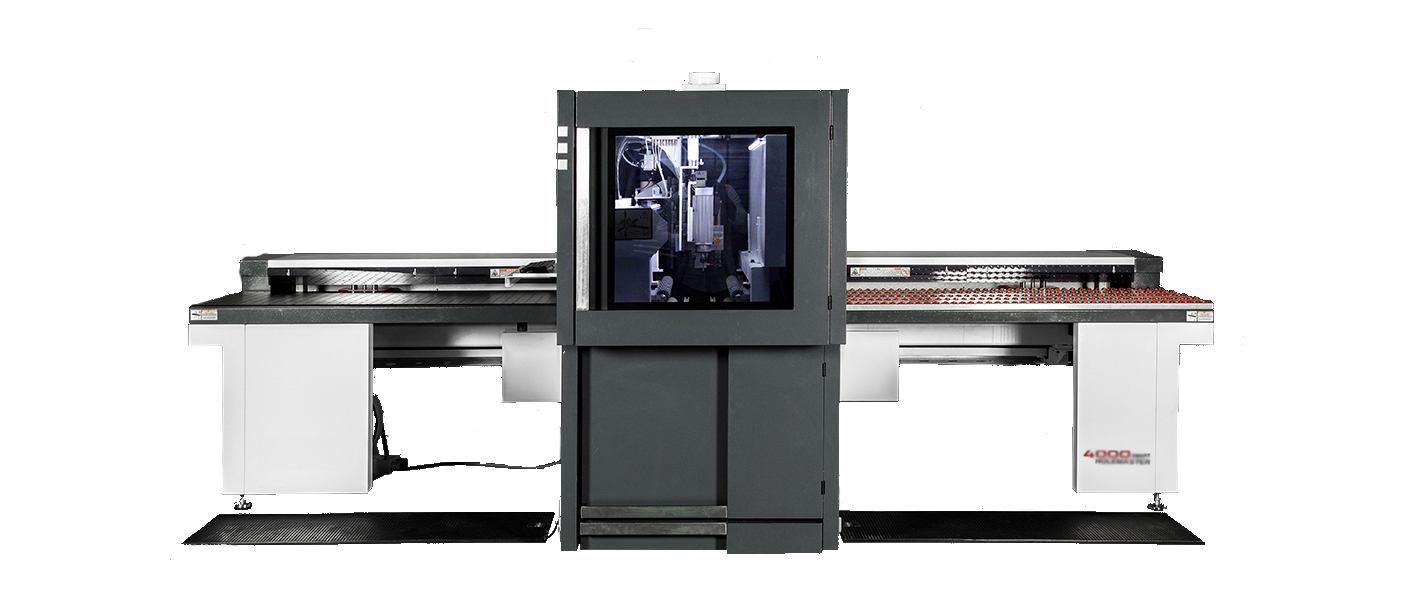

Woodworking CNC Drilling Machine
visit our website
www.boygatech.com
Function list

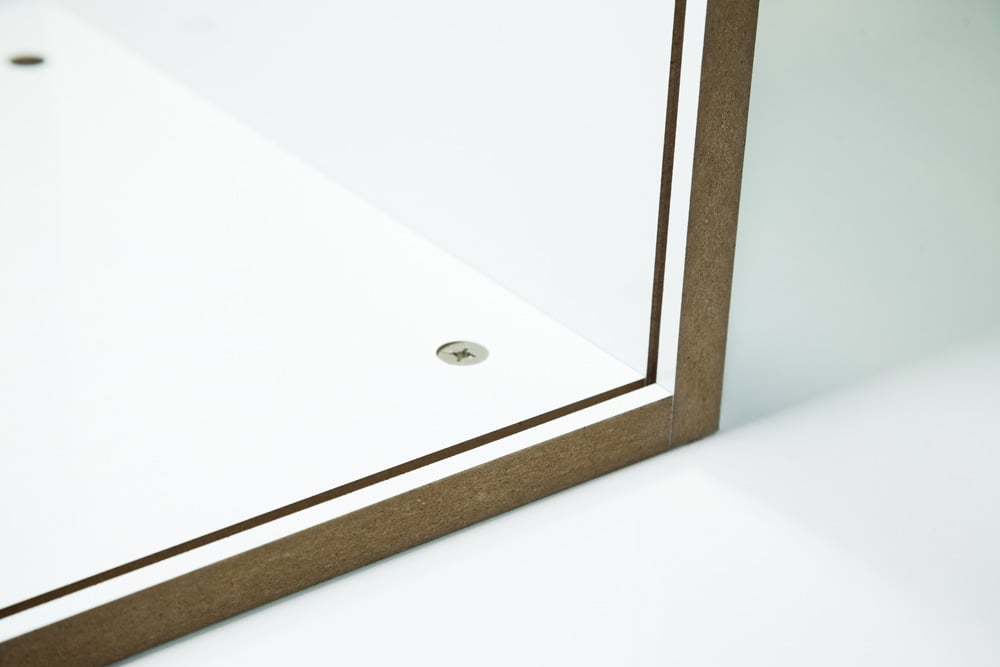

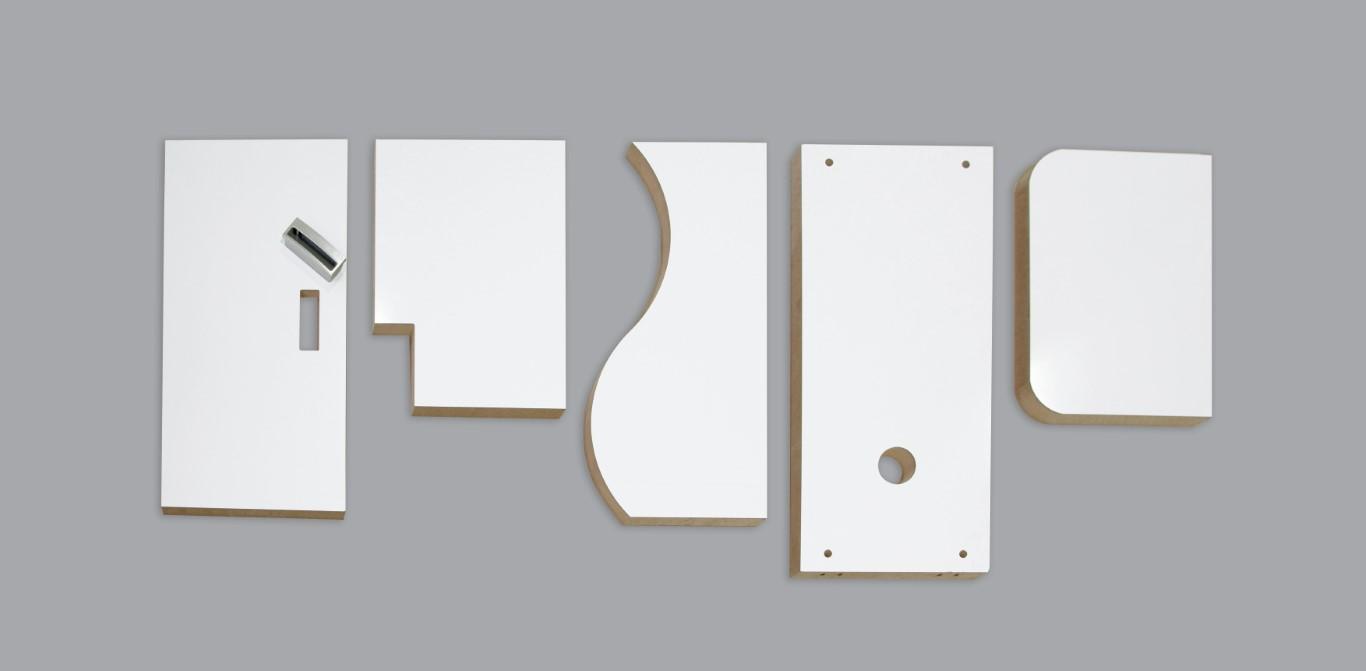

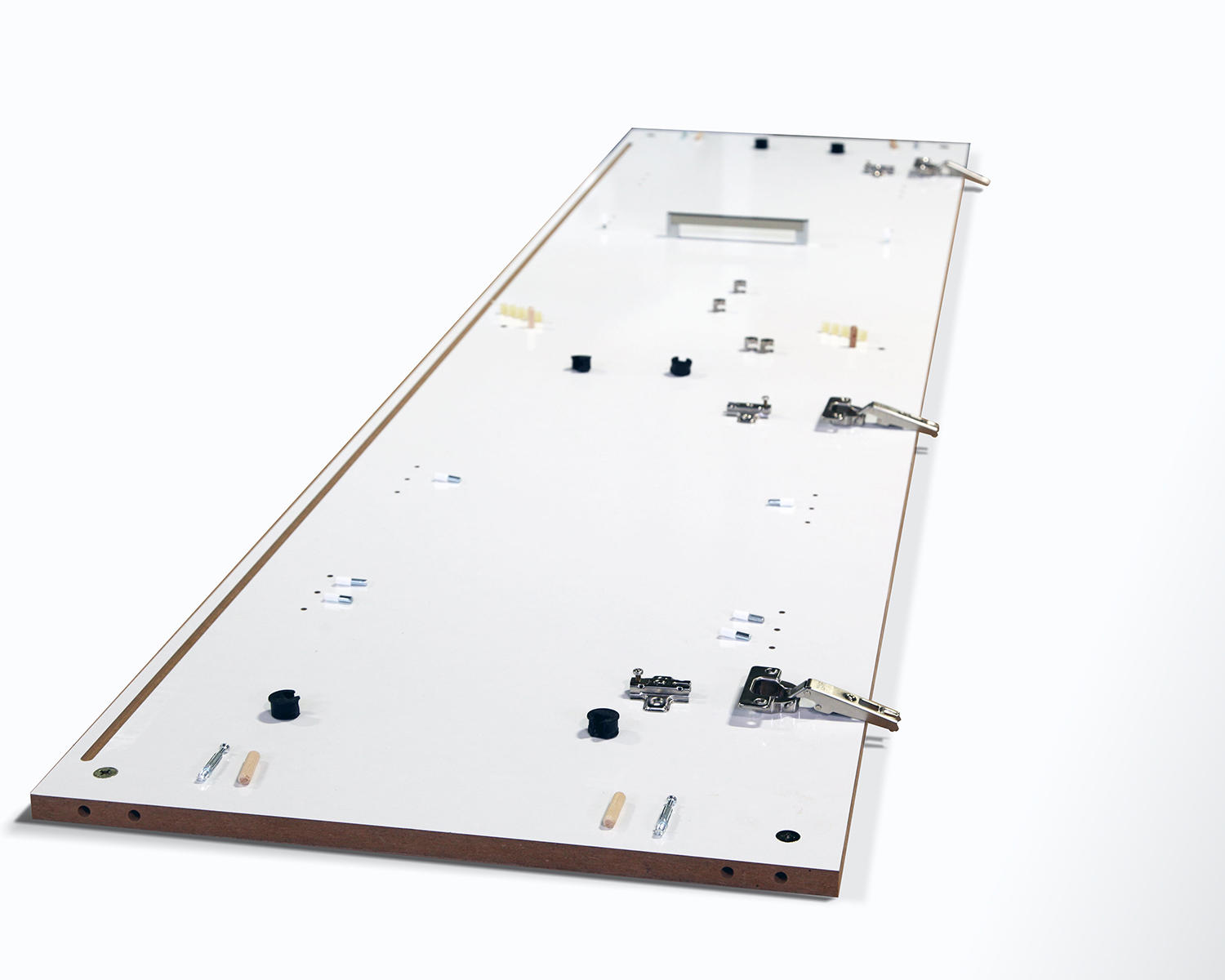

• This machine can perform precise drilling, grooving and milling, and is suitable for mass production.
• The machine can easily machine the 4 sides and the top of the wood chips, and can be milled on the top
Wood chips with a powerful milling unit of 7,5 kW.
Product Specifications
Do not | thing | data | ||
Office procedures | standard | |||
maximum working area | mm | (X-Infinite / Y-1300 / Z-50) | ||
Minimum work area | mm | (X-250 / Y-80 / Z-12) | ||
Drilling rig motor power | kilowatt | 1,5 | ||
Milling machine motor power | kilowatt | 7,5 | ||
Drilling rig motor speed | number of revolutions | 4500 | ||
Milling machine motor speed | number of revolutions | 18000 | ||
X-axis maximum speed | m/min | 96 | ||
Y axis maximum speed | m/min | 50 | ||
Z axis maximum speed | m/min | 25 | ||
Number of vertical spindles of drilling unit | n0 | (X-5 Pieces / Y-3 Pieces) | ||
Number of horizontal spindles of drilling unit | n0 | (X-4 Pieces / Y-2 Pieces) | ||
Drilling unit saw blade number | n0 | 1 | ||
Saw blade size | mm | 100X20X6 | ||
Working power | kilowatt | 20kW | ||
weight | Kilogram | 1860 | ||
Control System | program | Omak Hill Factory | ||
control axis | piece | 3 (servo) | ||
air pressure | bar | 6-8 | ||
Operating Voltage | Volt Hertz | 380V 50HZ | ||
CAD/CAM program | Adeko-Alphacam-Cabinet Vision | optional | ||
Conveyor unloading system | optional |
