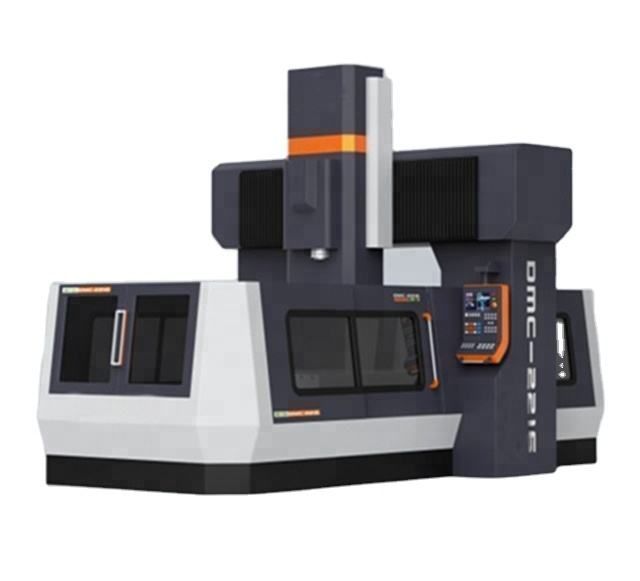

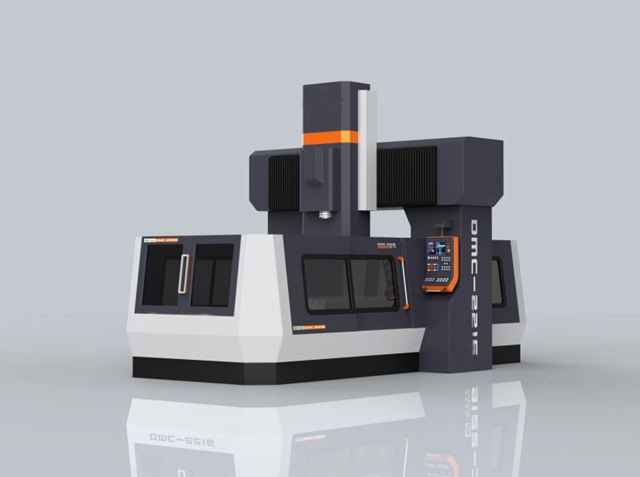

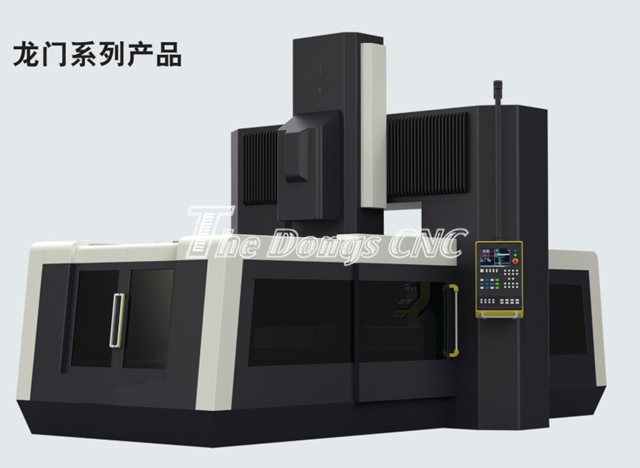

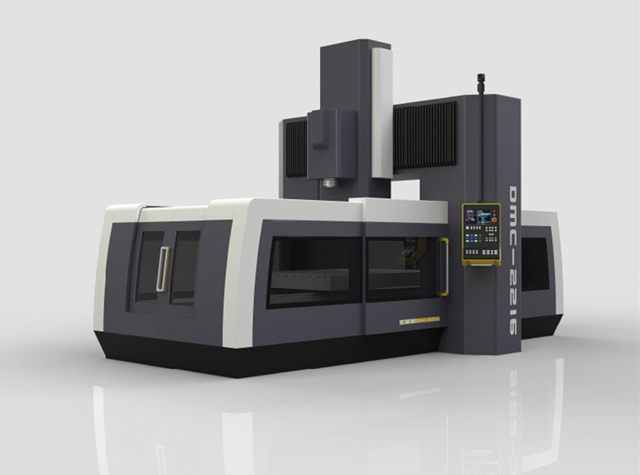

Gantry CNC Machining Center
- $50000.00 /set
- 1 set
- SHANDONG THE DONGS CNC EQUIPMENT CO.,LTD
- Shandong, China
- Mr Jack Dong
PRODUCT DETAIL
| maximum. Table load(kg): | 15000 kg | Repeatability (X/Y/Z) (mm): | ±0.005 |
| Table travel (Y) (mm): | 2500 | The maximum load of the workbench: | 15000 kg |
| payment terms: | L/C, Western Union, D/P, D/A, T/T, MoneyGram, Trade Insurance | Core component warranty: | 3 years |
| Packaging Details: | Plywood case or as your request | port: | Qingdao/Shanghai |
| Spindle taper: | BT50 | Warranty: | 1 year |
| table size: | 2200*1600mm | CNC system: | GSK, Fanuc, Mitsubishi, Siemens |
| X/Y/Z axis travel: | 1600*2500*800 mm | Main selling points: | multifunctional |
| Number of axes: | 2,3,4,5 | Origin: | Shandong China |
| Fast forward: | 15000mm/min | Spindle maximum speed: | 8000 rpm |
| Tool magazine capacity: | Other,16,10,20,12,24 | Tool change time in minutes: | 4 |
| Number of spindles: | single | Maximum tool length: | 350mm |
| Table size (mm): | 2200x1600 | Marketing Type: | other |
| type: | Gantry | Weight (ton): | 22 tons |
| Voltage: | 380V 50HZ /220V 60HZ | Supply capacity: | 50 sets per month |
| Table travel (Z) (mm): | 800 | Video shipment inspection: | if |
| Mechanical test report: | if | Health status: | new |
| Dimensions (L*W*H): | 5500*3500*3400mm | Applicable industries: | Building materials store, machine repair shop, manufacturing plant, household, retail, print shop, construction, energy and mining, other |
| Showroom location: | not any | Core components: | Programmable Controllers |
| Spindle motor power (kW): | 17 | brand: | Hole |
| Table travel (X) (mm): | 1600 | Spindle taper: | BT50 |
| Positioning accuracy (mm): | ±0.005 |
Product Description
|

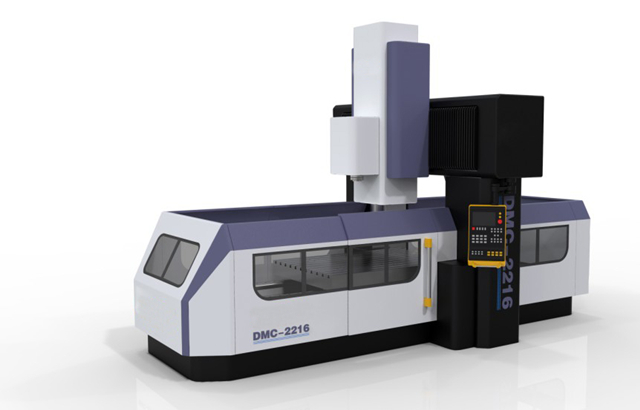

Model |
door 2216 |
|
table setting area |
2200X1600mm |
|
Workbench carrying capacity |
15000 kg |
|
Number of T-slots/width |
8/22mm |
|
Distance from spindle nose to worktable surface |
200-1000mm |
|
Travel X/Y/Z axis |
1600/2500/800mm |
|
Spindle speed |
8000 rpm |
|
Spindle installation |
bt50 |
|
fast feed |
15000mm/min |
|
job summary |
0-15000mm/min |
|
torque |
163 nautical miles |
|
Number of pockets |
20 pieces |
|
Tool size Ø x L (maximum) |
200x250 mm |
|
Work piece width x height |
2000x750 mm |
|
tool weight |
15 kg |
|
Tool change time |
6S |
|
Main Drive Motor Rating |
17KW |
|
Motor Rating X/Y/Z Axis |
4.3/4.3/5.2KW |
|
Dimensions (length x width x height) |
5500x3500x3400mm |
|
weight |
22000 kg |
