Gas discharge tube RL800V-3208 series surge protector Ceramic gas discharge tube GDT AC power line protection circuit

Price:$0.12 / 1000 - 2999 pieces
$0.08 / 3000 - 49999 pieces
$0.02 / >=50000 pieces
Min. Order:1000 pieces
Supplier:Shenzhen Ruilongyuan Electronics Co., Ltd.
Region:Guangdong, China
Contact:Ms Candy Ruilon

PRODUCT DETAIL

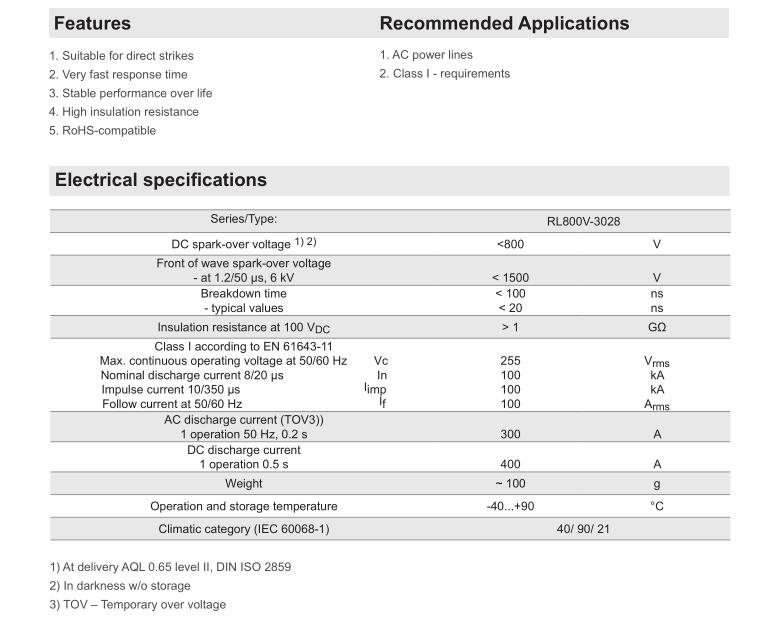

place of origin; place of origin:	Shenzhen, Guangdong	Insulation resistance at 100 V DC:	>1Ω
DC breakdown voltage:	<800V	Feature two:	very fast response time
Supply capacity:	100,000 pieces per week	application:	AC Power Cord; Class I - Required
payment terms:	L/C,Western Union,D/P,D/A,T/T,MoneyGram,PayPal	Feature three:	Stable performance for life
product name:	gas discharge tube	Feature four:	High insulation resistance
model:	RL800V-3208 series	port:	Shenzhen, Hong Kong
Compatible:	RoHS	Card:	Raylon
Packaging Preview:		Feature one:	suitable for direct hits

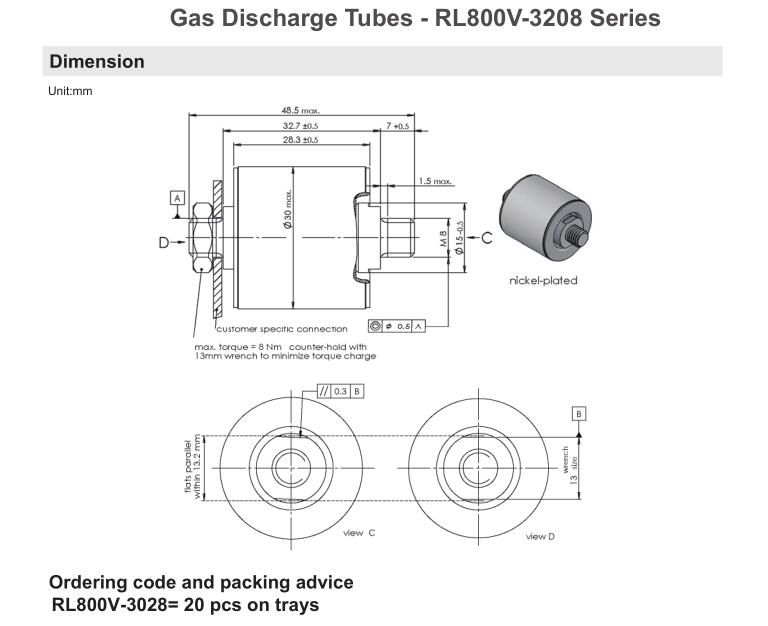

Packaging Details:	Ordering code and packaging recommendations RL800V-3028= 20 trays

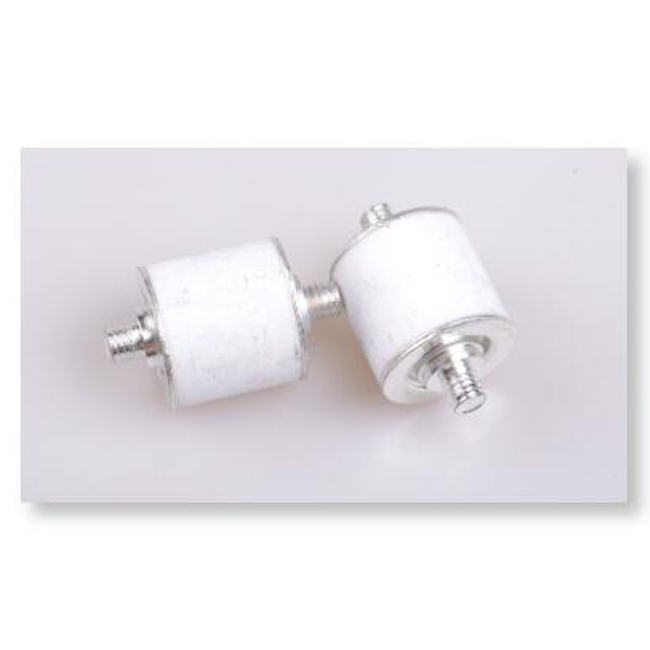

Gas discharge tube RL800V-3208 series surge protector Ceramic gas discharge tube GDT AC power line protection circuit

Product Description

Introducing GDTs: Gas Discharge Tubes (GDTs) use an inert gas encapsulated in a ceramic tube to provide an alternative circuit path for voltage spikes. Ceramic housing and nickel connectors allow high loads, Ruilon offers products in 20KA, 40KA, 50KA, 60KA, 100KA & 150KA.

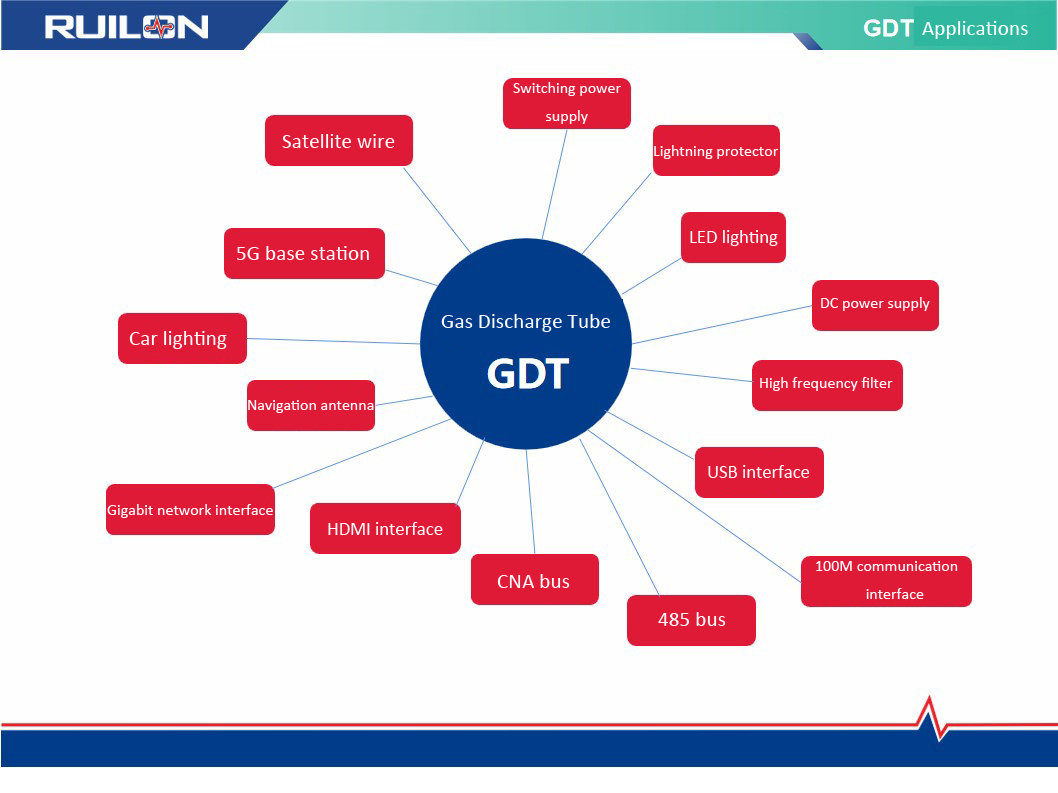

Devices have a wide range of breakdown voltages (up to 20% tolerance). Main applications are high frequency telecommunication lines, stations, security systems, HID and high quality surge protection devices (SPD).
