Gcabling Network Cabinet 6U 9U 12U 15U 18U 19 Inch Rack Cabinet 19 Inch Rack DIY Wall Mount Data Network Cabinet
- $48.99 / 5 - 9 pieces
$45.99 / >=10 pieces - 5 pieces
- Ningbo Getek Communications Equipment Co., Ltd.
- Zhejiang, China
- Ms Judy Hu
PRODUCT DETAIL
| capacity: | 9U | net weight: | 21 kg |
| product status: | in stock | Private Mold: | Yes |
| brand: | Integrated wiring | Surface finish: | Degreasing, pickling, phosphating, electrostatic powder coating |
| color: | black, grey | Material: | SPCC steel |
| application: | Network cabling system | Supply capacity: | 10000 pieces per month |
| port: | Ningbo | Static loading: | 80-100kg |
| payment terms: | wire transfer | Origin: | Zhejiang, China |
| depth: | 450mm | width: | 570mm |
| Cabinet standard: | ANSI/EIA RS-310-D IEC60297-2 DIN41494 | size: | Depth: 450mm |
| Door Type: | Tempered glass door/ventilated steel door | Packaging Details: | 1 piece/box |
| model: | 42342 |
application | *Height: 6U, 9U, 12U, 15U, 18U, 22U can be customized *Width: 570MM or 600MM * Depth: 450MM or 550MM *Material: SPCC steel * Surface treatment: degreasing, pickling, phosphating, electrostatic powder coating *Color: Black(RAL9004) / Gray(RAL7035) *Front door: tempered glass door/solid steel door/ventilated steel door * Load bearing: 80-100KGS *OEM/ODM: available |

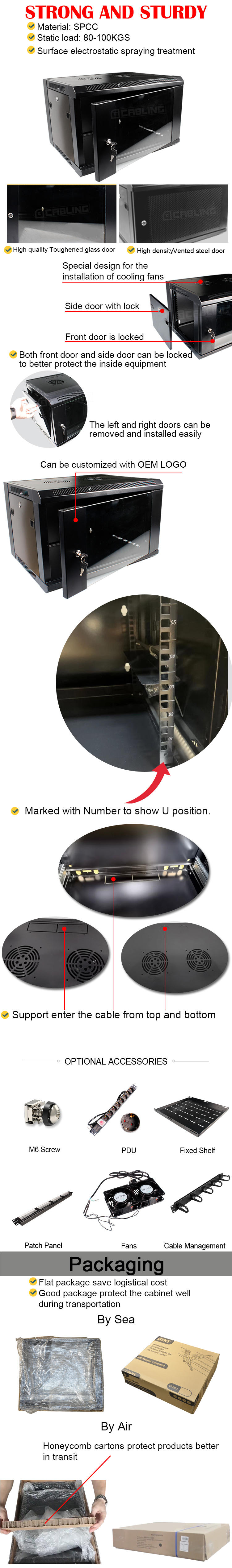

Specification | *Package design, the packaging time is less than 5 minutes, and the package is about 1/3~1/4 of the original volume after assembly. *Both top cover and bottom plate have cable entry. *Steel front door, the opening direction can be changed, and the rotation angle of the front door is greater than 180 degrees. *Wall-mounted panel, easy to install, locked from the inside with screws to avoid theft or accidental drop. * Fully adjustable mounting rails and numbered U positions with square holes for easy equipment installation. * High-grade cold-rolled steel cabinet, 15-year warranty |
rack height | 4U | 6U | 9U | 12U | 15U | 18U |
Adjustable installation depth | Min: 271.2 Maximum: 351.2 | Min: 271.2 Maximum: 351.2 | Min: 271.2 Maximum: 351.2 | Min: 271.2 Maximum: 351.2 | Min: 271.2 Maximum: 351.2 | Min: 271.2 Maximum: 351.2 |
loading capacity | 80 kg | 80 kg | 80 kg | 80 kg | 80 kg | 80 kg |
Includes locking door and sides for easy access | √ | √ | √ | √ | √ | √ |
reserved fan hole | 2 | 2 | 2 | 2 | 2 | 2 |
19" tie rods (4 pieces available upon request) | 2 | 2 | 2 | 2 | 2 | 2 |
M6 screws and nuts (pieces) | 10 | 10 | 10 | 10 | 20 | 20 |
rack height | 4U | 6U | 9U | 12U | 15U | 18U |
Adjustable installation depth | Min: 421.2 Maximum: 501.2 | Min: 421.2 Maximum: 501.2 | Min: 421.2 Maximum: 501.2 | Min: 421.2 Maximum: 501.2 | Min: 421.2 Maximum: 501.2 | Min: 421.2 Maximum: 501.2 |
loading capacity | 80 kg | 80 kg | 80 kg | 80 kg | 80 kg | 80 kg |
Includes locking door and sides for easy access | √ | √ | √ | √ | √ | √ |
Optional fan installation (sold separately) | 44751 or 44752 | 44751 or 44752 | 44751 or 44752 | 44751 or 44752 | 44751 or 44752 | 44751 or 44752 |
reserved fan hole | 2 | 2 | 2 | 2 | 2 | 2 |
19" tie rods (4 pieces available upon request) | 2 | 2 | 2 | 2 | 2 | 2 |
Front door (steel perforated door available upon request) | 5mm tempered glass door | 5mm tempered glass door | 5mm tempered glass door | 5mm tempered glass door | 5mm tempered glass door | 5mm tempered glass door |
M6 screws and nuts (pieces) | 10 | 10 | 10 | 10 | 20 | 20 |
