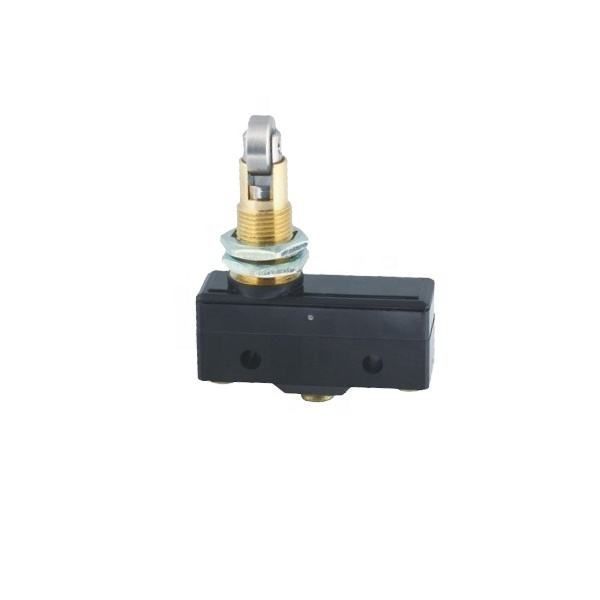

Global Safety 16A 250V Premature Action Limit Switch Manufacturers
- $1.30 / >=100 pieces
- 100 pieces
- Huizhou Greetech Electronics Co., Ltd.
- Guangdong, China
- Ms Petty Pang
PRODUCT DETAIL
| port: | Hong Kong Shenzhen | home devices: | 50,000 cycles; mechanical 10,000,000 |
| place of origin; place of origin: | Guangdong, China | terminal type: | screw terminals, solder terminals |
| Is it smart: | Do not | Rating 2: | 22A 125/250VAC 480VAC 1/4HP 125VAC 1/2HP 250VAC 0.25A 250VDC |
| Leverage Type: | Straight rod, roller rod, flat plunger, etc. | Rating 3: | 26A 125/250VAC 480VAC 1/2HP 125VAC 1HP 250VAC 0.5A 125VDC |
| Rating 4: | 26A 125/250VAC u 40T85 5E4 | payment terms: | Western Union, D/P, D/A, T/T, MoneyGram, Paypal |
| Insulation resistance: | 100MΩ minimum | maximum. current: | 0.25A 0.5A 16A 22A 26A |
| Unit net weight: | about 60 grams | Operating temperature: | -40℃ - +85℃ |
| model: | G1216-1RQ3AAU | maximum. Voltage: | 125VDC 250VDC 125VAC 250VAC 277VAC 480VAC |
| brand: | ZING EAR, Greetech | Protection class: | IP00 IP62 IP63 |
| Certification: | ENEC, CQC | Packaging Details: | 1. Packaging: 180pcs/CTN 2. Gross weight: about 9KG/CTN |
| Supply capacity: | 3000000 / month limit switch function az-8108 high temperature resistance | Contact resistance: | 50mΩ max |
| Rating 1: | 16A 125/250VAC 480VAC 1/8HP 125VAC 1/4HP 250VAC 0.5A 125VDC |

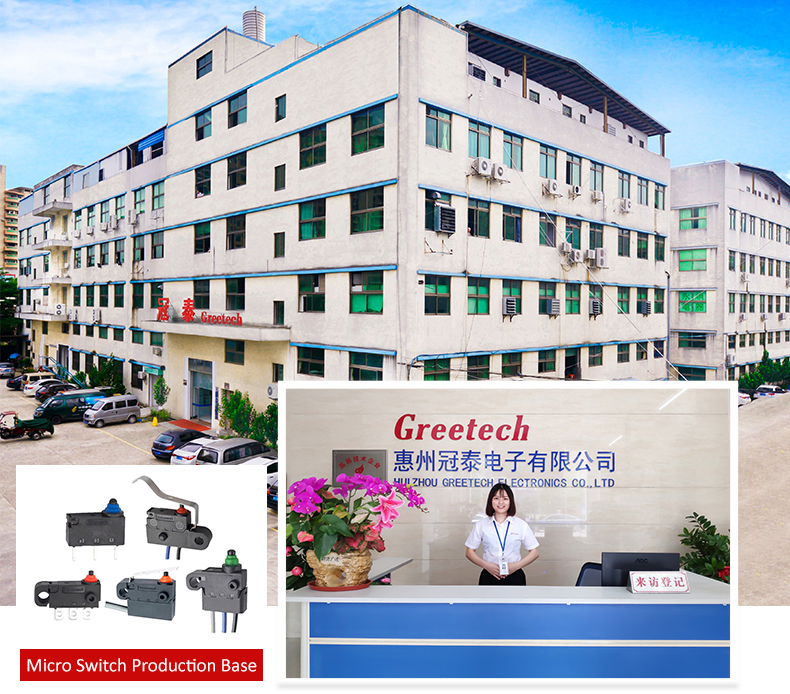

Huizhou Great Electronics Co., Ltd.: 'Manufacturerringing ears' and 'Unionville', a high-tech enterprise, mainly engaged in the research and development and production of various micro switches, automotive waterproof switches, various mechanical equipment switches, air pressure switches, mechanical keyboard switches, etc. The factory has passed ISO9001 and ISO/TS16949 quality assurance system, and has various world certifications such as ENEC, CQC, CB LVD, etc. Welcome group purchasing, business cooperation, brand joining, ODM.
【Factory Direct Sales】【Integrity First】【Quality Assurance】
Welcome to visit the factory!
Comment:Different styles and configurations of micro switches have different prices, such as waterproof or dustproof, with or without wires, etc. Please contact our customer service to discuss prices or consult online products!
Product Description

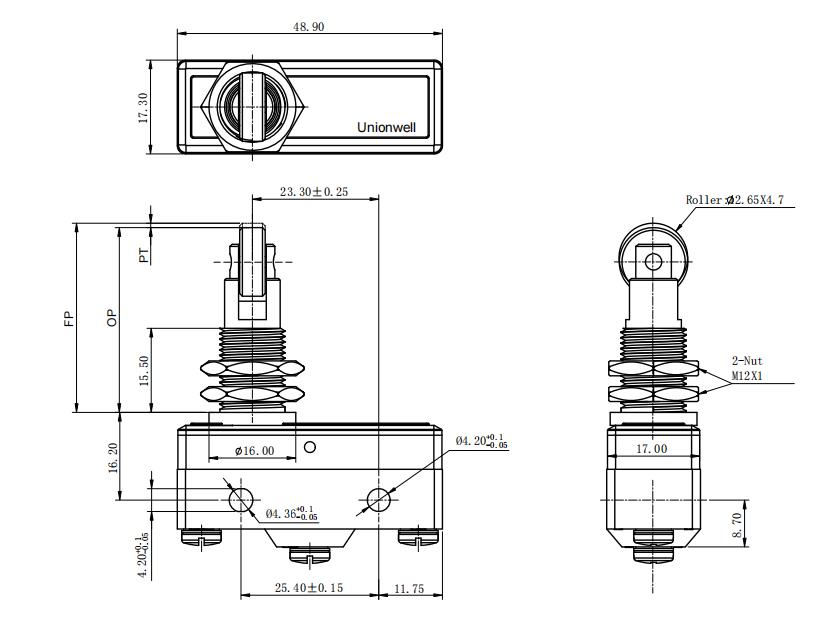

Specification
score | 16A | ENEC/CQC | |
16A 125/250V or 480V 1/8HP 125VAC 1/4HP 250VAC 0.5A 125VDC 0.25A 250VDC | |||
16A 125/250VAC 5E4 u 40T85 | |||
22A | ENEC/CQC | ||
22A 125/250V or 480V 1/4HP 125VAC 1/2HP 250VAC 0.5A 125VDC 0.25A 250VDC | |||
22A 125/250VAC 5E4 u 40T85 | |||
26A | ENEC/CQC | ||
26A 125/250V or 480V 1/2HP 125VAC 1HP 250 VAC 0.5A 125VDC 0.25A 250VDC | |||
26A 250VAC 5E4 u 40T85 | |||
electric | 10-~30 times/min | ||
Mechanical | 240 times/min | ||
Contact resistance (initial value) | 50mΩ max | ||
Insulation resistance | 100MΩ minimum | ||
(at 500VDC) | |||
Dielectric strength | between terminals | 1500VAC 50/60Hz 1 minute | |
between terminal and housing | 2500 VAC 50/60Hz 1 minute | ||
Storage temperature | (-40℃~ +85℃) | ||
Storage humidity | Maximum 85% relative humidity | ||
service life | electric | 50,000~100,000 cycles | |
(depending on part number) | |||
Mechanical | 1,000,000 cycles | ||
unit net weight | About 60g (drip plate mounting type) | ||
trade terms | 1. The price is based on FOB Shenzhen or Hong Kong or EXW factory | ||
2. MOQ: 5000pcs | |||
Payment method: T/T payment, 50% deposit before production, 50% balance before delivery | |||
Certificate | ISO9001&TS16949 | ||
RoHS and reach | |||
