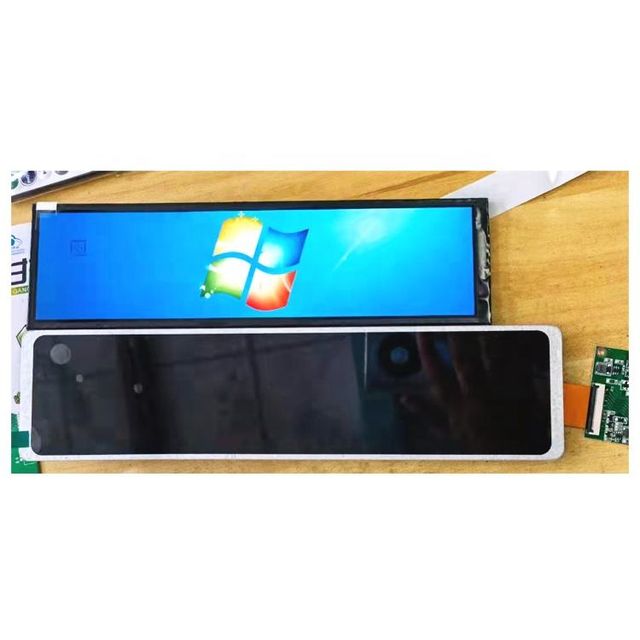

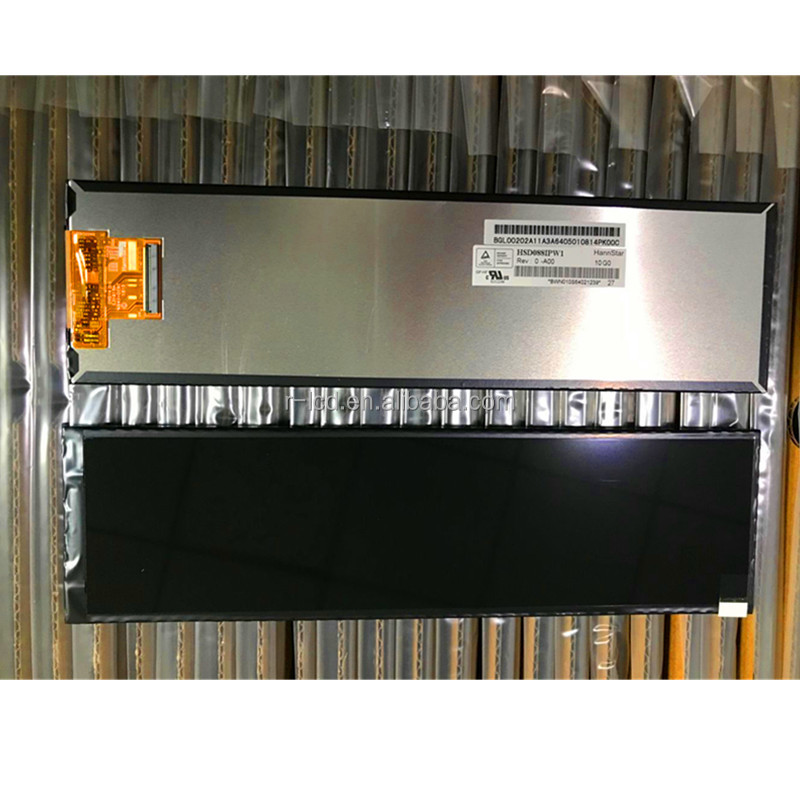

HSD088IPW1 480 x 1920 9 8.8 inch strip LCD module 1920*480 LCD panel 8.8 inch TFT LCD display with driver board
- $26.00 / 2 - 99 pieces
$23.80 / 100 - 999 pieces
$20.00 / 1000 - 9999 pieces
$18.00 / >=10000 pieces - 2 pieces
- Shenzhen Ruixin Optoelectronics Technology Co., Ltd.
- Guangdong, China
- Ms Emily Zhao
PRODUCT DETAIL
| application: | Industrial equipment, wearable devices, smart products, medical | Color depth: | 16.7 million |
| brand: | LCD Monitor | Active area (width*height): | 218.88mm * 54.72mm |
| port: | Shenzhen/Hong Kong or Guangzhou | Packaging Preview: | |
| Packaging Details: | Foam and carton are used for export packing. Also, pack small cartons into large cartons, anti-static bags, woven bags, or other means to protect the product from being damaged by rough handling. | product name: | TFT liquid crystal display module |
| Interface Type: | MIPI | Dimensions (W*H): | 231.3mm * 64.3mm*4.8(D) |
| Supply capacity: | 5000000 pieces/month | payment terms: | L/C,Western Union,D/P,D/A,T/T,MoneyGram |
| type: | TFT | Input voltage: | 3.3V |
| Supplier Type: | manufacturer | place of origin; place of origin: | Guangdong, China |
| Backlight: | White LED | Resolution: | 1920*480 |
| Display size: | 8.8 inches | Viewing direction: | IPS |
Product Description

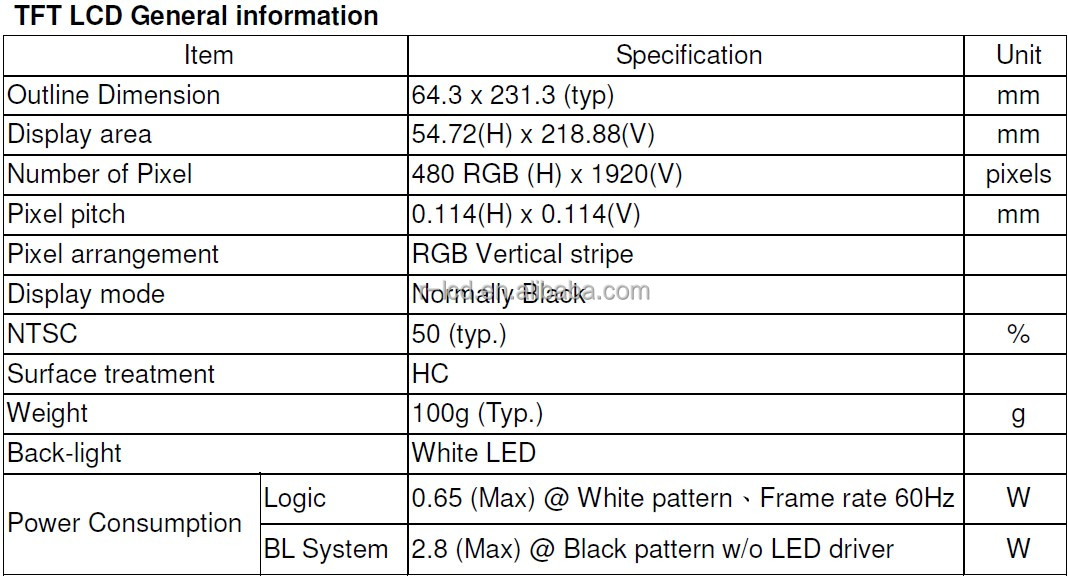

product name | TFT liquid crystal display |
display type | TFT transmissive |
observation direction | IPS |
Resolution | 480RGB(H) x 1920(V) |

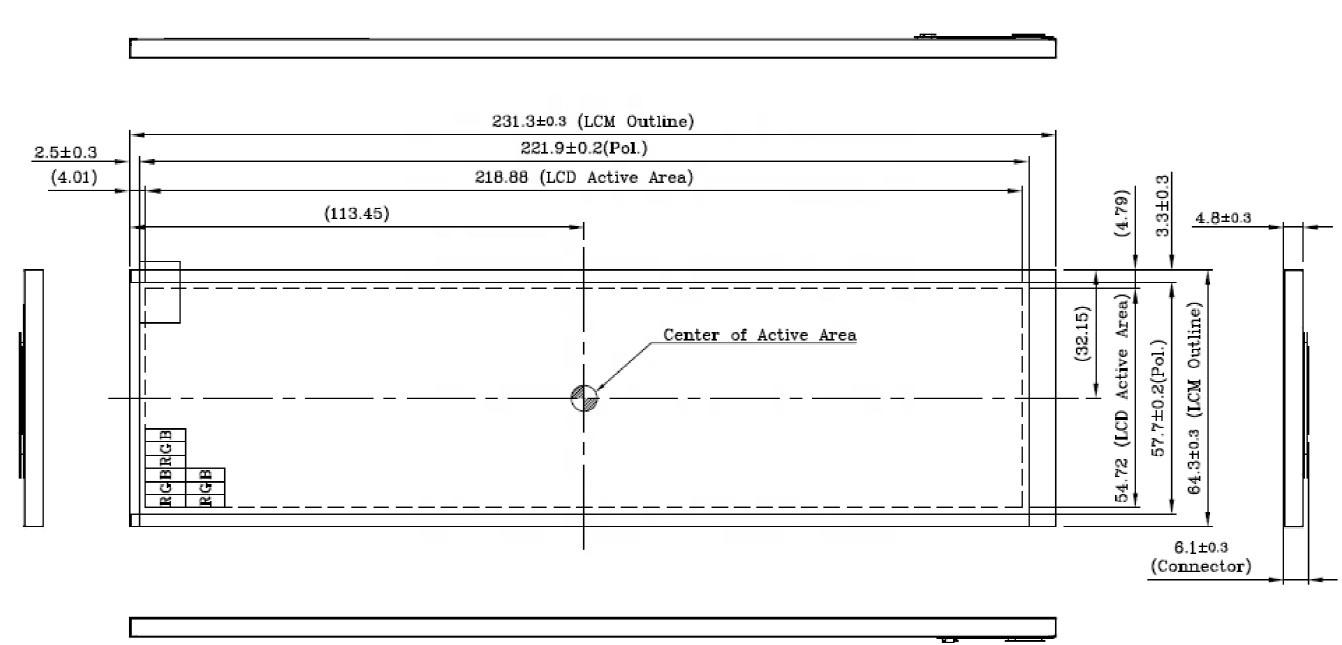

Dimensions (W*H) | 64.3 x 231.3 (typ) |
Active area (width * height) | 54.72(H) x 218.88(V) |
Interface Type | SPI |
color depth | 16.7 million |
Input voltage | 3.3V |
application | Industrial equipment, wearable devices, smart products, medical |
Customize various LCD displays and backlights.
Realize various pattern display and interface applications.
High quality → controllable delivery time → ex-factory price
TFT LCD General Dimensions:
0.96", 1.22", 1.3", 1.44", 1.5", 1.54", 1.77", 1.98", 2.0", 2.2", 2.3", 2.4", 2.6", 2.8", 2.86", 3.0", 3.1" , 3.2 inches, 3.5 inches, 3.8 inches, 3.92 inches, 3.95 inches, 4.0 inches, 4.3 inches, 4.5 inches.
5.0 inches, 5.5 inches, 5.8 inches, 6.0 inches, 7.0 inches, 8.0 inches, 9.0 inches, 9.7 inches, 9.8 inches, 10.1 inches, 10.4 inches.
12.1", 12.3", 14.0", 21.5", 23.6". We can customize all specifications according to your needs. Such as FPC, PIN assignment, brightness, touch screen, backlight, etc.
