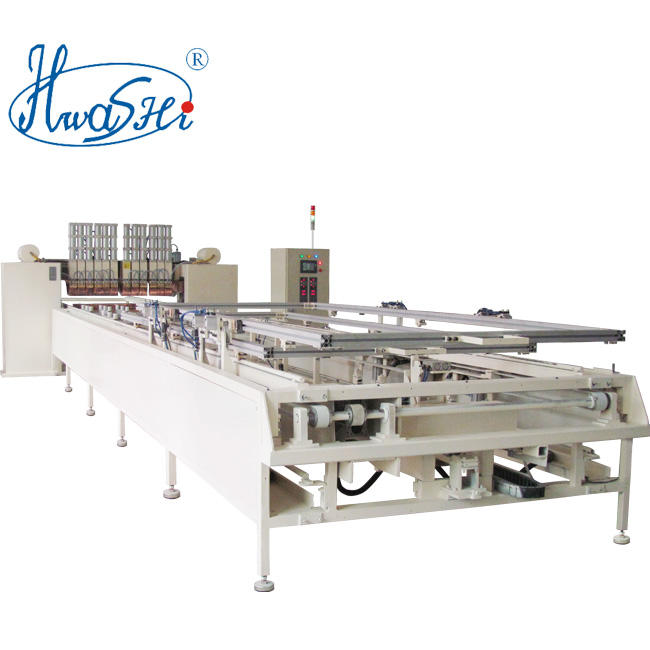

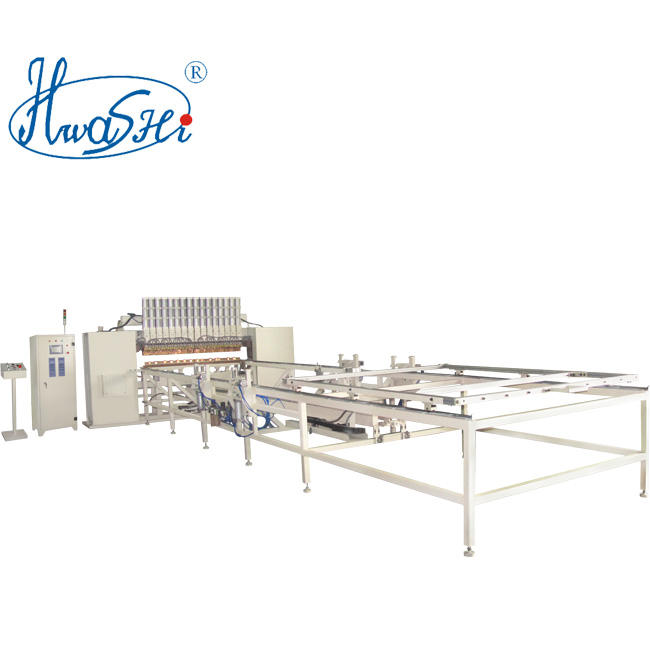

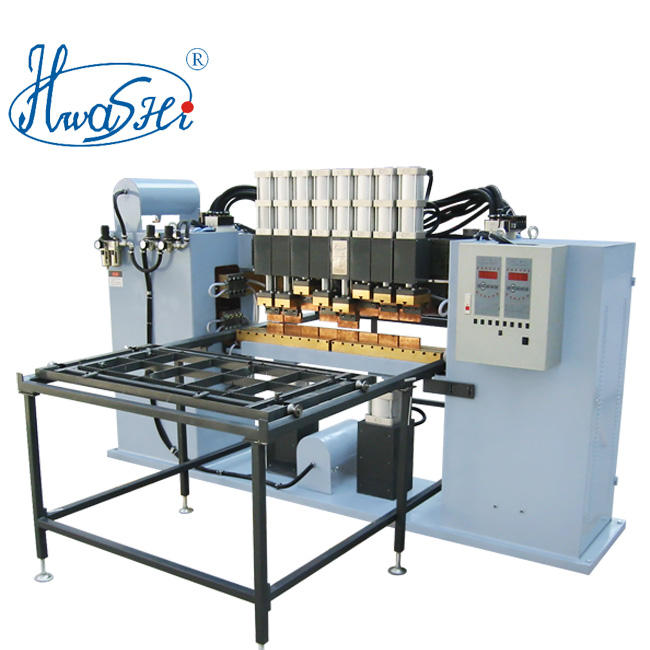

HWASHI Automatic Wire Mesh Welding Machine
- $6000.00 /set
- 1 set
- Guangdong Hwashi Technology Inc.
- Guangdong, China
- Ms Kary Hou
PRODUCT DETAIL
| Voltage: | 380 | Mechanical test report: | if |
| Packaging Details: | wooden packaging | Showroom location: | not any |
| input power: | 150KW | Feeder moving speed: | 500 mm/s |
| Input Current: | 24000A -40000A | type: | Wire machine |
| Input voltage: | 380V | Name: | Automatic Cable Tray Wire Mesh Welding Machine |
| After-sales service provided: | Engineers available to service machinery overseas | Warranty: | 1 year |
| Core component warranty: | 1 year | The output voltage: | 12V |
| Nominal Duty Cycle: | 25% - 50% | brand: | and stone |
| Video shipment inspection: | if | usage: | Automatic Cable Tray Wire Mesh Welding Machine |
| Main selling points: | Famous PLC | Supply capacity: | 50 sets per month |
| Adjust distance: | 50mm | Applicable industries: | Building material stores, machinery repair shops, manufacturing plants, food and beverage plants, farms, food stores, print shops, construction works |
| Weight (kg): | 1000 kg | Health status: | new |
| place of origin; place of origin: | Guangdong, China | Marketing Type: | New Products 2020 |
| Rated Capacity: | 150 kW | Configuration one: | Japan's Mitsubishi SCR and PLC |
| aspect: | 4000*2000*1500mm | Core components: | PLC, bearings, gearboxes, pressure vessels |
| port: | Shenzhen Port | payment terms: | L/C, T/T, MoneyGram |
| Electrode distance: | 150mm-200mm | current: | 24000A |
Product Description
Detailed description
1. Multiple electrodes; 2. Manual on-line; 3. Automatic feeding, automatic welding 4. Single power supply system 5. Only one electrode can work at a time, and work in turn. 6. Double-layer wire feeder, workers can go on the wire continuously to keep the machine working in a cycle; 7. It is suitable for wire mesh with a width of less than 1000mm, and the length is not limited. When you need this kind of machine, please send your screen drawing first, which clearly shows: 1. Wire diameter; 2. Line spacing; 3. Total length and width of screen; 4. Production capacity; 5. Cost estimate. Then we can custom design and manufacture for you according to your requirements. We also make recommendations based on our experience.
feature
Automatic two-layer machine Simultaneous exchange of feed and welding configurations allows you to change fixtures quickly and easily Ideal for high-volume production environments Customizable to your application Microprocessor-based welding controls and touchscreen interface make programming easy. HWASHI's policy of service first guarantees the superior quality and value of HWASHI machinery support
scope of application
Animal enclosures: cages and pens...Display equipment: display racks, stands...Wire mesh products: wire mesh, mesh panels, wire baskets for closets, shop accessories, computer enclosures...Storage and storage: wire mesh baskets, wire racks, Pallet cages, box trailer sides, pallet boxes, storage shelves, storage containers, tool racks... for welded wire mesh, basket wire mesh, cage wire mesh, wire mesh fencing, welded mesh sheets , Metal wire automatic welding machine mesh cable tray, welded wire mesh, chicken wire mesh, aluminum wire mesh, welded mesh fence, galvanized wire mesh, fence mesh, concrete wire mesh, concrete reinforced welded mesh, galvanized welded mesh panel, Wire display racks, barbecue wire racks, wire shelves, wire storage racks, kitchen wire baskets, kitchen cabinet wire baskets, refrigeration condensers, etc.
Specification
Do not. serial number | thing | Specification | describe |
1 | Input voltage | 380V , 2 phases | It can be customized, But only for two phases. |
2 | Input Current | 400A | |
3 | The output voltage | 12V | |
4 | Maximum welding current | 34000A | |
5 | Effective Welding Width | 1000mm (adjustable) | |
6 | Effective welding length | 3000mm (adjustable) | |
7 | Loading rack moving speed | 0.5m/s | Servo motor drive |
8 | Upper welding cylinder | 100x100mm | Double pressure cylinder |
9 | lower cylinder | 160x100mm |
