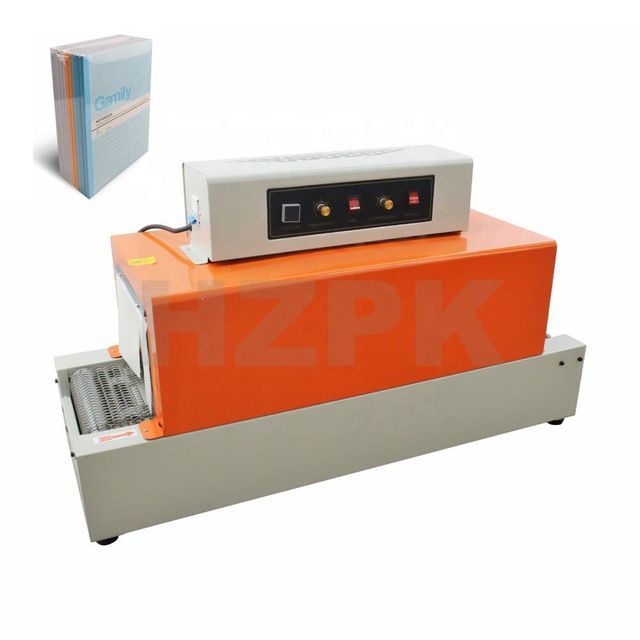

HZPK semi-automatic manual box bottle PP plastic film tunnel packaging thermal mini BS260 shrink packaging machine winding packaging
- $229.00 / 1 - 9 sets
$189.00 / 10 - 19 sets
$139.00 / >=20 sets - 1 set
- Wenzhou Haizhou Import And Export Co., Ltd.
- Zhejiang, China
- Ms Remon Liu
PRODUCT DETAIL
| Dimensions (length*width*height): | 100*42*50CM | loading: | 5kg |
| Showroom location: | not any | Conveyor type: | Mesh conveyor, chain conveyor |
| payment terms: | L/C, Western Union, D/P, D/A, T/T | Automatic level: | Semi-automatic |
| Video outbound inspection: | if | Health status: | new |
| Main selling points: | Easy to operate | brand: | Kazepuk |
| Mechanical test report: | not available | Place of origin: | Zhejiang, China |
| Warranty: | 1 year | Materials used for packaging: | paper, wood |
| Tunnel size: | 100*75*26cm | Supply capacity: | 40 sets per month |
| Material: | PVC, POF, PP | Certification: | CE |
| Voltage: | AC 220V 50Hz | type: | wrapping machine |
| application: | fruit, books, merchandise, food, merchandise | port: | Ningbo |
| Local service locations: | not any | Applicable industries: | Building Materials Stores, Manufacturing Plants, Food & Beverage Plants, Farms, Retail, Food Stores, Food & Beverage Stores |
| product name: | Film shrink packaging machine | Core components: | engine |
| After-sales service provided: | Online support, video technical support, free spare parts | Conveyor load: | Maximum 5kg |
| weight: | 35kg | Marketing type: | Hot Products of 2019 |
| Core component warranty: | 1 year | Packaging details: | Our products are packed in boxes. We will check whether the machine is operational before sending it out. When you receive the goods, please open the package in front of the courier to check whether the goods are intact. If the box is damaged or other situations occur, please contact us in time. |
| type of packaging: | Cartons, films, aluminum foil | Conveyor speed: | 0-10m/min adjustable |
| Post-warranty service: | Video technical support, online support, spare parts | Warehouse code: | 2133 |
| Driver type: | electrical | usage: | Carton film packaging |
HZPK semi-automatic manual box bottle PP plastic film tunnel packaging thermal mini BS260 shrink packaging machine winding packaging
Why choose us
1. 10 years of packaging machine manufacturing
2. 9 years Alibaba supplier
3. 100% QC inspection before shipment
4. 12 months warranty
5. The product has passed CE certification
3. 100% QC inspection before shipment
4. 12 months warranty
5. The product has passed CE certification
Product Description
Model | BS-260 |
Voltage | 220V 50Hz |
strength | ≤3KW adjustable |
work efficiency | 260*180mm |
maximum. working size | 750*260*160mm |
maximum. Loading weight | 5kg |
Application materials | PVC plastic optical fiber polypropylene |
transfer speed | 0-10m/min |

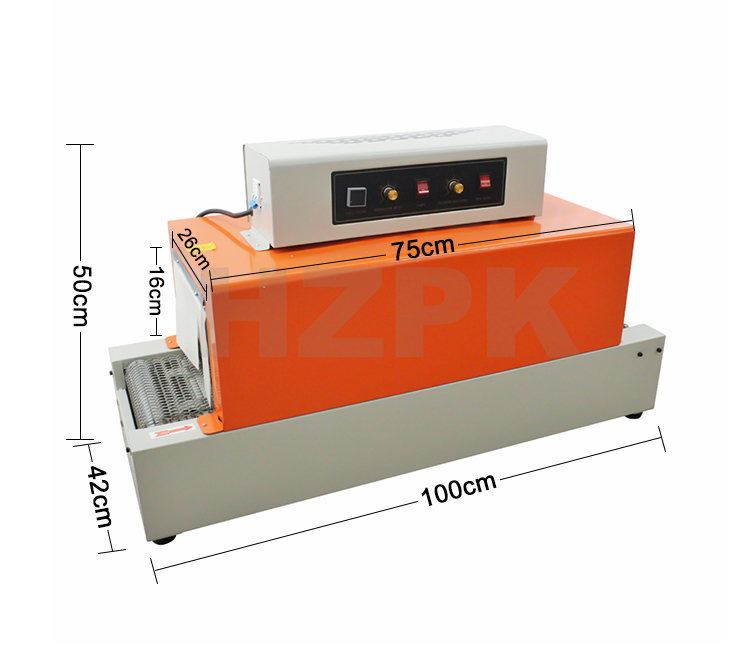

Machine size | 100*42*50cm |
different movie contracts
Name | Thickness (mm) | heating time | Room temperature(℃) |
PVC | 0.02~0.06 | 5~10 | 110~130 |
plastic optical fiber | 0.06~0.20 | 10~60 | 150~180 |
polypropylene | 0.02~0.04 | 6~12 years old | 130~170 |
introduce:

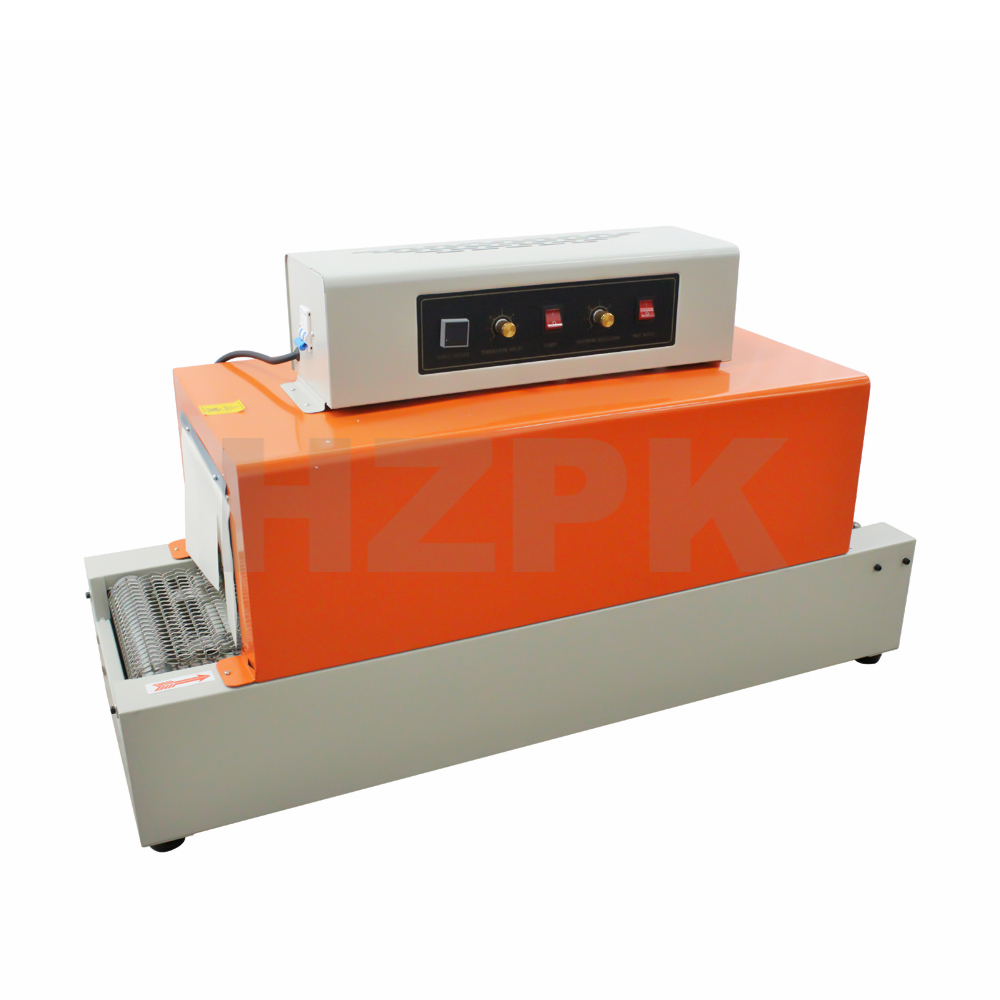

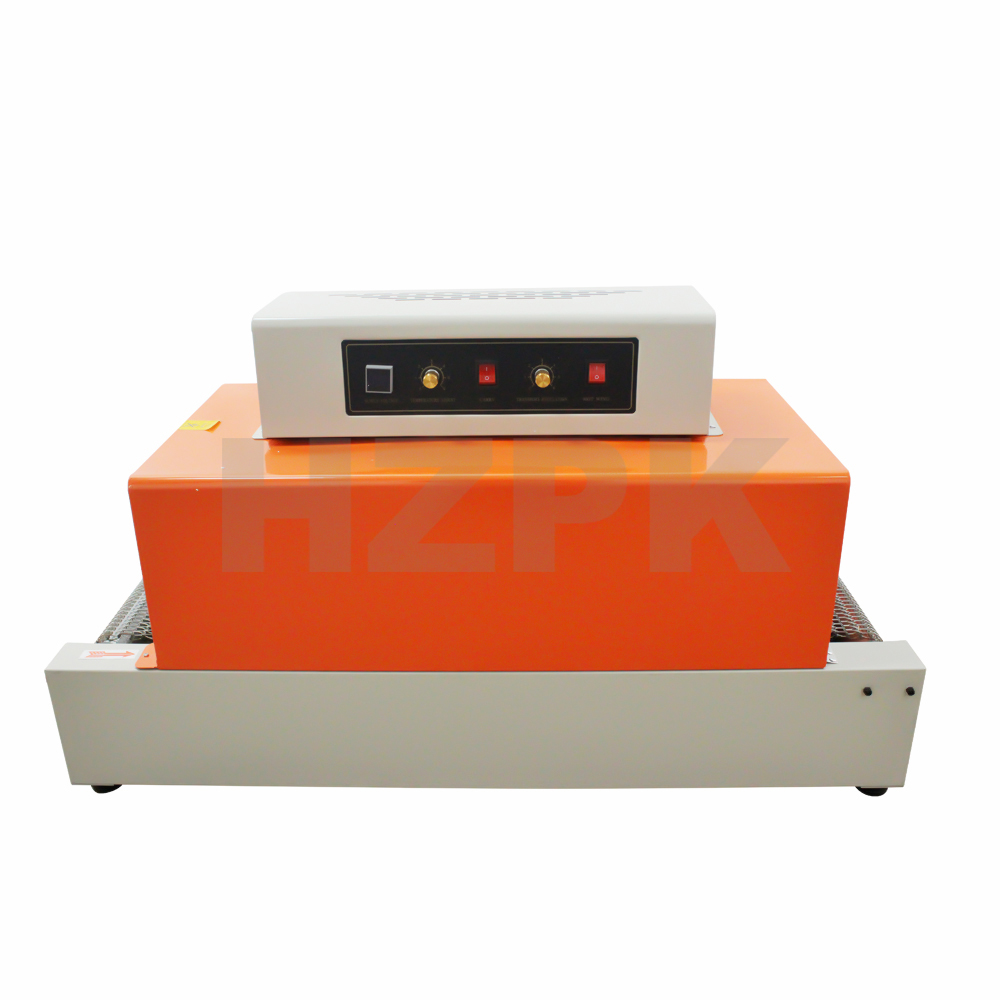

BS-260 far infrared heat shrink packaging machine. It uses shrink film to package the product, and then heats the packaging material to shrink and tighten the product. Packaged items can be sealed, moisture-proof, dirt-proof,
And it can protect itself from external impact and has buffering function.
1. Advanced design, stable performance, good shrinkage,Easy to operate and maintain.
2. The original automatic reel device can work continuously.
3. Using quartz grease infrared capsule for heating, energy saving is more than 15%.
notes:
1. No plug, only cable.
2. Shrink film is not suitable for PE.
Shrink tube material
The standard configuration isMesh conveyor.
Mesh conveyors and chain conveyors need to be customized.
Network Type

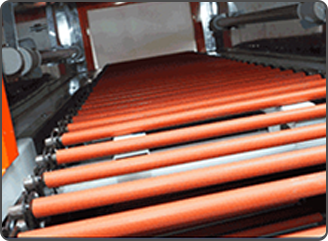

Chain type
Teflon mesh

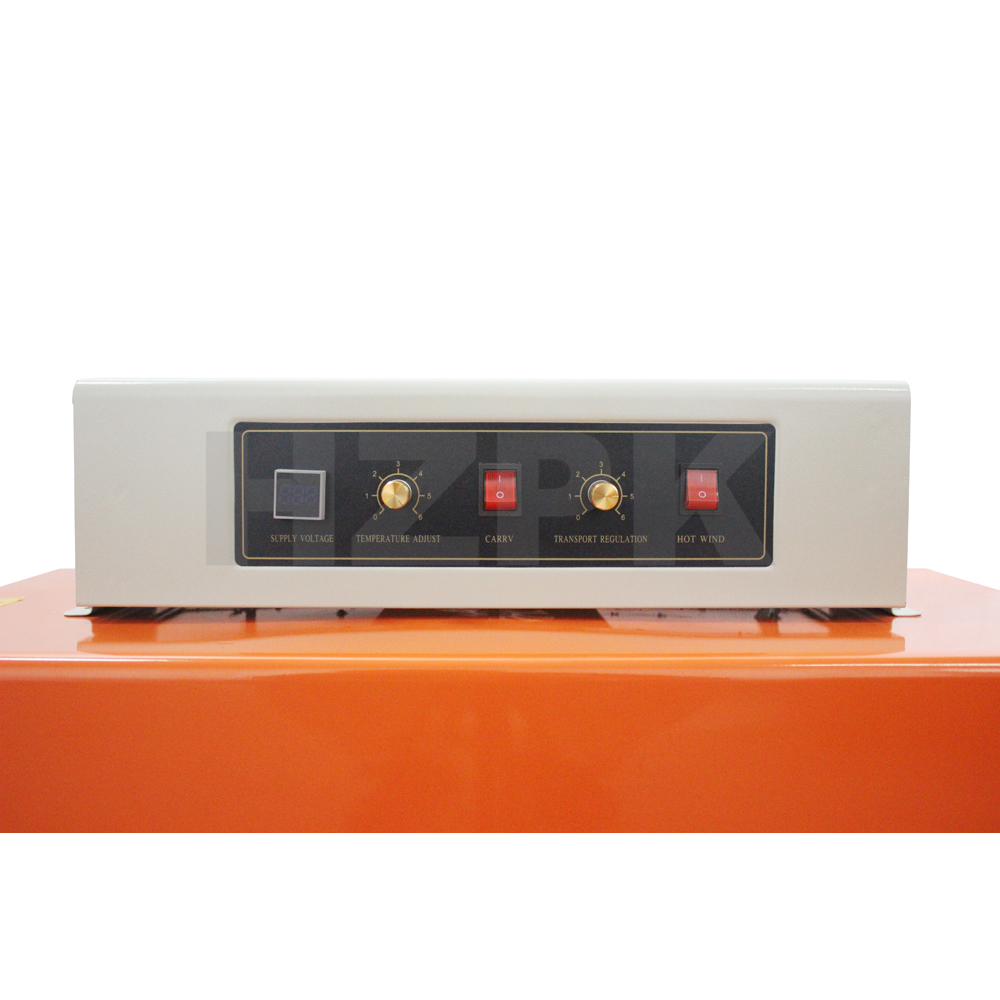

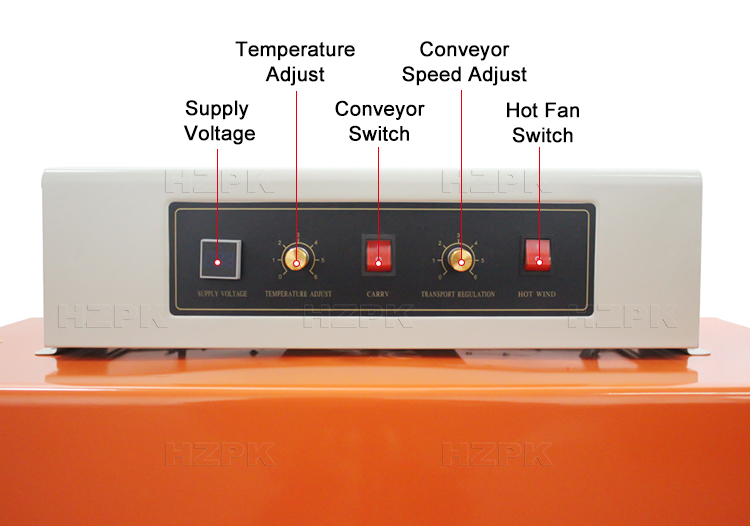

Independent control panel
Temperature and conveyor speed are adjustable.Conveyors, heaters and wind systems can be adjusted individually.

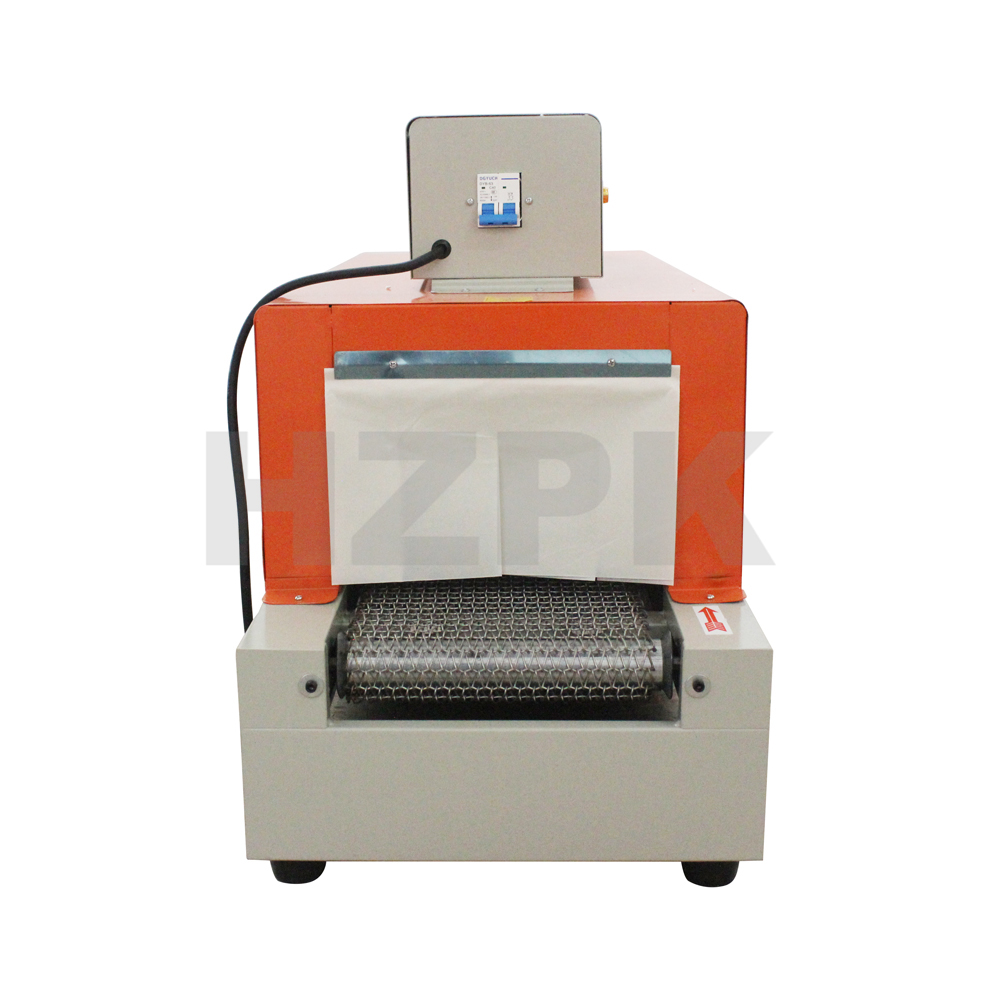

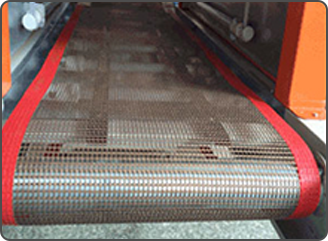

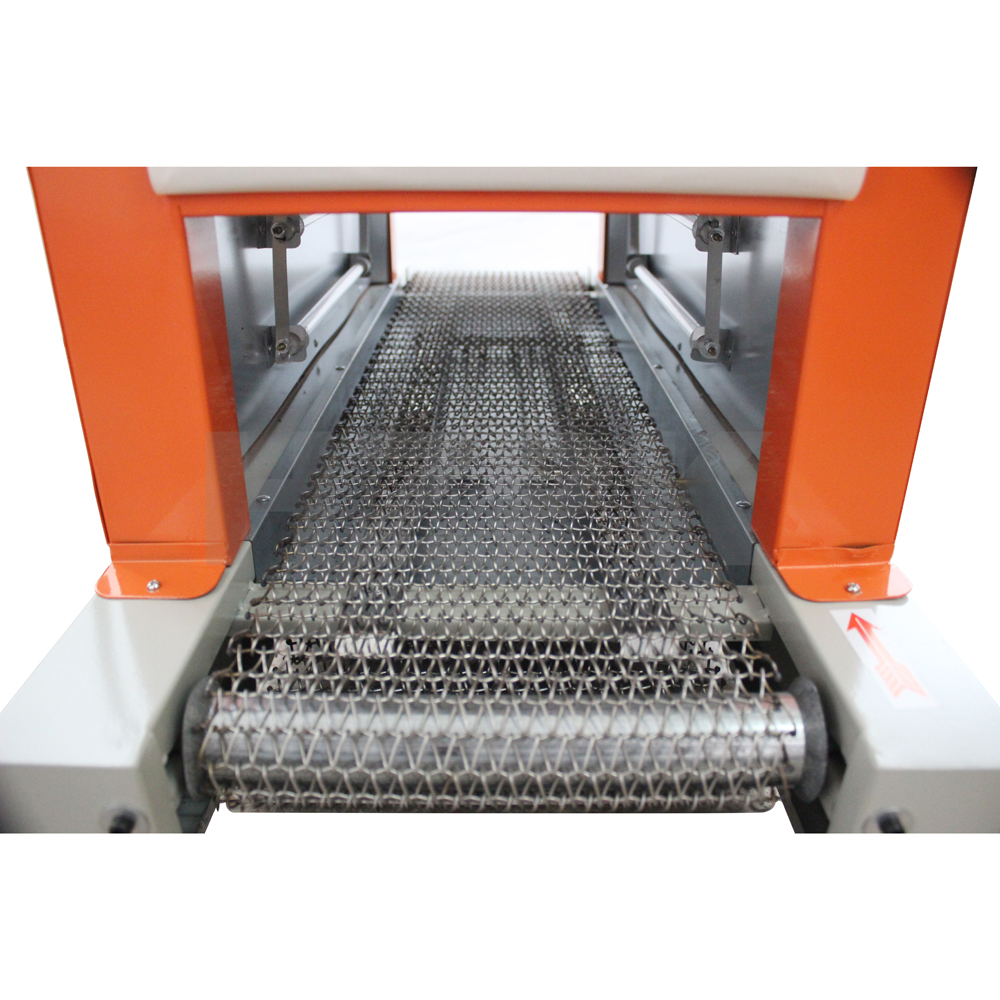

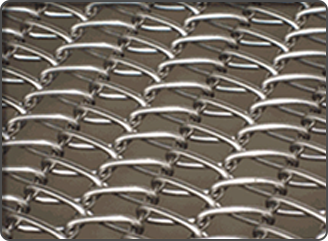

Mesh conveyor
Stainless steel mesh conveyor is suitable for products with smaller contact area and is more stable and safe.

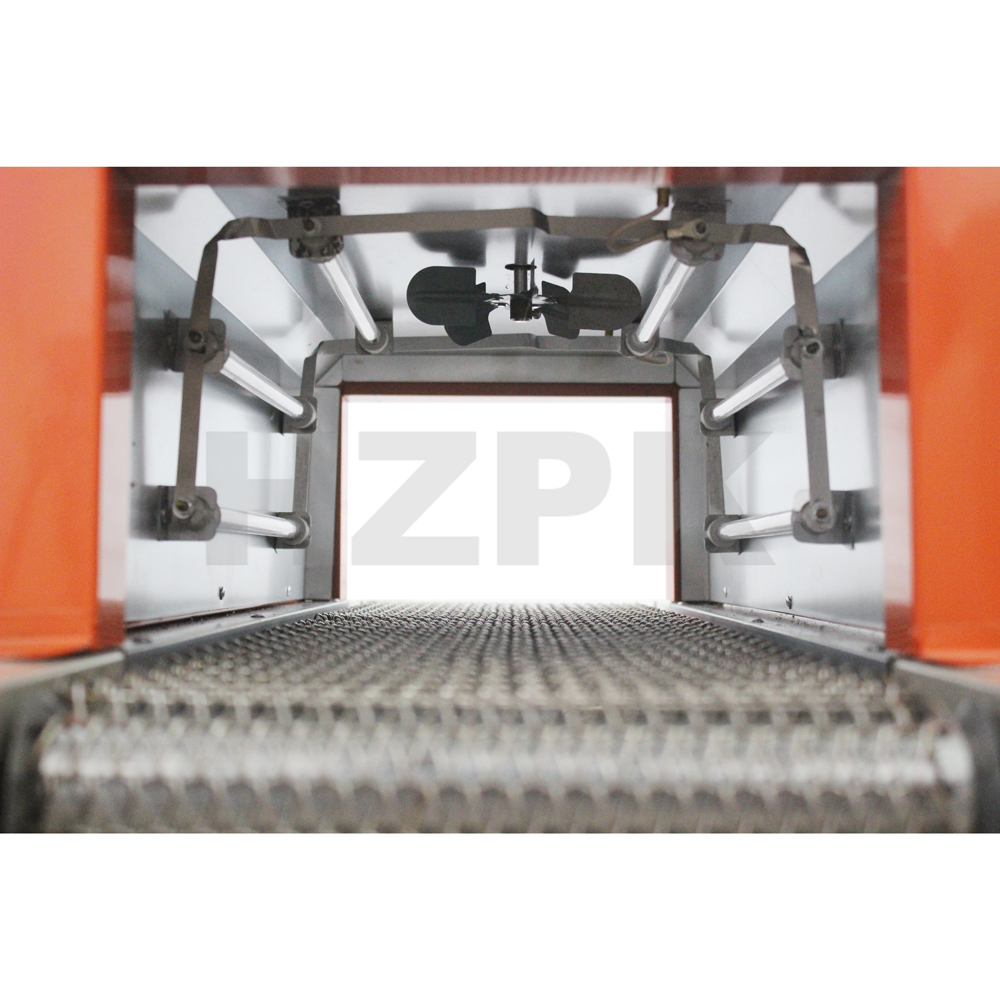

Quartz far infrared heating
Continuous heating makes the product evenly heated.

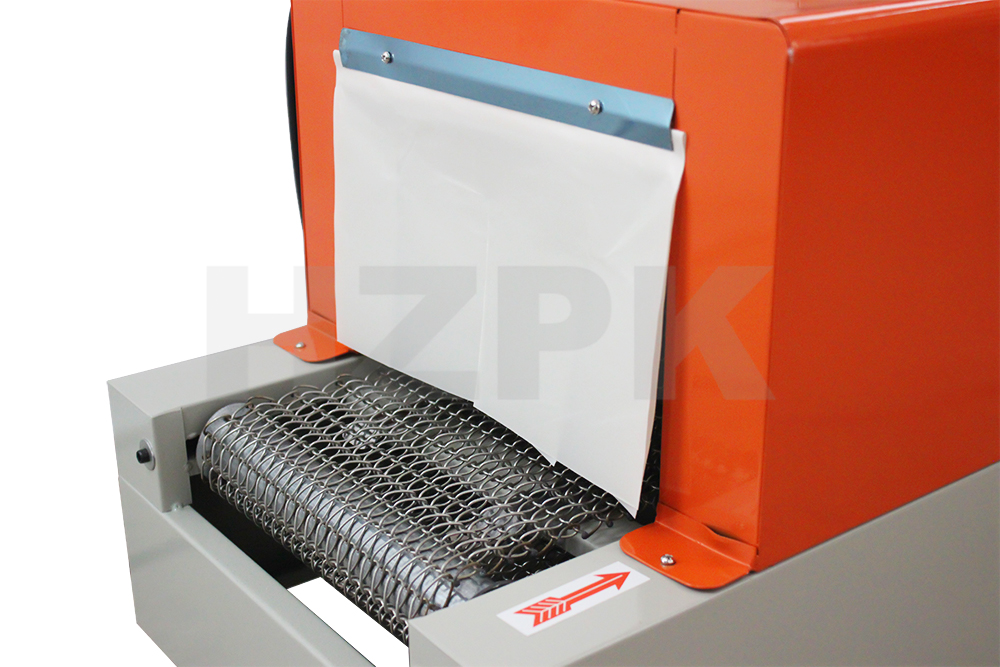

hot cloth
The cloth prevents burning while working.

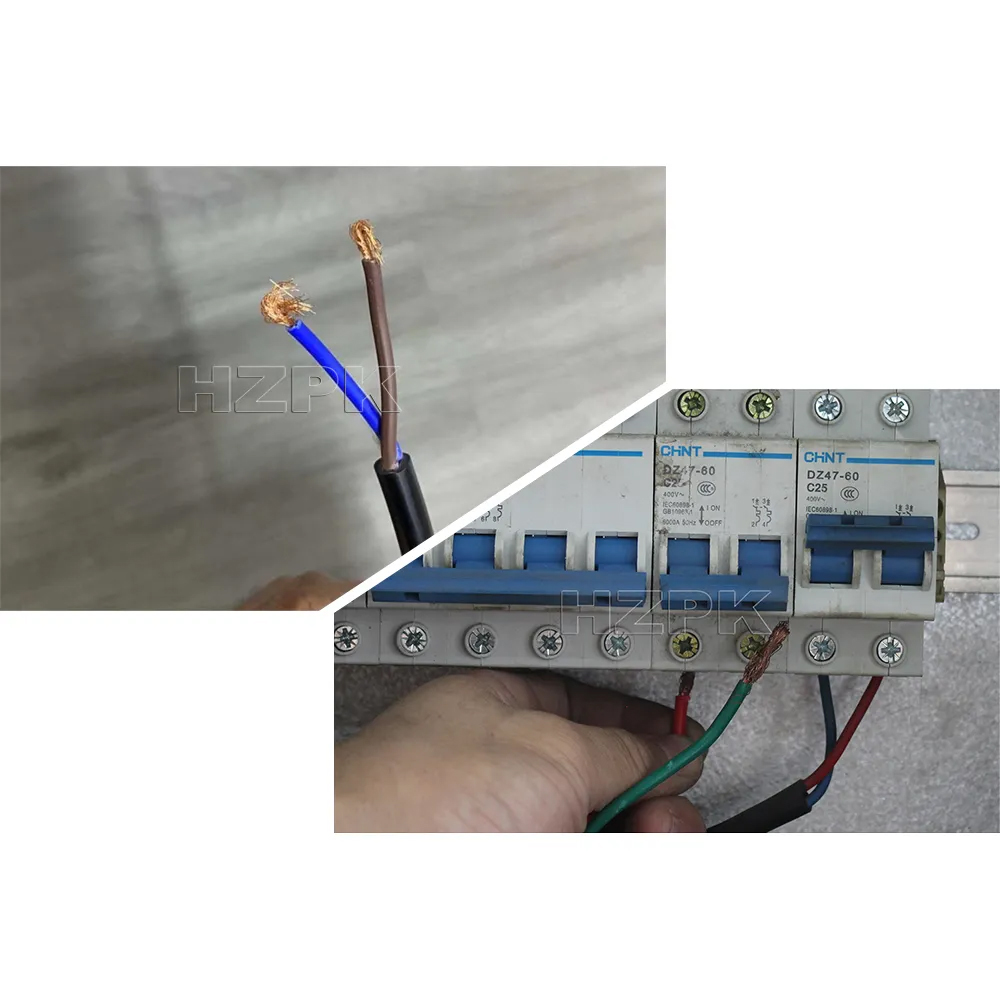

Power cord instructions
Due to the large power of the machine, the power cord of this machine does not have a plug, only a cable. The customer
It needs to be connected to a circuit breaker.
It needs to be connected to a circuit breaker.

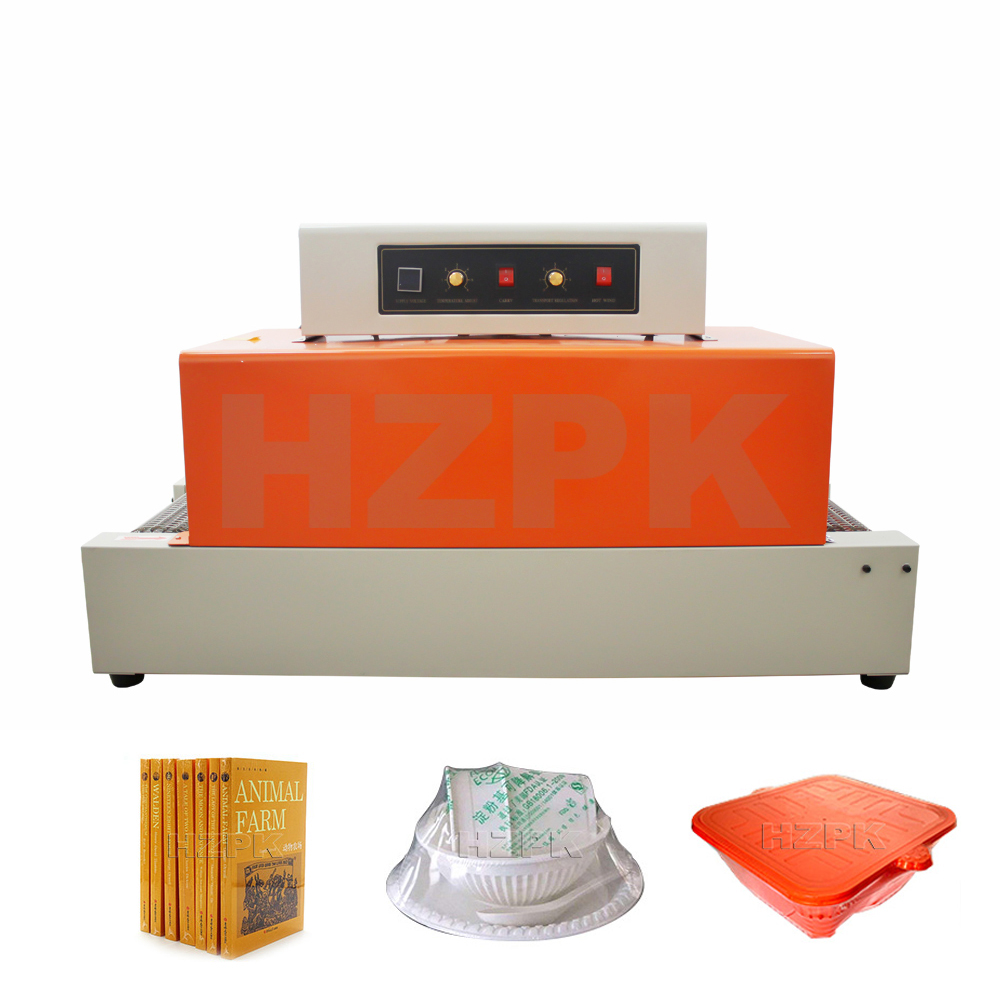

Product display
