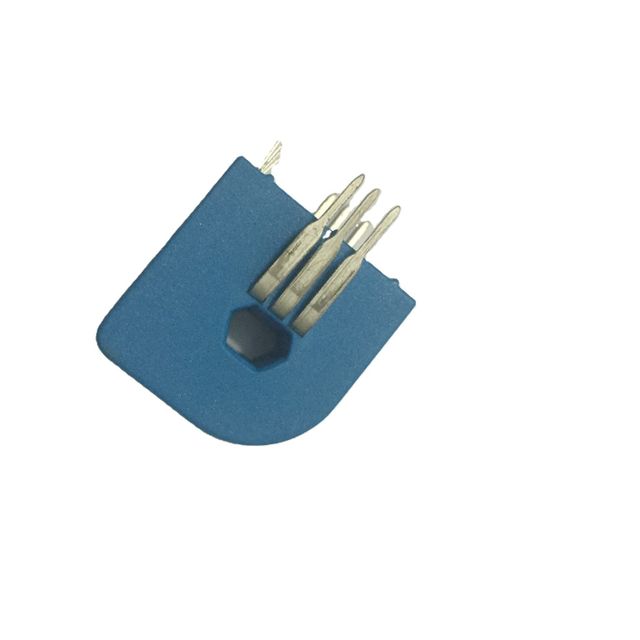

Hall effect current sensor
- $3.00 / >=100 pieces
- 100 pieces
- Shenzhen Winshine Technology Co., Ltd.
- Guangdong, China
- Ms Tina Li
| type: | Hall Effect Switch | usage: | Magnetic sensor |
| model: | JCT-TSP | place of origin; place of origin: | Guangdong, China |
| brand: | win -c | Packaging Details: | Carton |
| Supply capacity: | 5000 pieces per week | output: | analog sensor |
| payment terms: | Western Union, wire transfer | theory: | Hall sensor |
| port: | Shenzhen |
product description:
|
1. Hall effect principle - open loop current sensor 2. It can measure DC, AC, pulse and various irregular waveform currents under electrical isolation conditions 3. Dual power supply: ±15v DC 4. Wide current measurement range and low consumption 5. Perforation measurement, diameter 16.0mm 6. Can be customized according to product requirements |
Product features and applications:
|
Features |
application |
|
1. Installability 2. Small size, save space 3. Low power consumption 4. Has good overload capacity 5. High EFT
|
1. Application of inverter welding machine 2. AC variable speed drive 3. Switching power supply (SMPS) 4. UPS uninterruptible power supply 5. Collection of PLC application control circuit 6. Electrician application |
Electrical Characteristics:(If the following parameters are not specified, they are all tested at room temperature of 25°C and ±15VDC)
|
JCT |
50 |
100 |
200 |
300 |
|
Rated current IPN(A)RMS |
50 |
100 |
200 |
300 |
|
Measuring range IP(A) |
0~±150 |
0~±200 |
0~±400 |
0~±450 |
|
Sensitivity G(mV/A) |
80.00 |
40.00 |
20.00 |
13.33 |
|
output VO(V) |
±4.0*IP/IPN |
|||
|
Working power VC (5) |
±15VDC ±5% |
|||
|
insulation voltage Vd(V) |
50/60Hz, 1min, 2.5kV;RMS |
|||
|
Load resistance RL(Ω) |
>2K |
|||
Dynamic performance:
|
thing |
Health status |
data |
unit |
|
XG fineness |
@IPN,T=25°C |
<±1 |
% |
|
VOE |
@IP=0,T=25°C |
<±25 |
millivolt |
|
vote |
@ -40 ~ +85°C |
<±0.5 |
mV/°C |
|
voice |
@ -40 ~ +85°C |
±20 |
millivolt |
|
Linear εr |
|
≤1 |
%FS |
|
Response time |
@ 90% IPN |
<3.0 |
microseconds |
|
Working bandwidth BW |
-3dB |
DC-25 |
kilohertz |
General parameters:
|
thing |
Health status |
data |
unit |
|
Working temperature TA |
|
-40 ~ +85 |
°C |
|
Storage temperature Ts |
|
-40 ~ +125 |
°C |
|
The power consumption of the current IC |
@±15VDC |
15 |
Well |
|
weight meter |
|
25 |
G |
|
Terminal model |
90 Degree Singer Row Looper, Gold Plated, 2.54 Pitch |
||
|
shell material |
PBT material contains 30% glass fiber, flame retardant grade: UL94 - V0; |
||

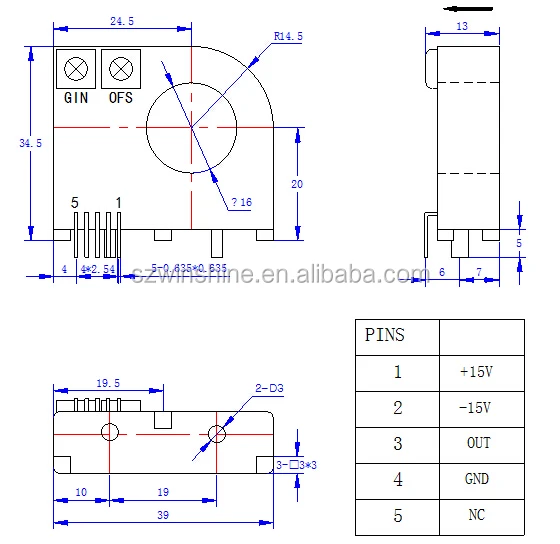

Structure diagram (mm):
