Hard Rock Excavator Ripper Factory Heavy Duty Heavy Industry Equipment

PRODUCT DETAIL
Bucket width:150-180mmPlate thickness:50mm
Warranty:6 monthsplace of origin; place of origin:Shandong
Applicable industries:Mechanical Repair Shops, Energy & Mining, Construction Engineeringport:Qingdao
payment terms:L/C,Western Union,T/T,MoneyGramShowroom location:not any
total height:390mmPackaging Details:Wooden pallet, wooden box, iron pallet or as your request
Applicable excavators (tons):4-6Supply capacity:500 sets per month
model:BC02Marketing Type:normal product
Pin Diameter:40-50product name:excavator scarifier
Mechanical test report:ifOverall width:375mm
Packaging Preview:Video external inspection:if
brand:pterosaurCore components:High hardness steel
color:customer requestTooth model:FR50
Health status:newAfter-sales service provided:Yes
Pin distance:265mmweight:60
Product Description





Technical data:

  unit BC02 BC04 BC06 BC08 BC10 BC14 BC17 BC20 BC24
Pin-to-pin distance mm 265 310 390 465 520 570 custom made
overall width mm 375 420 570 665 740 820 820 1660 1800
total height mm 390 950 1180 1260 1380 1470 1520 custom made
pin diameter mm 40-50 50-55 60-70 70-80 80-90 80-90 90-110 custom made
Bucket width mm 150-180 180-220 200-315 300-350 360-420 360-420 400-500 custom made
plate thickness mm 50 55 65 80 90 90 90 120 120
tooth model Name FR50 DH150 DH200 D85C 4T5502-2 PC700 PC1000
weight Kilogram 60 160 245 420 620 775 825 custom made
suitable carrier Ton 4-6 5-9 9-16 16-23 23-30 30-39 40-49 50-64 65-90

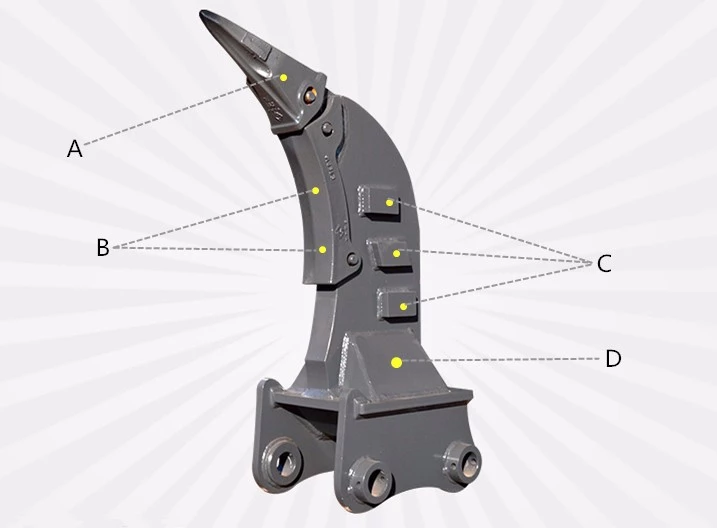

A: Heavy duty tooth
Equipped with heavy duty replaceable teeth to ensure optimum effect and wear resistance;
B: Nose Guard
The ripper adds a blade to the protective ripper to prevent breaking, shattering.
C: wear plate
The board is made of NM400 material to ensure service life
D: Reinforcing plate
Strengthen the overall structure to prevent the separation of the cracked soil body and the ear plate



1--Material: Q345/Q460/NM400/Hardox400

2--Number of teeth: one, two, three

3--Best quality and fast delivery

4--Professional manufacturer with more than 10 years experience

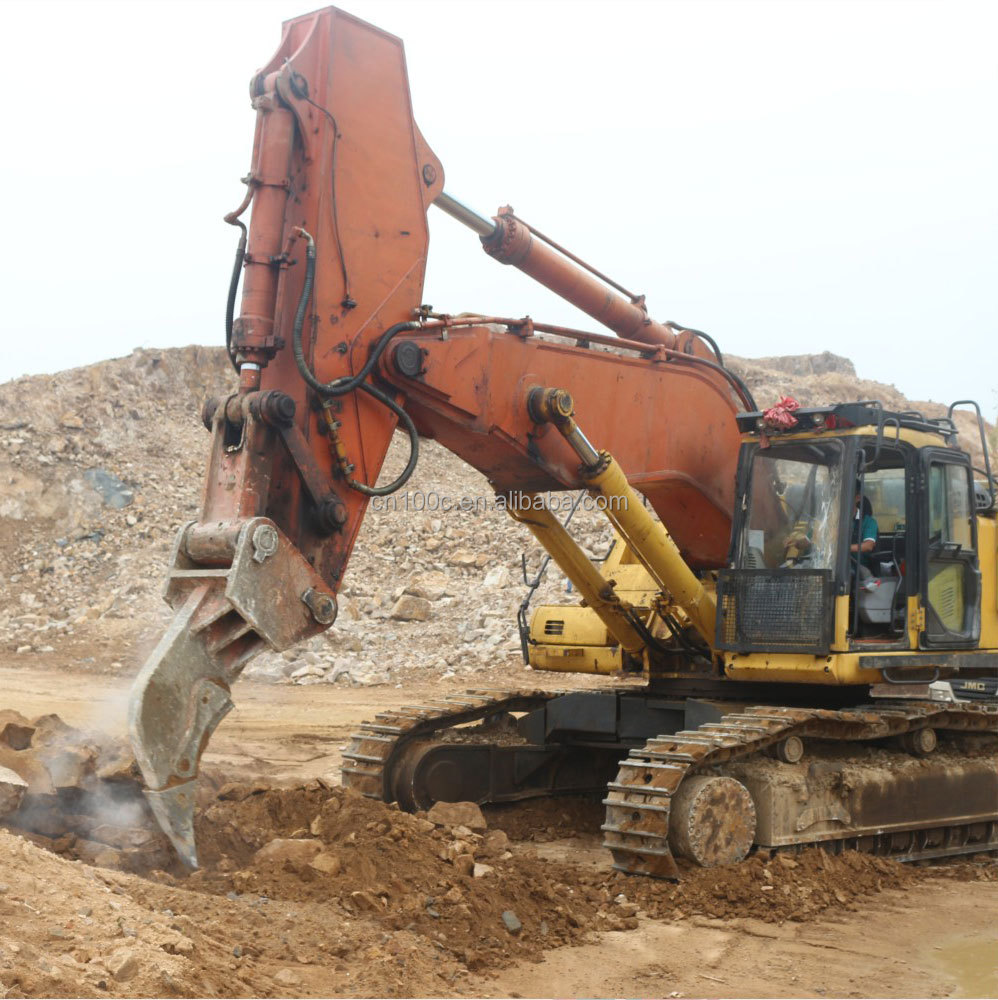

application

Fragmentation of hard, subhard and weathered rocks. It is typically applied to any area with frozen, rocky or paved ground that prevents further excavation.

Packaging and Shipping
1. The inner layer is a stretch film
2. Outside is the export wooden box
3. According to customer requirements
Delivery Time: Usually 3-7 days after down payment (1-5 sets). We can arrange sea or air freight from any port in China according to your requirements.



Serve

1. 7 days * 24 hours email and telephone after-sales service

2. Provide local market information and trends and how to develop the market

3. Your inquiry will be replied within 24 hours on working days

4. Our customer-oriented sales and technical teams are always at your service

5. Warranty: The hydraulic breaker is guaranteed for 14 months, beyond the warranty period, all spare parts are provided to you at our cost price (excluding freight).

6. Do you want to customize your brand hammer? OEM available MOQ is 1 piece.
