High Gain 18 dbi Broadband 2.4g 3g 4g Outdoor Log Wifi Periodic Waterproof Antenna Outdoor Driver 4g Lte Lpda Antenna
- $7.67 / 2 - 99 pieces
$7.23 / 100 - 999 pieces
$6.55 / 1000 - 4999 pieces
$5.78 / >=5000 pieces - 2 pieces
- Yetnorson Antenna Co., Limited
- Guangdong, China
- Ms Lisa Fang
PRODUCT DETAIL
| Certificate: | CE/ROHS/ISO9001 | brand: | Yeet Northen |
| Packaging Details: | One PE Bag for High Gain 18dbi Broadband 2.4g 3g 4g Wifi External Log Periodic Antenna Waterproof Directional Outdoor 4g Lte Lpda Antenna | port: | Shenzhen |
| model: | YNX03-04 | type: | 2.4GHz & 5GHz Antenna |
| title: | Directional Outdoor 4g Lte Lpda Antenna | Supply capacity: | 200000 Pieces of Directional Outdoor 4g Lte Lpda Antennas per Week |
| payment terms: | L/C,Western Union,D/P,D/A,T/T,MoneyGram,paypal | polarization: | vertical |
| color: | white | Standing wave ratio: | ≤1.5 |
| place of origin; place of origin: | Guangdong, China | Impedance (Ω): | 50 |
| Cable Type: | RG58 | Connector: | Type N |
| Frequency Range: | 600-2700MHz | Gain-dBi: | 18dBi |
98% received
Specification
place of origin; place of origin | China |
brand | Yeet Northen |
title | Directional Outdoor 4g Lte Lpda Antenna |
Frequency Range | 600-2700MHz |
Gain-dBi | 18dBi |
standing wave ratio | ≤1.5 |
cable type | RG58 |
Impedance(Ω) | 50 |
Connector | Type N |
polarization | vertical |
color | white |
Certificate | CE/ROHS/ISO9001 |
Product Description
【External cellular antenna】

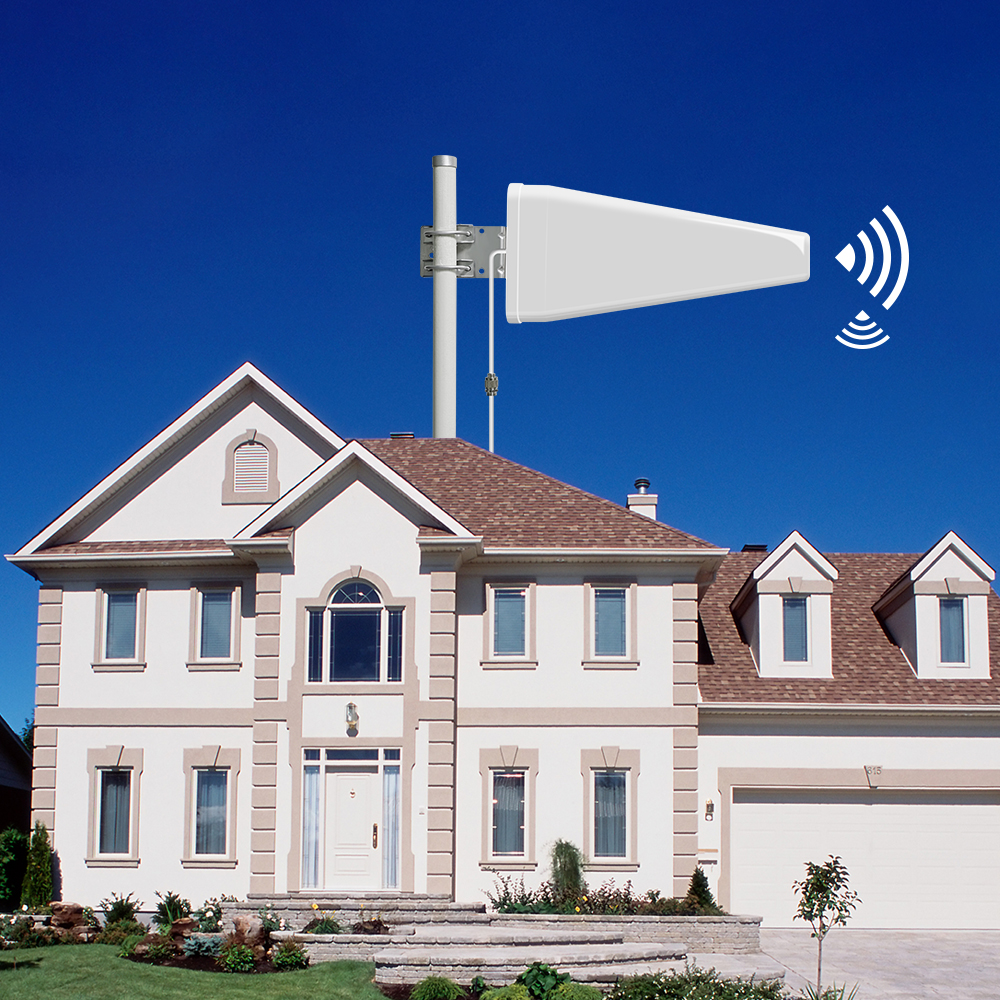

Directional rooftop antennas are designed to be used on stationary objects such as buildings or houses by capturing existing outdoor cellular signals in a directional 45 degree pattern. It has an N-type connector for easy transmission of high frequency information.
【High Gain】
Directional Yagi antenna has 8dB-9dB gain, works with all 50 ohm cellular amplifier systems, is compatible with all world carriers, it supports multiple devices so you can boost your 3G/4G/5G LTE signal.
【best quality】
The cellular antenna frequency range is 698-960mhz & 1710-2700mhz & 3400-4000mhz. This wideband antenna has an N-type female connector that facilitates the transmission of high frequency information. IMPORTANT: This product is an outdoor antenna only, it must be used with a signal booster/repeater, and an extension cable is required to connect the outdoor antenna to the signal booster.

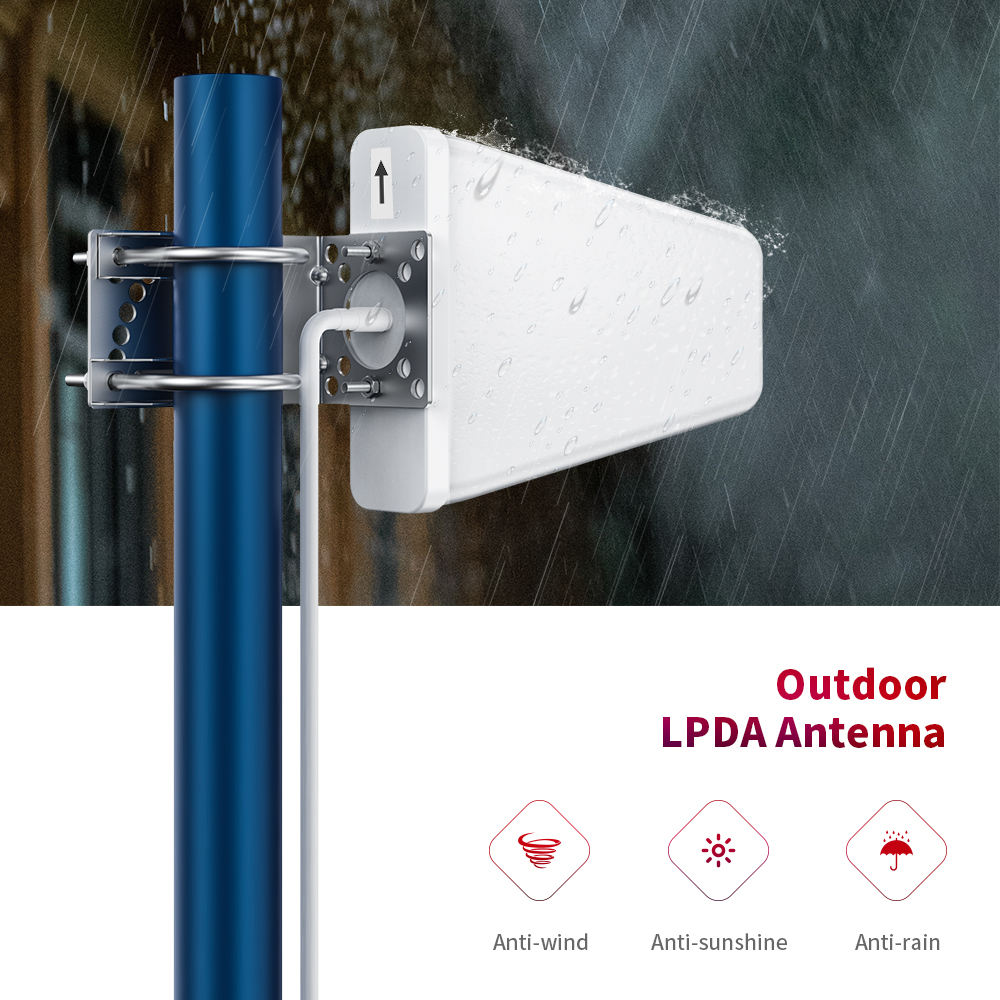

【Waterproof structure】

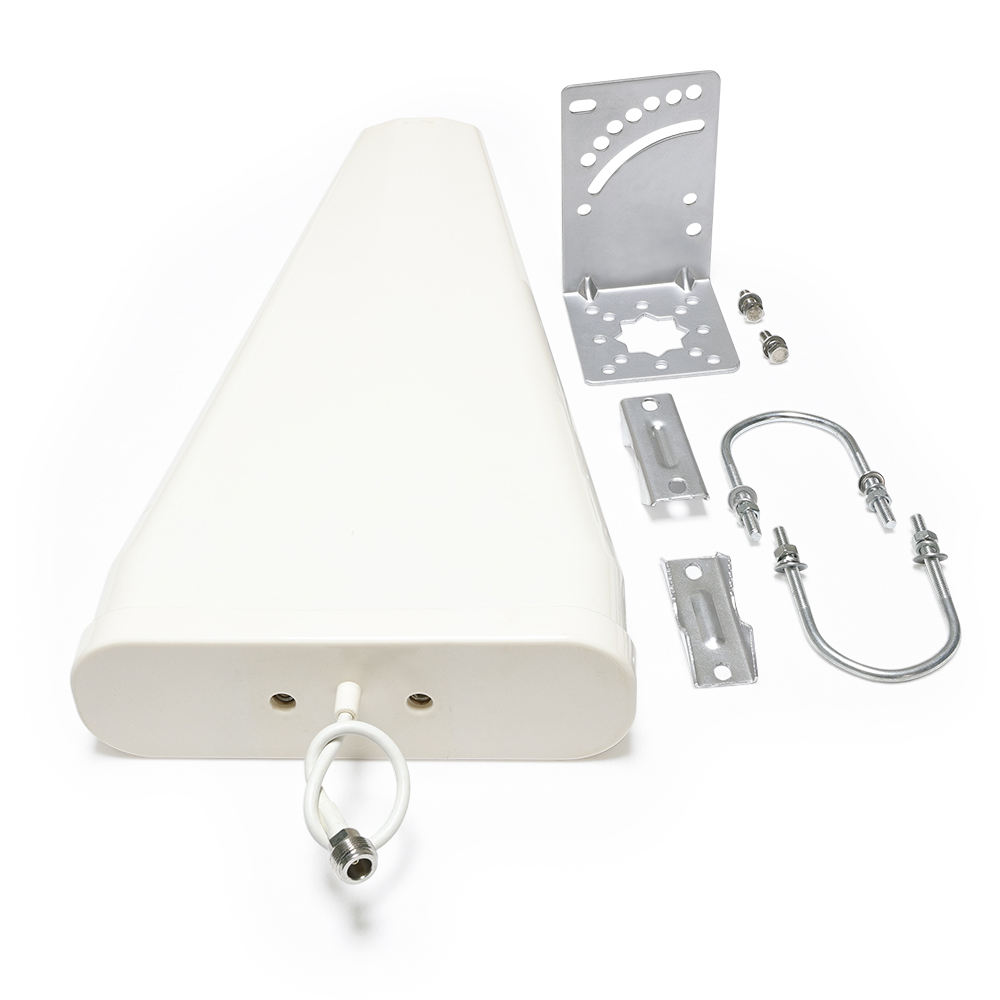

This broadband directional antenna features a rugged waterproof construction designed to withstand element damage. The directional antenna must be pointed at the cell tower. The antenna does not come with a mast mount.
【Compatible】
Compatible with 2G, 3G, 4G, 5G, LTE, xLTE, AWS, GSM and CDMA broadband routers, modems and more. Enhanced for Verizon, AT&T, Sprint, T-Mobile, Telus, Bell Canada, Rogers, DigiCel and more. Also compatible with 2.4 GHz Wi-Fi and 900 MHz radio systems.
How to install the best signal
Mount the antenna as high as possible Keep the coax cable as short as possible Do not use 75 Ohm coax (RG6, RG59) Do not use a splitter to connect the 2 modem ports to the antenna Fully tighten the coax cable Connector to Antenna Connector Keep away from other antennas, lighting, motors, Low-E or tinted/coated windows, large metal or concrete objects More than 3 feet from the antenna during testing Maximize signal quality (SINR, RSRQ) instead Signal Strength (RSSI, RSRP, bar)
