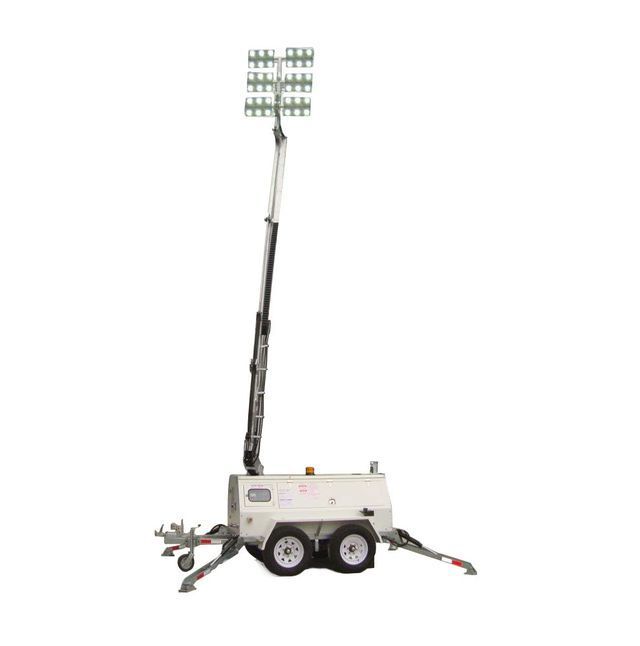

High Quality Portable Mobile generation Powered Mobile Light Tower For Outdoor Night Lighting
- $3000.00 / 1 - 3 sets
$800.00 / >=4 sets - 1 set
- Xiamen Aosif Engineering Ltd.
- Fujian, China
- Mr Wilbur qiu
PRODUCT DETAIL
| Warranty(Year): | 1-Year; | CRI (Ra>): | N/A; |
| Model Number: | ALHF-4000-7; | Frequency: | 50HZ/60HZ; |
| Voltage output: | 120-240V; | Input Voltage(V): | 120-240V; |
| Insulation: | H; | Fuel Capacity(L): | 120; |
| Product name: | Light Tower; | Revolution(RPM): | 1500/1800; |
| Payment Terms: | L/C,Western Union,D/P,D/A,T/T,MoneyGram; | Cooling: | Water; |
| Port: | Xiamen; | Place of Origin: | Fujian, China; |
| Make/Model: | Brushless Maintenance Free AC alternator; | Brand Name: | AOSIF; |
| Power Supply: | DC,Electric,Battery,AC; | Supply Ability: | 500 Sets per Month China yuchai diesel engine generating set; |
| Light Source: | LED; | Packaging Detail: | Plastic / Wooden case Packing or Customized China yuchai diesel engine generating set; |
| IP Rating: | IP65; | Application: | Sports Stadiums,Lighting Controller,Residential,Thermal Controller,electrocar,Energy storage,LANDSCAPE; |
| Phase number: | Single Phases; | Certification: | ce; |
| Engine: | Three cylinders in line,Water cooled,Four stroke; | Lamp Luminous Flux(lm): | N/A; |
More Information ABOUT US Please Click Here
Product Description
| Specification: | |||||
| Engine | |||||
| Engine | Three cylinders in line,Water cooled,Four stroke | ||||
| Make/Model | Kubota D1105 or D905 | ||||
| Cooling | Water | ||||
| Output(Continuous) | 7.8-10.1kW/1500-1800Rpm | ||||
| Revolution(RPM) | 1500/1800 | ||||
| Fuel Capacity(L) | 100 | ||||
| Number of Cylinders(Displacement) | 3(0.989-1.123) | ||||
| Engine shutdown protection | Low oil pressure, Hight water tempreture | ||||
| Alternator | |||||
| Make/Model | Brushless Maintenance Free AC alternator | ||||
| Output(Primary) | 8kVA | ||||
| Phase number | Single Phases | ||||
| Frequency | 50/60HZ | ||||
| Voltage output | 220V | ||||
| Insulation | H | ||||
| Type of bearing/Brush | Single/Brushless Self excitation | ||||
| Available Receptacles | 220V AC receptacle | ||||
| Lighting | |||||
| Lighting | MH, 1000W | ||||
| Lamp No. | 4×1000W | ||||
| Lamp type | Metal Halide lamp | ||||
| Illuminating Field | 5 to 7 acres | ||||
| Housing Materials | Aluminum | ||||
| Mast Tower | |||||
| Type | Multi-Sections Telescoping mast | ||||
| Total Height | 9 M | ||||
| Rotation | 360 Degree | ||||
| Mast Sections | 3 Sections | ||||
| Operate for Extends and Lifts | Manual Winch | ||||
| Outriggers | |||||
| Trailer/Cabinet | With 5 points manual outriggers extended and all jack down | ||||
| Fork pocket and central lift point | YES | ||||
| Wheel and Rim | 185R/14'' | ||||
| Trailer Suspension System | Steel plate spring | ||||
| Towing Type | Ring or Ball hitch | ||||
| Cabin | With two doors access for easy maintenance with hanger for handling Detachable Roof,Silent type | ||||
| Electric-Shutdown protection | |||||
| Electric | MCCB-MCB Emergency Stop | ||||
| Connection | IP65 | ||||
| Weight | 900KG | ||||
| Loading | 6 units can be loaded in a 20'GP | ||||
| Dimention for shipping | 1850×1450×1680MM(Pack by Plastic) | ||||
| Gurantee | 1000 running hours or 1 year when the customer receive the goods | ||||
| Delivery Time : | 35 Days or 5 weeks when the seller received down payment from the buyer | Warranty | 1000 running hours or 1 year from shipment | ||
| Freight Insurance | |||||
| Price Validity | 90 Days | Bank Charge | |||
| Payment: | TT or Irrevocable L/C | ||||
