High Quality Underground Mining Loader WJ-1 | 1.5 yards Scooptram for Sale Factory Price
- $43000.00 /set
- 1 set
- Yantai Hunk Machinery Co., Ltd.
- Shandong, China
- Mr David Han
PRODUCT DETAIL
| Application: | Ore or Mine; | Package Preview: | ; |
| Warranty: | 12 Months,6 Months; | Bucket capacity: | 1.0 cbm; |
| Engine: | Deutz or Cummins; | Condition: | New; |
| Applicable Industries: | Energy & Mining,Underground mines; | Core Components: | Engine,Gearbox,Motor,Pump; |
| Weight: | 7200kg; | Product name: | Best quality underground loader WJ 1; |
| Color: | Deep orange; | Video outgoing-inspection: | Provided; |
| Place of Origin: | Shandong, China; | Dimension(L*W*H): | 6030mmL*1300mmW*2000mmH; |
| Supply Ability: | 300 Sets per Year; | Running speed: | 0-10km/h; |
| Brand Name: | HUNK; | Tramming capacity: | 2.0 mt; |
| Payment Terms: | L/C,D/P,T/T; | Warranty of core components: | 1 Year; |
| Marketing Type: | New Product 2021; | Showroom Location: | None; |
| Weight (KG): | 7100; | Packaging Detail: | Nude package, in 1* 20' container; |
| Port: | Qingdao; | Machinery Test Report: | Provided; |

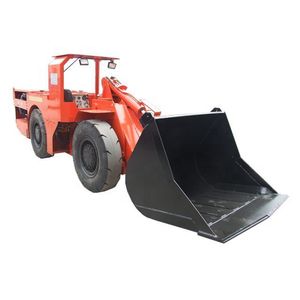

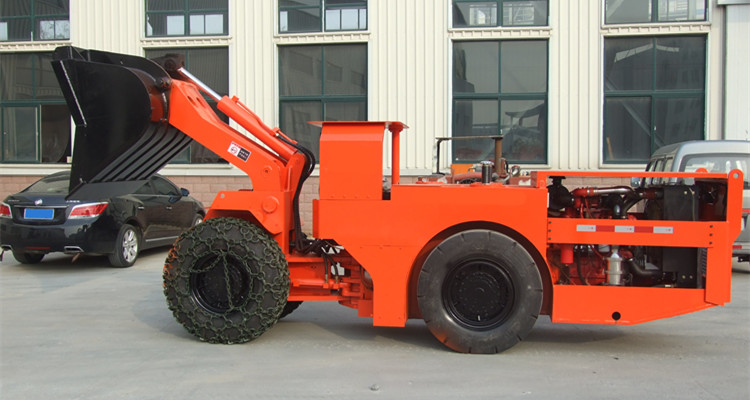

Hunk 1 M3 underground loader | 1.5 yd3 Scooptram WJ-1
Product Description
Description:
=========================================
Main Configuartion,Technical Charactersistics & Parameters
Diesel Engine: German DEUTZ or Cummins (option)
Motor: Variable hydraulic motor MV23
Pump: Variable hydraulic pump PV22
Drive Axle: PC15 homemade
Braking System: Dynamic service brake through the hydrostatic transmission
Bucket Capacity: 1.0m³(1.5 yd3)
Rated Loading Capacity: 2000kg
Max.Climbing Ability: 15°
Rear Drive Axle Swing Angle: ±8°
Min.Turning Radius: 4260mm (Outer) , 2540mm (Inner)
Dimensions(transport): 6030mm (L) * 1300mm(W) * 2000mm (H)
Weight: 7200kg
Specification of 0.75 CBM underground scooptram:
Engine | Manufacturer | Deutz |
Model | F6L912W | |
Rated Power | 63kw/2300rpm | |
Main performance parameters | Max.Discharge Height | 1050 mm |
Min.Discharge Distance | 860 mm | |
Max.Shovel Force | 48 KN | |
Running speed | Full speed for forward or reverse | 0-10 Km/h |
Main Features
Piloted control, Variable Flow, Full reversible.
Detailed Images

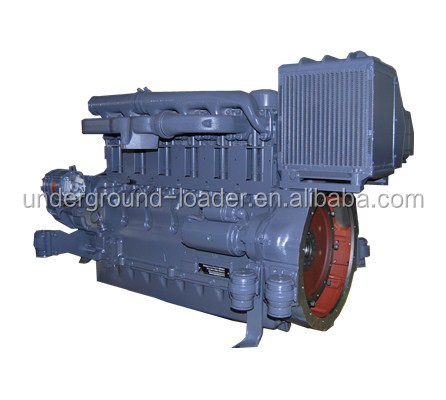

Engine: DEUTZ - F6L912W
Air-cooled 6-cylinder naturally aspirated engine in inline arrangement.
The very compact engine design and the flexibility of the positioning of the unit reduce the installation costs.
Low fuel consumption, low mainte- nance costs and long life reduce the running costs.
The very compact engine design and the flexibility of the positioning of the unit reduce the installation costs.
Low fuel consumption, low mainte- nance costs and long life reduce the running costs.

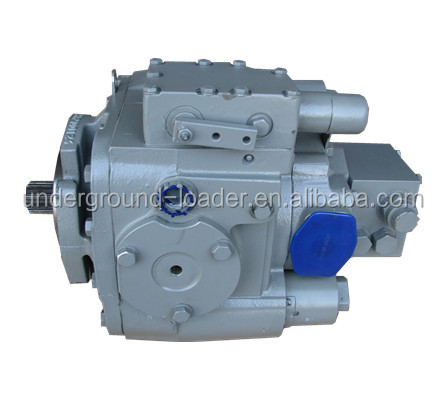

Piloted control
Variable Flow
Full reversible

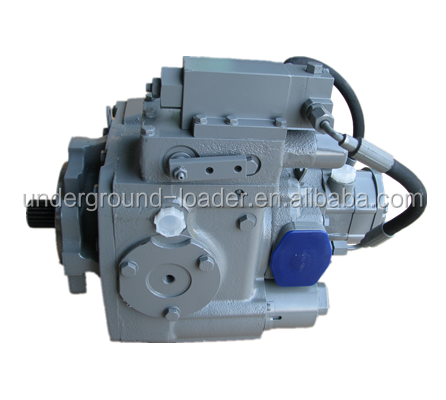

Pump: Variable hydraulic PV22
Piloted control
Variable Flow
Full reversible

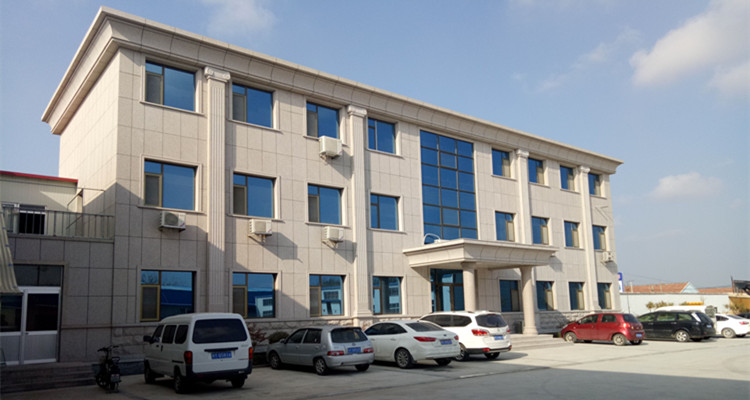

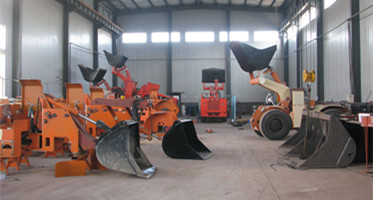

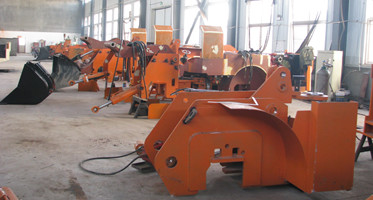

Factory
Our Service
Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support.
* Factory visiting.
After-Sales Service
* Training how to install & use the machine.
* Engineers available to service machinery overseas.
Packing & Delivery
Packaging & Delivery | ||
Size | 6030mmL * 1300mmW * 2000mmH | |
Weight | 7.1T | |
Packaging Details | Container | |
Packaging & Delivery | ||
Size | 6030mmL * 1300mmW * 2000mmH | |
Weight | 7.1T | |
Packaging Details | Container | |
