High performance heavy duty hydraulic shock absorber buffer for cranes
- $30.00 /piece
- 1 piece
- Xinxiang Hc Cranes Kits Co., Ltd.
- Henan, China
- Mr olen woo
Health status: | new | Core components: | pressure vessel |
Marketing Type: | normal product | After-sales service provided: | Video technical support |
feature: | high load capacity | Supply capacity: | 2000 sets per month |
port: | All ports in China | payment terms: | T/T,Western Union,MoneyGram,Paypal |
product name: | hydraulic shock absorber | ensure: | 12 months |
Applicable industries: | Manufacturing, Construction, Energy & Mining | type: | shock absorber |
Card: | HC | Showroom location: | not any |
application: | industry | Material: | steel, steel |
size: | Customizable size | After Warranty Service: | Video technical support |

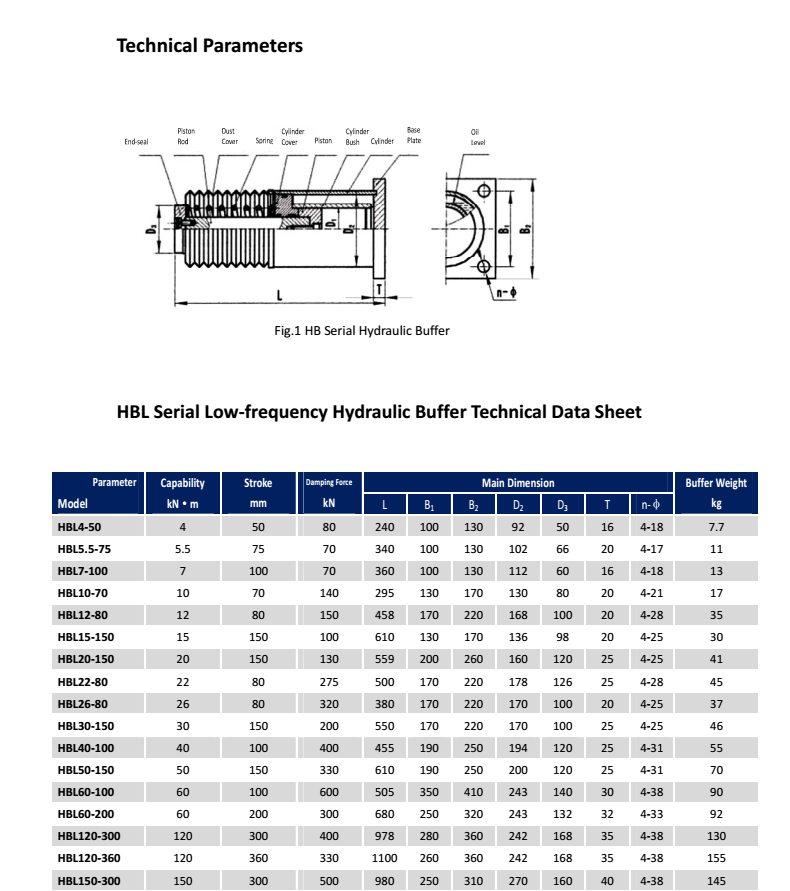

Energy Absorption: | maximum. 28500 Nm | Local service location: | not any |
Warranty: | 1.5 years | Model: | HC-HYD series |
Stroke: | 200 - 800 mm | Mechanical test report: | if |
Packaging Details: | Hydraulic shock absorbers will be packed in plywood boxes to avoid damage due to bumps and impacts during shipping. Only the best shipping solutions can maximize your cost of money, safety and time. | Video external inspection: | if |

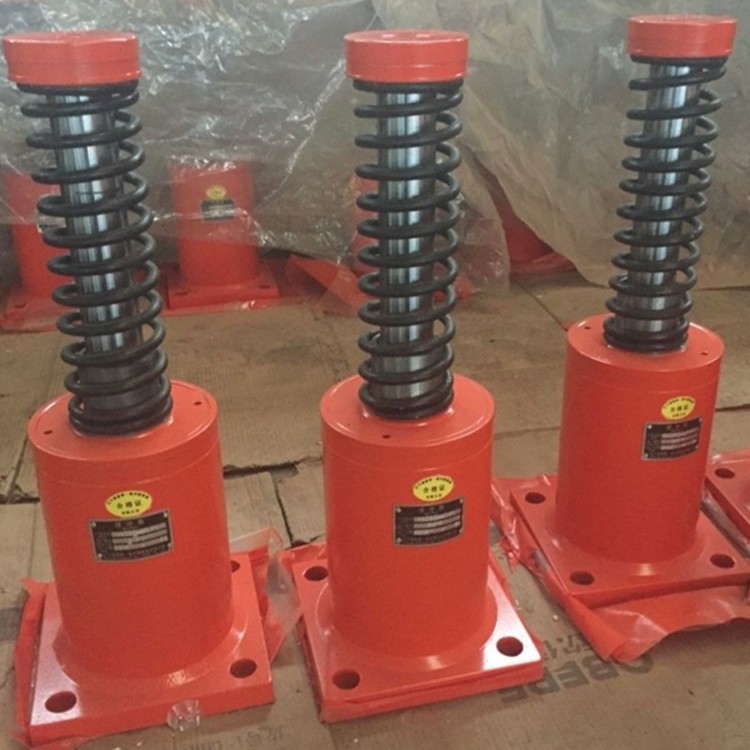

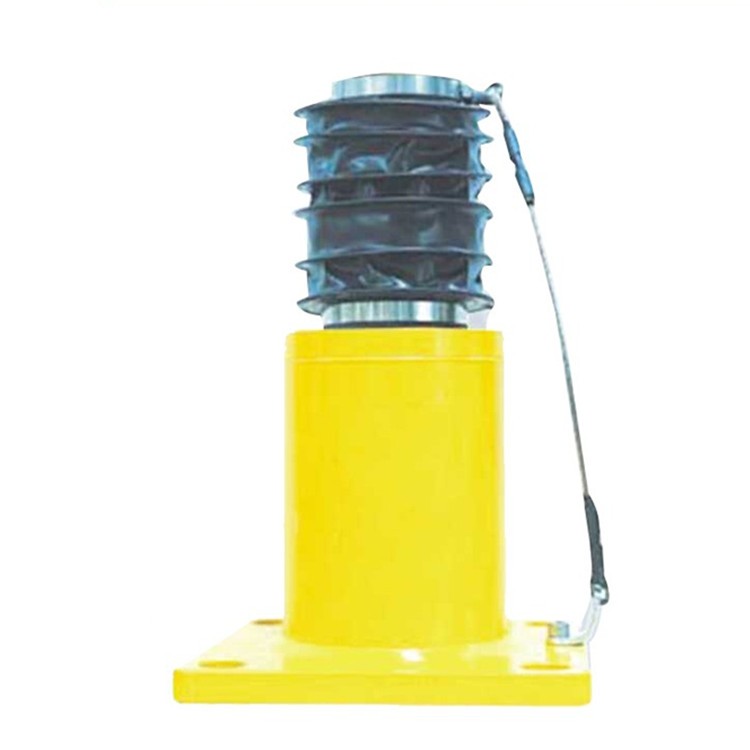

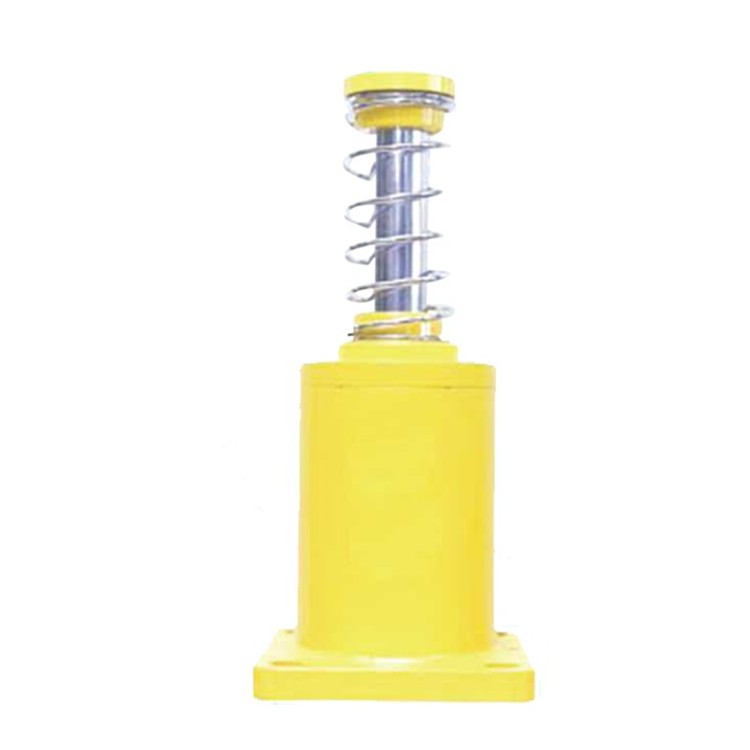

hydraulic shock absorber hydraulic shock absorber
1. Apply

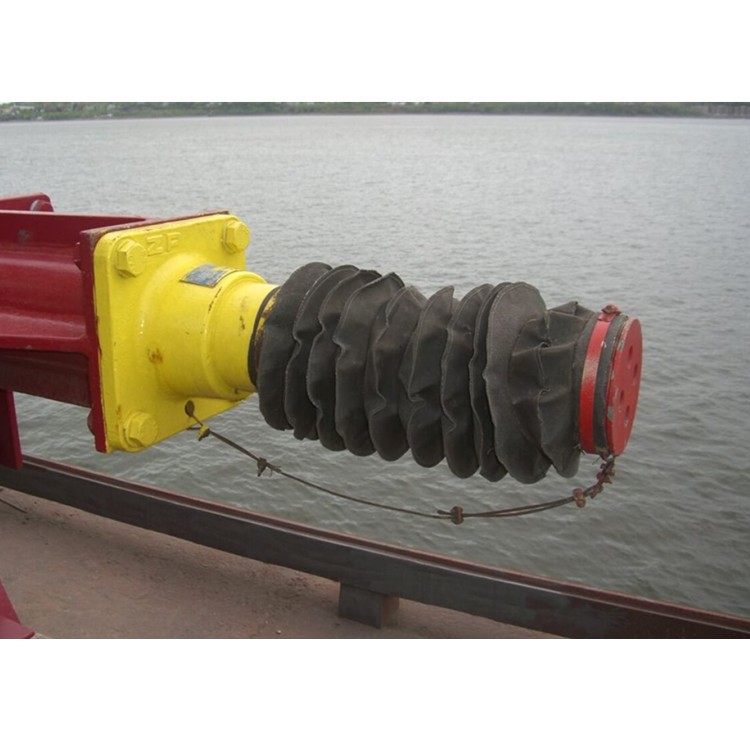

HY series hydraulic buffer has the characteristics of large capacity, remarkable buffer effect and high absorption efficiency. This series of bumpers reduces inertial shocks between two moving objects or between a moving object and a stationary object. This series of buffers is designed for heavy machinery applications such as material handling machinery, metallurgical machinery, and railway industrial machinery. It will provide these machines with excellent damping stops to avoid inertial shocks during the ride.
2. The person in charge of the work
With specially designed damping holes arranged in a specific layout, the HY series shock absorbers provide stable damping force throughout the buffering process. This will ensure smooth deceleration of the impacting object. Most of the energy generated during impact will be absorbed. Therefore, almost no rebound force is generated on the impacting object. This will avoid heavy shock loads on the buffer shaft.
3. Installation Guide
Such buffers should be installed horizontally. And install it according to the indicator on the bottom plate (the indicator hole on the bottom plate should be above).
•If the installation position needs to be changed due to actual working conditions, the damping performance will be greatly reduced.
• Operating temperature range from -25°C-80°C. If the operating temperature is lower than
•‐25°C to ‐45°C, please specify when placing order.
• Considering the working conditions, the hydraulic oil used in this buffer should be wear-resistant and pressure-resistant, and at least 20# pressure-resistant oil should be used.
• The correct amount of oil should be added to the tank. The proper volume should be the oil level just above the piston.
• The declination angle during installation should be less than 1°
• The choice of buffer should be based on the impact force of the running trolley.
• We can provide specially designed products according to customers' requirements.
Hydraulic shock absorbers will be packed in plywood boxes to avoid damage due to bumps and impacts during shipping. Only the best shipping solutions can maximize your cost of money, safety and time.
Only the best shipping solutions can maximize your cost of money, safety and time.
1. Q: Do you accept small orders?
A: Yes, small orders are accepted. You can try it first, then we will try our best to earn your trust, because what we want is long-term cooperation in the future!
2. Q: Can you customize and copy if I provide design pictures?
A: Yes, we can provide custom and copy service, please check the details above.
Design drawings are required. The more detailed the specifications, the more accurate the product.
3. Q: Can I get some samples?
A: Yes, if you need samples to check the quality before placing the order, we will be happy.
4. Q: Can you guarantee the quality?
A: Yes, we can, you can pay the balance after checking the quality of the finished product. We always attach great importance to quality control from start to finish of production. Each product is carefully inspected before shipment.
5. Q: Is it acceptable to visit the factory?
A: Yes, welcome to visit our factory in Xinxiang City, Henan Province, China.
6. Q: What are your terms of trade?
A: According to customer requirements:
FOB China Seaport/CFR Destination Port or other terms are acceptable.
7. Q: What are your payment terms?
A: FOB: 30%T/T deposit, 70%T/T before delivery.
CFR: 30%T/T deposit, 70%T/T copy of bill of lading.
8. Q: Is the package safe and intact?
A: Yes, guaranteed safe packaging. All shipments will arrive at your door in good condition.
