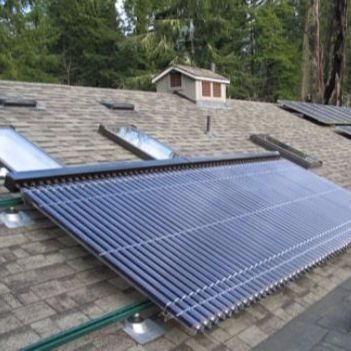

High pressure solar collector
- $280.00 /set
- 1 set
- Sidite Energy Co., Ltd.
- Zhejiang, China
- Mr Peizhong Qiu
| Vacuum Tube: | heat pipe vacuum tube | insulation: | Polyurethane |
| brackets: | Aluminum alloy | port: | Shanghai or Ningbo |
| pressure: | pressurized | Connection Type: | Split |
| Packaging Details: | High pressure u-tube plastic solar cell heater collector manifold: 1.FLC standard export carton; 2.Special packing for samples (carton+foam); 3.Customized | Warranty: | more than 5 years |
| brand: | SIDITE & OEM | payment terms: | L/C,D/A,D/P,T/T,PAYPAL |
| place of origin; place of origin: | Zhejiang, China | Heating system: | Batch/ICS (passive) |
| Certificate: | Chief Executive | Packaging Preview: | |
| product name: | high pressure u tube plastic solar energy | type: | vacuum tube |
| Tube: | copper | model: | SC-U-105 |
| Supply capacity: | 300,000 sets/year | Circulation type: | Indirect/closed loop (active) |
| Certification: | SRCC, CE, Solar Key Label, EN12975, CCC, ISO9001/14001 |
High Pressure U Tube Plastic Solar Pool Heater Collector Manifold:
describe:
Vacuum tubes convert solar energy into heat
Using aluminum fins with high absorption of solar energy and low heat to connect to the U-tube
Radiation loss, the liquid (antifreeze or water) in the Upipe heats up, and
U-shaped tubes conduct heat directly to the water in the tank
(or through the internal copper coil), the test pressure is 1.2 MPa and the working pressure is 0.6 MPa.
1) Manifold housing material: Aluminum alloy
2) Vacuum tube: Coated triple target tube AL-N/AL-cU
3) Heat transfer pipe: heat pipe/U pipe copper
4) Header: Copper
5) Insulation layer: rock wool
6) Frame: Aluminum alloy
advantage:
1) The test pressure reaches 1.2 MPa, which can be directly connected with the city tap water.
2) There is no water in the vacuum tube, even if multiple tubes are damaged, the system can still work normally.
3) Can be used year-round in cold climates.
Technical data:
|
U tube solar collector (SC-U series) with reflective strips |
||||||
|
Model |
SC-U-15 |
SC-U-18 |
SC-U-20 |
SC-U-24 |
SC-U-25 |
SC-U-30 |
|
Number of tubes (pcs) |
15 |
18 |
20 |
twenty four |
25 |
30 |
|
tube length |
1800mm |
|||||
|
Cover tube diameter |
58mm |
|||||
|
Inner tube diameter |
47mm |
|||||
|
Shell material |
Aluminum alloy |
|||||
|
Insulation Materials |
rock wool |
|||||
|
Insulation thickness |
37mm |
|||||
|
Inlet/Outlet connection |
22mm or 3/4" |
|||||
|
work pressure |
0.6MPa |
|||||
|
vacuum tube |
Three-target tube; high boron silicon content 3.3; structure: gradient color SS-AL-Nx/Cu selective absorption coating; vacuum degree: P<=5*10-4; service life: 15 years |
|||||
FAQ:
1- What is your delivery time?
LCL order: 10 days.
FCL order: 15 days.
2- What is your guarantee time?
6 years; some accessories are provided for you, they are free.
3- Can you accept OEM and ODM?
Yes, print your logo on products and packaging, it's free.
4- What is your payment term?
We accept T/T or L/C, Western Union and Paypal.
5- What is your MOQ?
4 sets
6. How did you pack it?
LCL order in plywood box
FCL order for high quality export carton
7- What is your FOB port?
We accept FOB Shanghai, Ningbo, Shenzhen, Guangzhou, Qingdao, etc.
8.- What is your monthly production capacity?
1000 sets
9- What is your shipping period?
Sea/Air/Rail/Truck
10- Do you have any extra services?
Yes!
We provide free spare parts according to your order quantity. Such as vacuum tubes, tube bases, dust removal rings, silicone rings, screws, etc.
We can provide logo design, product advertising design and other services for free.
