High quality 40 HP 50 HP 55 HP 4 W D farm tractors and tractor front end loader tiller for agriculture made in china by Horsen
- $780.00 / 1 - 5 sets
$745.00 / >=6 sets - 1 set
- Shandong Horsen International Industry Co., Ltd.
- Shandong, China
- Mr
| Rated Power (HP): | 55 HP; | Drive Type: | Gear Drive; |
| Engine type: | 4 Cylinder Diesel engine; | Marketing Type: | New Product 2020; |
| brand: | horsen; | By wheel: | 4WD; |
| Key Selling Points: | High Productivity; | Warranty of core components: | 1 Year; |
| Clutch: | Double Stage Clutch; | Package Preview: | ; |
| Port: | Qingdao; | Applicable Industries: | Farms,Home Use,Construction works ; |
| Product name: | FL404 Tractor; | Place of Origin: | Shandong China; |
| tractor price: | contact Horsen international; | Video outgoing-inspection: | Provided; |
| Usage: | Farm Tractor; | Transmission: | 12F+12R Shifts; |
| After Warranty Service: | Video technical support,Online support,Spare parts; | Brand Name: | Horsen; |
| Condition: | New; | Certificate: | oemd; |
| Engine Brand: | quanchai; | Warranty: | 1.5 years; |
| Showroom Location: | Australia; | ad price: | rotary tiller; |
| Dimension(L*W*H): | 3970*1620*2130; | Core Components: | Motor,Gearbox,Engine,Gear; |
| Machinery Test Report: | Provided; | Engine: | Quanchai; |
| Packaging Detail: | iron frame or no packing; | Type: | Wheel Tractor; |
| PTO Speed: | 540/760rpm 540/1000rpm(Optional); | Supply Ability: | 1500 Set/Sets per Month; |
| Payment Terms: | L/C,T/T,Western Union; | Local Service Location: | None; |

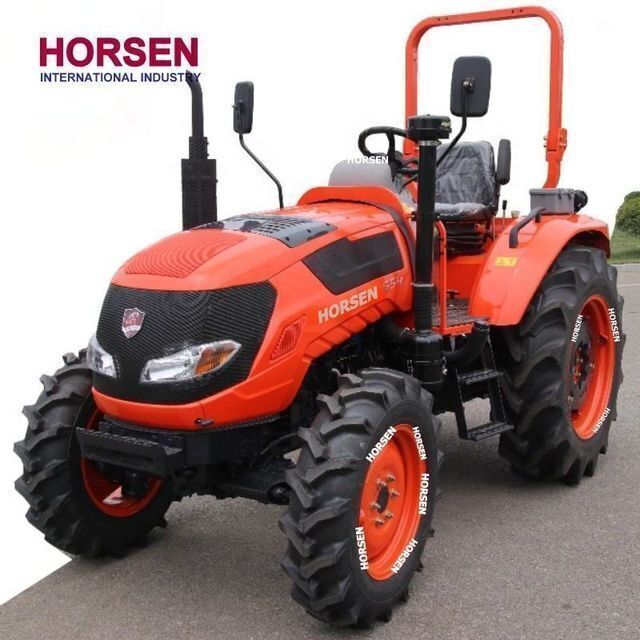

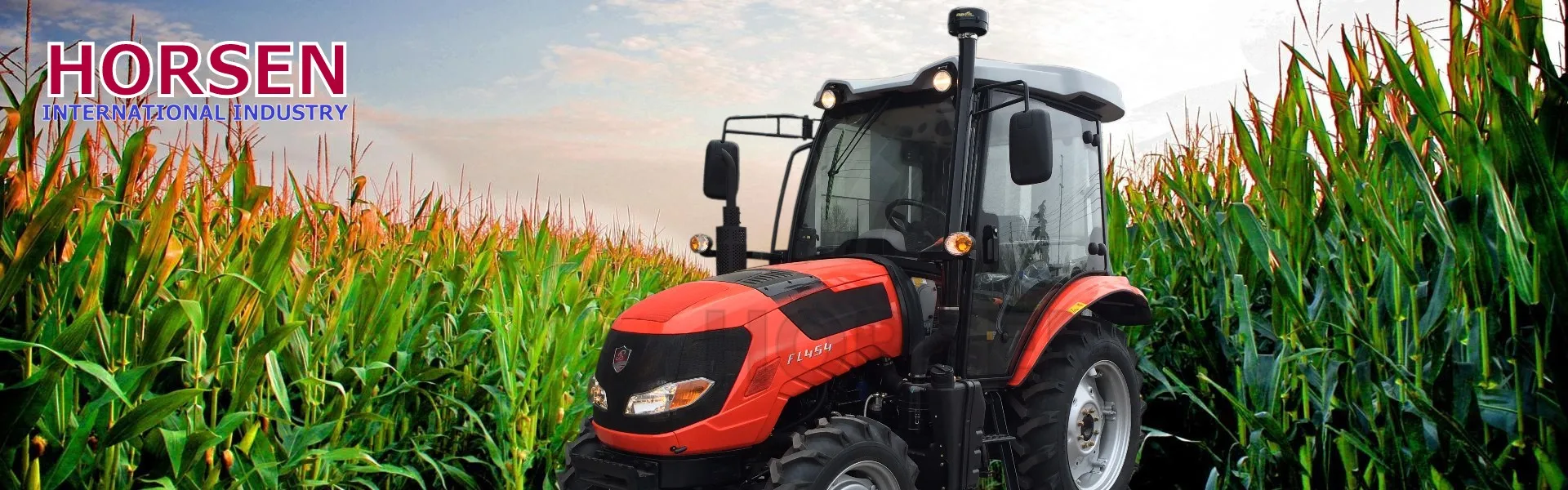

FL554 series
HOT SALE technical features:
- Direct injection engine, optional domestic 4-cyl diesel engine, which can meet different operation requirements.
- transmission structure with 12F+12R
- Gear box, rear axle with matured technology and steady quality.
- New streamlined hood, nice appearance.

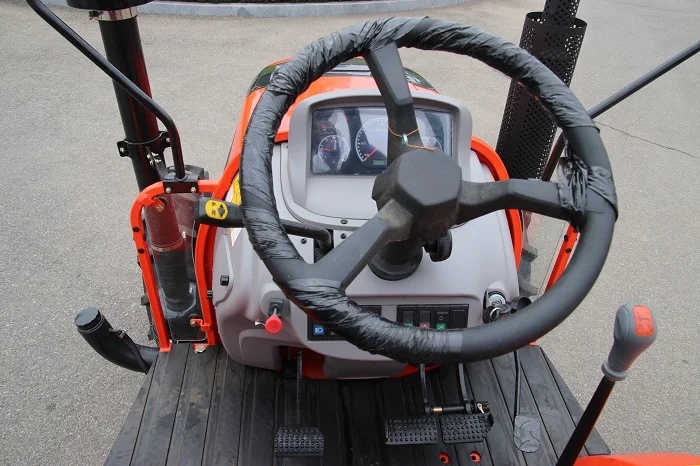

- Hydraulic steering, small steering radius, portable and flexible.
- Optional dry or wet air filter, internal or external muffler.
- for more, contact HORSEN
| Main parameters | ||
| Type | FL554 | |
| Drive type | four-wheel drive |
|
| Engine | ||
| Engine Brand | ||
| Engine Type | QC4105T55 | |
Max. Torque (Nm @ engine rpm) |
227~233/1700 | |
| Fuel tank capacity (L) | 48L+22L=70L | |
Rating power of engine KW/RPM |
44/2400 | |
Fuel consumption @ nominal power (g/kw.h) |
≤248 | |
| Air Intake Type | Natually-Aspirated | |
| Displacement L | 4/2.977 | |
| Air filter | oil bath (optional dry inner) | |
| Torque reserve | 25% | |
| Transmission system | ||
| Clutch type/size | One-piece,dry,double-action/10 inches |
|
| No. of gears (F+R) | 12F+12R | |
| Shift method | mechanical sliding sleeve |
|
| Max. speed | 34.78 | |
| Gear position | side position | |
| Hydraulic system | ||
Hydraulic output flow rate (L / MIN) |
38.4 | |
Hydraulic output valve |
One group/Two groups/Three groups/Simple hydraulic output |
|
Hydraulic filter types and capacity |
wire mesh/63μm | |
| Working device | ||
| Three-point-linkage | 2 Type |
|
| PTO Speed | 540/760rpm 540/1000rpm(Optional) |
|
| Lifting Capacity kn | 11KN/15KN(Enforced lift) |
|
| Tillage depth adjustment | Draft, position,position and draft mix control/position,float(Enforced lift) |
|
| Parameter | ||
The whole machine size (dimensions) mm |
3970×1620×2130 |
|
| (kg) Min. operation mass |
With cab | 2640 |
| Without cab | 2360 | |
| Wheel base (mm) | 2041 | |
| Mini turning Radius (m) | 4.3 | |
| Rated traction force(N) | 15 | |
| Deck | Flat Deck | |
| Minimum ground clearance (mm) | 325 | |
| Heat ventilation cab | Optional | |
| Front/rear wheel tread | 1250/1300 (common 1300) |
|
| tyre size | 8.3-20/12.4-28 | |
| Braking and steering | ||
| Braking system | Wet type,disc brake |
|
| Steering type | hydraulic steering |
|
| Steering Angle (4 x4) |
|
|
(options: all these types can Optional for ROPS ,Sunshade,swing drawbar, front/rear ballast,cabin) |
||

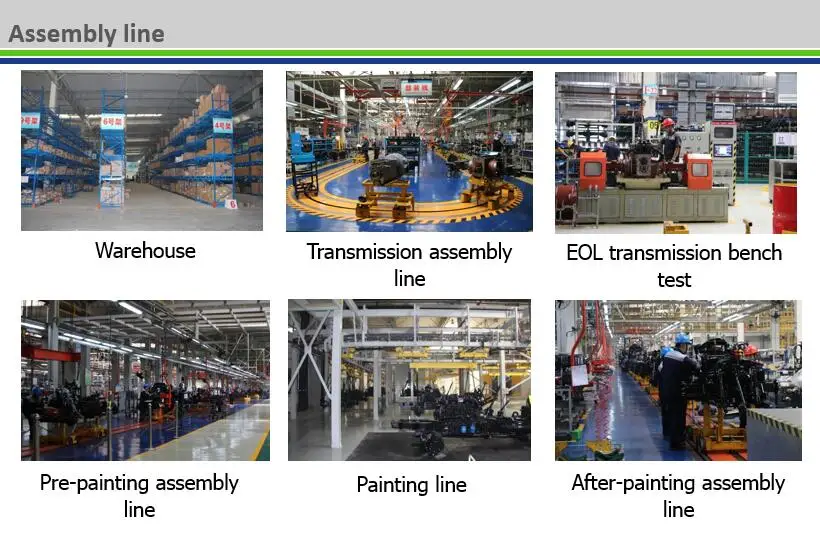

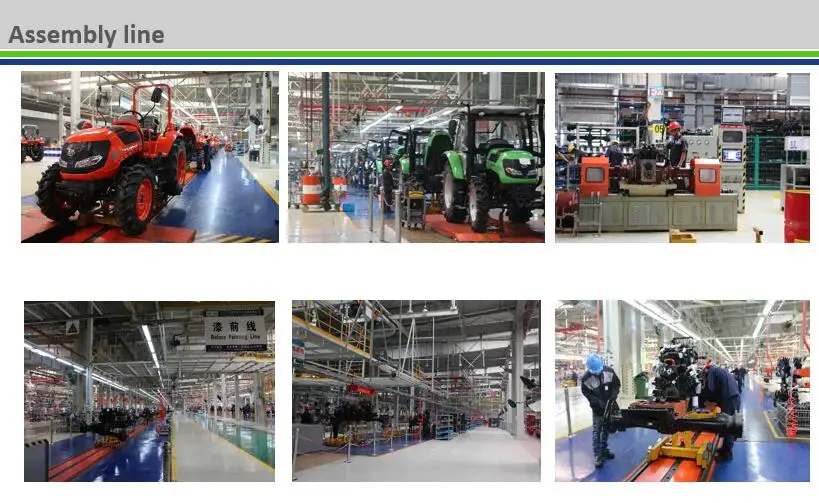

ABOUT HORSEN INTERNATIONAL INDUSTRY
Shandong Horsen international industry co.,ltd . is a professional tractors and other agricultural machinery manufacturer integrating design,manufacturing ,sales and service. Horsen products cover 25hp to 300hp tractor, tractor implements,combine harvesters , agricultural machinery, farm machinery,forest machinery, garden machinery Horsen as a professional machinery equipment manufacturer in China, Horsen has committed itself to provide all-round solutions to global modern agricultural mechanization. Horsen has integrating high-end products and technologies resources around the world by upgrading of technologies, quality , service and bring forth new idea to creative innovative products as to improve reputation and market share of HORSEN in the world step by step.
After-sales service polices:
- HORSEN tractor is offered 14 months of warranty period of the tractor, which shall start from the 3 month as the shipment date.
- HORSEN will offer free service parts in warranty period, and there is no charge for related work hours and indirect expenses.
- Service training
There are over 70 dealers and service channels covering all the market area. We take "satisfy the customers" as our target, provide "3 Full" (Full course, Full time, Full hearted) service.
