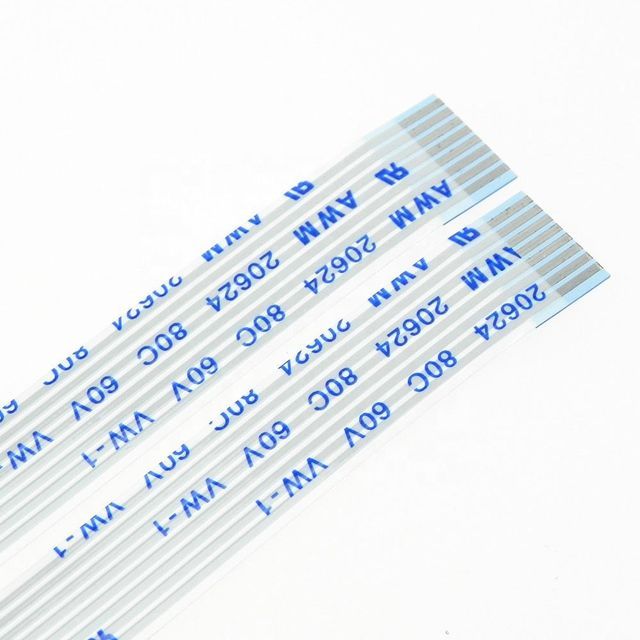

High quality awm 20706 105c 60v vw-1 8 pin FFC LED flat cable
- $0.10 / >=10 pieces
- 10 pieces
- Shenzhen E-Connecting Technology Co., Ltd.
- Guangdong, China
- Mr David Lee
PRODUCT DETAIL
| Packaging Details: | Standard package OEM package | thing: | FFC cable awm 20706 105c 60v vw-1 8 pin |
| Serve: | OEM/Design and Manufacturing | model: | FFC/FCC cable |
| FFC cable application: | electronics, tv dvd printer and ectffc cables 0.4mm pitch | port: | Shenzhen/Hong Kong |
| application: | Electronics | conductor: | copper or tinned copper |
| Origin: | Guangdong, China | Side contact: | A (same) or B (opposite) |
| brand: | Xinda/OEM brand | FFC cable spacing: | 0.3mm, 0.5mm, 0.8mm, 1.0mm, 1.25mm, 2.54mm |
| FFC cable pins: | 2pin-50pin (customized) | FFC cable length: | According to customer's request |
| Package preview: | Supply capacity: | 500000 pcs per week FFC cable awm 20706 105c 60v vw-1 8 pin | |
| Certificate: | RoHS Directive | FFC cable type: | A, B, C, D, E, H, I |
| payment terms: | L/C, Western Union, T/T, Paypal |
Product Description

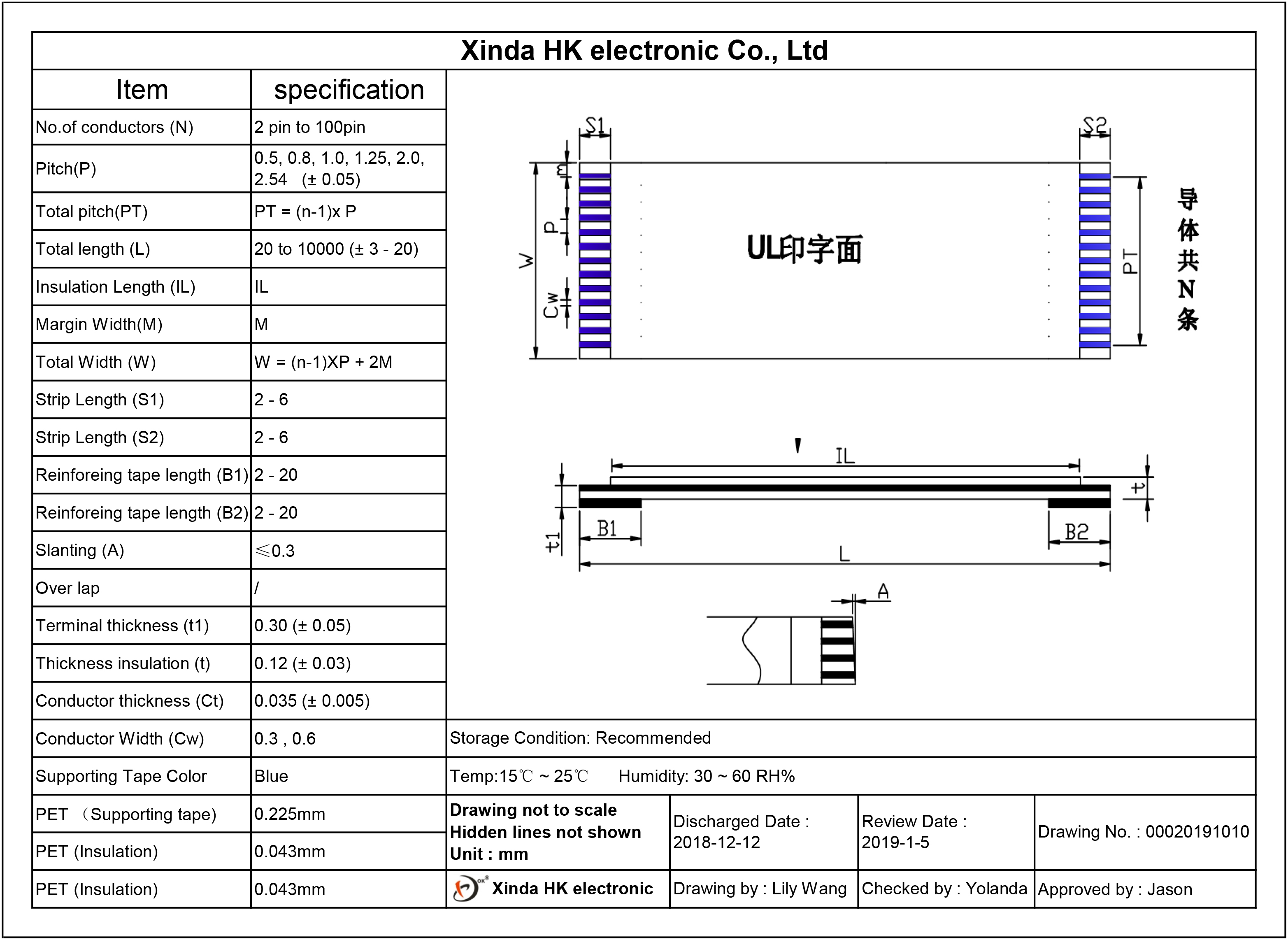

Flat FFC Cable | Specification | ||||||
Flat FFC Cable Spacing | 0.5mm, 0.8mm, 1.0mm, 1.25mm, 1.27mm 2.0mm and 2.54mm | ||||||
Flat FFC Cable Conductor | 0.035*0.3,0.05*0.5,0.1*0.65,0.05*0.5 | ||||||
Flat FFC Cable Insulation | 0.043,0.06,0.1,0.08 | ||||||
FFC cable reinforcement belt | 0.16,0.225,0.25 | ||||||
Blue Rigid Flat FFC Cable | 4-8MM&3-5MM | ||||||
Flat FFC Cable Side | Ipsilateral contact and contralateral contact | ||||||
Flat FFC Cable Pin Contacts | 2,3,4,5,6,7,8,9,10...60 needles (according to customer requirements) | ||||||
Flat FFC Cable Length | 20MM-10000MM (according to customer requirements) | ||||||

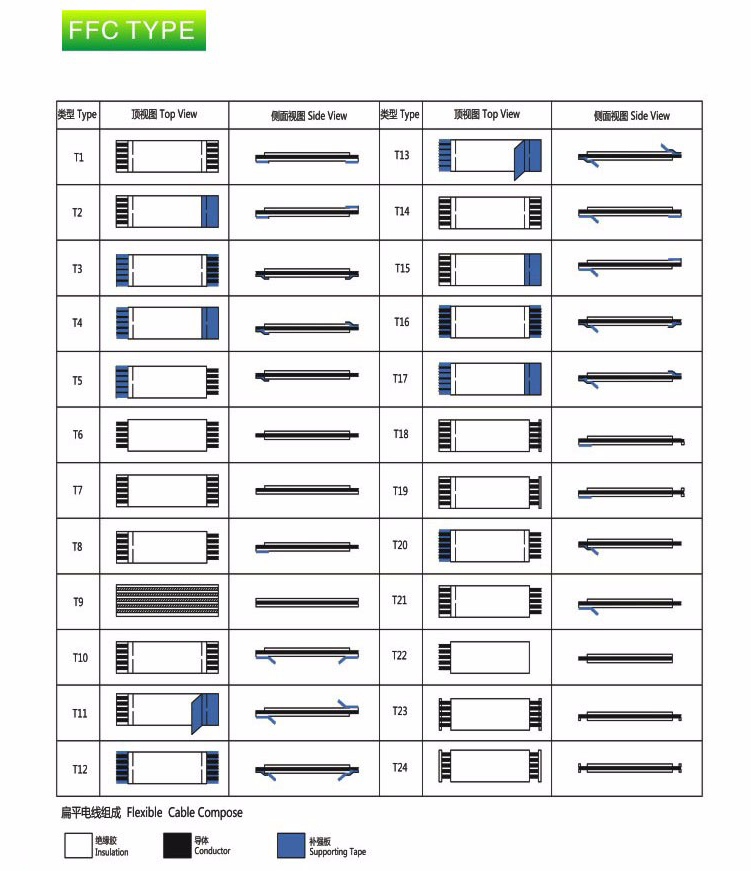

Flat FFC Cable Type | A, B~H, I type (according to customer requirements) | ||||||
Flat FFC Cable Color | White and black | ||||||
Flat FFC Cable Service | OEM/ODM products are acceptable. | ||||||
Flat FFC Cable Certificate | ISO9001:2008, RoHS, SGS | ||||||
Flat FFC cable port | Shenzhen | ||||||
Flat FFC Cable MOQ | 100pcs/pcs | ||||||
Flat FFC Cable Payment Terms | L/C, T/T, Paypal, Western Union | ||||||
FFC cable technology
FFC cable (Flexible Flat Cable)
Generally 0.12mm, the thickness of the line can be adjusted according to actual needs.
This is determined by the material used in the FFC. The FFC cable is composed of two layers of insulating film, and the copper conductor is flattened in the middle, so the thickness of the strip cable IT=+conductor thickness+film thickness+conductor thickness film, commonly used film The thicknesses are: 0.043 mm, 0.060 mm and 0.1mm, and the commonly used conductor thicknesses are: 0.03mm, 0.06 mm and 0.10 mm. For example, the commonly used thickness of 0.12mm is: 0.043 (superglue) + 0.043 (bottom) + 0.035 (conductor thickness) = 0.121 mm.
This is determined by the material used in the FFC. The FFC cable is composed of two layers of insulating film, and the copper conductor is flattened in the middle, so the thickness of the strip cable IT=+conductor thickness+film thickness+conductor thickness film, commonly used film The thicknesses are: 0.043 mm, 0.060 mm and 0.1mm, and the commonly used conductor thicknesses are: 0.03mm, 0.06 mm and 0.10 mm. For example, the commonly used thickness of 0.12mm is: 0.043 (superglue) + 0.043 (bottom) + 0.035 (conductor thickness) = 0.121 mm.
