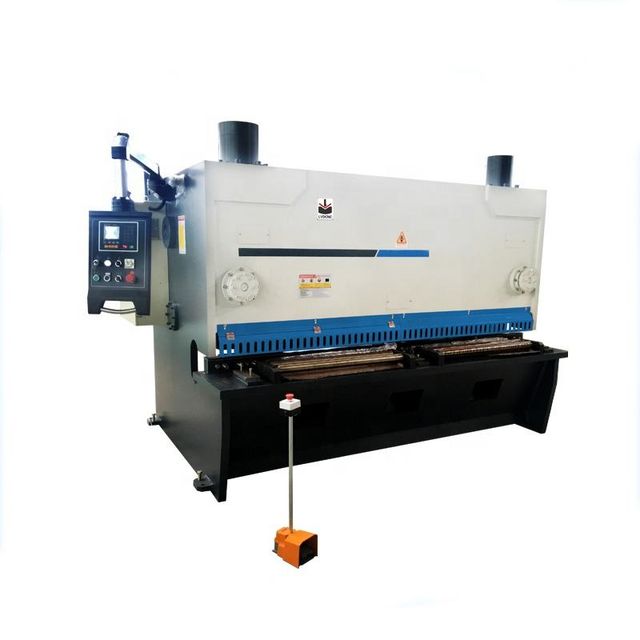

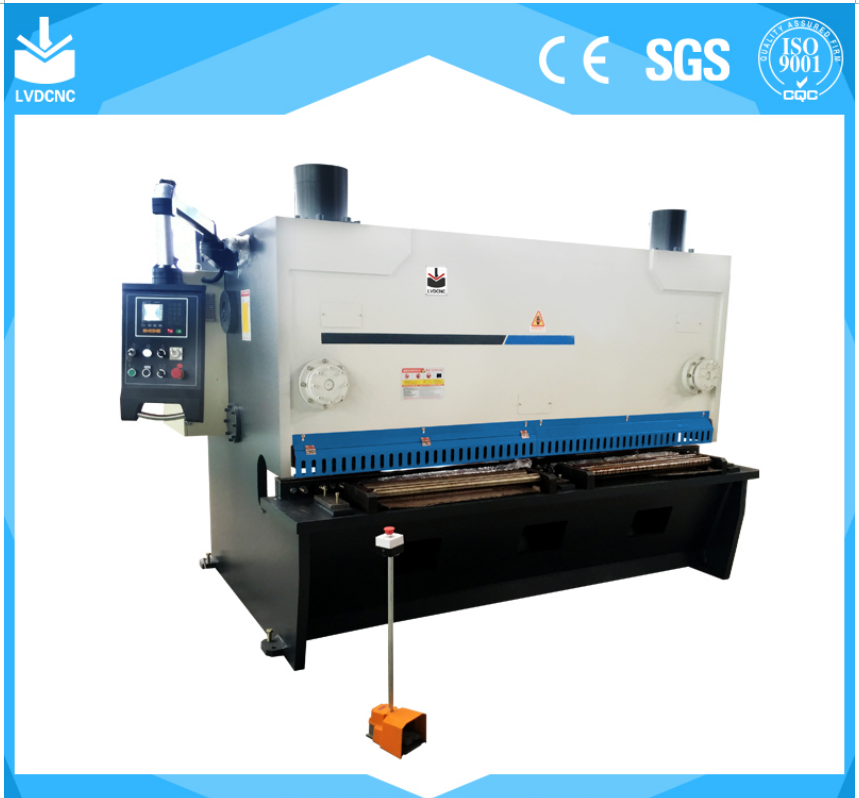

High speed hydraulic cutting machine plot 20 mm hydraulic cutting machine
- $12000.00 /set
- 1 set
- Ma Anshan Lvd Cnc Machine Tool Co.,ltd
- Anhui, China
- Mr mu Tao
PRODUCT DETAIL
| product name: | Metal Steel Cutting Machine | Marketing Type: | normal product |
| Blade Length (mm): | 1000 mm | usage: | cut sheet |
| Weight (kg): | 5700kg | type: | shearing machine |
| Applicable industries: | Building Materials Stores, Mechanical Repair Shops, Manufacturing Plants, Home Use, Construction Work, Energy and Mining | color: | customizable |
| Power (kW): | 6kW | maximum. Cutting width (mm): | 3200 mm |
| Health status: | new | Voltage: | 380V |
| Showroom location: | not any | year: | 2022 |
| Hydraulic system: | Bosch Rexroth Germany | Main selling point: | automatic |
| Core components: | Motor, PLC, engine | Dimensions (L*W*H): | 3860*1700*1700 |
| payment terms: | L/C,Western Union,D/P,D/A,T/T,MoneyGram | Electrical components: | Schneider TE |
| Auto level: | Fully automatic | brand: | Low Voltage DC CNC |
| application: | Industrial Metal Cutting | maximum. Cutting Thickness (mm): | 8 mm |
| Packaging Details: | Packed with plastic film | Mechanical test report: | if |
| place of origin; place of origin: | Anhui, China | Cut Angle: | 1~3 |
| Warranty: | 3 years | Throat depth (mm): | 320 mm |
| Cutting material: | Metal. Alloy Metal. Aluminum | Back gauge stroke (mm): | 20 - 600 mm |
| Function: | Shear steel plate | Video external inspection: | if |

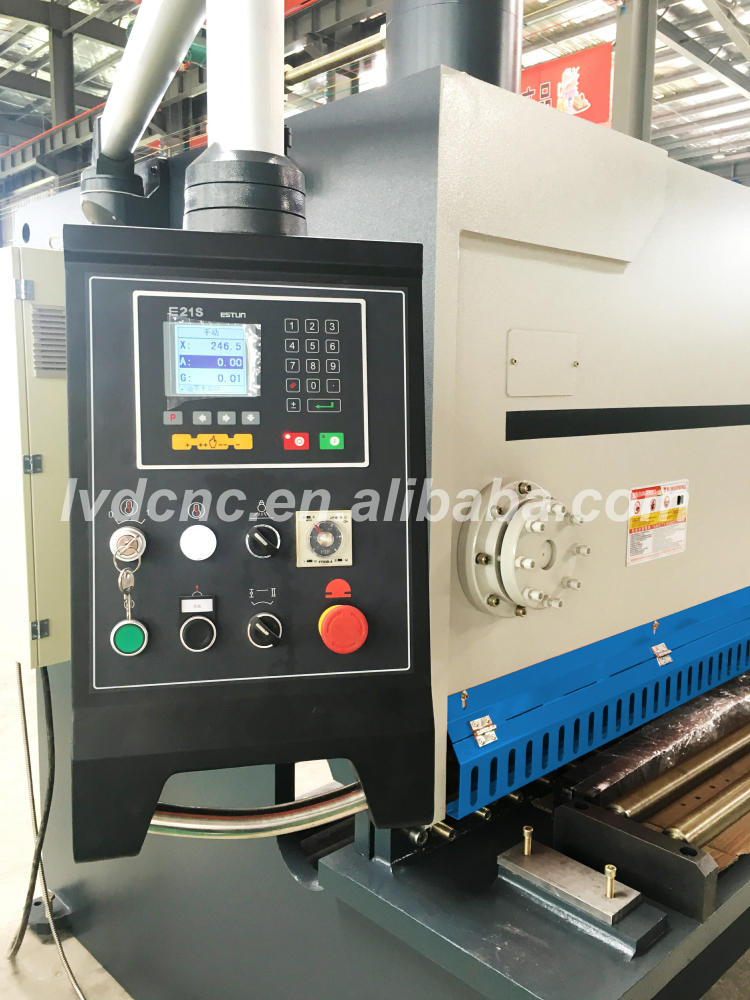

| Core Components Warranty: | 3 years | Control System: | Eston E21S |
Product Description
LVDCNC also designs and manufactures a full line of shears, including conventional CNC shears and custom shears. The price is very competitive, the performance is reliable, and it can meet the different needs of different customers. Designed to create the most sophisticated equipment and innovative sheet metal processing solutions to meet the high standards of modern manufacturing.
Details image

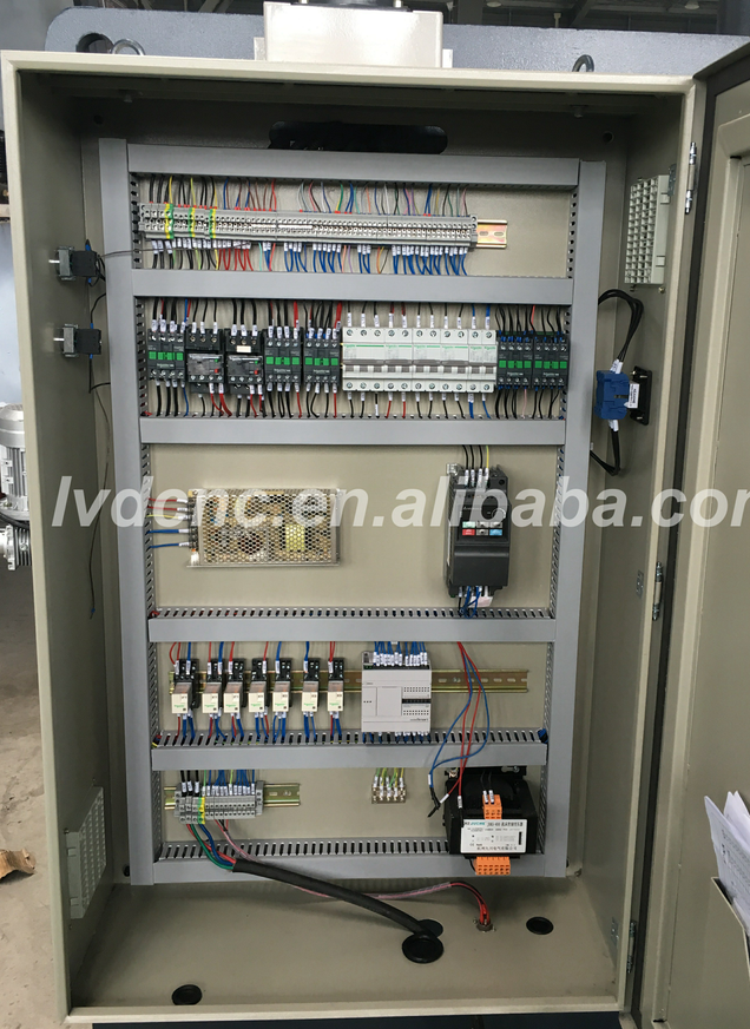

This is the electrical system of the machine, we all use the Schneider brand imported from Germany.

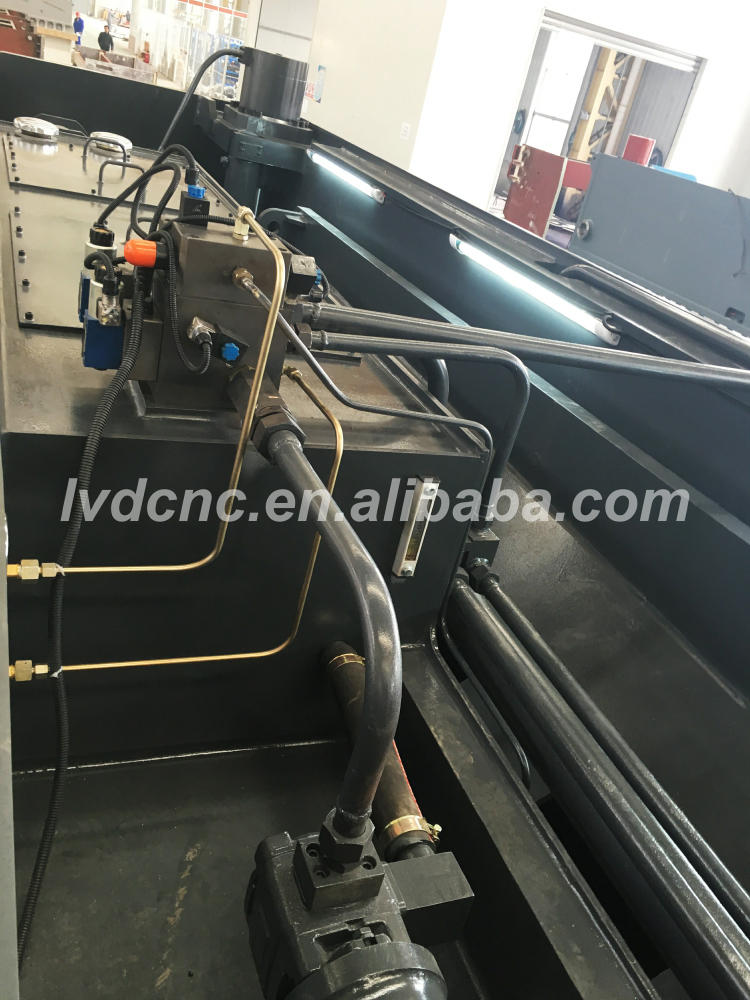

This is the valve manifold system of the machine, which controls the operation of the machine.

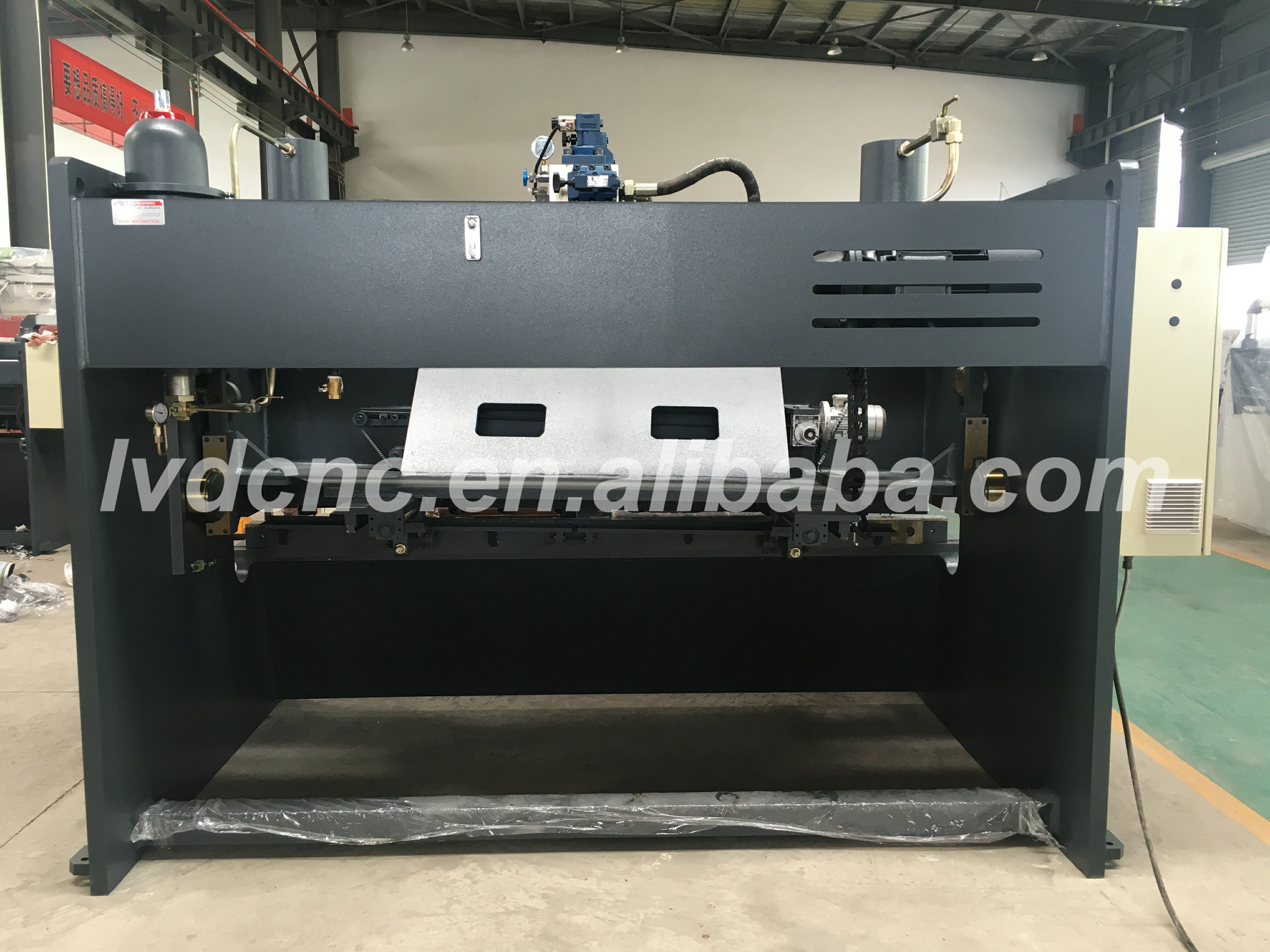

This is the tailgate of the machine.

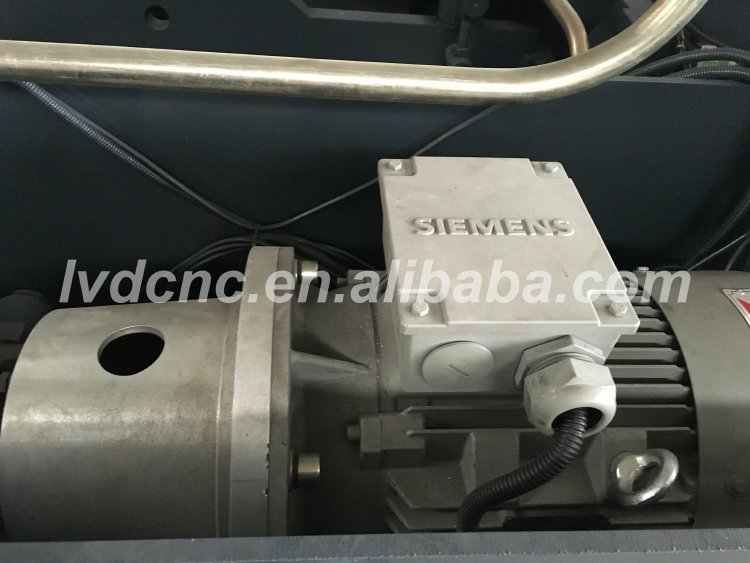

This is the motor of the machine, we use the Siemens brand imported from Germany.

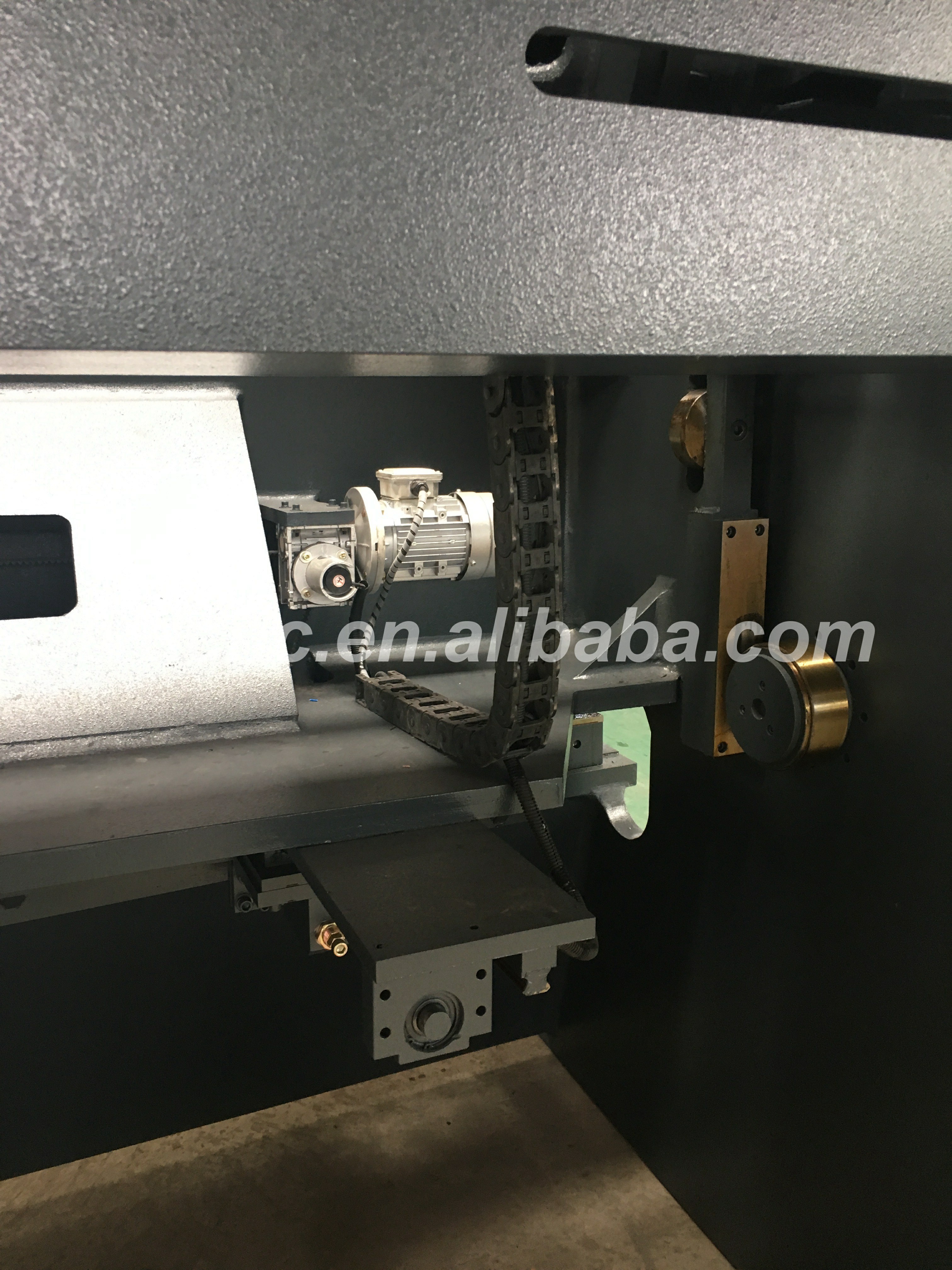

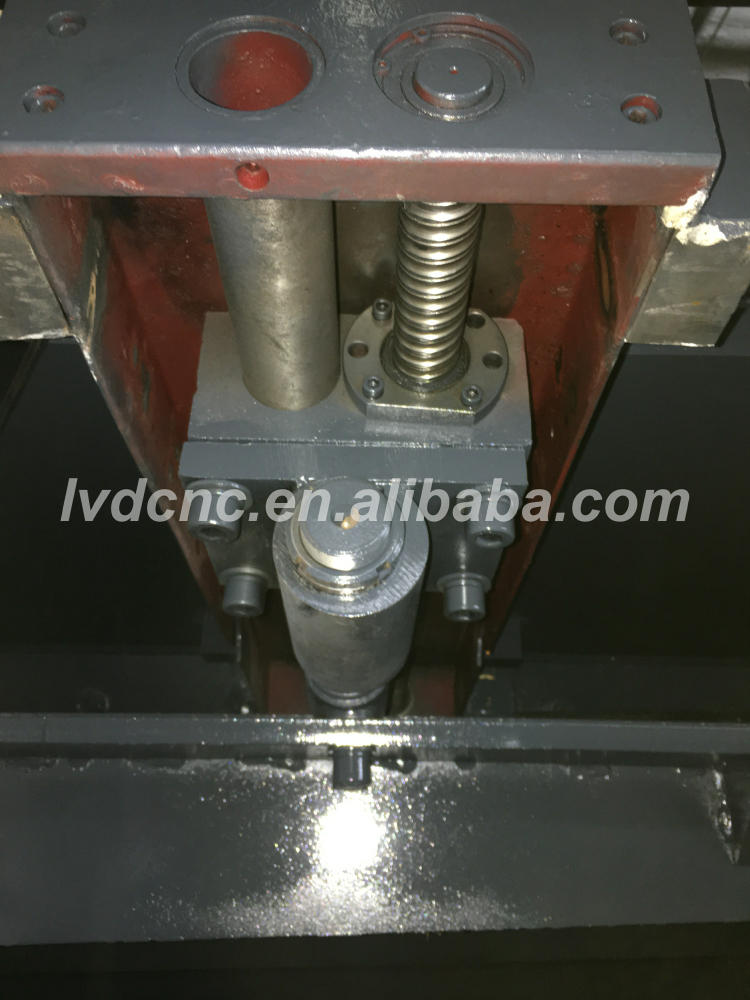

Back gauge control, general AC motor control, inverter control.
technical parameter
Model | Thickness (mm) | Length (mm) | Back gauge travel (mm) | Power (kW) | Dimensions (mm) |
6*3200 | 6 | 3200 | 750 | 7.5 | 3750*1770*2150 |
8*3200 | 8 | 3200 | 750 | 11 | 3860*1700*1700 |
10*3200 | 10 | 3200 | 750 | 15 | 3850*1830*1900 |
13*3200 | 13 | 3200 | 750 | 18.5 | 3855*1830*2390 |
16*3200 | 16 | 3200 | 1000 | twenty two | 4010*1940*2830 |
20*3200 | 20 | 3200 | 1000 | 30 | 4010*1900*2830 |
30*3200 | 30 | 3200 | 1000 | 37 | 4200*1900*3000 |
40*2500 | 40 | 2500 | 1000 | 37 | 3440*2000*3000 |

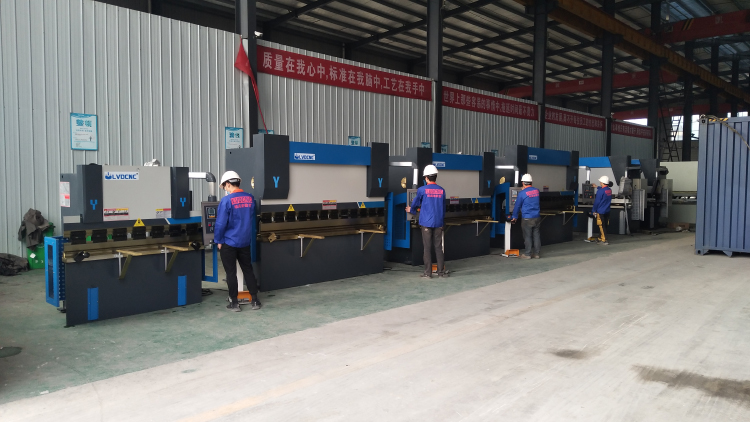

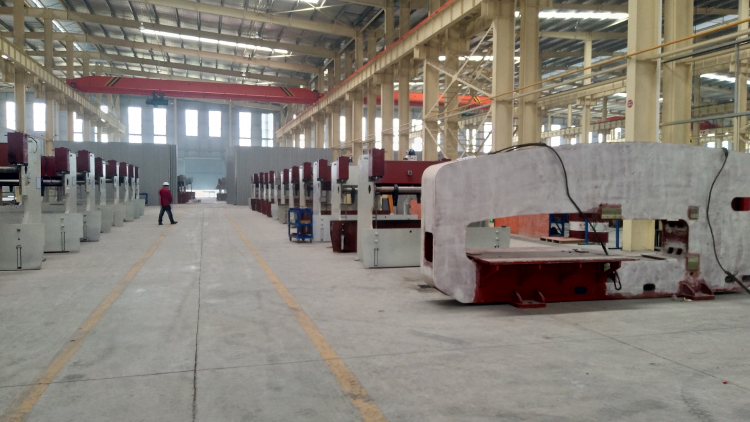

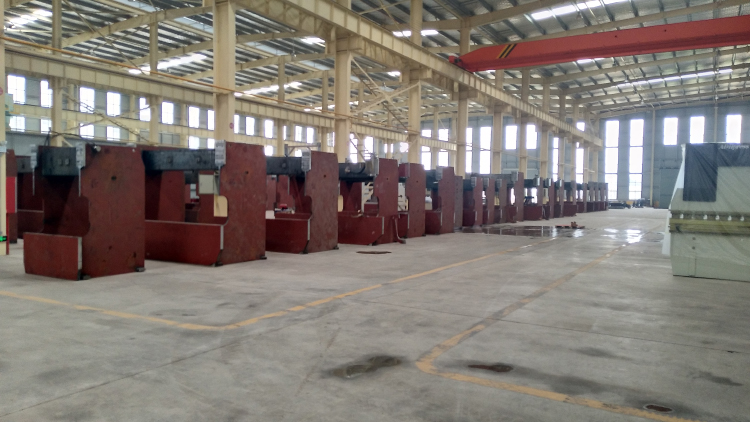

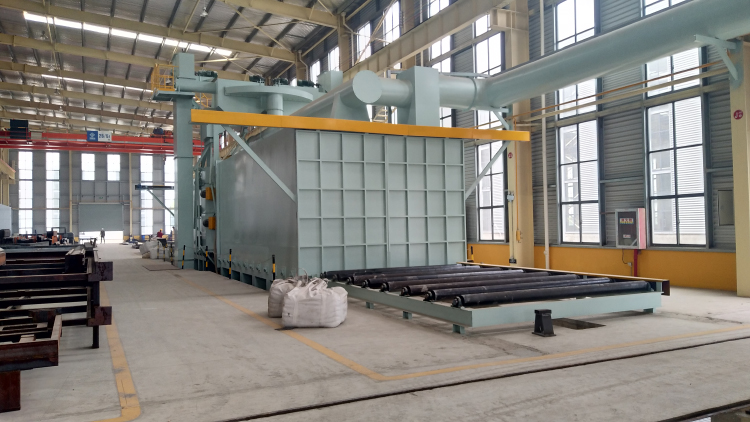

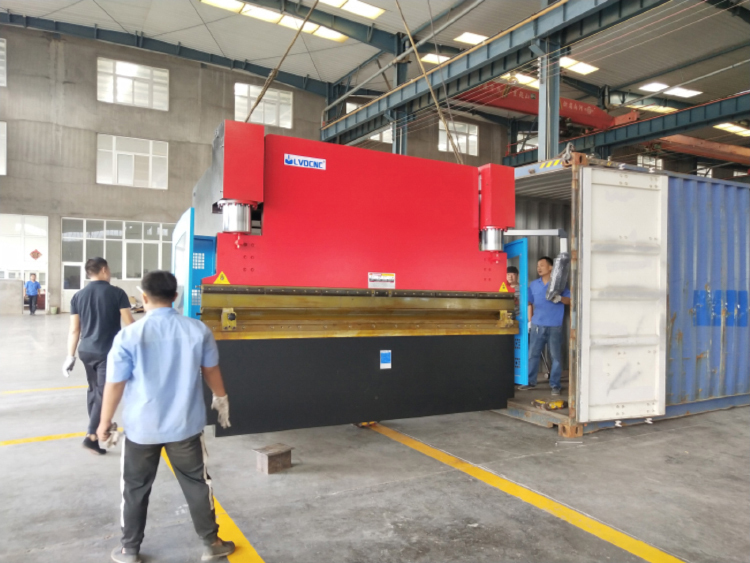

Our factory
