Highway Roadside Rescue Electric Vehicle Charger Mobile Emergency Fast DC Electric Vehicle Charging Station
- $50000.00 / 2 - 9 units
$20000.00 / >=10 units - 2 units
- Future Digital Energy Co., Ltd.
- Hunan, China
- Ms Jane Zeng
PRODUCT DETAIL
| port: | Shenzhen | product name: | Emergency electric vehicle charging station |
| Output current: | 0-100A/0-250A | User Interface: | 7-inch touch display |
| Operating temperature: | -10℃-60℃ | Recharge options: | Public DC electric vehicle charger |
| Output Power: | 40kW/120kW | model: | CYD34K-40; CYD65K-40; CYD132K-120 |
| Charge method: | manual or password | brand: | Future digital energy |
| Packaging details: | Wooden packing | Output voltage (V): | DC 200V-750V |
| Input voltage: | DC 200V-750V | Protection level: | IP54 |
| Place of origin: | Guangdong, China | payment terms: | Letter of credit, wire transfer |
| Output: | DC 40KW/120KW | Interface standards: | GB/T, CCS2, CCS1, CHAdeMO |
| Package preview: | battery capacity: | 34KWH/65KWH/132KWH lithium iron phosphate | |
| Warranty: | 2 years | Supply capacity: | 300 units per day |
Related Products
Product Description
Require | parameter | ||||
Product number | CYD34K-40 | CYD65K-40 | CYD132K-120 | ||
Energy storage power supply | 34KWh lithium iron phosphate | 65KWh lithium iron phosphate | 132KWh lithium iron phosphate | ||
Output Power | 40kW | 120kW | |||
The output voltage | DC 200V-750V | ||||
Output current | 0-100A | 0-250A | |||
User Interface | 7-inch touch display | ||||
charging method | manual or password | ||||
Operating temperature | -10℃-60℃ | ||||
protection level | IP54 | ||||
input interface | GB/T, CCS2, CCS1, CHAdeMO | ||||
Output Interface | GB/T, CCS2, CCS1, CHAdeMO | ||||
Product Size | 1000*950*985mm | 2300*866*782mm | |||
product weight | 420kg | 680kg | 1300kg | ||

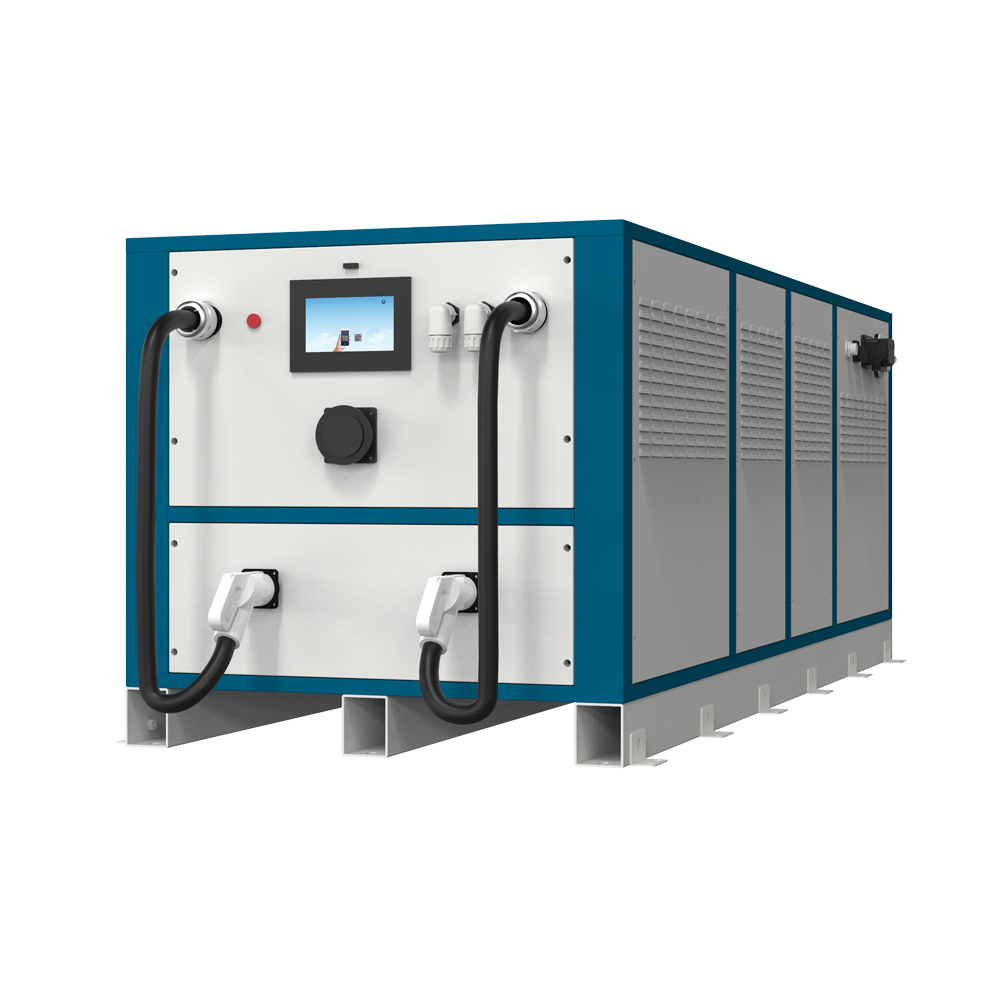

emergency mobile storage
Electric vehicle charging station

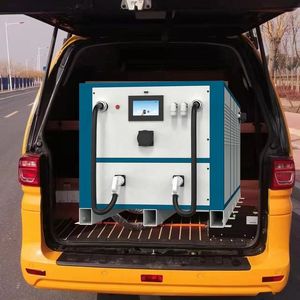

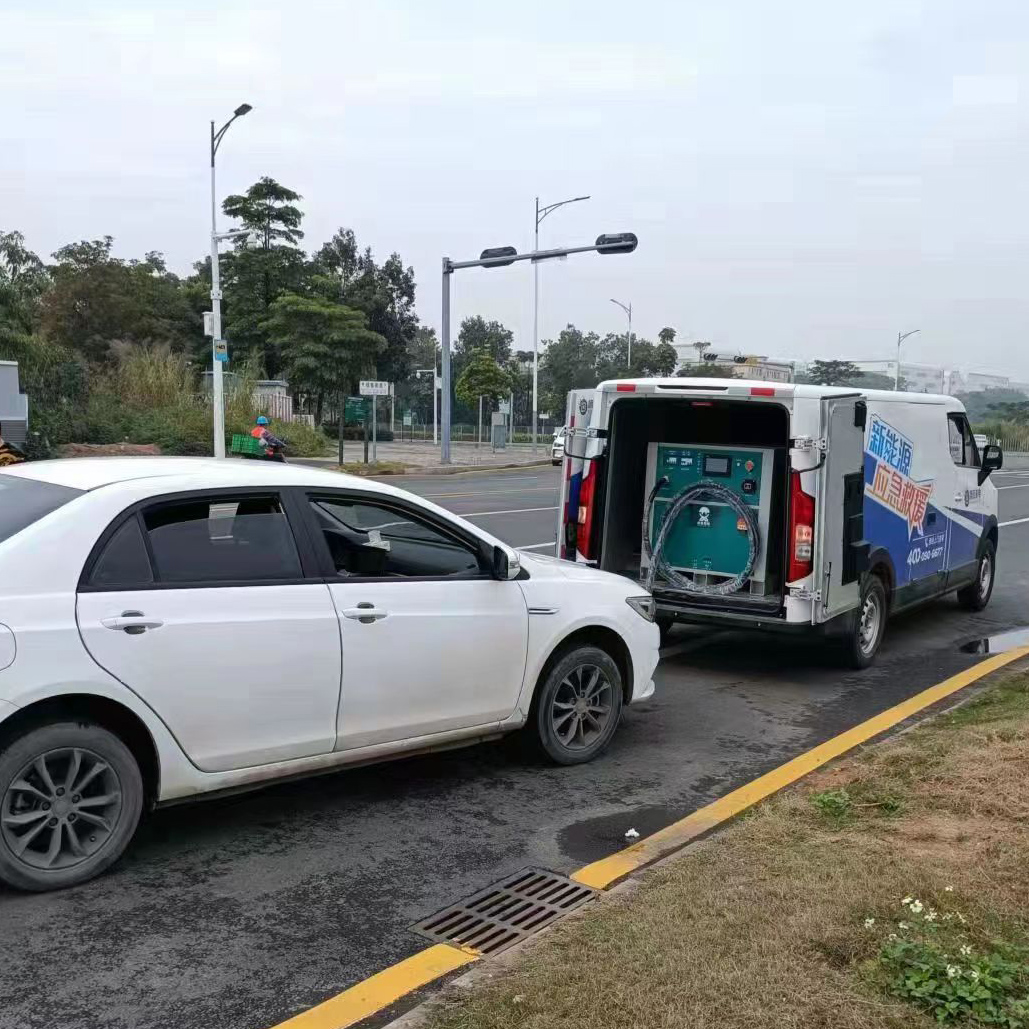

It provides a perfect DC fast charging solution for electric vehicles that have run out of power on roadside highways, such as buses, taxis, official vehicles, sanitation vehicles, logistics vehicles, road rescue private vehicles, etc.

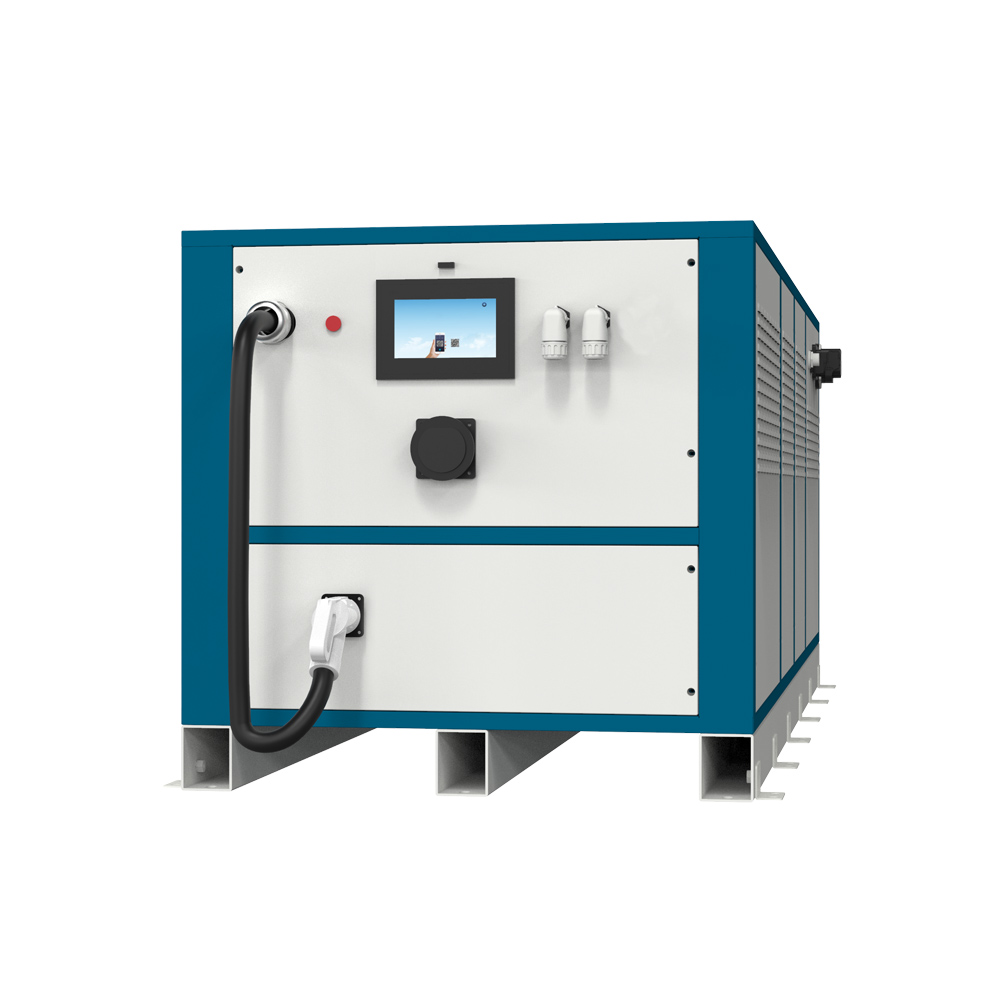

40KW charging station equipped with 34KWh LiFePO4 energy storage battery

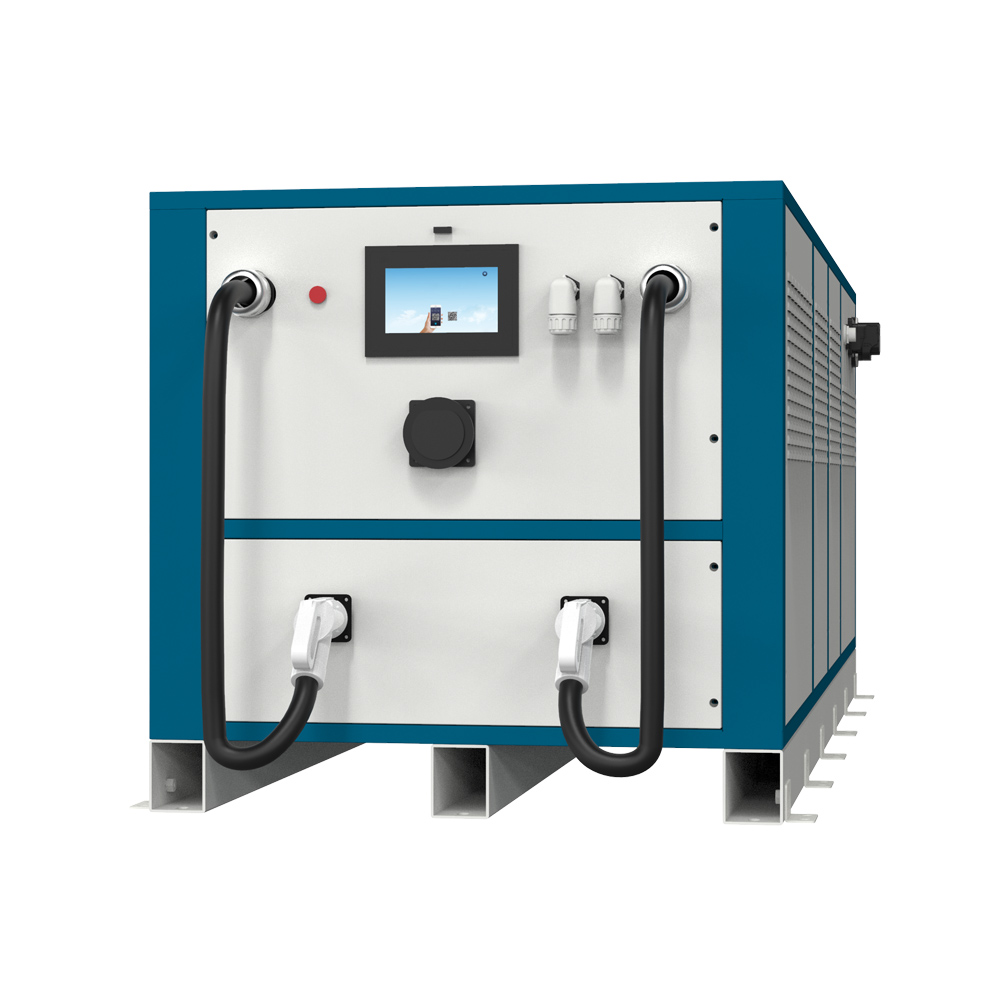

40KW charging station, equipped with 65KWh lithium iron phosphate energy storage battery
The 120KW charging station is equipped with a 132KWh lithium iron phosphate energy storage battery
Product Usage

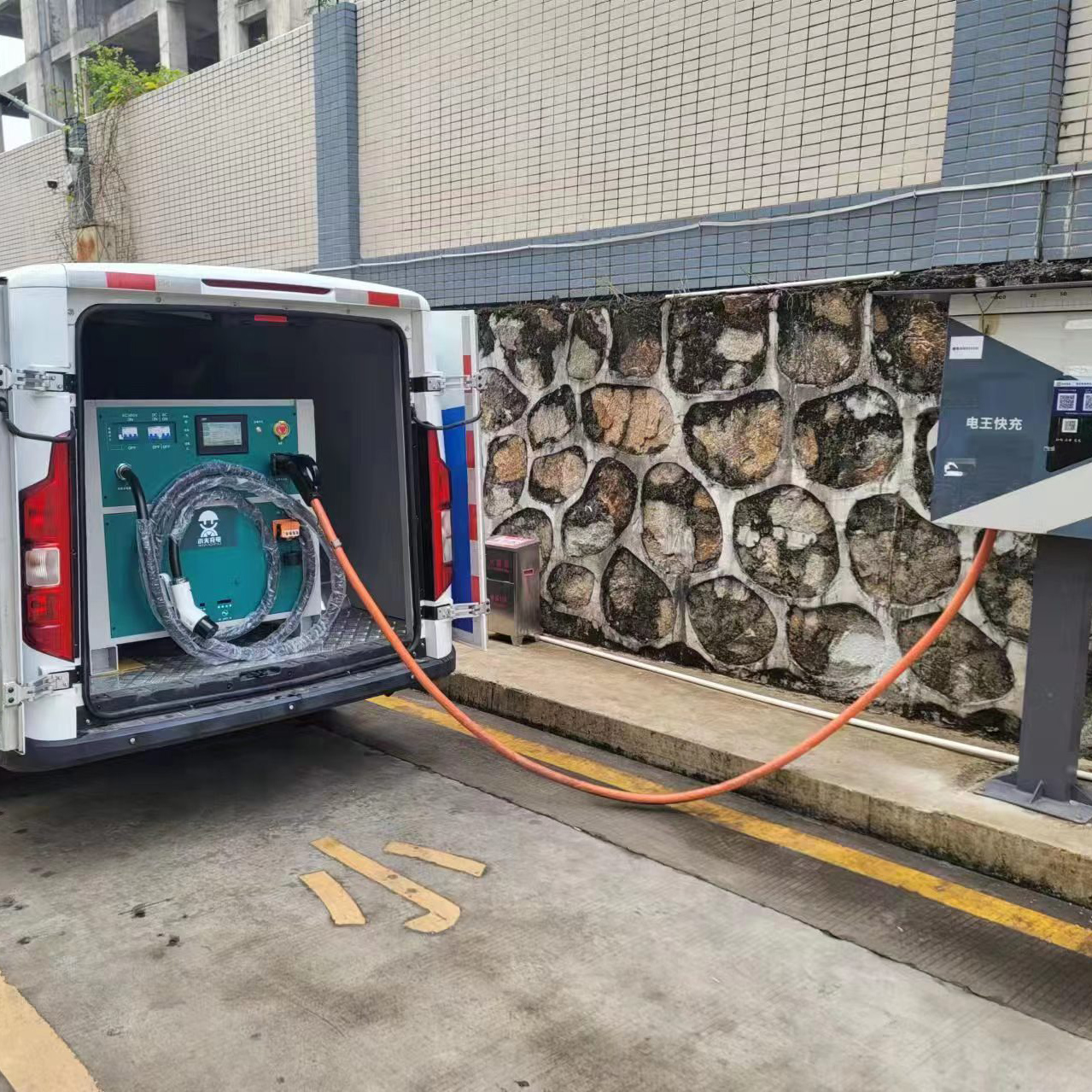

34kWh battery rechargeable
Via public DC electric vehicle charging stations
CCS2 (European standard), or CCS1 (American standard), or CHAdeMO (Japanese standard), or
GB/T (China standard) charging cable.
40KW road rescue electric vehicle charging station output charging cable can
CCS1 (US Standard), or
CCS2 (EU standard), or
CHAdeMO (Japanese standard) or
GB/T (China standard) connector.
