Horizontal rotary table TS...A high quality milling cutter
- $205.27 /set
- 1 set
- Eagle Industries Ltd.
- Shandong, China
- Mr Paul Xing
| port: | Qingdao, Ningbo, Shanghai, Shenzhen | Showroom location: | not any |
| Health status: | new | Weight (kg): | 21.5 |
| Core components: | other | Name: | High quality milling machine horizontal rotary table TS...A series |
| Video outbound inspection: | if | Warranty: | 1 year |
| Marketing Type: | normal product | Model: | TS160A, TS200A, TS250A, TS320A |
| Packaging Details: | wooden box | payment terms: | L/C, Western Union, T/T, MoneyGram, Alibaba |
| brand: | eagle | type: | table |
| Mechanical test report: | if | usage: | Milling Drilling Machine |
| brand: | eagle | Applicable industries: | Hotels, Clothing Stores, Building Materials Stores, Machinery Repair Shops, Manufacturing Plants, Food & Beverage Plants, Farms, Restaurants, Home Use, Retail, Food Stores, Printing Shops, Construction, Energy & Mining, Food & Beverage Stores, Other, Advertising company |

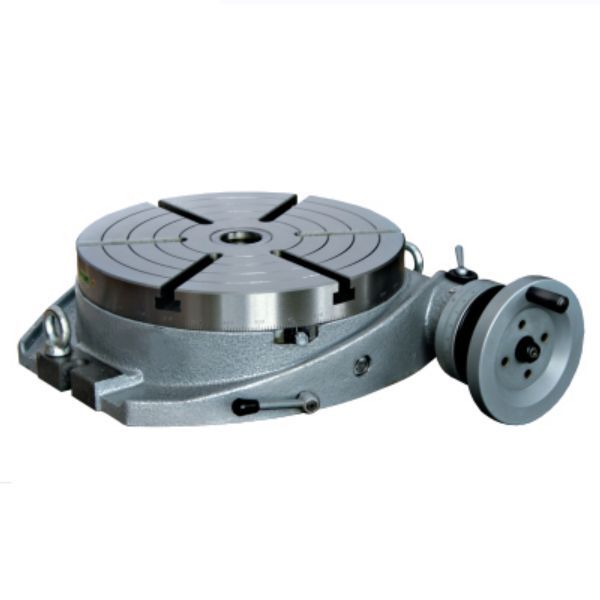

Horizontal turntable
feature:
1. TS series horizontal rotary table is suitable for indexing, circular cutting, angle setting, boring, fixed-point positioning and similar operations in cooperation with milling machines.
2. Specially provide the flange for connecting the scroll chuck, packaged separately. For special order, the indexing plate attachment allows the operator to accurately divide the 360° rotation of the clamping face into 2 to 66 equal parts, and all divisible by 2, 3 and 5 from 67-132.

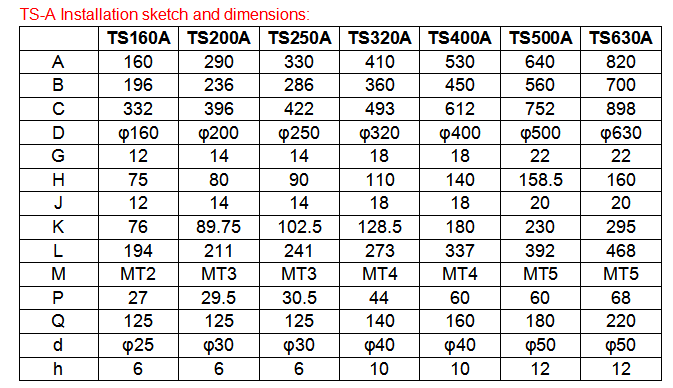

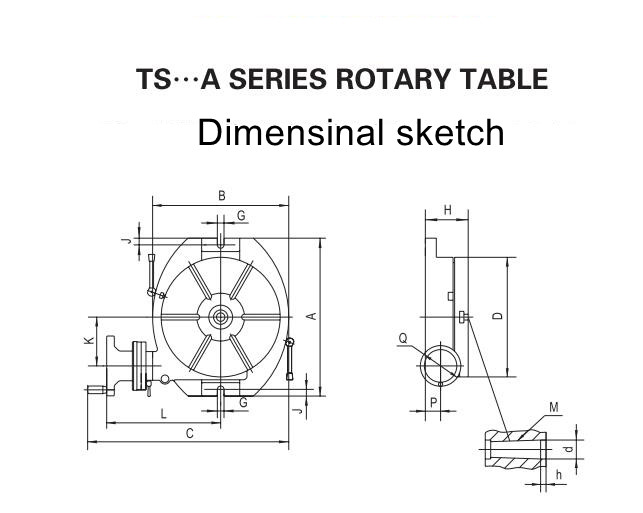

Specification
| Model |
TS160A |
TS200A |
TS250A |
TS320A |
TS400A |
TS500A |
TS630A |
|
Table diameter mm |
φ160 |
φ200 |
φ250 |
φ320 |
φ400 |
φ500 |
φ630 |
|
Center hole Morse taper |
2# |
3# |
3# |
4# |
4# |
5# |
5# |
|
Center hole diameter mm |
φ25×6 |
φ30x6 |
φ30x6 |
φ40×10 |
φ40×10 |
φ50×12 |
φ50×12 |
|
T-slot width mm |
10 |
12 |
12 |
14 |
14 |
18 |
18 |
|
Adjacent angle of T-slot |
90° |
90° |
60° |
60° |
60° |
45° |
45° |
|
Position key width mm |
12 |
14 |
14 |
18 |
18 |
- |
- |
|
Modulus of worms and worm gears |
1.5 |
1.75 |
2 |
2.5 |
3.5 |
3.5 |
4.5 |
|
Worm Gear Ratio |
1:90 |
1:120 |
|||||
|
table of graduation |
360 degrees |
||||||
|
Rotation angle of table with one worm rotation |
4° (1' per scale) |
3° (1′ per scale) |
|||||
|
cursor minimum |
10" |
||||||
|
Indexing accuracy |
80" |
60" |
|||||
|
Maximum working load kg |
100 |
150 |
220 |
250 |
300 |
550 |
700 |
|
Net weight kg |
16.5 |
22.5 |
33.5 |
65 |
125 |
215 |
Chapter 345 |
|
Gross weight kg |
21.5 |
31 |
44.5 |
76 |
145 |
238 |
Chapter 377 |
|
Shaft size mm |
400x330x200 |
400x360x208 |
500x400x210 |
580x480x238 |
750x616x280 |
850x730x302 |
995x900x326 |
|
Machine Chuck |
K11125 |
K11160 |
K11200 |
K11250 |
K11325 |
K11400 |
K11500A |
|
serial number. |
531010 |
531012 |
531014 |
531016 |
531018 |
531020 |
531022 |
