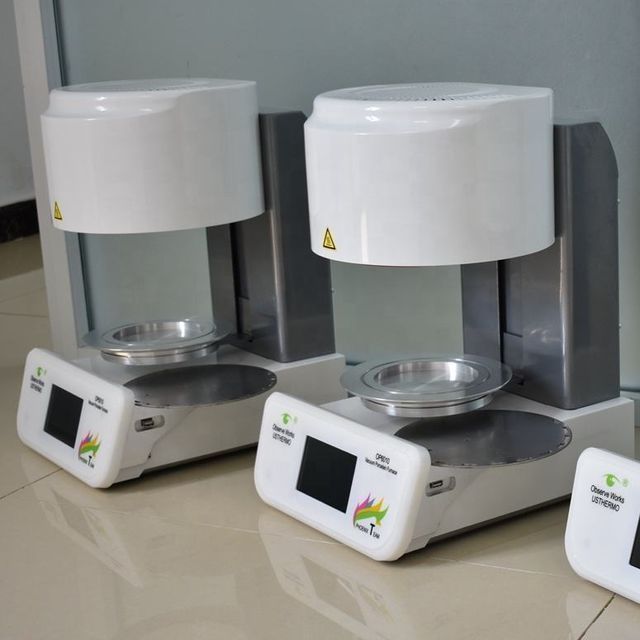

Hot Sale Ceramic Dental Laboratory Porcelain Furnace With Vacuum Pump
- $980.00 /set
- 1 set
- Nanyang Xinda Electro-Mechanical Co., Ltd.
- Henan, China
- Mr John Fang
| Classification: | laboratory heating equipment | model: | XDEM-1200DF |
| payment terms: | L/C, Western Union, T/T, MoneyGram | Thermocouple: | k-type |
| Control type: | LED touch screen | Room Dimensions: | Diameter 90mm x height 70mm |
| Heating element: | Kanthal al wires protected by quartz tubes. | Packaging Details: | The inside is filled with foam plastic, and the outside is packed in a wooden box |
| maximum. temperature: | 1200'C | rated power: | 1.6KW |
| Operating temperature: | 0-1000'C | port: | any port in china |
| Supply capacity: | 50 sets per month | brand: | XDEM |
| Certification: | International Standards and Certifications | Structure: | Double shell with fan cooling |
| place of origin; place of origin: | Henan, China | Voltage: | AC220V, 50HZ |
| Customization support: | OEM production | Heating rate: | 0-150'C/min |
Hot Sale Ceramic Dental Laboratory Porcelain Furnace With Vacuum Pump
brief introduction:
Dental porcelain furnace is mainly used for ceramic materials, generally used for laboratory testing after sintering, dental porcelain furnace adopts automatic lifting tray, oil-free vacuum pump design, suitable for various ceramic powder materials,
Advantages of Furnace
1. The temperature is automatically adjusted, and the actual temperature control accuracy is high.

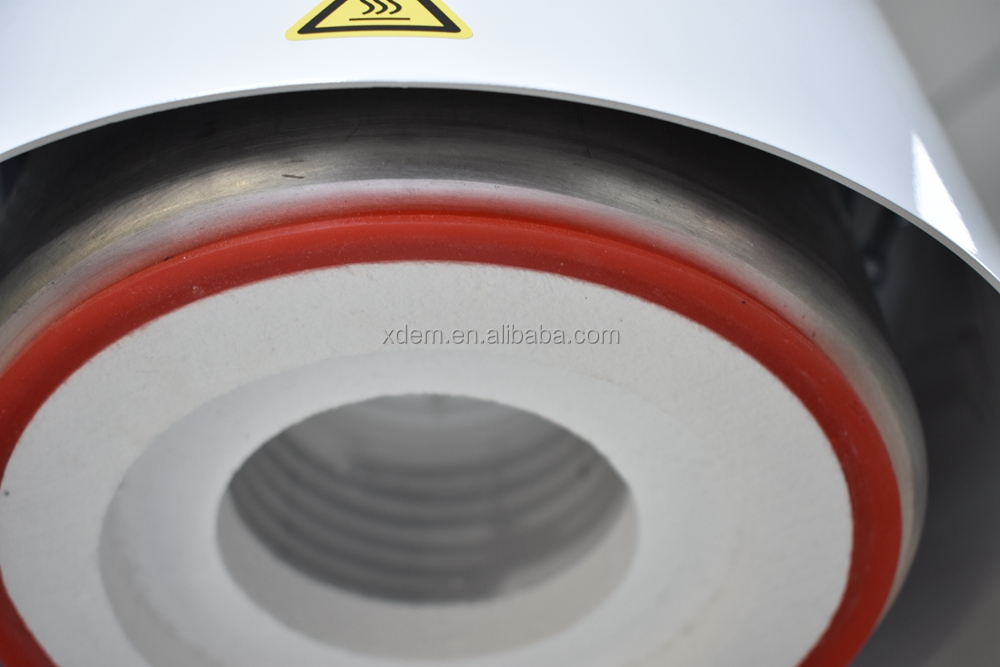

2. The cavity material is made of high-quality alumina ceramic fiber, which has a long service life.
3. The heating element adopts quartz spiral coil to keep the working chamber clean.
4. True color touch screen, 99 programs can be set freely, easy to operate
Specifications:
|
control type |
LCD touch screen control panel |
|
Cavity size |
Diameter 90xH70mm |
|
strength |
1.5 kW |
|
Voltage |
AC 220V 50/60 Hz single phase (or according to your standard) |
|
maximum. temperature |
1200 °C (< 2 hours) |
|
continuous working temperature |
0-1100°C (920deg.c good heat preservation effect) |
|
maximum. heating rate |
0-200℃/min |
|
vacuum |
-97KPa with oil-free vacuum pump |
|
Temperature Controller |
Touch screen panel that can store 100 porcelain programs |
|
temperature accuracy |
+/- 1 °C |
|
Heating element |
Kanthal A1 wire protected by quartz tube |
|
thermocouple |
K type |
|
night heat preservation function |
300 degrees heat preservation at night, power off Only 10W/H |
|
Warranty |
1 Year Limited Warranty (Wearing parts such as thermocouples, heating elements are not covered, please order replacements in Related Products below.) |
|
Certificate |
CE certification |
|
delivery time |
15 days |

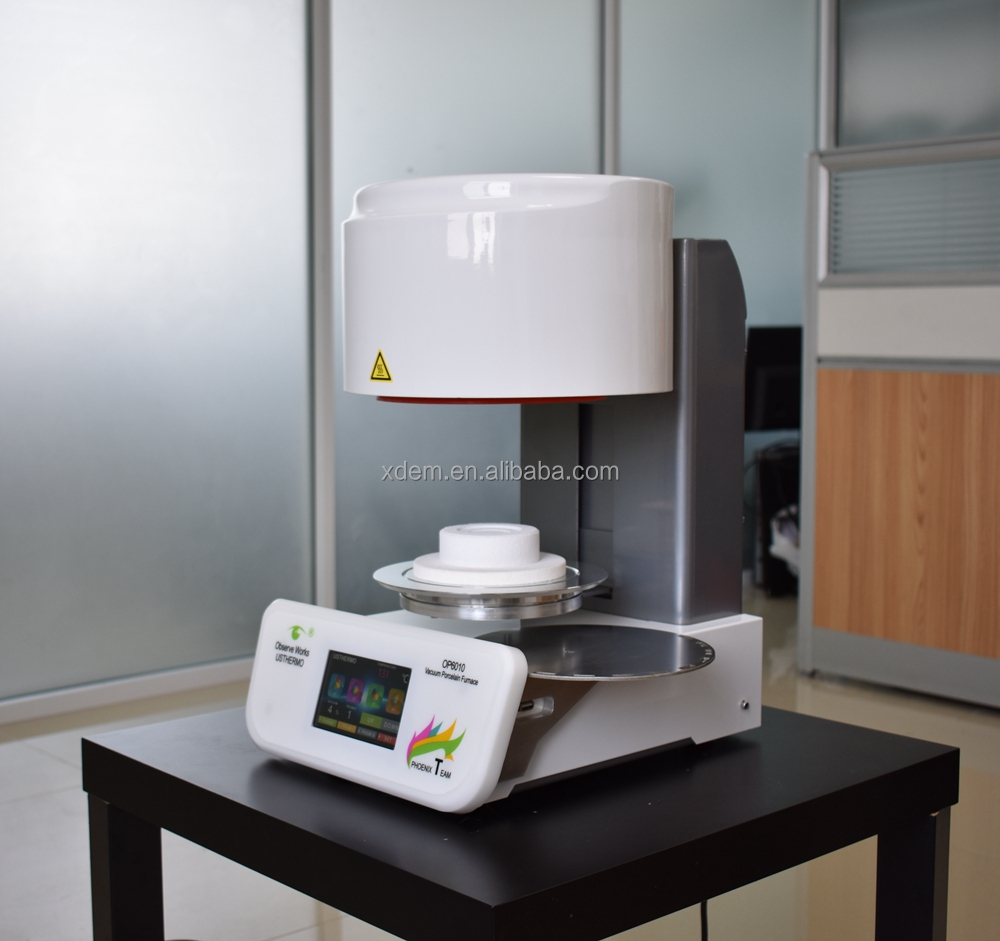

Product display:
Covered with plastic paper, filled with foam plastic, packed in wooden case to avoid damage
WWe are a professional supplier of high-temperature furnaces, ovens/kilns and main components SiC, MoSi2, etc. with many years of history in China. Our advantages are as follows:
1. High quality, excellent technicians. good teamwork;
2. OEM service.
3. Factory wholesale price.
4. The inside of the furnace is filled with foam plastic, and the outside is packed in a wooden box.
5. One year warranty for the whole furnace.
