Hot sale 150w wood laser cutting machine

PRODUCT DETAIL

model:	GT-1390	cooling method:	water cooling
Applicable materials:	Acrylic, leather, MDF, paper, plastic, plexiglass, plywood, rubber, wood	Supply capacity:	200 sets per month
Packaging Details:	plywood box packaging	Origin:	Shandong China
Function:	cutting non-metallic materials	payment terms:	L/C, T/T
Laser power:	150W	Laser type:	carbon dioxide
color:	Blue and white	Laser tube:	Sealed CO2 glass tube
cool down:	Chiller cw5200	CNC or not:	Yes
Cutting speed:	0-40000mm/min	Cutting area:	1300*900mm
controlling software:	Reda	Certification:	ce
table:	honey clom+blade double knives	port:	Qingdao
brand:	Golden Technology	product name:	CNC Laser Cutting Machine
Cutting thickness:	0-30mm	type:	Water-cooled carbon dioxide laser cutting machine
Health status:	new	Supported graphic formats:	AI, BMP, Dwg, DXF, DXP, PLT
control:	offline	Work area:	1300*900mm
application:	laser cutting	After-sales service provided:	Engineers available to service machinery overseas

hot sale wood laser cutting machine 150w

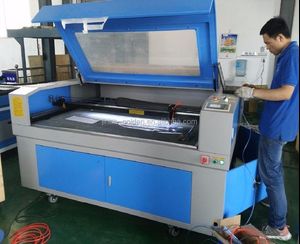

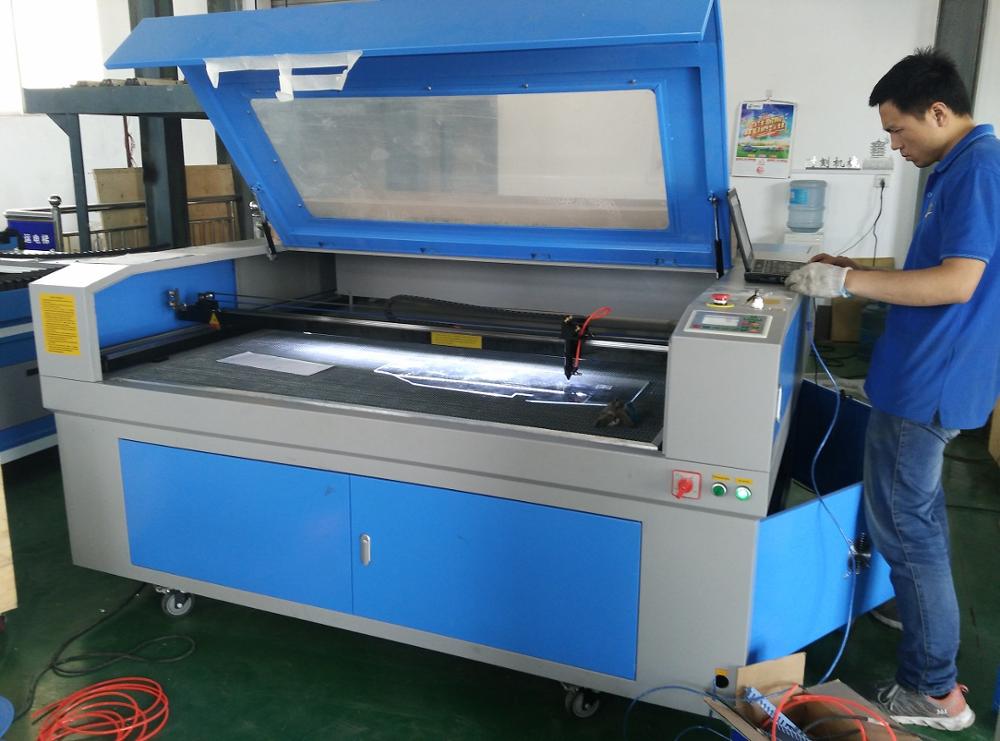

machine photo

parameter

type	GT-1390
engraving area	1300X900mm
laser power	150w (10 months warranty)
lenses and mirrors	3 mirrors + 1 focusing mirror
drive mode	stepper motor
table	Blade Knife Table + Honeycomb Table
Control System	Redar offline with USB control
power supply	220V (or 110V)±10% 50HZ
software	RDCAM
Supported Graphics Formats	PLT, DXF, BMP, JPG, GIF, PGN, TIF
Operating temperature	0-45℃
Working humidity	35-70°
spread	belt
rail	Taiwan Shangyin square rail
Water cooling (yes/no)	Yes, Chiller CW5200
air pump	Yes
fan	Yes
Laser tube (lifetime)	5000-8000 hours
Recommended spare parts/consumables	Laser tube and lens
Laser Tube Warranty	Wynn 150W, 10-month warranty
laser machine	12 months warranty does not include laser tube and lens
Certificate	CE FDA BV

Mechanical Parts

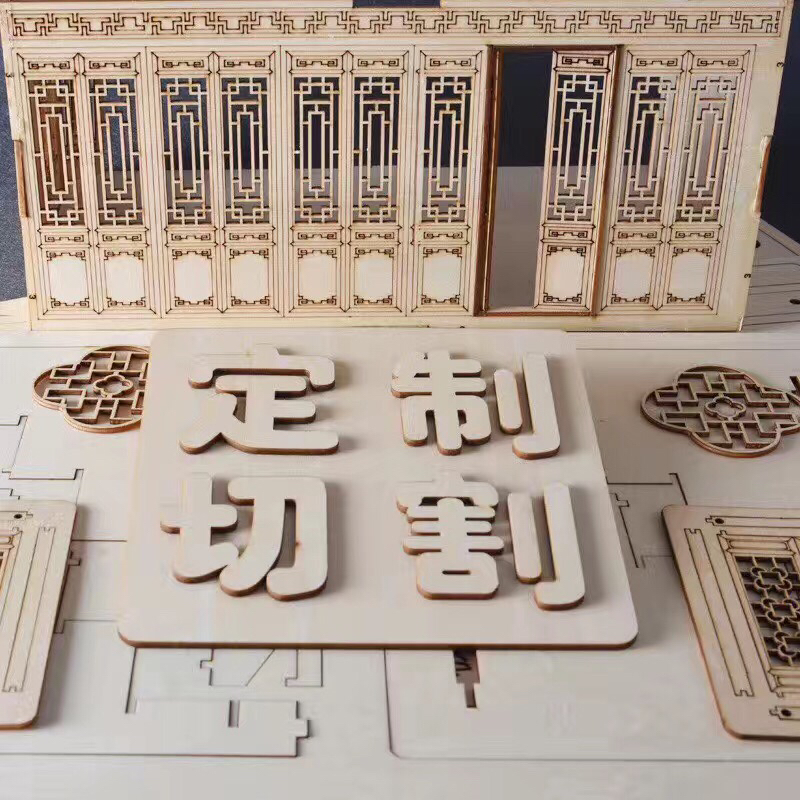

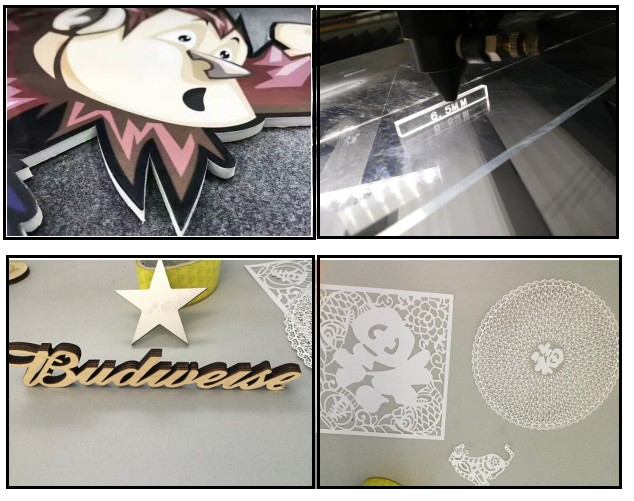

cut sample
