Household aluminum gas meter g1.6/g2.5/g4 household lpg diaphragm gas meter
- $1.00 / >=10 units
- 10 units
- Chengdu Qinchuan IoT Technology Co., Ltd.
- Sichuan, China
- Ms Carren Chen

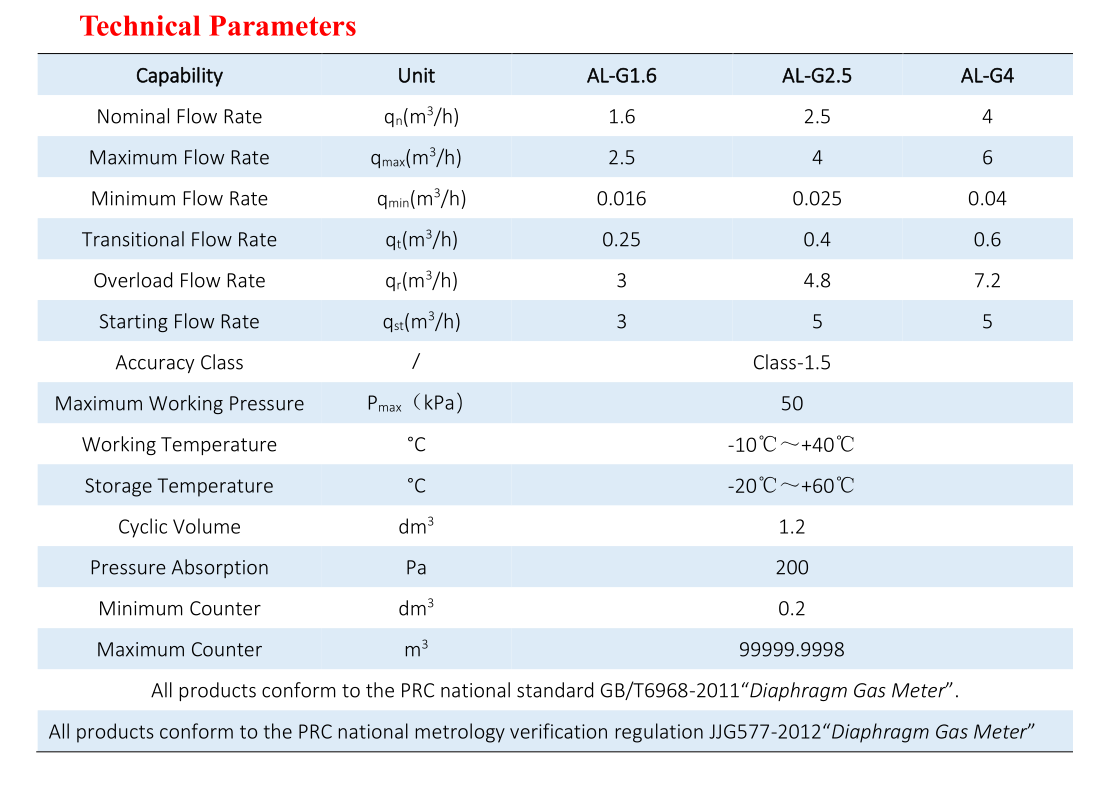

| brand: | Qinchuan | Pressure Absorption: | ≤200Pa |
| payment terms: | L/C,Western Union,T/T,MoneyGram | Maximum working pressure: | <0.5bar |
| Custom Support: | OEM, ODM, OBM | standard: | GB/T6968-1997B |
| product name: | Diaphragm gas meter | Supply capacity: | 100,000 Units/Month Diaphragm Gas Meter |
| Circulation volume: | 0.9dm3 | type: | Diaphragm/Bellows Instruments |
| Packaging Preview: | port: | Shanghai (Mainland China) | |
| Packaging Details: | Carton, 4 pcs/carton. | class: | 1.5 |
| Supplier Type: | factory | Certificate: | ISO9001/ISO14001 |
| model: | G1.6/G2.5/G4 | place of origin; place of origin: | Sichuan, China |
| Limited Data: | 1.6/2.5/4 | Key words: | Diaphragm gas meter |

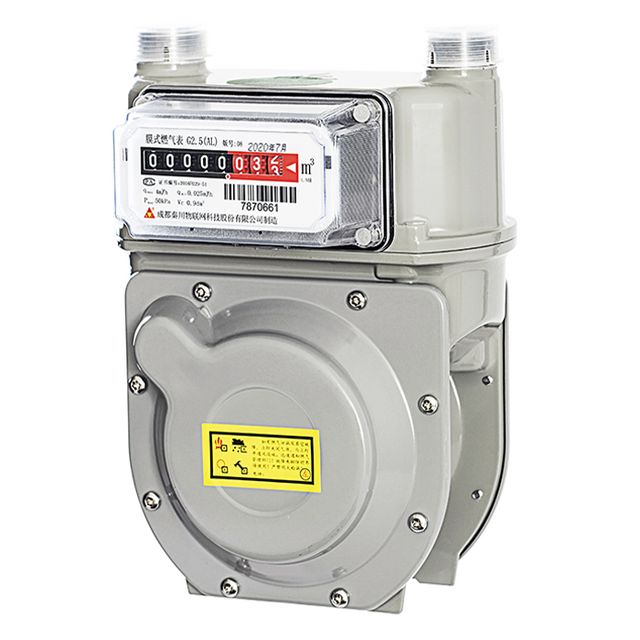

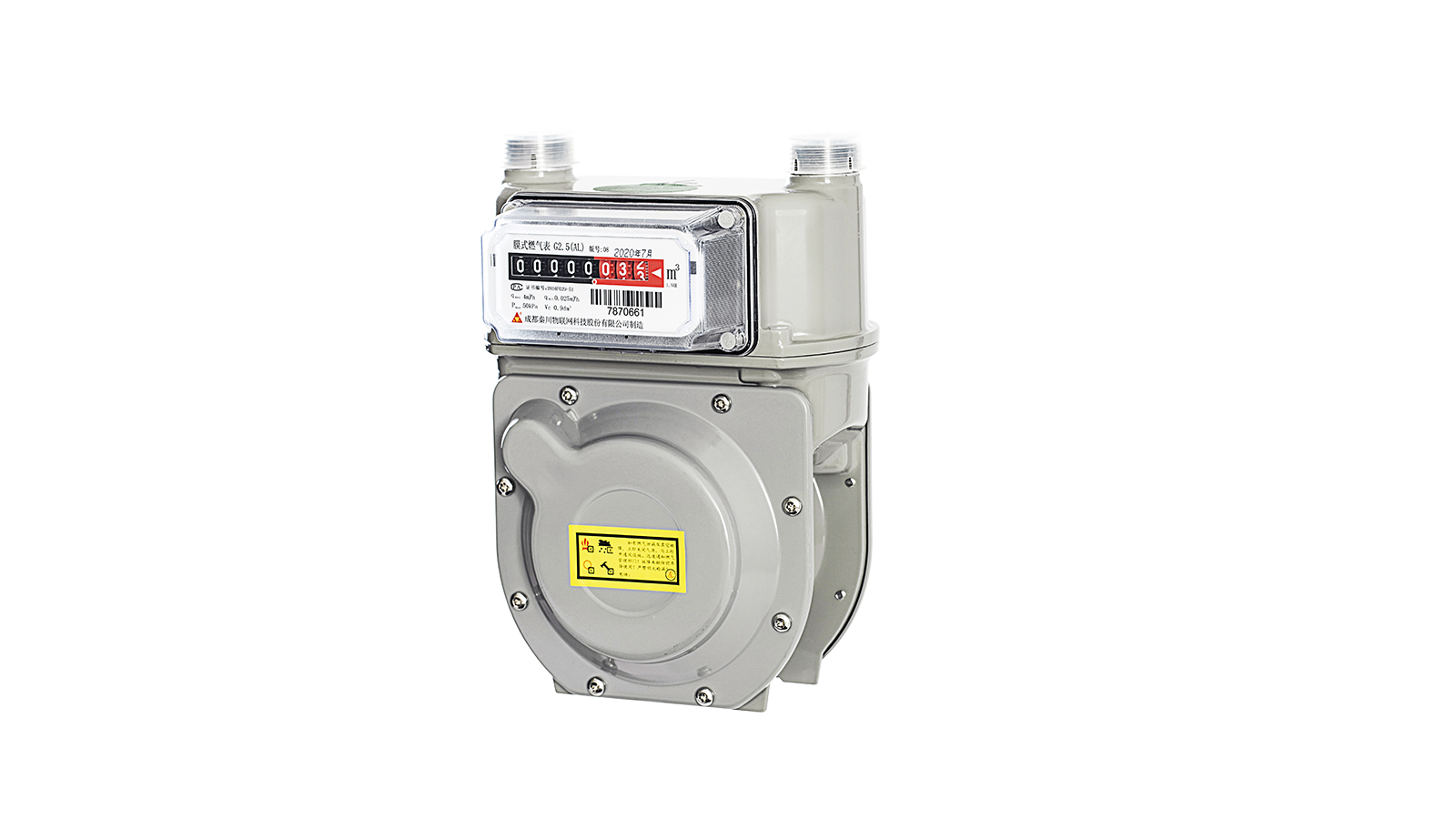

Aluminum Diaphragm Gas Meter
The instrument mentioned below refers to the aluminum diaphragm gas meter. GX means the nominal flow is Xm³/h of the meter. "AL" indicates that the watch body is aluminum alloy.
application
media:Natural gas, liquefied gas, urban pipeline gas, etc.
Pressure range:0.5kPa~50kPa
surroundings:Suitable for home use, especially for high salt spray and high humidity environments in coastal areas.

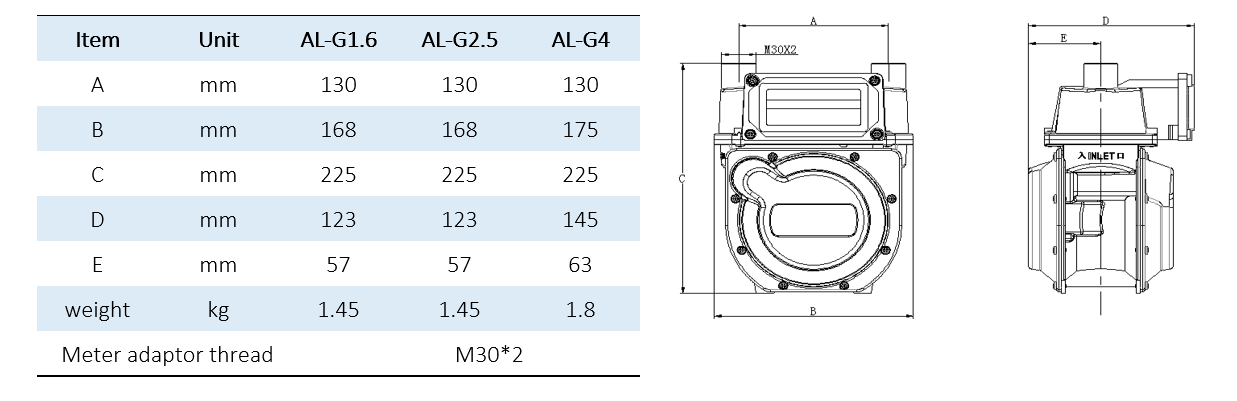

Dimensions and Weight
Installation Notes
1) The instrument should be installed in a dry and ventilated place, whenThe working temperature range is -10℃~+40℃.
2) The arrow of the meter indicates the direction of airflow, please do not connect it in reverse;
3) The center of the pipeline should be connected to the center of the water inlet and outlet of the instrument, and do not twist or damage the instrument connector to prevent the instrument from leaking;
4) After installation, a sealing test should be carried out, and open flame leak detection is prohibited;
5) There should be a sufficient safety distance between the instrument and the furnace and other fire sources;
6) Make sure the air in the line and gas meter is empty before ignition.
