Hydraulic Cylinder Tie Rod Hydraulic Cylinder China Manufacturer
- $55.00 / >=500 sets
- 500 sets
- Hangzhou Aisoar Hydraulic Technology Co., Ltd.
- Zhejiang, China
- Ms Elaine Ying
| Model: | tie rod | brand: | Axel |
| Performance type: | Double acting | payment terms: | L/C, Western Union, D/P, D/A, T/T, MoneyGram, PayPal |
| Package preview: | model: | Tie rod hydraulic cylinder | |
| strength: | hydraulic | Standard or non-standard: | standard |
| Origin: | Zhejiang, China | Installation method: | U-shaped clip |
| port: | Ningbo | MOQ: | 500 sets |
| Warranty: | 12 months | Customization support: | OEM/ODM |
| sample: | usable | Supply capacity: | 30000 pieces per month |
| Packaging Details: | Bubble bag + wooden box (default) + carton optional |

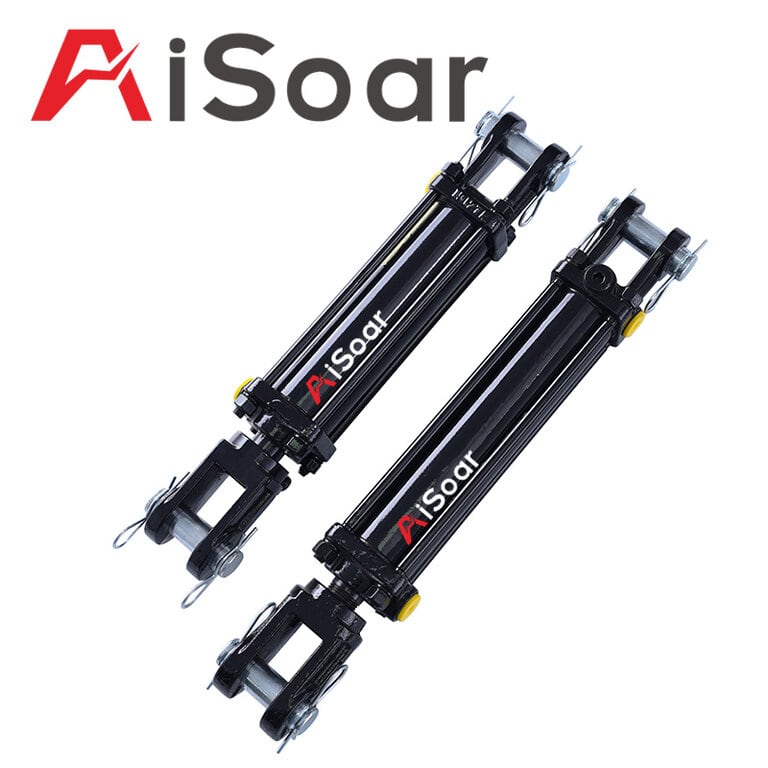

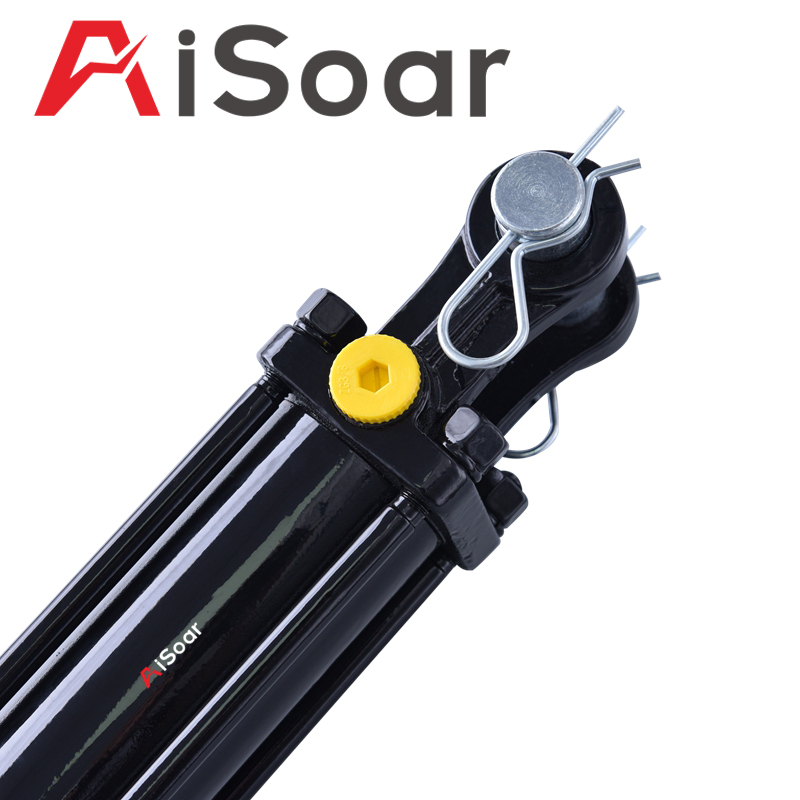

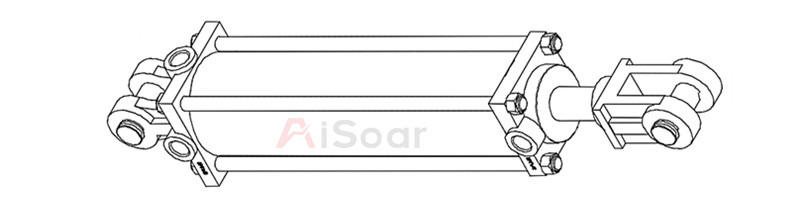

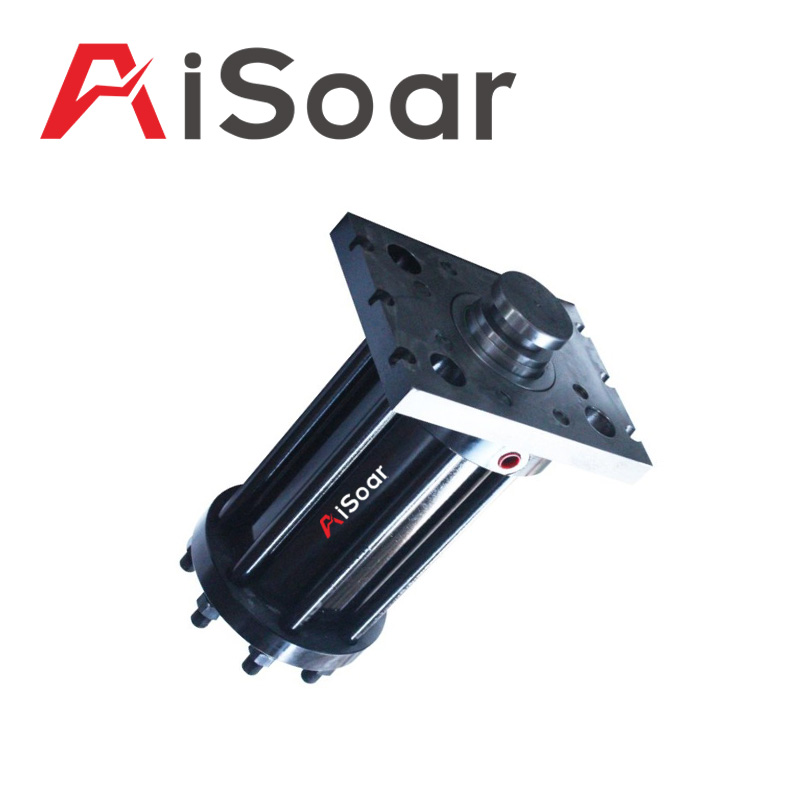

Tie rod hydraulic cylinder
Custom TR Series Tie Rod Hydraulic Cylinders
Standard tie rod hydraulic cylinder
product description
|
Model |
TR tie rod |
|
PSI |
2500,3000 |
|
Proxy |
Double acting |
|
delivery time |
2~6 weeks |
|
sample |
usable |
|
Warranty |
12 months |
|
MOQ |
500 pieces |

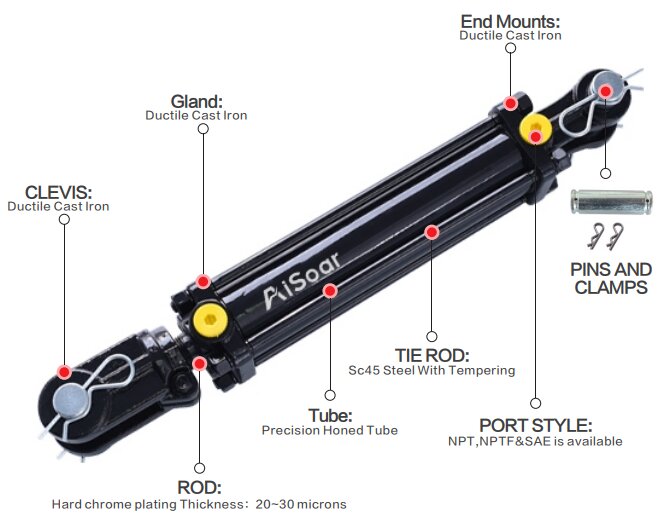

Product parameters
|
part |
feature |
part |
feature |
|
rod |
Hard chrome plating |
port |
NPT, NPTF&SAE are available |
|
gland |
Ductile Iron |
painting |
Black (STD) and other custom colors available |
|
end mount |
Ductile iron female threaded clevis including pin and clip |
piston |
steel |
|
Seals |
hall stone |
tube |
Precision ground steel extends seal life. |
|
Rod ends |
Ductile iron female threaded clevis including pin and clip |
U-shaped clip |
Ductile Iron |
Product Description

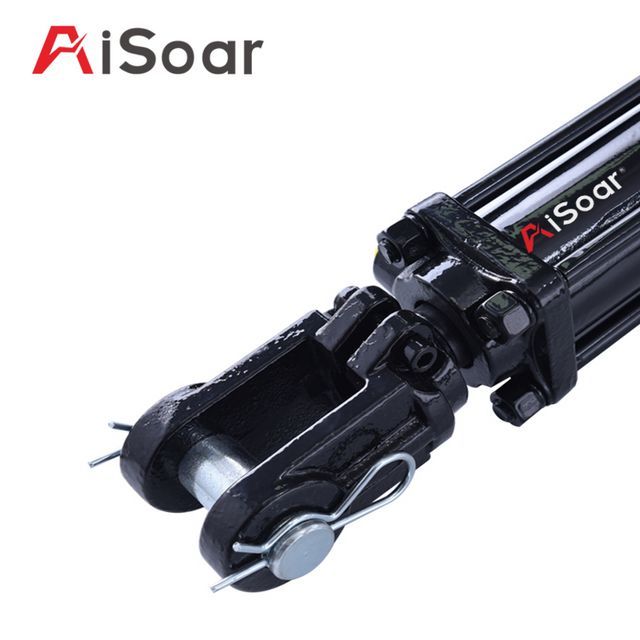

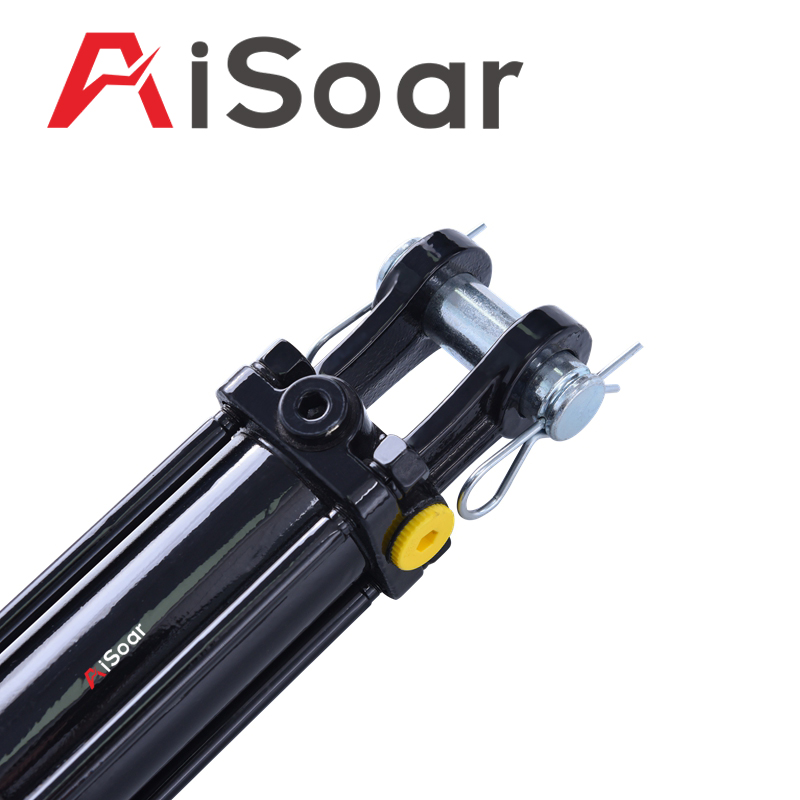

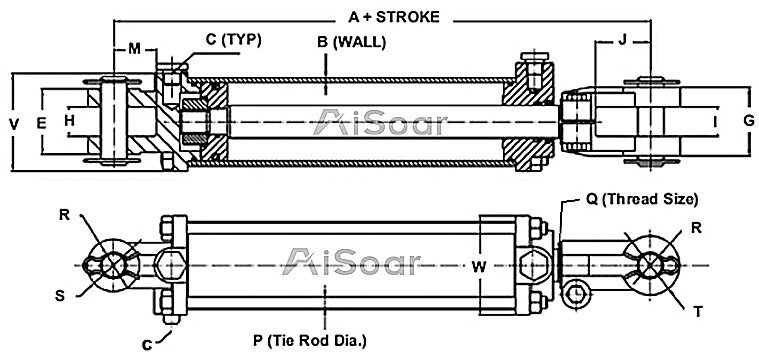

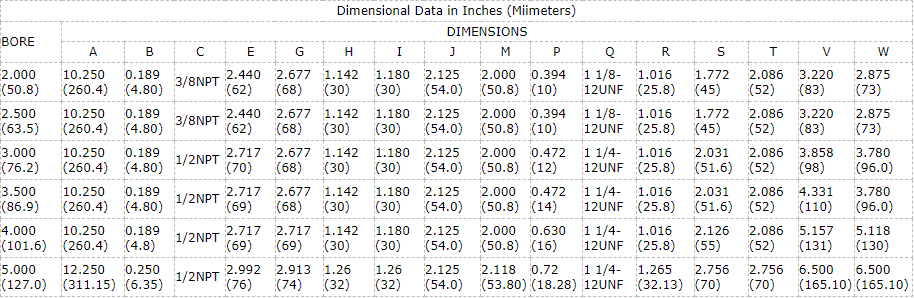

Tie rod hydraulic cylinders with clevis installed at both rod end and base end, we call it TR series. AiSoar TR series tie rod hydraulic cylinders are available in a variety of bore and stroke sizes. The bore size ranges from 2 to 5 inches, the stroke ranges from 4 to 48 inches, and the working pressure ranges from 2500PSI to 3000PSI.
This type of hydraulic cylinder can be completely disassembled for repair and maintenance. Tie rod cylinders have shorter lead times than welded models, with base and rod ends in stock, we simply machine the rod, tube and tie rod, assemble, test and paint upon receipt. Order.

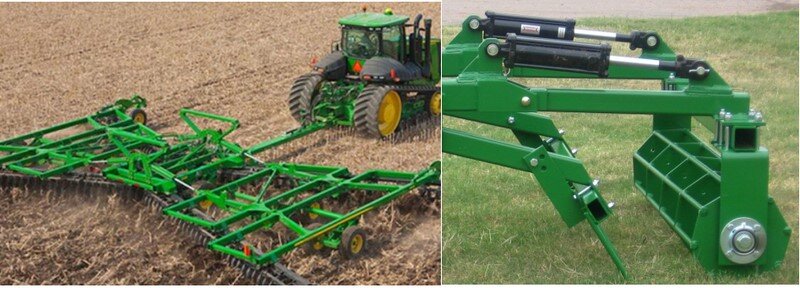

application
AiSoar TR Series Tie Rod Hydraulic Cylinders have been widely used in the agriculture, trailer and loader industries, often including lift mobile systems. Cylinders should be held in place and then arced as they extend and retract. TR cylinders with clevis are often a good solution in the application.

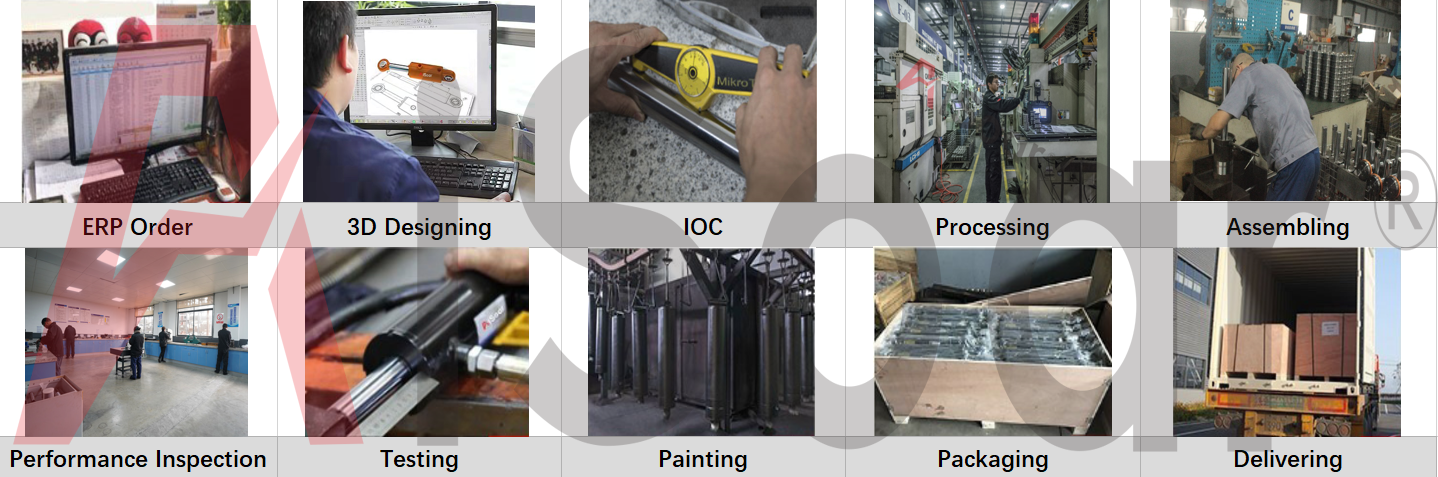

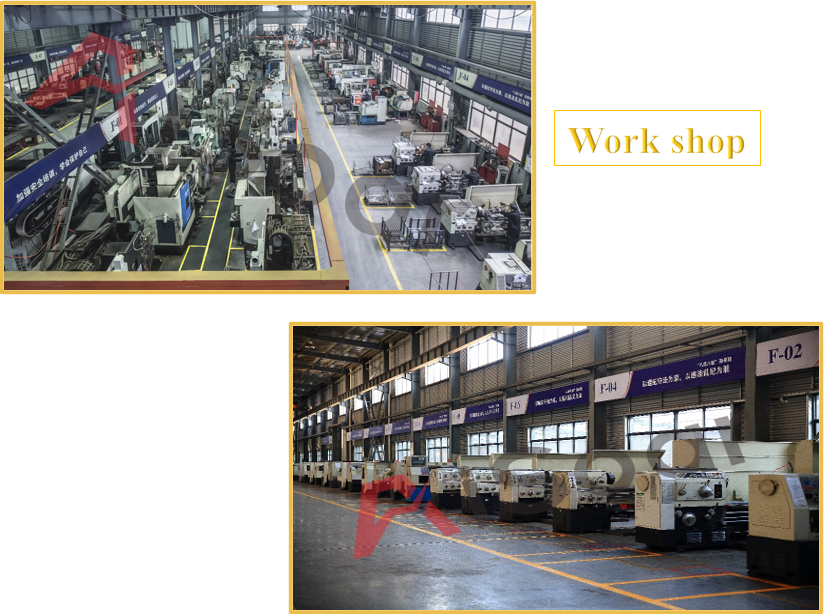

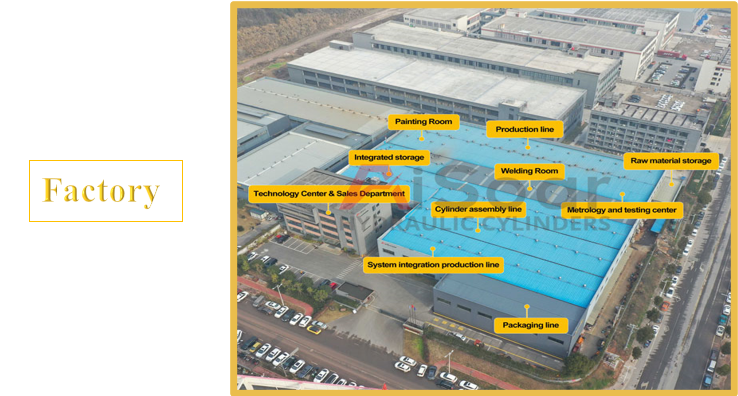

Production Process
Company Profile

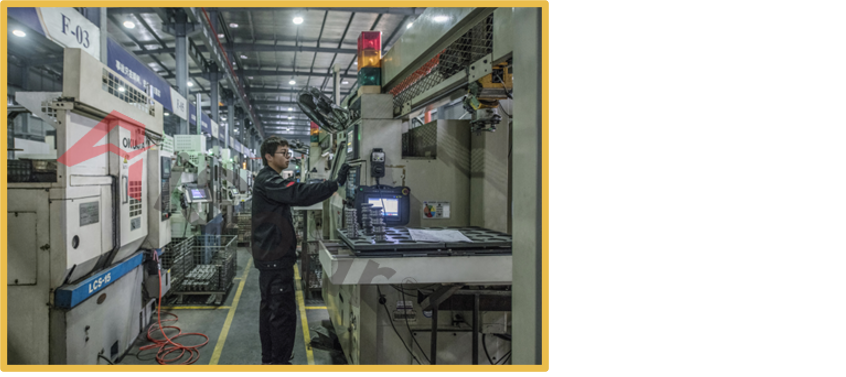

Hangzhou Aisuo Hydraulic Technology Co., Ltd. is located in Hangzhou City, Zhejiang Province, adjacent to Shanghai and Ningbo ports. It is a professional manufacturer and supplier of hydraulic cylinders, hydraulic power units, hydraulic testing machines and hydraulic components with 22 years of experience. Operating experience. Today, we have 130 long-term contract workers specializing in hydraulics, with a monthly production capacity of over 30,000 pieces. Our products have been widely used in agricultural equipment, construction equipment, trailers, excavators and other fields.
Aesop hydraulics has won a good reputation for its excellent quality and high performance. Our products are mainly exported to Europe and North America.
FAQ

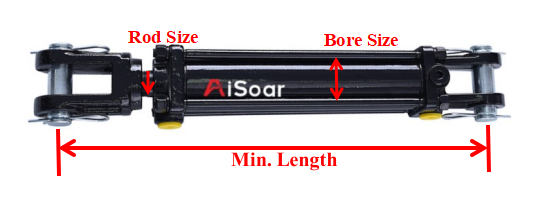

ask:What is the retracted and extended length?
A: The retracted length from center pin to center pin, we also call it minimum. length or closed length. The extended length is retracted at the center plus travel, we also call it the max length. length or open length.
Q: Can the inner seal be easily rebuilt? If yes, are seal kits readily available?
A: Yes, this is a rebuildable cylinder and we offer repair kits. Tie-rod type for easy maintenance.
Q: What is the pin diameter for this cylinder?
A: Hole diameter 1"~4" is 1" pin hole, hole diameter 5" is 1.25" pin hole.
Q: Are you hydraulic cylinder manufacturer?
A: Definitely yes, we have our own factory. We would like to show you the video via WhatsApp or Wechat.
Q: Do you have customized service?
A: Of course, we have the ability to provide customized services. TR series cylinders are standard, but custom strokes, integrated valves and special tube/rod materials are available.

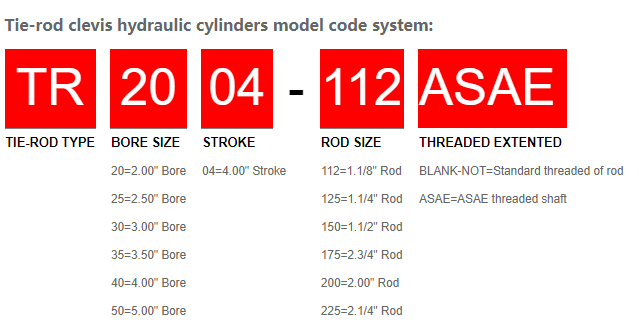

Q: How to order the model of tie rod hydraulic cylinder?
A: You can tell us the parameters of the hydraulic cylinder as below.
