Hydraulic stainless steel pipe arc angle cutting and slotting machine for welding
- $1100.00 / 1 - 9 sets
$980.00 / >=10 sets - 1 set
- Anhui Advanced Grinding Tools Co., Ltd.
- Anhui, China
- Ms Melody Qian
PRODUCT DETAIL
| Applicable industries: | Home use, food and beverage stores, retail, farms, manufacturing plants | Weight (kg): | 300 kg |
| Supply capacity: | 100 sets per month | Marketing Type: | New Products 2020 |
| Cutting width (mm): | 6000 mm | place of origin; place of origin: | Anhui, China |
| Punching thickness: | 1.0-1.5mm | Video shipment inspection: | if |
| Core component warranty: | 1 year | according to: | 12 tons |
| type: | semi-automatic hydraulic | product name: | ADV pipe end fish mouth forming machine |
| Packaging Details: | Packed by waterproof membrane and wooden case | Mechanical test report: | if |
| Cutting thickness (mm): | 5mm | port: | Shanghai, Ningbo |
| Model: | ADV-R80 / ADV-R100 / ADV-R125 / ADV-R160 | Dimensions (L*W*H): | 800*600*1300mm |
| Package preview: | Device function: | Tube end forming, punching, grooving | |
| Processing speed: | 1.2 seconds | Showroom location: | not any |
| Main selling points: | multifunctional | Health status: | new |
| year: | 2022 | Warranty: | 2 years |
| brand: | ADV | payment terms: | L/C, Western Union, D/P, D/A, T/T, MoneyGram |
| Core components: | engine, motor | Voltage: | 380v |
| Motor power (kW): | 2.2 kW |
Product Description

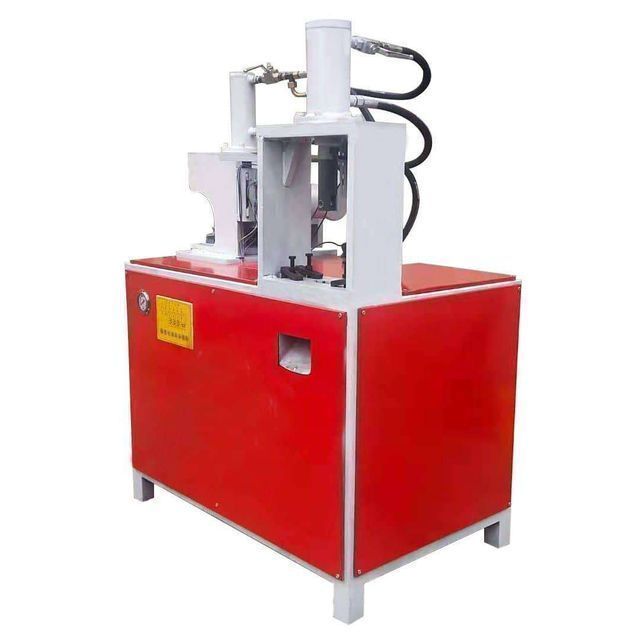

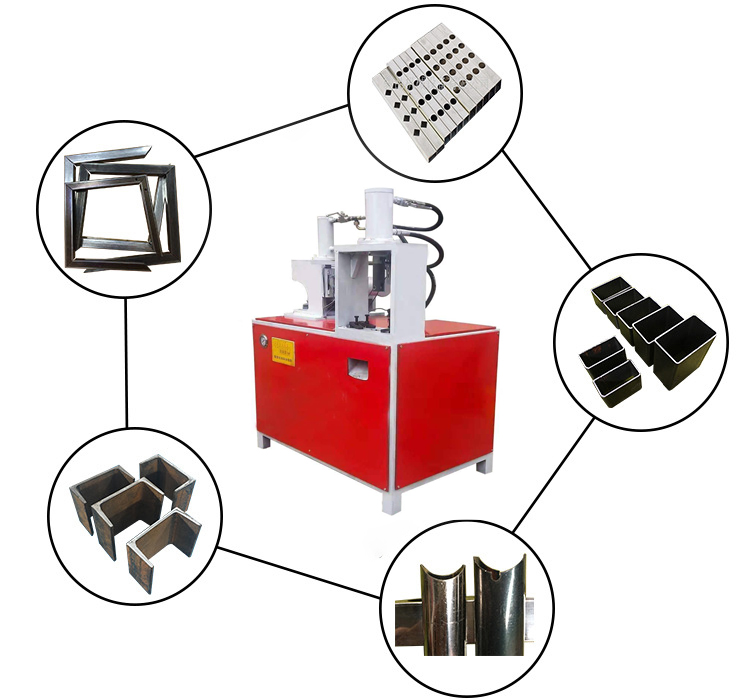

ADV hydraulic pipe end fish mouth forming machine pipe slotting machine
intelligent control:
1. Manual tube delivery, different arc sizes are suitable for different tube diameters
2. Suitable for carbon steel, stainless steel, copper, aluminum, glass steel, etc.
3. Hole shape: round, square, rectangular, oval, notch
4. Punching type. half(a wall/side), through(both sides/wall)
2. Suitable for carbon steel, stainless steel, copper, aluminum, glass steel, etc.
3. Hole shape: round, square, rectangular, oval, notch
4. Punching type. half(a wall/side), through(both sides/wall)
Product parameters
Model | ADV-R80 | ADV-R100 | ADV-R125 | ADV-R160 | ADV-R180 | ||||
Punching thickness | 1.0-1.5mm | 2.0-2.5mm | 3.0-3.5mm | 5.0-5.5 mm | 7.0-8.0 mm | ||||
type | semi-automatic hydraulic | ||||||||
pressure | 12 tons | 20 tons | 30 tons | 50 tons | 65 tons | ||||
Motor Power | 2.2/3/4kw | 2.2/3/4kw | 3/4/5.5kw | 5.5/7.5kw | 5.5/7.5/11kw | ||||
sliding stroke | 80 mm | 100mm | 125mm | 160 mm | 180 mm | ||||
processing speed | 1.2 seconds | 1.2 seconds | 1.2 seconds | 1.2 seconds | 1.2 seconds | ||||
machine weight | 300 kg | 350 kg | 400 kg | 500 kg | 600 kg | ||||
Machine size | 800*600*1300mm | 800*620*1300 mm | 1000*750*1500 mm | 1200*750*1700 mm | 1200*750*1800 mm | ||||
detailed drawing

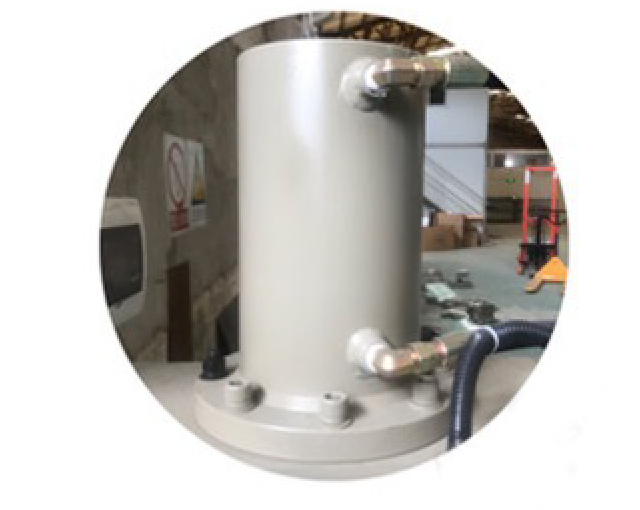

High pressure precision cylinder
Double oil seals, high temperature resistant paint, welding reinforcement, to ensure zero oil leakage, suitable for long hours of work

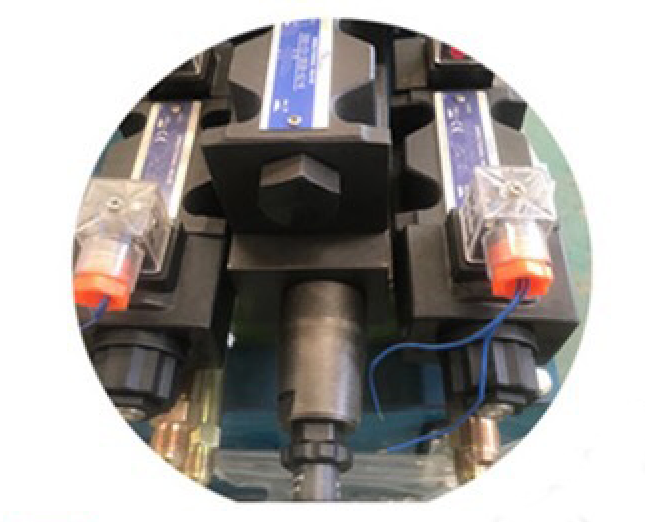

The electromagnetic valve
Precision oil block, fast oil return, adjustable pressure

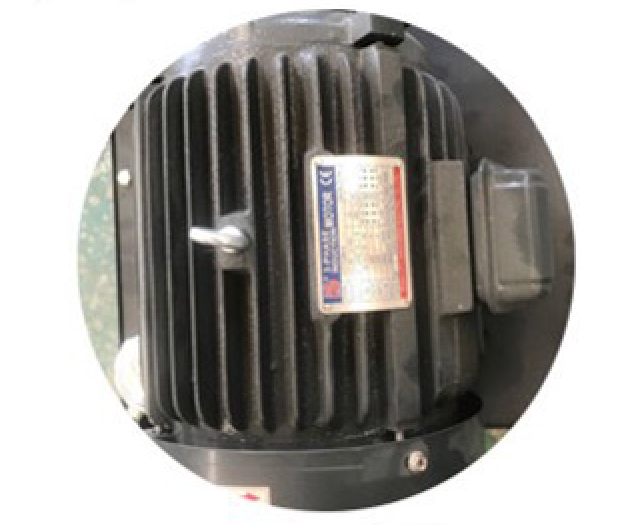

Pure copper motor
High efficiency, novel structure, beautiful appearance, low noise, low vibration, high insulation level

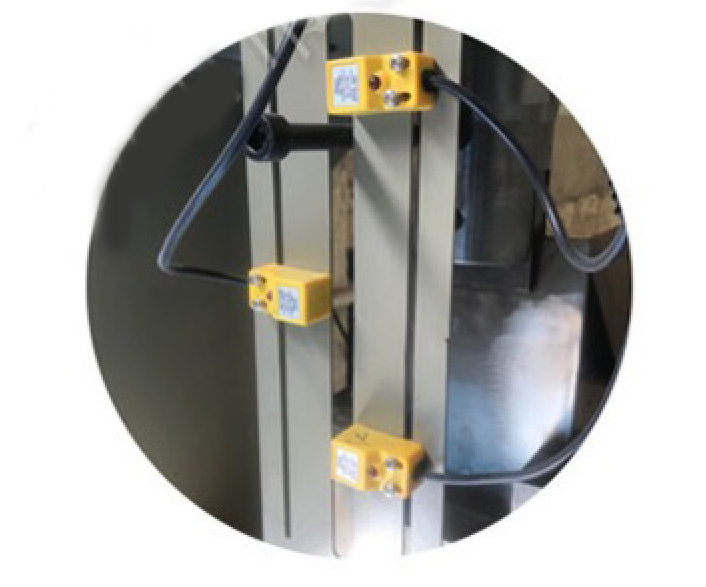

travel sensor
Divided into upper, middle and lower sensors, which can be adjusted manually

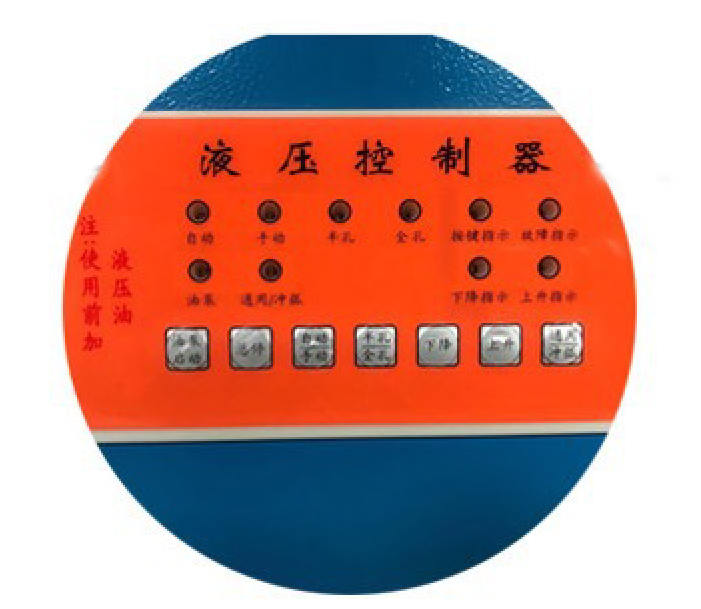

control panel
Humanized control, one-button operation, easy to understand

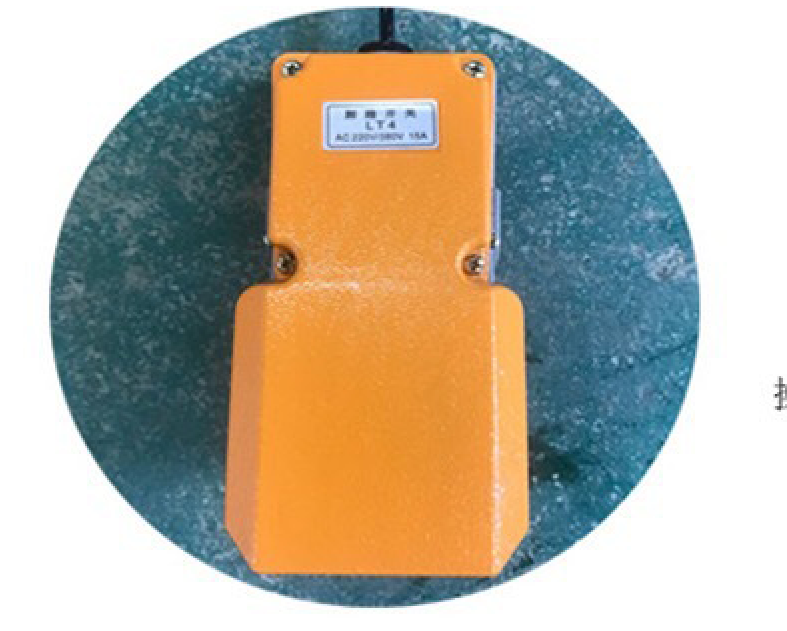

foot switch
Sensitive operation and simple control

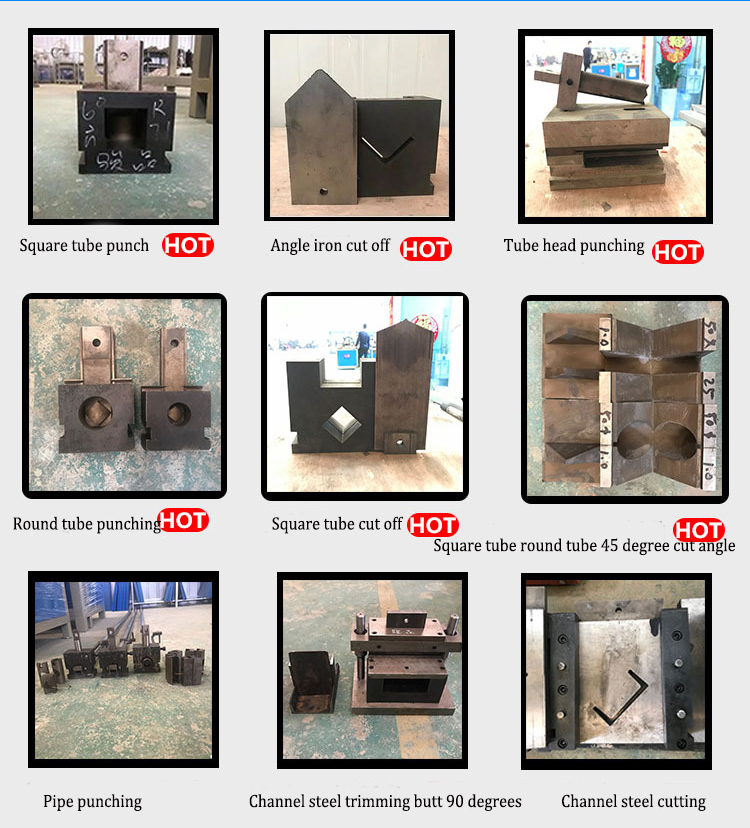

Punching die:
Independently design pipe punching and pipe punching dies according to customers

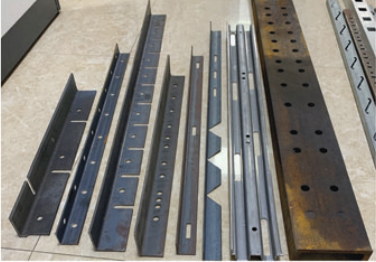

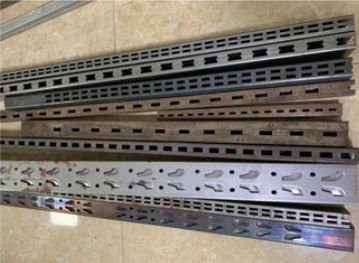

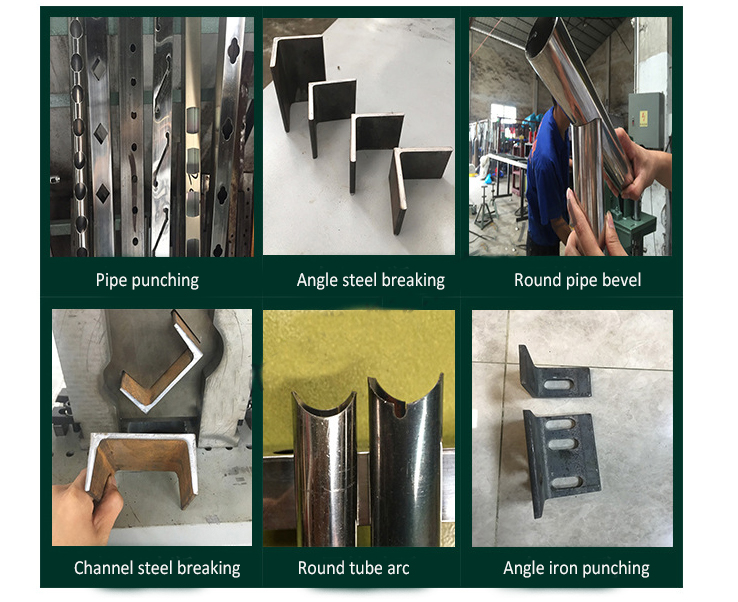

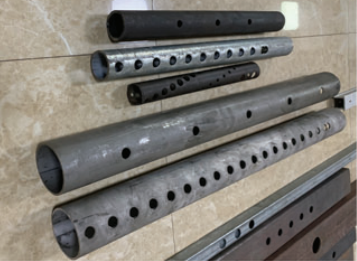

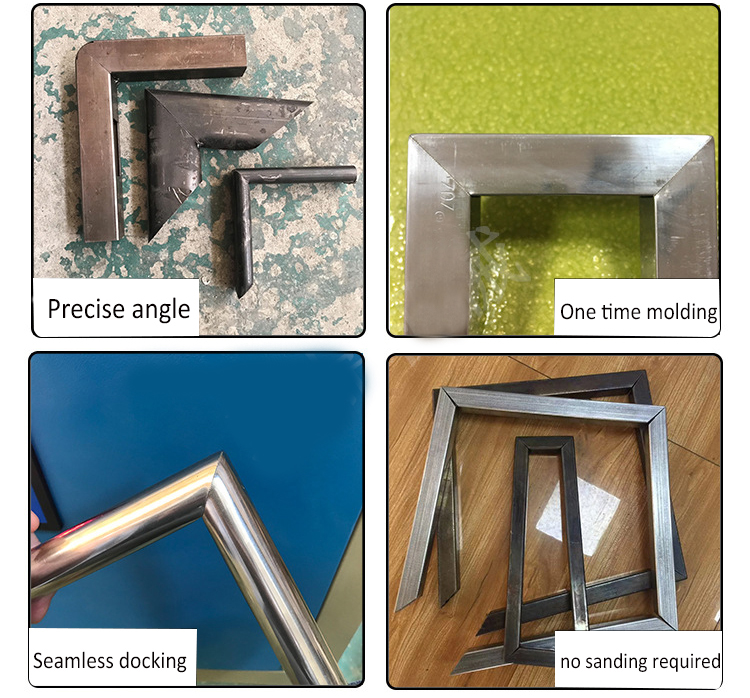

Finished product display
