Industrial Automatic CNC Fabric Cutting Cloth Weaving Machine at CE Price
- $58000.00 /set
- 1 set
- Wuhan King Suntime CNC Equipment Co., Ltd.
- Hubei, China
- Mr Xiaoping Liao
| payment terms: | L/C,Western Union,T/T,MoneyGram,Cash | Auto grade: | automatic |
| Supply capacity: | 25 sets per month | Warranty: | 1 year |
| Sharpening method: | double gear pejorative | feature: | automatic |
| Cutting speed: | 0-60000mm/min | Marketing Type: | New Products 2020 |
| Packaging Details: | Standard export wooden box | weight: | 1800kg |
| Cutting method: | Straight knife continuous up and down cutting | Showroom location: | Egypt, Canada, Turkey, Vietnam, Philippines, Indonesia, Russia, Thailand, Morocco, Bangladesh, Uzbekistan, Malaysia |
| Video external inspection: | if | Packaging Preview: | |
| Production capacity: | 10 sets/month | Certification: | EU standard |
| place of origin; place of origin: | Hubei, China | Standard model size: | KP-X1725, KP-X2025, KP-X2325, KP-X1733, KP-X2033, KP-X2333 |
| application: | fabric | Voltage: | 380V |
| Applicable industries: | clothing store, textile factory | brand: | Suntech |
| software: | Automatic cutting system copyright | Air pressure supply: | 7kps |
| After-sales service provided: | Engineers can repair machinery overseas | strength: | 24kw / 27kw / 32kw |
| Mechanical test report: | if | Cutting thickness: | up to 75mm (according to |
| Core Components Warranty: | 1 year | Core components: | PLC, engine, bearing, gearbox, motor, pressure vessel, gear, pump |
| port: | Shanghai | Cutting material: | Apparel/Fabric/Textile/Leather |
| Dimensions (L*W*H): | 5760x2900x2500 | Health status: | new |

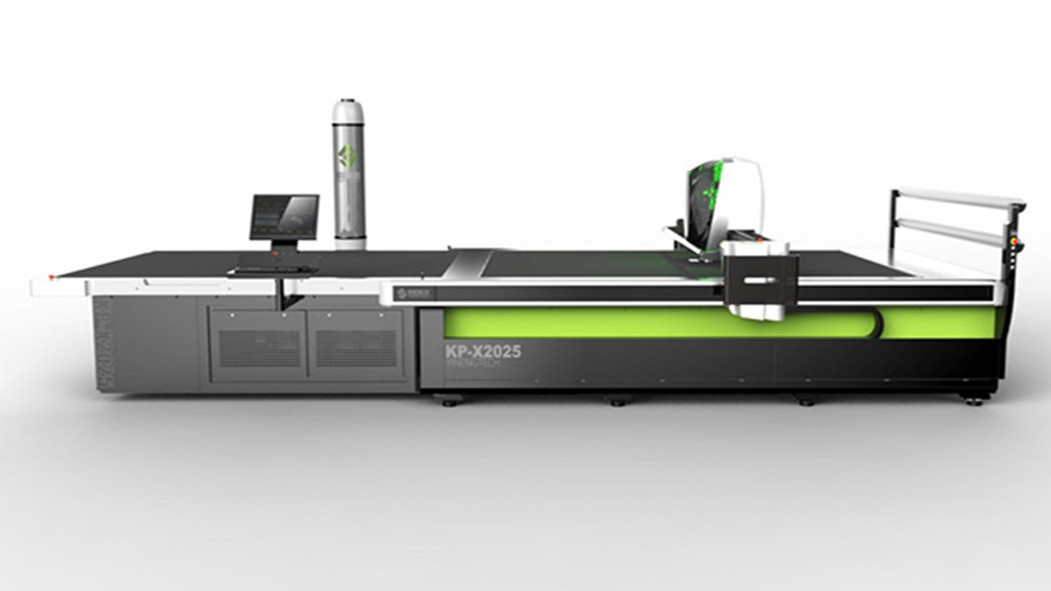

Industrial Automatic CNC Fabric Cutting Cloth Weaving Machine at CE Price
parameter:
|
model |
KP-X1725 |
KP-X2025 |
KP-X2325 |
KP-X1733 |
KP-X2033 |
KP-X2333 |
|
Cutting area (width*length) |
1700x2500mm |
2000x2500mm |
2300x2500mm |
1700x3300mm |
2000x3300mm |
2000x3300mm |
|
Machine size (mm) |
6000*2650*1500 |
6000*2950*1500 |
6000*3250*1500 |
7500*2650*1500 |
7500*2950*1500 |
7500*3250*1500 |
|
weight |
4200kg |
4500kg |
4800kg |
4800kg |
5000kg |
5500kg |
|
Maximum cutting thickness |
70mm (after suction) |
|||||
|
maximum cutting speed |
60m/min |
|||||
|
Cutting accuracy |
≤±1mm |
|||||
|
strength |
16-25kw |
|||||
|
cutting method |
Straight knife continuous up and down cutting |
|||||
|
cooling system |
Automatic air cooling system |
|||||
|
Controller system |
KP-ACS copyright system, compatible with any type of fabric CAD software |
|||||
|
software |
Multi-language ACS software, free to switch |
|||||
|
sharpening method |
double gear pejorative |
|||||
|
Air pressure supply |
0.55Mpa 160L/Min |
|||||
|
cutting material |
Apparel/Fabric/Textile/Leather |
|||||
|
Blade maximum working speed |
4000 rpm |
|||||
|
Motors and Drives |
Panasonic Servo Motors and Drivers |
|||||
|
machine power |
AC380V/50HZ |
|||||
|
software |
automatic cutting |
|||||

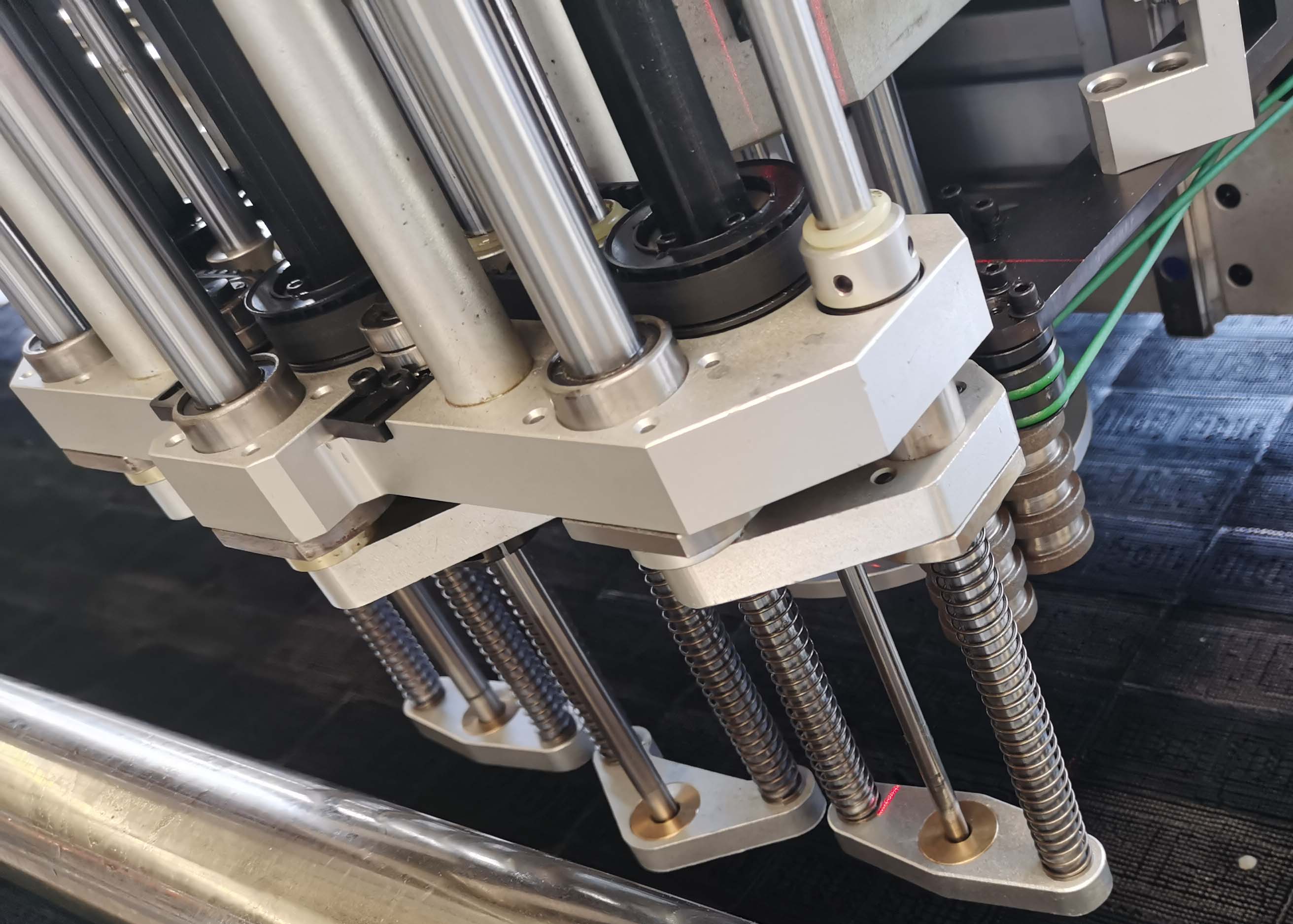

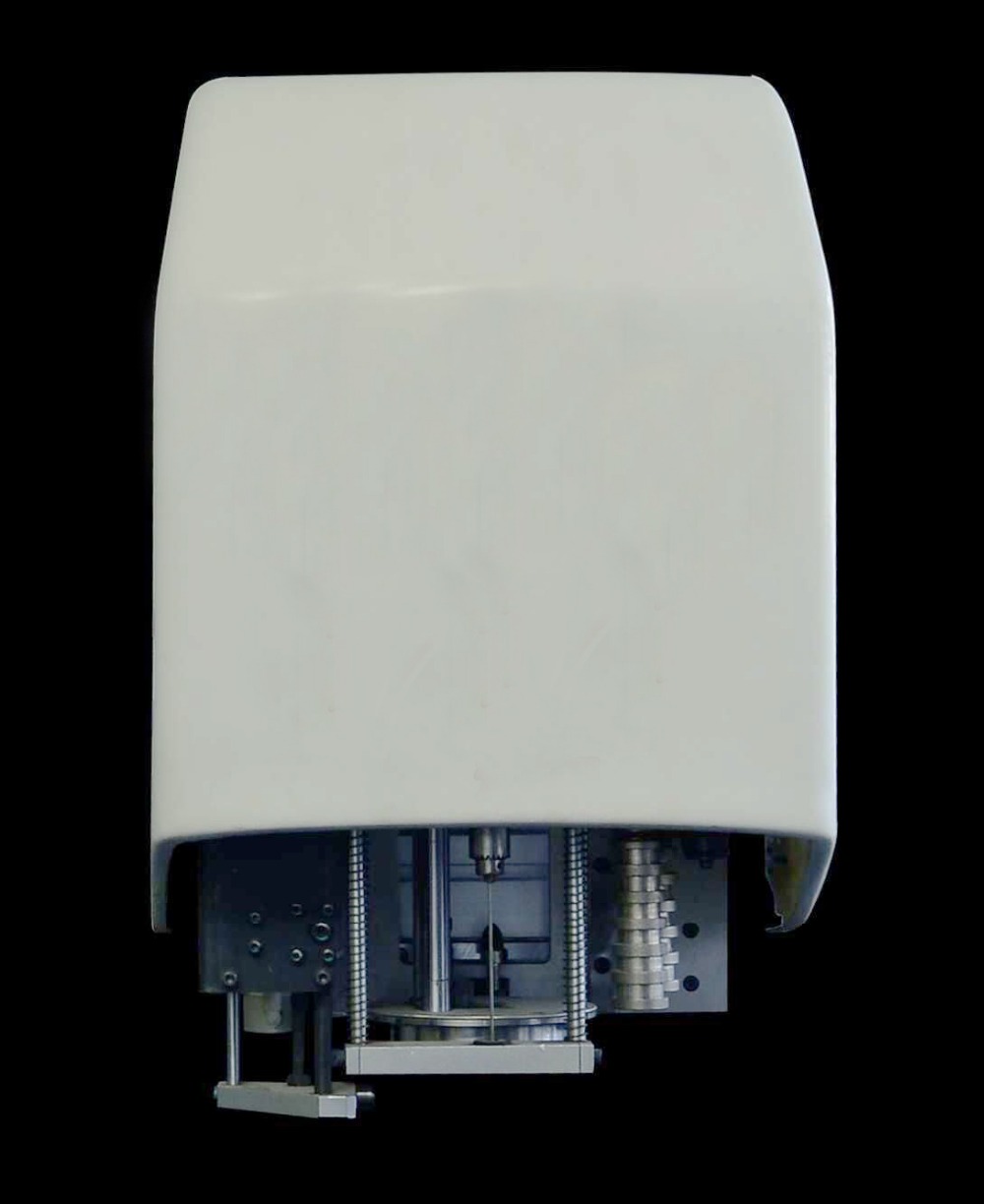

Drive the rotary knife:
Outstanding advantages:
Creating the latest automatic cutter is mainly designed for composite fabrics, and adopts European and American design concepts. After absorption, the maximum cutting thickness can reach 75mm, and the general cutting length is 2000mm
1. Computer design, automatic typesetting, saving original materials
2. Computer-controlled automatic cutting, saving manpower, mass production
3. Support a variety of formats, directly open the general clothing design format, typesetting software
4. Unique algorithm and motion control technology to achieve seamless connection between straight line and arc
5. High cutting precision, self-designed automatic sharp pen knife, high-quality knife, longer life
6. No need to print, save typesetting, high reuse rate, convenient plate making management
7. The replacement of spare parts is convenient and the cost is lower
8. High degree of automation and simple operation
Targeted market:
Apparel and upholstery industry. It serves small batch production with high volume demand.
Automatic Garment Fabric Cutting Machine for Garment
clothing
suitcase
car seat
house cover
Material:
Woven and non-woven apparel and home textiles.
sample:
Bale:
1. Whole film packaging machine.
2. Anti-collision edging.
3. Wooden case packing.
Shipping:
Within 30 working days after paying the deposit
Welcome to contact us!
We will serve you wholeheartedly!
