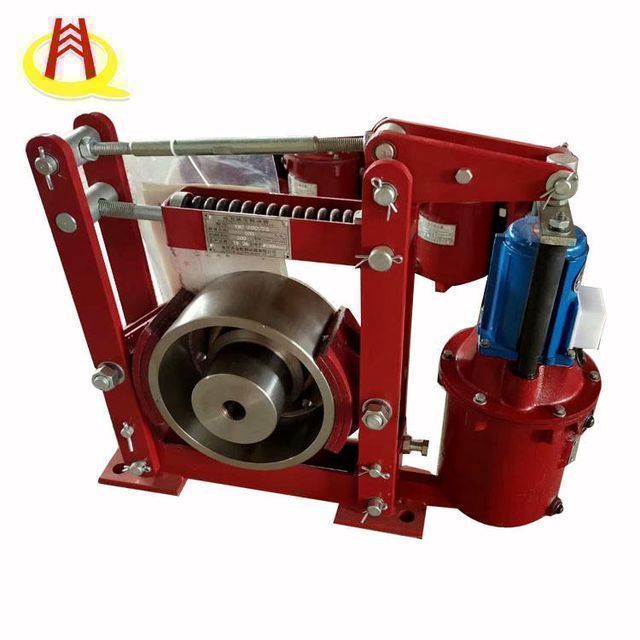

Industrial Braking Crane Electric Drum Brake Winches Using Electrohydraulic Brakes
- $100.00 /set
- 1 set
- Henan Hongqi Lifting Machinery Co., Ltd.
- Henan, China
- Mr Jake
| Supply capacity: | 500 sets per month | Weight (kg): | 80 |
| Video shipment inspection: | if | Health status: | new |
| Core component warranty: | 1 year | Marketing Type: | normal product |
| Packaging Details: | Industrial brake crane electric drum brake winch uses electro-hydraulic brakes, packing standard: wooden box or according to customer requirements. | payment terms: | L/C, Western Union, T/T, MoneyGram |
| Core components: | PLC, engine, gearbox, motor, gear | application: | Building materials store, mechanical repair shop, construction |
| Operating Responsibilities: | Intermittent (S3-40%.900/h) and continuous (S1) | Package preview: | |
| place of origin; place of origin: | Henan, China | Mechanical test report: | if |
| Voltage: | 380.400(440.460)V | strength: | AC 3 phase 50(60)Hz |
| Applicable industries: | Building materials stores, machinery repair shops, restaurants, print shops, construction, energy and mining | Showroom location: | United States, Germany, Vietnam, Philippines, Brazil, Indonesia, Mexico, Bangladesh, South Africa, Japan, Malaysia |
| Price Description: | Valid for 30 days | Pot material: | aluminum |
| type: | drum brake | Warranty: | 1.5 years |
| color: | customer request | brand: | red flag |
| port: | Tianjin/Qingdao/Shanghai | Applications: | Winches, cranes, etc. |
| product name: | Crane Electric Drum Brake Winch Using Electrohydraulic Brake |
Industrial Braking Crane Electric Drum Brake Winches Using Electrohydraulic Brakes
A brake is a device that has the function of decelerating, stopping or keeping a moving part (or moving machinery) in a stopped state. It is a mechanical part that stops or slows down moving parts in a machine.
Widely used in lifting, metallurgy, mining, ports, docks, construction machinery and other industries. It has the characteristics of safety and reliability, smooth braking and high frequency of action, and no lubrication is required during use.
Operating conditions:
1. Ambient temperature: -25~+40℃.
2. Relative humidity: ≤90%.
3. Power supply: AC three-phase 50 (60) Hz.
4. Voltage: 380.400(440.460)V
5. Working system: intermittent (S3-40%.900/h) and continuous (S1)
technical parameter:

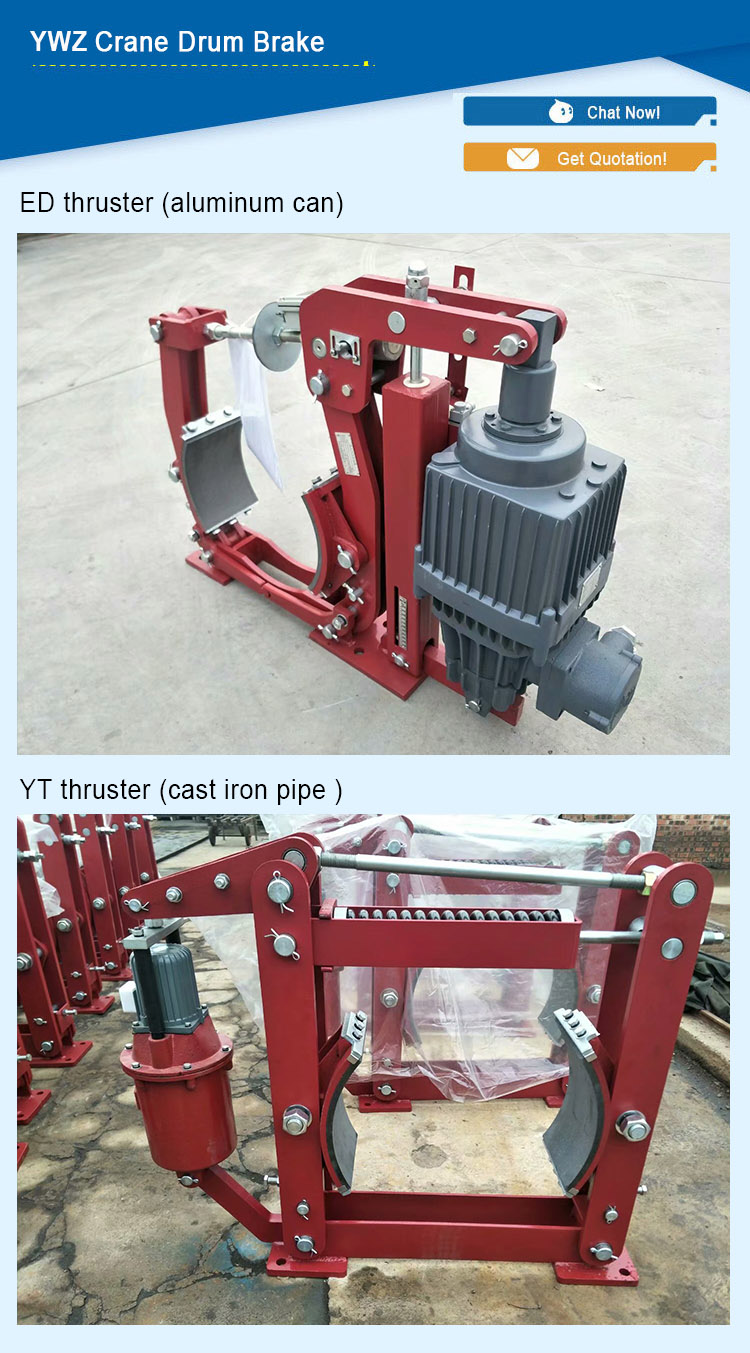

YWZ5 series equipped with aluminum tank Ed propeller
YWZB series with cast iron pipe YT thruster
|
YWZ8 series |
||||||
|
brake type |
adaptation propeller type |
adaptation brake wheel |
Torque (Nm) |
Rated voltage (V) |
maximum. Working frequency (c/h) |
Weight (kg) |
|
YWZ-100/18 |
YT-18ZB/2 |
Φ100 |
40 |
380 |
2000 |
25 |
|
YWZ-150/25 |
YT-25ZB/4 |
Φ150 |
100 |
380 |
2000 |
33 |
|
YWZ-200/25 |
YT-25ZB/4 |
φ200 |
200 |
380 |
2000 |
42 |
|
YWZ-300/25 |
YT-25ZC/4 |
Φ300 |
320 |
380 |
2000 |
73 |
|
YWZ-300/45 |
YT-45Z/5 |
Φ300 |
630 |
380 |
2000 |
80 |
|
YWZ-400/45 |
YT-45Z/6 |
Φ400 |
1000 |
380 |
2000 |
130 |
|
YWZ-400/90 |
YT-90Z/8 |
Φ400 |
1600 |
380 |
2000 |
160 |
|
YWZ-400/125 |
YT-125Z/10 |
Φ400 |
2200 |
380 |
2000 |
167 |
|
YWZ-500/90 |
YT-90Z/8 |
Φ500 |
2500 |
380 |
1500 |
210 |
|
YWZ-500/125 |
YT-125Z/10 |
Φ500 |
2650 |
380 |
1500 |
220 |
|
YWZ-500/180 |
YT-180Z/10 |
Φ500 |
3000 |
380 |
1500 |
235 |
|
YWZ-600/90 |
YT-90Z/8 |
Φ600 |
3200 |
380 |
1200 |
400 |
|
YWZ-600/180 |
YT-180Z/12 |
Φ600 |
5000 |
380 |
1200 |
430 |
|
YWZ-700/180 |
YT-180Z/12 |
Φ700 |
8000 |
380 |
1000 |
500 |
|
YWZ-800/180 |
YT-180Z/12 |
Φ800 |
10000 |
380 |
1000 |
720 |
|
YWZ-800/320 |
YT-320Z/12 |
Φ800 |
12500 |
380 |
1000 |
885 |
|
YWZ5 series |
||||||
|
brake type |
adaptation propeller type |
adaptation brake wheel |
Torque (Nm) |
Rated voltage (V) |
maximum. Working frequency (c/h) |
Weight (kg) |
|
YWZ5-200/E23 |
Ed23/5 |
φ200 |
112-224 |
380 |
2000 |
27 |
|
YWZ5-200/E30 |
Ed30/5 |
φ200 |
140-315 |
380 |
2000 |
30 |
|
YWZ5-250/E30 |
Ed30/5 |
φ250 |
180-315 |
380 |
2000 |
38 |
|
YWZ5-250/E50 |
Ed50/6 |
φ250 |
315-500 |
380 |
2000 |
40 |
|
YWZ5-315/E30 |
Ed30/6 |
φ315 |
250-400 |
380 |
2000 |
50 |
|
YWZ5-315/E50 |
Ed50/6 |
φ315 |
400-630 |
380 |
2000 |
60 |
|
YWZ5-315/E80 |
Ed80/6 |
φ315 |
630-1000 |
380 |
2000 |
62 |
|
YWZ5-400/E50 |
Ed50/6 |
φ400 |
400-800 |
380 |
2000 |
75 |
|
YWZ5-400/E80 |
Ed80/5 |
φ400 |
630-1250 |
380 |
2000 |
78 |
|
YWZ5-400/E121 |
Ed121/6 |
φ400 |
1000-2000 |
380 |
1500 |
Post-90s |
|
YWZ5-500/E80 |
Ed80/6 |
φ500 |
800-1400 |
380 |
2000 |
120 |
|
YWZ5-500/E121 |
Ed121/5 |
φ500 |
1120-2240 |
380 |
1500 |
128 |
|
YWZ5-500/E201 |
Ed201/6 |
φ500 |
2000-3600 |
380 |
1500 |
132 |
|
YWZ5-630/E121 |
Ed121/6 |
φ630 |
1800-2800 |
380 |
1200 |
180 |
|
YWZ5-630/E201 |
Ed201/6 |
φ630 |
2500-4000 |
380 |
1200 |
182 |
|
YWZ5-630/E301 |
Ed301/6 |
φ630 |
4000-6300 |
380 |
1200 |
190 |
Want to know more, click here!

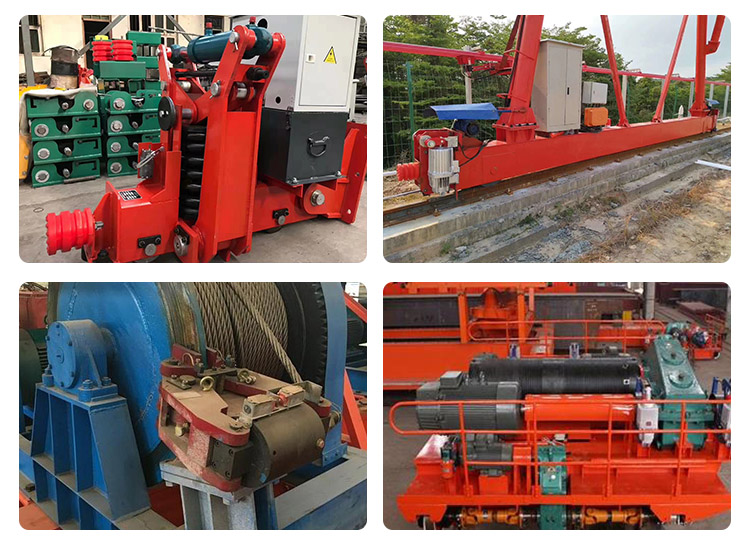

application:
