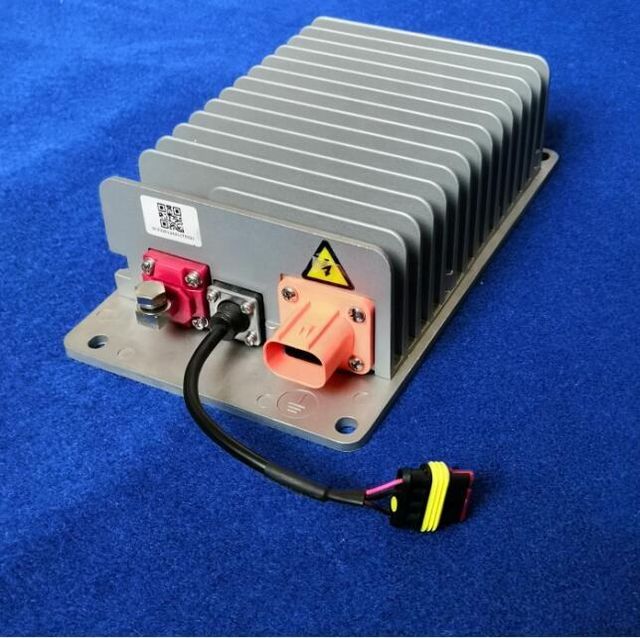

Isolated DC DC converter 320V to 12v 1kw
- $239.00 /piece
- 1 piece
- Qingdao Greatway Technology Co., Ltd.
- Shandong, China
- Ms Angela Zhang
| model: | TDC-IY-320-12 | Supply capacity: | 10000 pieces per month |
| port: | Qingdao | cooling method: | Free cooling |
| payment terms: | Western Union, T/T, MoneyGram | Input voltage range: | 206vdc-454vdc |

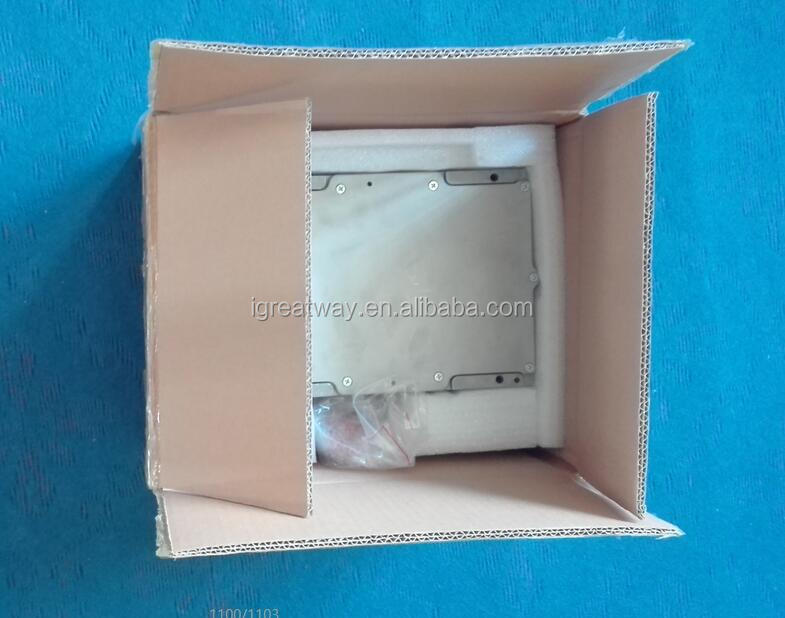

| Packaging Details: | carton | Protection class: | IP67 |
| Output current: | 72A | place of origin; place of origin: | China |
| The output voltage: | 14v ±0.2v | Gaussian weight: | 3 kg |
| Configuration: | CAN5100 | Maximum power: | 1200w |
| rated power: | 1000w |
describe
12V/24V power supply for low voltage applications in electric vehicles
The output terminal can be directly connected to 12V/24V backup battery pack
Automatically manages the charging process of the backup battery
Fully sealed potting can be waterproof and dustproof
Temperature and Vibration Resistance
1000W IP67 sealed DC-DC converters can be paralleled, but the output wires must be the same length until the battery or load is separated. Do not connect the "big" output negative and positive together, then connect the thick 2 AWG cable to the load. Instead, connect two separate sets of smaller 6 AWG cables to the load and the output currents should remain very close to equal.
Output voltage and current: 13.8V±1%, 72A
Full load efficiency: ≥92%
Voltage regulation: 1%
Voltage regulation accuracy: ≤1%
Steady flow accuracy: ≤2%
EMC: Comply with GB/T 18655-2002
Working temperature: - 40℃~60℃
Storage temperature: - 40℃~105℃
Control: CAN or Enable
Protection: output overvoltage, output low voltage, short circuit, reverse input polarity, over temperature, communication error
Dimensions: 278(L)x116(W)x74(H) (natural cooling)
Net weight: 2.5kg
