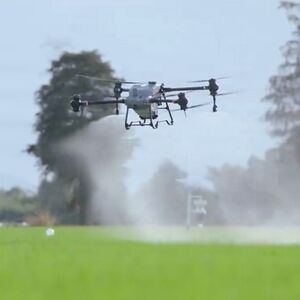

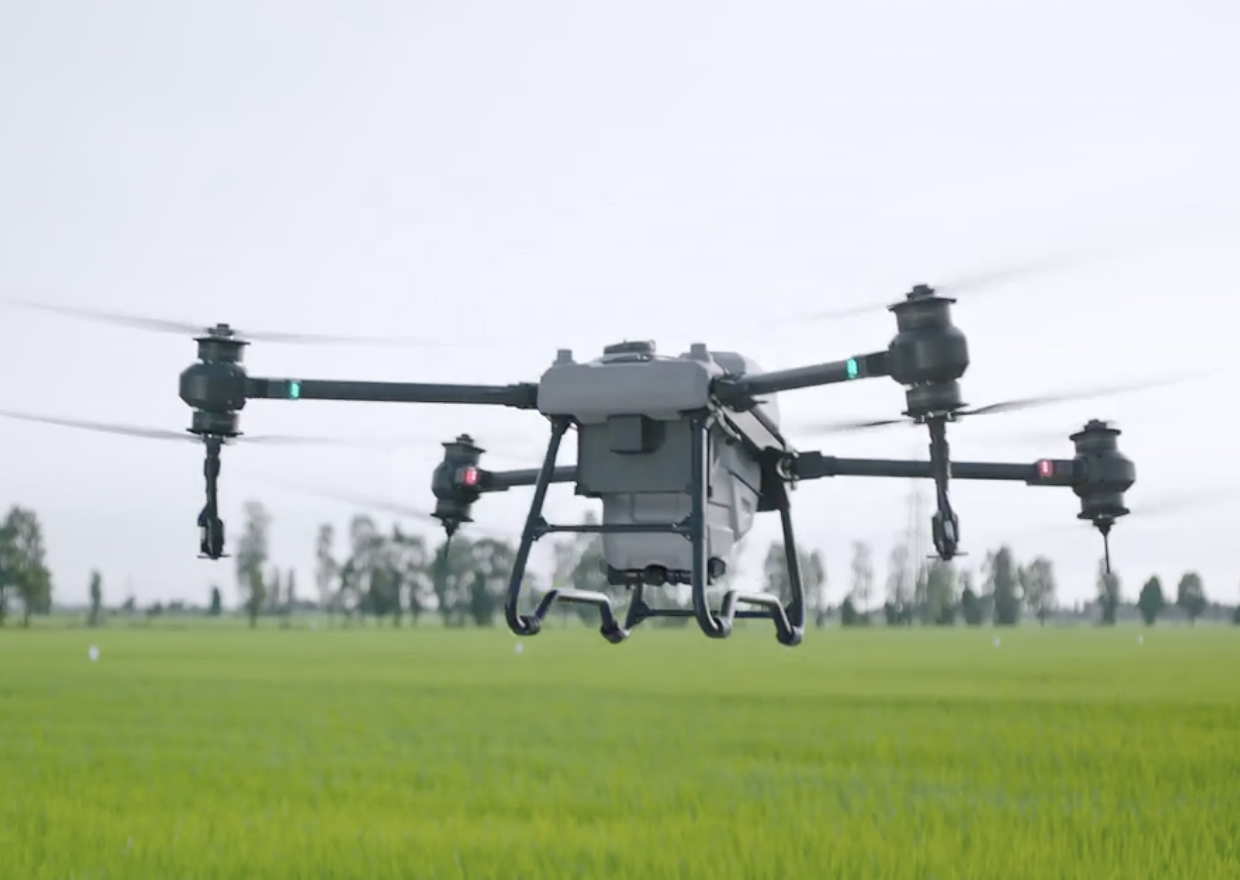

JC Agras T40 40L Chemical Spraying APAR Agricultural Drone with Binocular Vision Agriculture Drone Sprayer
- $12699.00 / 1 - 4 pieces
$12299.00 / >=5 pieces - 1 piece
- Shenzhen Join Coin Trading Co., Ltd
- Guangdong, China
- Ms Lily Cai
PRODUCT DETAIL
| payment terms: | Wire transfer, Alipay | place of origin; place of origin: | Guangdong, China |
| net weight: | 38kg | Applies to: | Agras T40 |
| usage: | Agricultural pesticide spraying drone | model: | JC-AD-40001D |
| Packaging Details: | Carton and Wooden Box | Material: | carbon |
| Expand Size: | 112CM*75CM*85CM | capacity: | 40L, 40000 ml |
| application: | heavy agricultural drone | Key words: | Agricultural drone sprayer |
| Version: | Global version | Maximum takeoff weight: | 101KG |
| Function: | One-key take-off/landing, with camera, with remote control, with LED light | battery capacity: | 30000 mA |
| type: | agricultural use |
Product parameters
title | Agras T40 |
place of origin; place of origin | China |
Total weight (excluding batteries) | 38kg |
maximum takeoff weight | 50kg |
Hover Endurance | 18 minutes (@30,000 mAh & takeoff weight 50 kg) 7 minutes (@30,000 mAh and 90 kg take-off weight with full canister) 6 minutes (@30,000 mAh and 101kg full tank takeoff weight) |
maximum operating speed | 6 m/s |
The maximum diagonal wheelbase of the fuselage | 2,000 mm |
Dimensions | 2800mm × 3150mm × 780mm (arm and blade unfolded) 1590mm × 1930mm × 780mm (arms unfolded, blades folded) 1125mm × 750mm × 850mm (with arms folded) |
Propulsion system KV | Motor 48 rpm/v |
propeller diameter | 54 inches |
Sprinkler System - Water Pump | magnetic pump |
Spray tank volume | Full: 40 liters |
Max T30 Spreading System 3.0 Weight | 50kg |
Spreader volume | 40L |
Nozzle model | LX8060SZ (standard) |
T30 Intelligent Flight Battery | BAX501-30,000mAh-52.2V |
battery weight | 12 kg (approximately) |
Capacity/Voltage | 30000mAh/52.2V |
Omnidirectional obstacle avoidance radar | RD2484R/IP67 |
rear view radar | RD2484B/IP67 |
Remote control type | RM700, support T40, T20P |
Remote positioning | * GPS+Galileo+Beidou |
Remote control display | 7.02-inch screen, resolution 1920×1200, brightness 1200 cd/m² |
T30 Intelligent Flight Battery Charger | 9000W fast battery charging station, fully charged in 9~12 minutes |

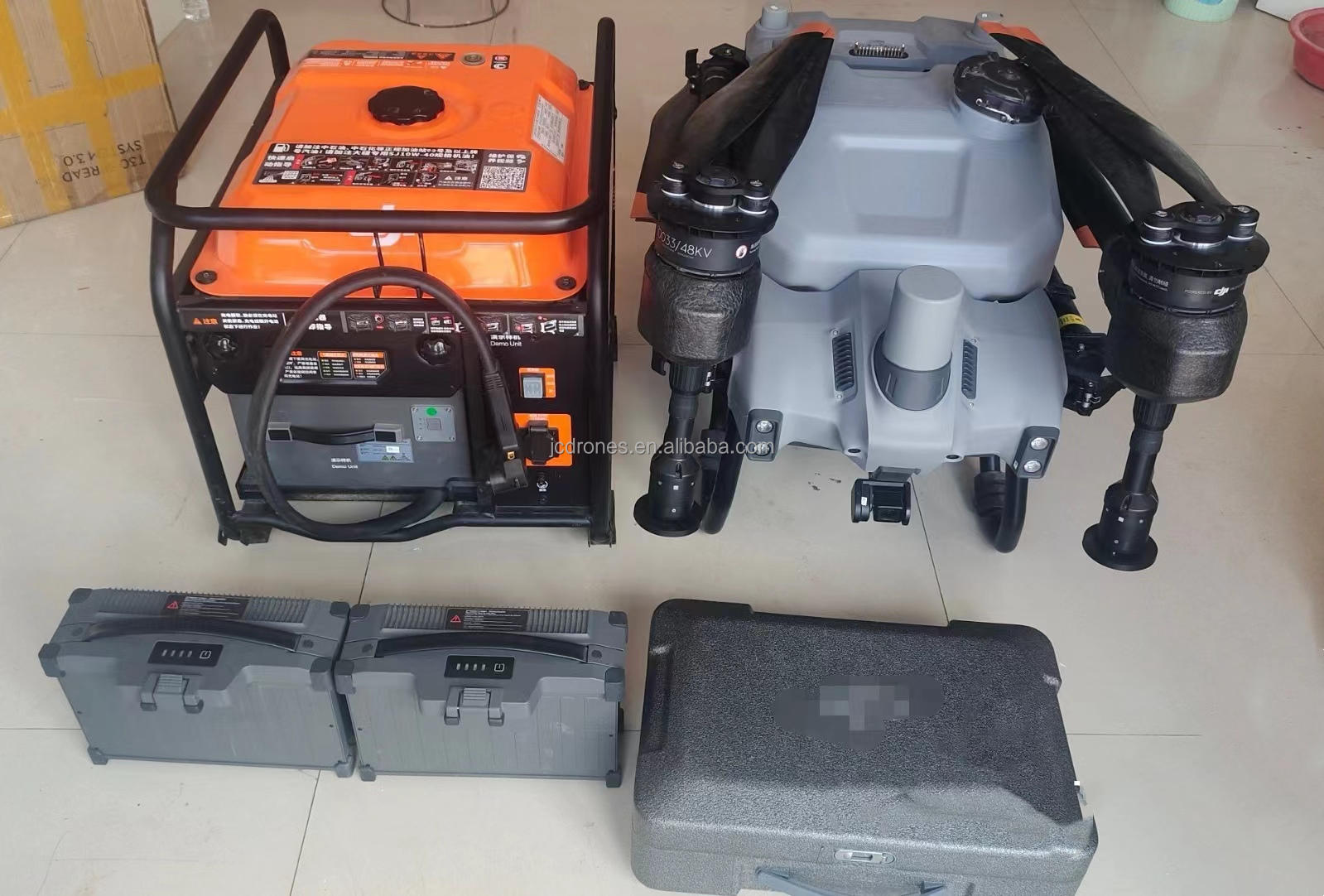

D12000iE Gasoline Generator | 9~12 minutes to fully charge T40 battery |
Shenzhen Zhongbi Trading Co., Ltd. has always focused on consumer electronic products. Our goal is to provide the best and Provide professional services to clients around the world. When you choose to work with us, you choose to align with intelligence, automation, convenience, and efficiency. We have a professional and efficient team that can provide our good and safe sales, as well as our expertise. Make our cooperation more professional, more efficient and easier. Welcome |
1. What is the ordering process? 1) Inquiry --- Provide us with all clear requirements (total quantity and packing details). 2) Quotes - official quotes from our professional team for all clear specifications. 3) Mark the sample---confirm all quotation details and final sample. 4) Production---mass production. 5) By sea---by sea or by air. 2. What payment terms do you use? As for the payment terms, it depends on the total amount. 3. How do you ship the product? Sea, Air, Express, TNT, DHL, Fedex, UPS, etc. It's up to you. 4. What is the average delivery time? Samples usually take around 10-20 days, depending on the product type. Large orders usually take about 35 days. 5. How do I get the wholesaler's price list? Please email us and tell us your market and the MOQ per order. We will send you a competitive price list as soon as possible. "
