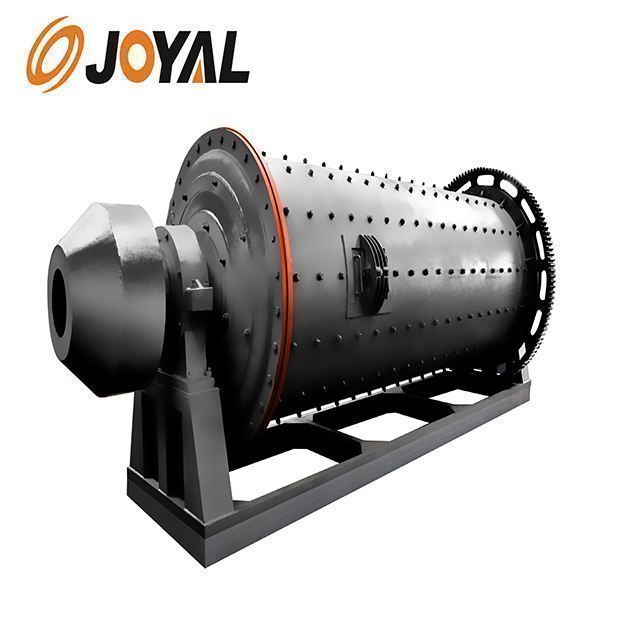

Joyal high quality ball mill for iron ore grinding/gold mining machinery
- $1000.00 /set
- 1 set
- Shanghai Joyal Machinery Co., Ltd.
- Shanghai, China
- Ms Blair Song
| application: | mining, stone, quarry, construction | After-sales service: | entire service life |
| price: | negotiation | type: | ball mill |
| place of origin; place of origin: | China | Video shipment inspection: | if |
| port: | Shanghai, Qingdao, Tianjin, Ningbo | brand: | Joyal |

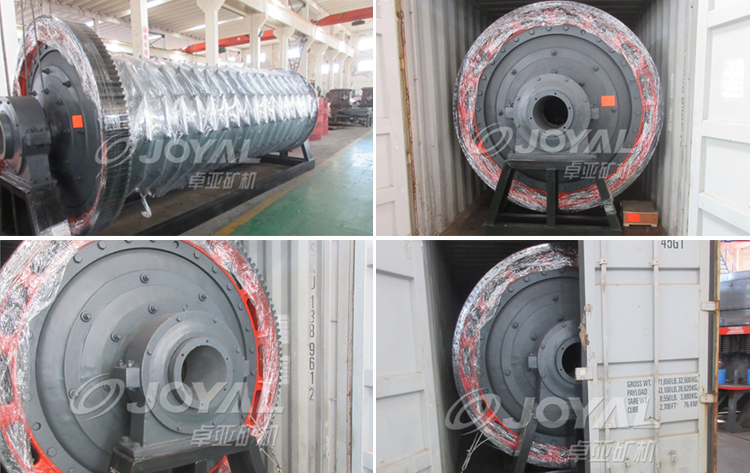

| Health status: | new | Packaging Details: | Export standard, naked, or according to customer requirements |
| maintain: | easy and convenient | Spare parts supply: | entire service life |
| Showroom location: | not any | Applicable industries: | Construction Engineering, Energy and Mining |
| Mechanical test report: | if | Supply capacity: | 100 sets per month |
| Capacity(t/h): | 0.65-82 | weight: | 4.6 kg |
| Dimensions (L*W*H): | depends on type | payment terms: | letter of credit |
| Quality Control Center: | ISO9001:2008 | Install: | assigned as engineer |
| Warranty: | 1 year | Marketing Type: | 2019 Hot Products |
| After-sales service provided: | Engineers available to service machinery overseas | Exporting country: | Eastern Europe, Middle East, Africa, South Asia, Oceania |
| Core component warranty: | over 5 years | Core components: | motor |
| Motor type: | AC motor | Warranty: | 1 year |
ball millIt is the key equipment for secondary grinding after crushing. And it is suitable for grinding all kinds of ores and other materials, whether it is wet grinding or dry grinding. In addition, it is mainly used in ferrous and non-ferrous metal mines, building materials, chemicals, electric power, coal, transportation, light industry and many other industries. In our company, this series of high-efficiency ball mills are supported by rolling bearings instead of sliding bearings with bearing pads. Therefore, it can save energy by 10-20%. According to different discharge methods, it can be divided into grate type and overflow type.

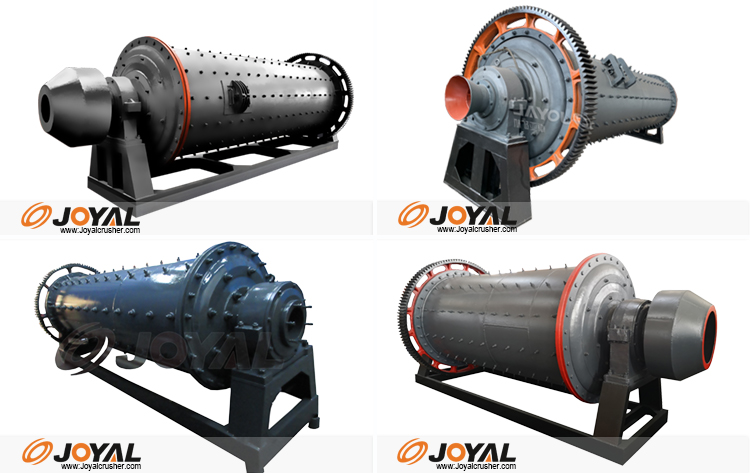

Joyal high quality ball mill for iron ore grinding/gold mining machinery
Features of Joyal Premium Ball Mill Iron Ore Grinding/Gold Mining Machinery
1. Wide application range, simple structure and convenient maintenance.
2. Large capacity, continuous work is very obvious.
3. The cylinder lining and grinding media can be used for various grinding materials.
4. Easy installation and adjustment, simple operation.
Working principle of Joyal high quality ball mill for iron ore grinding/gold mining machinery
Ball mills can be divided into grid type and overflow type according to different beneficiation methods, and this machine is a two-grid type ball mill.
When working, the material from the feeder evenly enters the first silo of the milling machine through the feeding hollow shaft. There are stepped or corrugated liners in the first warehouse, and steel balls of different specifications are installed in the warehouse. When the cylinder rotates, centrifugal force is generated to bring the steel balls to a certain height, and then the steel balls fall down to impact and grind the materials. After being initially ground in the first warehouse, the materials enter the second warehouse through the single-layer partition. There are liners and steel balls in the second warehouse for further grinding the materials. Finally, the powder is discharged from the discharge plate.
Technical Data of Joyal Premium Ball Mill for Iron Ore Grinding/Gold Mining Machinery
| Model | Cylinder speed(r/min) | Ball weight (t) | Input size (mm) | Discharge diameter (mm) | Capacity (t/h) | Motor power (kw) | Weight (tons) |
| 900×1800 | 39 | 1.5 | ≤20 | 0.075-0.89 | 0.8-2 | 18.5 | 4.6 |
| 900×3000 | 39 | 2.7 | ≤20 | 0.075-0.89 | 1-4 | twenty two | 5.6 |
| 1200×3000 | 36 | 3.5 | ≤25 | 0.074-0.4 | 1.6-5 | 37 | 12.8 |
| 1200×4500 | 32 | 5 | ≤25 | 0.074-0.4 | 1.6-5.8 | 55 | 13.8 |
| 1500×3000 | 27 | 7.5 | ≤25 | 0.074-0.4 | 2-5 | 75 | 15.6 |
| 1500×5700 | 28 | 12 | ≤25 | 0.074-0.4 | 3.5-6 | 130 | 24.7 |
| 1830×3000 | 25 | 11 | ≤25 | 0.074-0.4 | 4-10 | 130 | 28 |
| 1830×6400 | twenty four | twenty one | ≤25 | 0.074-0.4 | 7-16 | 210 | 34 |
| 1830×7000 | twenty four | twenty three | ≤25 | 0.074-0.4 | 8-18 | 245 | 36 |
| 2100×3600 | twenty three | 19 | ≤25 | 0.074-0.4 | 10-36 | 210 | 46 |
| 2200×4500 | twenty one | 27 | ≤25 | 0.074-0.4 | 12-23 | 280 | 48.5 |
| 2200×6500 | twenty one | 35 | ≤25 | 0.074-0.4 | 14-26 | 380 | 52.8 |
| 2200×7000 | twenty one | 35 | ≤25 | 0.074-0.4 | 15-28 | 380 | 54 |
| 2200×7500 | twenty one | 35 | ≤25 | 0.074-0.4 | 15-30 | 380 | 56 |
| 2400×4500 | twenty one | 30 | ≤25 | 0.074-0.4 | 18-45 years old | 320 | 65 |
| 2400×8000 | 20 | 36 | ≤25 | 0.074-0.4 | 20-48 | 410 | 81 |
| 2700×3600 | twenty one | 39 | ≤25 | 0.074-0.4 | 19-75 years old | 400 | 83 |
| 2700×4000 | 20 | 40 | ≤25 | 0.074-0.4 | 20-78 | 400 | 85 |
| 2700×4500 | 20 | 48 years old | ≤25 | 0.074-0.4 | 22-85 | 430 | 89 |
| 3200×4500 | 18 | 65 | ≤25 | 0.074-0.4 | 29-140 | 800 | 137 |
| 3200×5400 | 18 | 81.6 | ≤25 | 0.074-0.4 | 30-180 | 800-1000 | 146 |
| 3600×4500 | 17 | 88 | ≤25 | 0.074-0.4 | 35-210 | 1000 | 190 |
| 3600×6000 | 17 | 117 | ≤25 | 0.074-0.4 | 38-240 | 1250-1500 | 220 |
| 3600×8500 | 17 | 144 | ≤25 | 0.074-0.4 | 45-260 | 1800 | 260 |
Pre-sales service, we do
Be a good consultant and assistant to customers; enable them to obtain rich returns on investment;
1. Select the device model;
2. Design and manufacture products according to the special requirements of customers;
3. Train technicians for customers.
In-sale service, we do
Respect customers; Committed to enhancing the overall value of customers.
1. Pre-acceptance of products before delivery;
2. Help clients draft solutions.
After-sales service, we do
Provide thoughtful service to minimize customers' worries.
1. Assist customers to prepare the first phase construction plan;
2. Equipment installation and debugging;
3. On-site training for front-line operators;
4. Regularly check the equipment;
5. Actively and quickly troubleshoot on site;
6. Door-to-door delivery of warranty accessories;
7. Provide comprehensive services;
8. Provide technical exchanges;
9. Provide large maintenance.

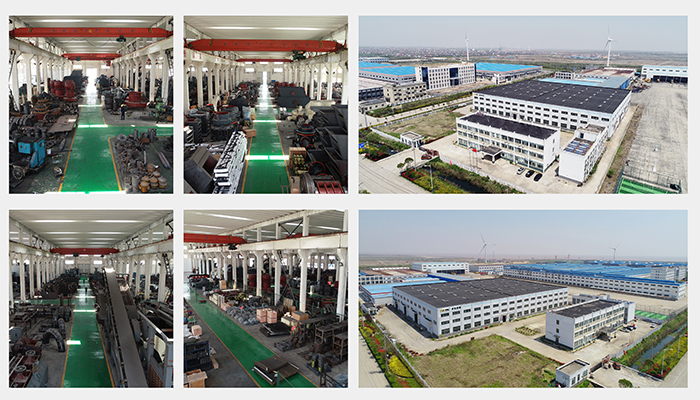

Shanghai Zhuoyue Machinery Co., Ltd. is a high-tech enterprise specializing in the research, development and manufacture of industrial stone crushing and screening equipment, milling machines, and mining equipment. Our company has formed a complete set of modern production lines, equipped with intelligent and standardized testing and control laboratories, and has a professional team integrating R&D, production, sales and service.
