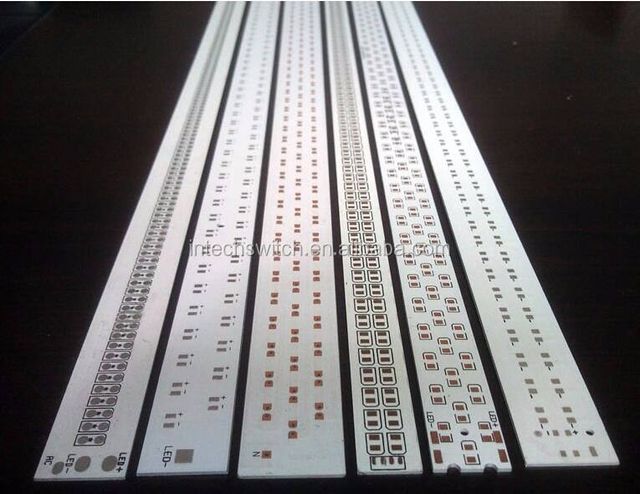

LED light strip PCB custom good quality
- $0.10 /piece
- 1 piece
- Shenzhen Intech Electronic Technology Limited
- Guangdong, China
- Mr FOX Fan
PRODUCT DETAIL
| product name: | LED light strip PCB custom good quality | Plate type: | boring |
| minute. Line spacing: | 3 million | Silkscreen Color: | According to customer requirements |
| payment terms: | Western Union, T/T, MoneyGram, Paypal | Surface treatment: | HASL Lead Free, Imm Au, Imm Ag |
| Packaging Details: | Bare board vacuum packing, external standard carton for shipping of LED strip pcb | Substrate: | aluminum base |
| Surface treatment: | HASL leed free,Imm Au,Imm | Material: | aluminum base |
| minute. Hole size: | 0.15mm | minute. Line width: | 3000000 |
| Copper Thickness: | 0.5-4 oz | Layers: | 1-4 floors |
| place of origin; place of origin: | Guangdong, China | Certificate: | ISO/TS16949/RoHS/TS16949 |
| Supply capacity: | 35,000 square meters per month | brand: | Technology |
| Maximum board size: | 700*1200mm | application: | Electronic equipment |
| Plate thickness: | 0.4mm-7.0mm | model: | intech-Alu-013 |
| port: | Shenzhen or Hong Kong | Solder Mask Color: | According to customer requirements |
| type: | Rigid circuit board |
LED light strip PCB custom good quality

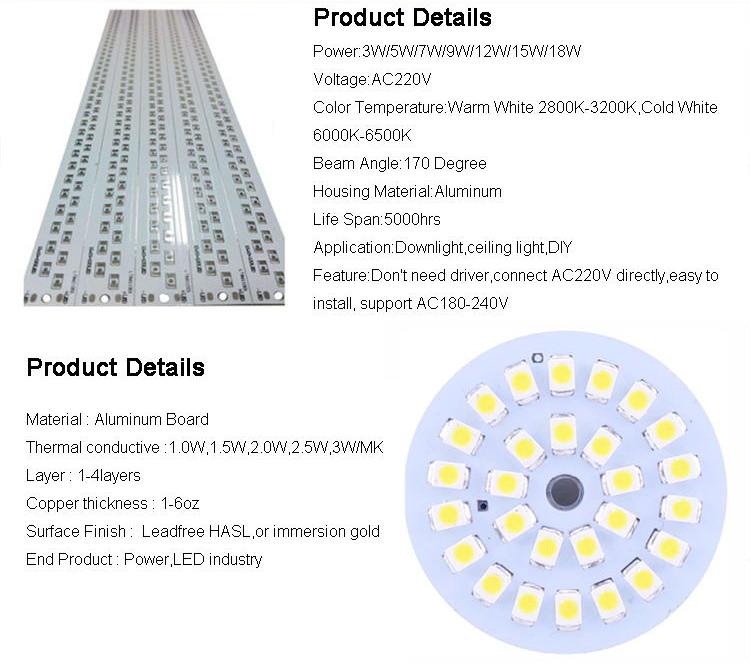

Product Description
| Aluminum PCB Capability | |||||
| thing | technical parameter | Specification | |||
| layer | 1-4 floors | ___ | |||
| plate thickness | 0.4mm-7.0mm | ___ | |||
| Minimum line width/spacing | 4 million/4 million | ___ | |||
| Minimum aperture | power drilling | 0.1mm | ___ | ||
| laser hole | 0.075mm | ___ | |||
| maximum aspect ratio | 16:01 | ___ | |||
| Minimum punch square slot size | 0.8*0.8mm | ___ | |||
| Maximum board size | 1100*610mm | ___ | |||
| Minimum board size | 5*5mm | ___ | |||
| copper thickness | 18-240um | ___ | |||
| PTH. inner layer copper thickness | 18-40um | ___ | |||
| tolerant | line width | ± 0.05mm | ___ | ||
| hole size | ± 0.05mm | ___ | |||
| hole location | ± 0.05mm | ___ | |||
| outline | CNC: ±0.1mm; Mould: ±0.75mm | ___ | |||
| plate thickness | ±0.05mm | ___ | |||
| V-CUT angle deviation | ±0.5° | ___ | |||
| plate | Aluminum base, copper base, iron base, ceramic base | ___ | |||
| surface treatment | HAL(with Pb free),Plated Ni/Au,Imm Ni/Au,Imm Tin,OSP | ___ | |||
| Solder mask | Mareal | Liquid photos can be imaged | ___ | ||
| mask window | 4000000 | ___ | |||
| mask bridge | 4000000 | ___ | |||
| color | White, black, blue, green, gray, etc. | ___ | |||
| legend | type | epoxy resin heat curing | ___ | ||
| Minimum line width | 6000000 | ___ | |||
| color | White, black, yellow, etc. | ___ | |||
| Impedance control | ± 10% | ___ | |||

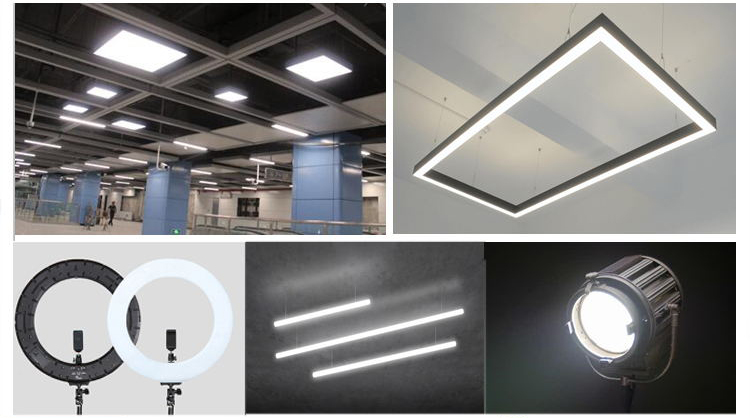

application

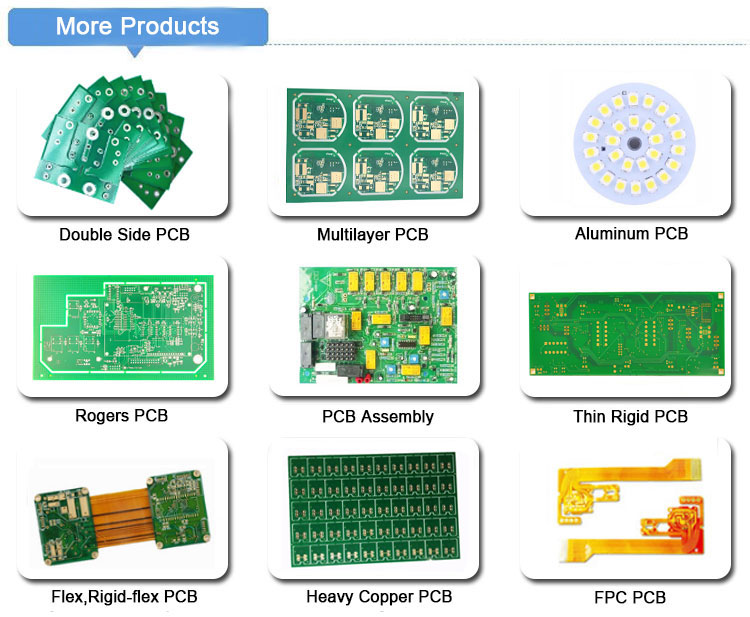

more products
